330907-05-30-10-02-00 Bently Nevada Proximity Probe

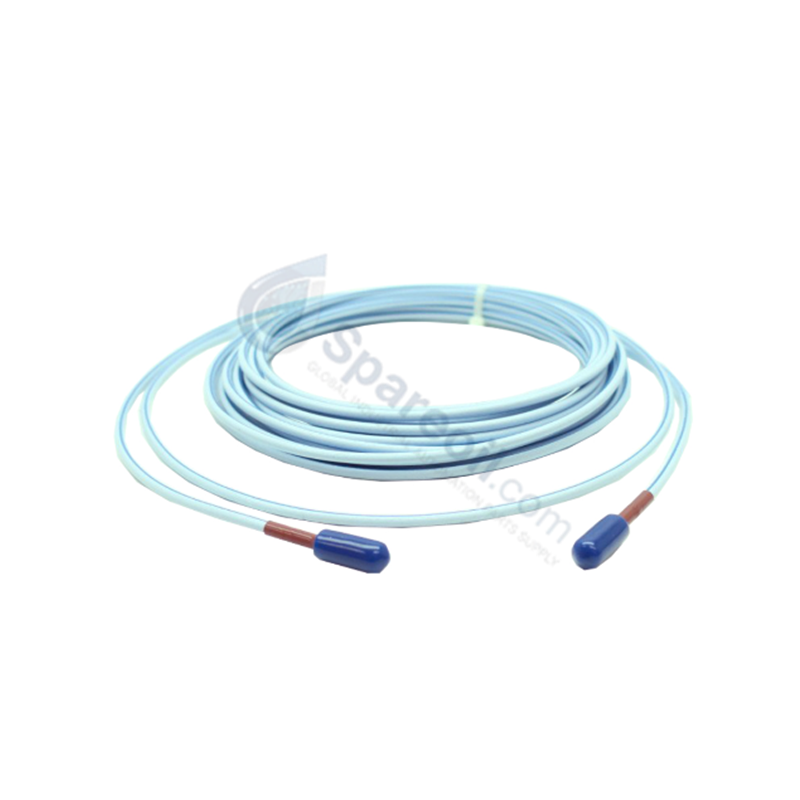

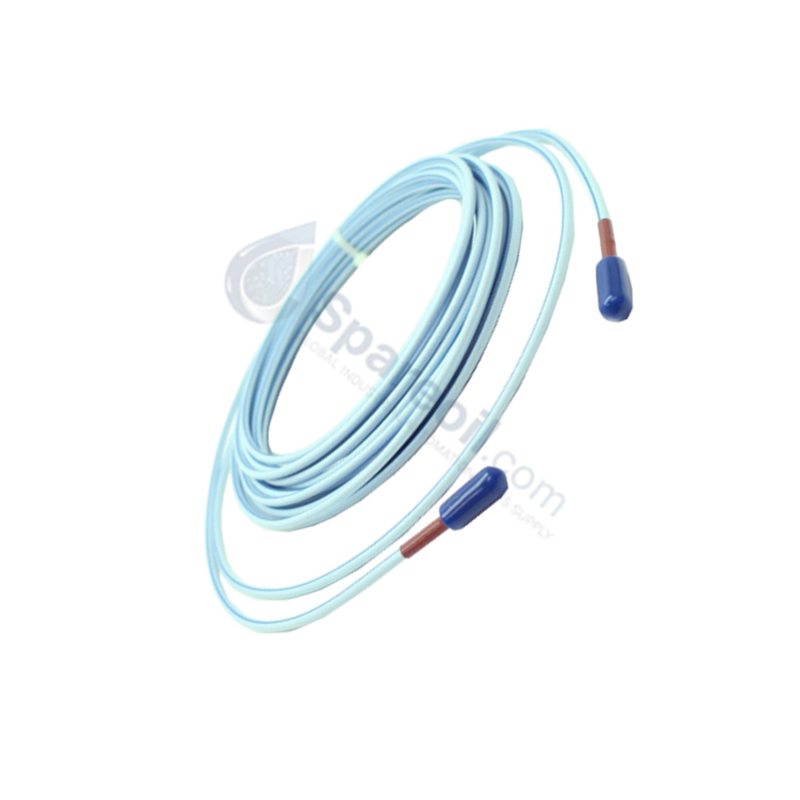

Bently Nevada 330907-05-30-10-02-00 3300 NSv Reverse Mount Probe

Bently Nevada 330907-05-30-10-02-00 3300 NSv Reverse Mount Probe

Availability: 10 left in stock

The Bently Nevada 330907-05-30-10-02-00, also cataloged as the 3300 NSv Reverse Mount Probe, operates as a dedicated hardware component for...

SKU: 330907-05-30-10-02-00

Manufacturer: Bently Nevada
Product No.: 330907-05-30-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330907-05-30-10-02-00, also cataloged as the 3300 NSv Reverse Mount Probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within machinery monitoring systems.

Suffix Breakdown & Model Matrix

The suffix options define the mechanical body dimensions, system length, cable connection style, and regulatory agency approvals:

330907: Base Model for 3300 NSv Reverse Mount Probe (M10 x 1 Thread)
05: Unthreaded Length option - 0.5 in
30: Overall Case Length option - 3.0 in
10: Total Length Option - 1.0 meter (39 in)
02: Connector Option - Miniature coaxial ClickLoc connector, standard cable
00: Agency Approval Option - Not required

Hardware Specifications

Parameter	Specification
Model	330907-05-30-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.014 to 0.15 kg (shipping weight: 1.0 kg)
Dimensions	M10 x 1 thread, 3.0 in overall case length
Operating Temp	-51 to 177 deg C (standard transducer operating envelope)
Power Consumption	Passive sensor powered via 3300 NSv Proximitor Sensor loop
Mechanical Interface	M10 x 1 metric reverse mount body
Unthreaded Length	0.5 in
Total Cable Length	1.0 meter (39 in)
Connector Type	Miniature coaxial ClickLoc connector
Agency Approvals	Option 00 (Not required)

Rotor Dynamics & Gap Voltage Validation

The 3300 NSv reverse mount probe uses eddy-current sensing to track microscopic changes in shaft distance without direct physical contact. The probe tip creates a localized high-frequency field tailored for narrow installation clearances where rotor dynamics observations are required. System commissioning relies on gap voltage validation across the Proximitor output terminals under non-rotating shaft conditions. Setting the physical mounting clearance to achieve a baseline target of -10 VDC places the sensor in the center of its linear voltage-to-displacement transfer curve. Maintaining minimum physical spacing between adjacent probe channels prevents cross-talk interference in compact bearing housings.

Frequently Asked Questions

Q: What structural purpose does the reverse mount thread design serve?

A: Reverse mount probe housings allow installation through internal tapped holes from inside a machine casing, permitting hardware replacement when external access to the probe mounting point is restricted.

Q: How is physical locking secured against machinery vibration?

A: A lock nut is threaded against the mounting bracket on the reverse side of the casing wall, preventing axial shift or rotation during operation.

Field Installation Guidelines

Mechanical Mounting: Thread the M10 x 1 reverse mount probe body into the internal mounting bracket from inside the machine housing.
Gap Voltage Alignment: Adjust the insertion distance while reading the Proximitor Sensor DC output until reaching the standard -10 VDC gap target voltage.
Connector Protection: Push the miniature coaxial ClickLoc connector onto the extension cable lead until fully latched, ensuring no oil or metal debris enters the junction.
Cable Routing: Route the 1.0-meter coaxial lead through dedicated protective conduit and secure with cable clamps to prevent insulation wear caused by moving internal parts.
