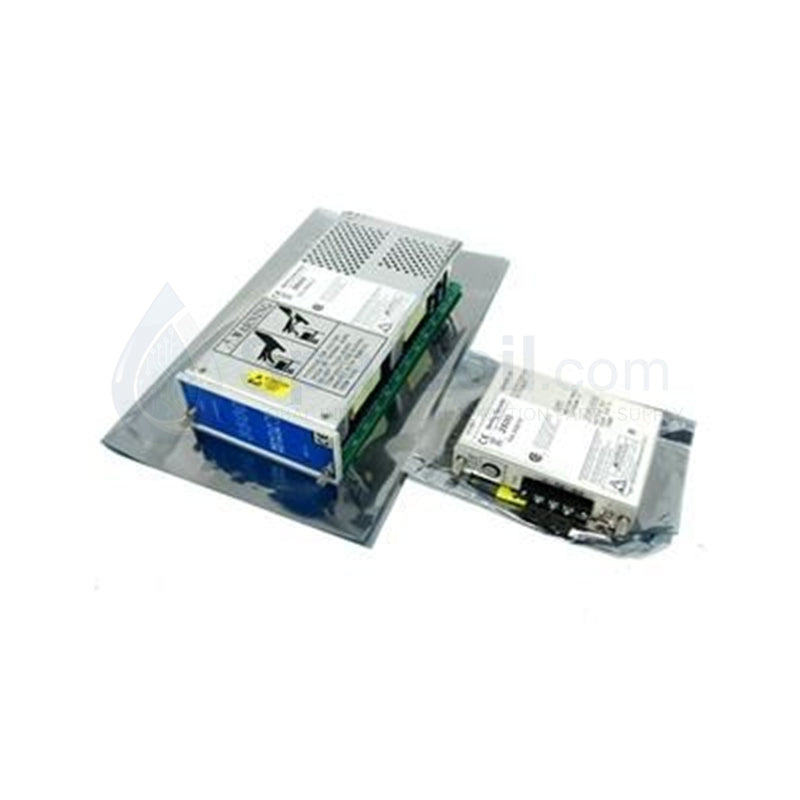

Bently Nevada 3500/15-05-05-00 3500/15 Power Supply Module

Availability: 10 left in stock

Bently Nevada 3500/15-05-05-00 3500 Series Power Supply Module The Bently Nevada 3500/15-05-05-00, also cataloged as the 3500/15 Dual AC Power...

SKU: 3500/15-05-05-05(106M1079-01+106M1081-01)

Manufacturer: Bently Nevada
Product No.: 3500/15-05-05-05(106M1079-01+106M1081-01)
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

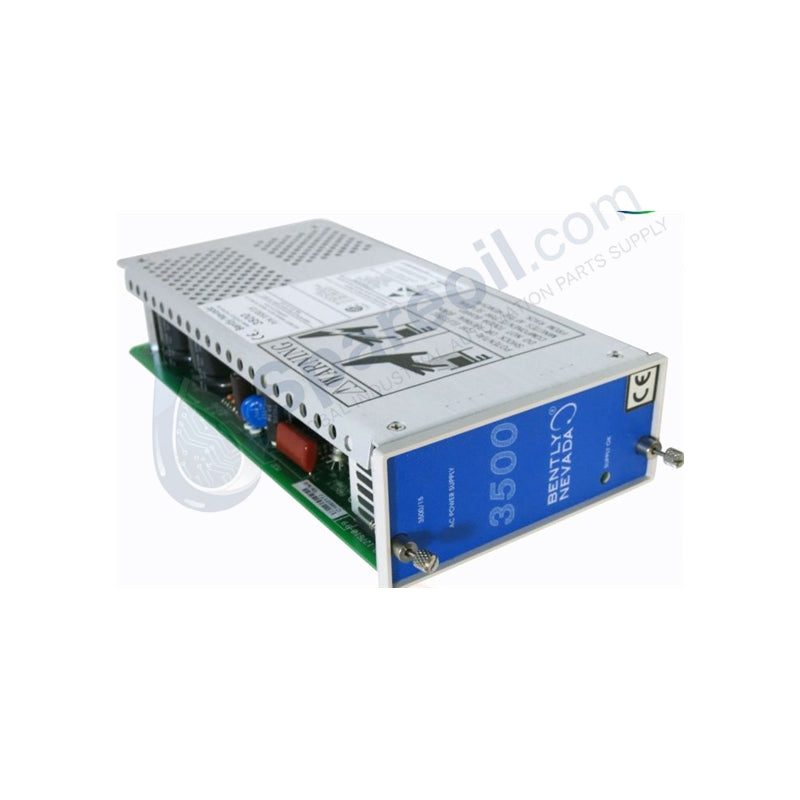

Bently Nevada 3500/15-05-05-00 3500 Series Power Supply Module

The Bently Nevada 3500/15-05-05-00, also cataloged as the 3500/15 Dual AC Power Supply, operates as a dedicated hardware component for converting universal alternating current into regulated internal direct current within 3500 Series Machinery Protection System networks.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada (Baker Hughes)
Configuration Code	05-05-00
Core Component	106M1079-01 (Power Supply Module)
Backplane Component	106M1081-01 (Input/Output Module)
Origin	USA
Weight	1.39 kg
Dimensions	12.07 cm x 5.08 cm x 25.15 cm
Operating Temp	-20 to +65 deg C
Storage Temp	-40 to +85 deg C
Input Voltage Range	85 to 264 VAC RMS
Nominal Input Voltage	110 VAC / 220 VAC
Input Frequency	47 to 63 Hz

Machinery Monitoring & Redundant Load Sharing

The module dictates localized electrical distribution across the rack backplane, converting utility-grade AC input to low-ripple DC rails for proximity, velocity, and acceleration monitoring cards. When integrated into a dual-supply configuration, the unit balances electrical execution through dynamic load sharing, reducing overall internal thermal dissipation profiles. High-frequency filtering suppression prevents voltage ripple from cross-coupling into adjacent slots, neutralizing potential eddy-current probe scaling drift or false gap voltage validation shifts caused by external AC line noise.

Frequently Asked Questions

Q: Does the 3500/15-05-05-00 support hot-swapping during active machinery protection? A: Yes, provided a second redundant power supply is installed, energized, and functional. The malfunctioning power supply module can be extracted from the left-hand slot without interrupting the protection logic, data collection, or relay outputs of the monitoring rack.

Q: How do the primary and secondary modules split the load during normal operations? A: When two modules are installed in a redundant setup, they automatically implement parallel active load sharing. Both units run concurrently to minimize thermal stress and extend individual components' operational lifespan.

Field Installation Guidelines

Install the 3500/15 power supply modules strictly within the designated leftmost positions of the 3500 rack chassis.
Seat the 106M1079-01 upper module firmly into its slot until the backplane multi-pin connector locks into the 106M1081-01 lower input/output section.
Fasten all front panel thumb screws by hand to lock the module housing against the chassis; do not overtighten to avoid fracturing the structural faceplate threads.
Route the AC input lines through a dedicated circuit breaker, ensuring that line, neutral, and earth ground wires match the structural markings on the rear terminal strip.
Maintain a clean, dust-free environment with at least 95% non-condensing relative humidity limits to prevent surface tracking on the high-voltage internal transformer pathways.
