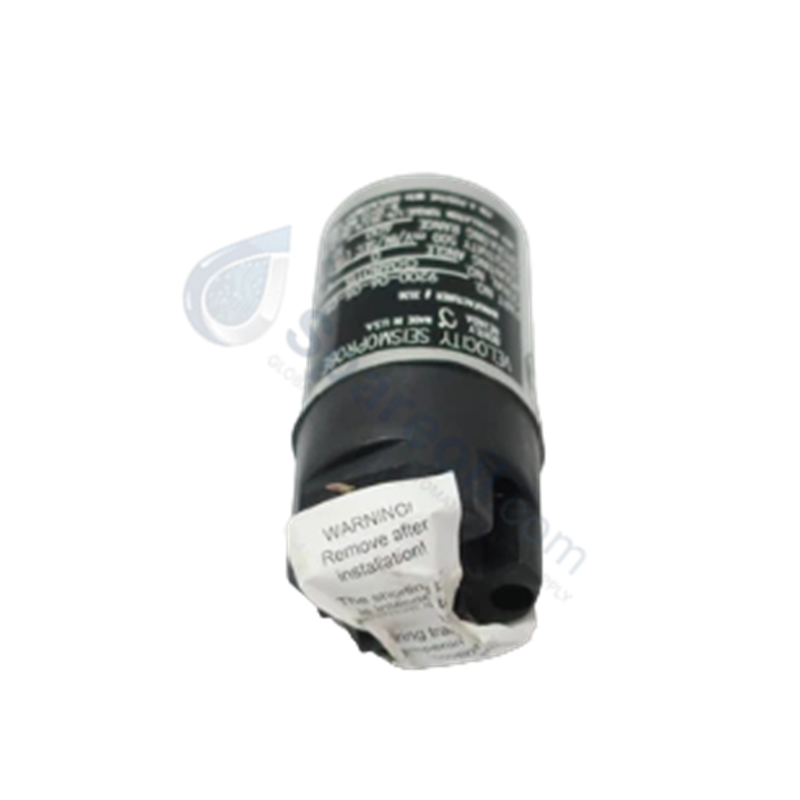

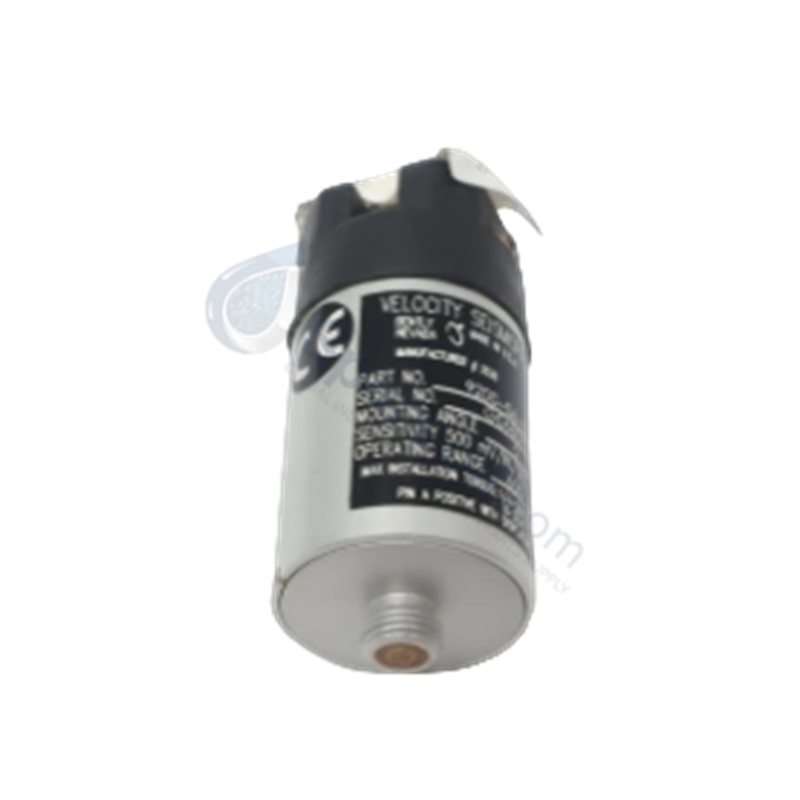

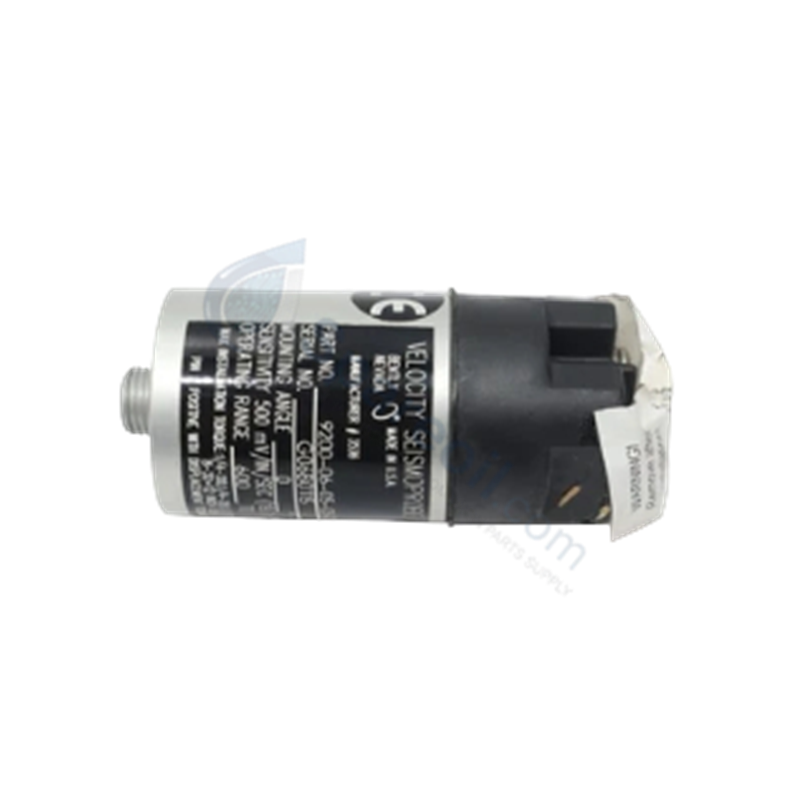

The Bently Nevada 9200-03-01-10-00, also cataloged as the 9200 Two-wire Velocity Seismoprobe Transducer, operates as a dedicated hardware component for absolute structural casing vibration measurement within machinery monitoring networks.

Hardware Specifications

Parameter Specification
Model 9200-03-01-10-00
Brand Bently Nevada
Origin USA
Product Type Two-wire Velocity Seismoprobe Transducer
Mounting Angle / Min Op Frequency 90 deg +/-2.5 deg, 4.5 Hz (270 cpm)
Connector Option Top Mount
Mounting Base Option Circular; M10X1 stud
Agency Approval Not required
Operating Temp Extended industrial field sensor rating
Dimensions Standard 9200 cylindrical housing profile
Weight 2.0 kg
Power Consumption Passive self-generating electrodynamic pick-up

Cross-talk Suppression & Rotor Dynamics

The velocity transducer relies on a moving-coil electrodynamic assembly to generate a voltage signal directly proportional to absolute casing vibration velocity. Signal conditioning circuitry suppresses cross-talk interference when mounted in close physical proximity to auxiliary machinery transducers. Integration with overall rotor dynamics monitoring architectures enables real-time tracking of bearing housing vibration, providing essential dynamic data for continuous machinery protection.

Frequently Asked Questions

Q: How does the mounting angle specification affect sensor orientation and frequency response?

A: The Option 03 configuration requires vertical mounting at 90 deg +/-2.5 deg relative to horizontal, enabling accurate low-frequency velocity measurement down to 4.5 Hz (270 cpm).

Q: Does this transducer require external excitation power to generate a output signal?

A: No, the 9200 series uses a moving-coil electrodynamic pickup mechanism that self-generates a proportional AC voltage signal without external power supply loops.

Q: What physical mounting interface is provided with the 10 base option?

A: The option provides a circular mounting base equipped with an M10X1 threaded stud for direct mechanical coupling to bearing housings or structural casings.

Field Installation Guidelines

  1. Inspect the machine mounting surface to ensure it is clean, flat, and free of paint or debris before installing the transducer base.
  2. Thread the M10X1 stud into the circular base and torque the housing to manufacturer guidelines to establish rigid acoustic coupling.
  3. Verify vertical physical orientation to keep sensor tilt within the required 90 deg +/-2.5 deg operating envelope.
  4. Route two-wire shielded cable through flexible conduit, securing the top-mount connector collar against moisture entry.
  5. Connect cable shielding to the monitoring system earth terminal at a single end to eliminate ground loop current interference.
