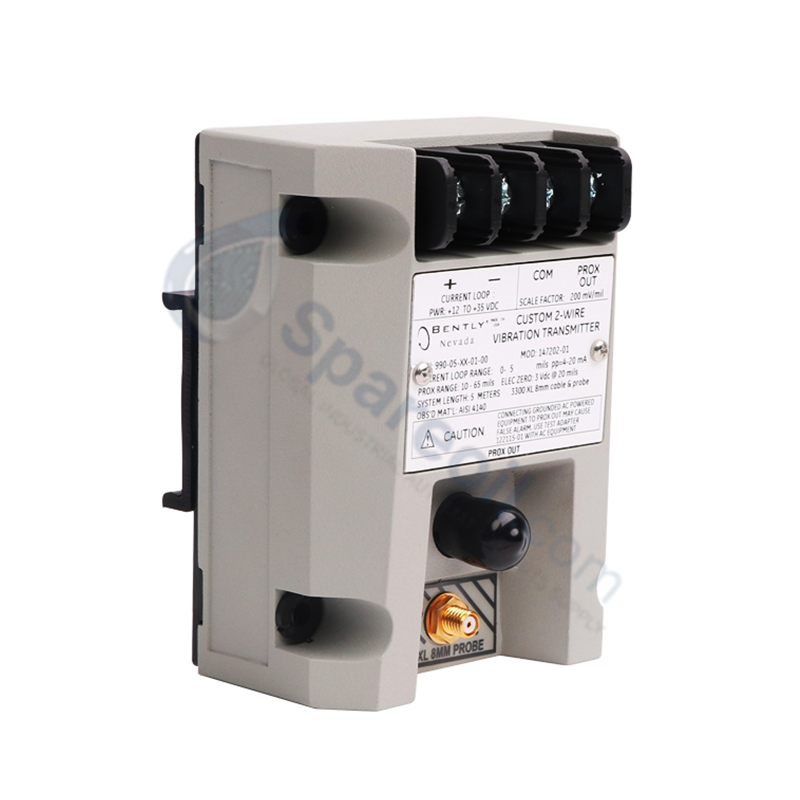

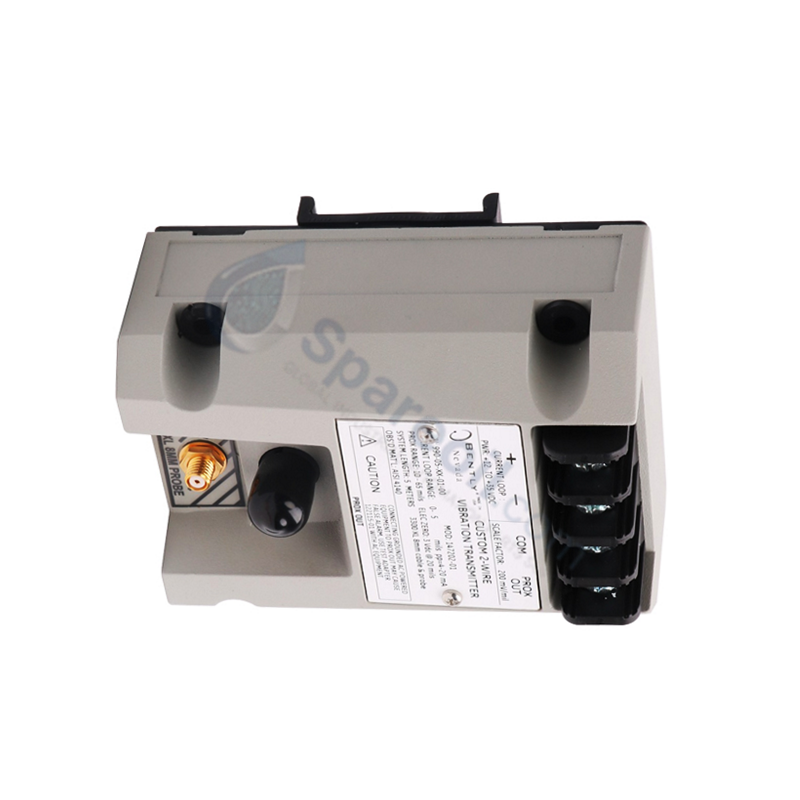

990-05-70-01-01 Bently Nevada Transmitter

Bently Nevada 990-05-70-01-01 990 Vibration Transmitter

Bently Nevada 990-05-70-01-01 990 Vibration Transmitter

Availability: 10 left in stock

The Bently Nevada 990-05-70-01-01, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for continuous proximity...

SKU: 990-05-70-01-01

Manufacturer: Bently Nevada
Product No.: 990-05-70-01-01
Product Type: Vibration Transmitters
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 990-05-70-01-01, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for continuous proximity probe signal conditioning and 4-20 mA loop-powered vibration monitoring within machinery protection networks.

Hardware Specifications

Parameter	Specification
Model	990-05-70-01-01
Brand	Bently Nevada
Origin	USA
Product Type	Vibration Transmitter
Input Signal	3300 NSv Proximity Probe input
Output Signal	4-20 mA DC (proportional to vibration amplitude)
Power Supply	2-wire loop powered (12-30 VDC nominal loop voltage)
Mounting Options	Integrated DIN-rail clips or bulkhead mounting screws
Construction	Fully potted enclosure (up to 100% condensing humidity)
Operating Temp	-40 to 70 deg C
Dimensions	76 x 102 x 51 mm (3.0 x 4.0 x 2.0 in)
Weight	0.5 kg (1 lbs 3.0 oz)
Power Consumption	Loop-powered, 4-20 mA current loop dependent

Eddy-Current Probe Scaling & Gap Voltage Validation (-10 VDC Targets)

The transmitter processes raw high-frequency RF signals from a 3300 NSv eddy-current proximity probe, converting dynamic shaft displacement into a linearized 4-20 mA DC current loop output. Field installation requires gap voltage validation to ensure the probe tip operates within its linear range, typically targeting -10 VDC at physical mid-span before securing probe locknuts. Precision eddy-current probe scaling ensures accurate peak-to-peak vibration amplitude reporting to plant DCS and PLC instrumentation without phase distortion.

Frequently Asked Questions

Q: How is the transmitter powered and integrated into process control systems?

A: The module features a 2-wire loop-powered configuration that draws operating current directly from the standard 4-20 mA measurement loop, eliminating the need for dedicated local AC or DC power wiring.

Q: What input transducer type is required for accurate signal conversion?

A: The transmitter accepts high-frequency proximity input specifically tuned to Bently Nevada 3300 NSv series eddy-current proximity probes.

Q: What mechanical protection does the enclosure provide against environmental moisture?

A: The transmitter utilizes a fully potted housing design that prevents ingress of moisture and corrosive vapors, allowing continuous operation in up to 100% condensing humidity environments.

Field Installation Guidelines

Mount the transmitter housing directly to a standard DIN rail using the integrated retention clips or fasten to a rigid panel surface via bulkhead mounting screws.
Connect the 3300 NSv proximity probe extension cable to the dedicated transmitter input connector, ensuring finger-tight coupling without twisting the coaxial core.
Verify the static DC gap voltage across the raw probe test terminals, adjusting probe depth until reaching the designated -10 VDC nominal bias point.
Wire the 4-20 mA current loop output terminals using twisted, shielded pair cable (18 to 22 AWG) to prevent electromagnetic interference.
Ground the cable shield at a single termination point at the control system rack ground bus bar to eliminate ground loop noise.
