990-05-70-03-00 Bently Nevada Transmitter

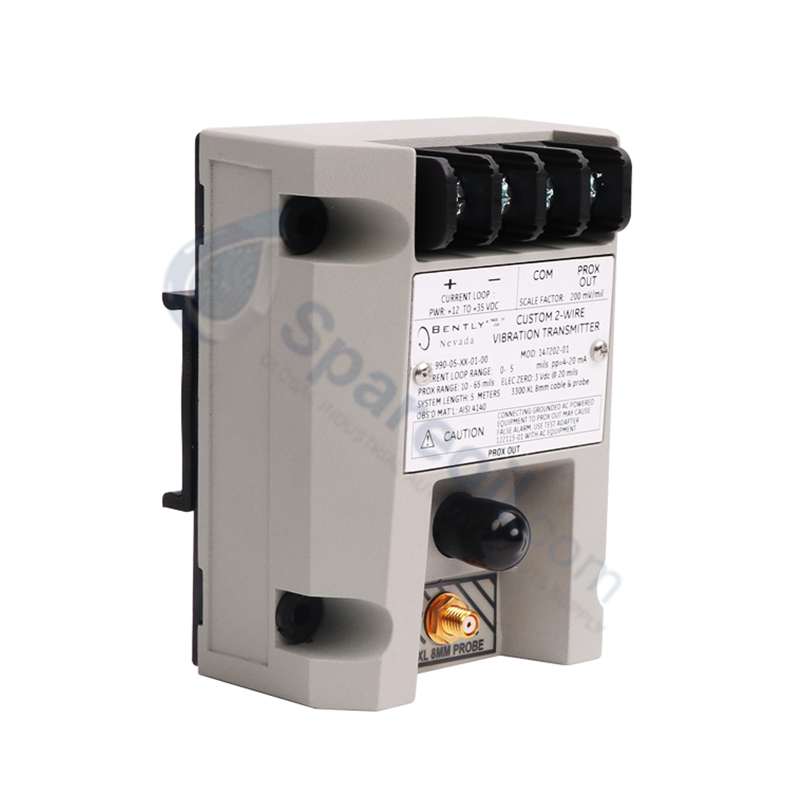

Bently Nevada 990-05-70-03-00 990 Vibration Transmitter

Bently Nevada 990-05-70-03-00 990 Vibration Transmitter

Availability: 10 left in stock

The Bently Nevada 990-05-70-03-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for proximity probe...

SKU: 990-05-70-03-00

Manufacturer: Bently Nevada
Product No.: 990-05-70-03-00
Product Type: Vibration Transmitters
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 990-05-70-03-00, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for proximity probe signal conditioning and 4-20 mA current loop conversion within machinery protection networks.

Suffix Breakdown & Model Matrix

Option Code	Option Description	Technical Definition
990	Base Model	2-Wire Vibration Transmitter
-05	Full Scale Range Option	0-5 mils (0-125 um) peak-to-peak vibration amplitude
-70	System Length Option	7.0 meters total system length (Probe plus extension cable)
-03	Mounting Option	35 mm DIN rail clips installed
-00	Agency Approval Option	No hazardous area approvals required

Hardware Specifications

Parameter	Specification
Model	990-05-70-03-00
Brand	Bently Nevada
Origin	USA
Product Type	Vibration Transmitters
Input Device	3300 XL proximity probe with extension cable (5 m, 7 m, 9 m system compatible)
Output Signal	4-20 mA proportional to vibration amplitude
Measurement Range	0-10 mils peak-to-peak (standard)
Proximity Range	10-65 mils
Power Supply	24 VDC loop-powered (2-wire configuration)
Mounting	35 mm DIN rail clips
Operating Temp	-40 to 85 deg C standard rating
Dimensions	Standard 990 DIN-mount module housing profile
Weight	0.9 kg
Power Consumption	Loop-powered via 4-20 mA measurement loop

Gap Voltage Validation (-10 VDC Targets) & Eddy-Current Probe Scaling

The transmitter processes high-frequency RF excitation signals from a 3300 XL proximity probe across a 10 to 65 mils displacement range. Correct physical installation requires gap voltage validation to confirm the probe tip maintains a static bias voltage of -10 VDC at the physical center of its linear operating span. Precise eddy-current probe scaling ensures accurate transduction of peak-to-peak shaft displacement into a proportional 4-20 mA analog output without signal attenuation or phase delay.

Frequently Asked Questions

Q: How is the transmitter powered across the analog output circuit?

A: The module utilizes a 2-wire loop-powered architecture operating on a nominal 24 VDC loop power supply, drawing operational current directly through the 4-20 mA measurement loop.

Q: What input sensors are compatible with this transmitter model?

A: The transmitter accepts direct input connections from Bently Nevada 3300 XL proximity probes combined with matching extension cables in 5 m, 7 m, or 9 m total system lengths.

Q: Can the device be mounted on standard control cabinet rails?

A: Yes, the 03 suffix option integrates pre-installed mounting hardware designed for snap-on attachment to 35 mm DIN rail networks.

Field Installation Guidelines

Mount the transmitter housing onto a grounded 35 mm DIN rail inside an enclosure, ensuring adequate clearance for field cable strain relief.
Connect the 3300 XL proximity probe extension cable coaxial connector to the transmitter input jack, tightening the connection finger-tight.
Adjust the mechanical probe position relative to the target shaft until reaching the required -10 VDC gap voltage target across the raw probe test terminals.
Route 2-wire twisted-pair shielded cable from the 4-20 mA loop connections to the control system analog input cards.
Terminate the cable shield at a single ground point on the cabinet rack earthing bus bar to suppress electromagnetic interference and loop noise.
