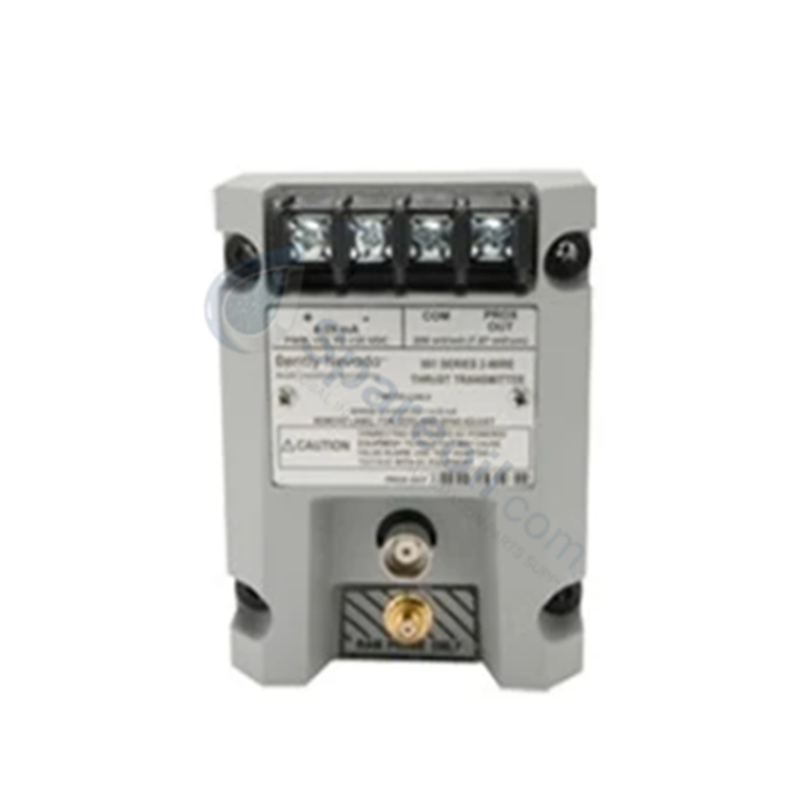

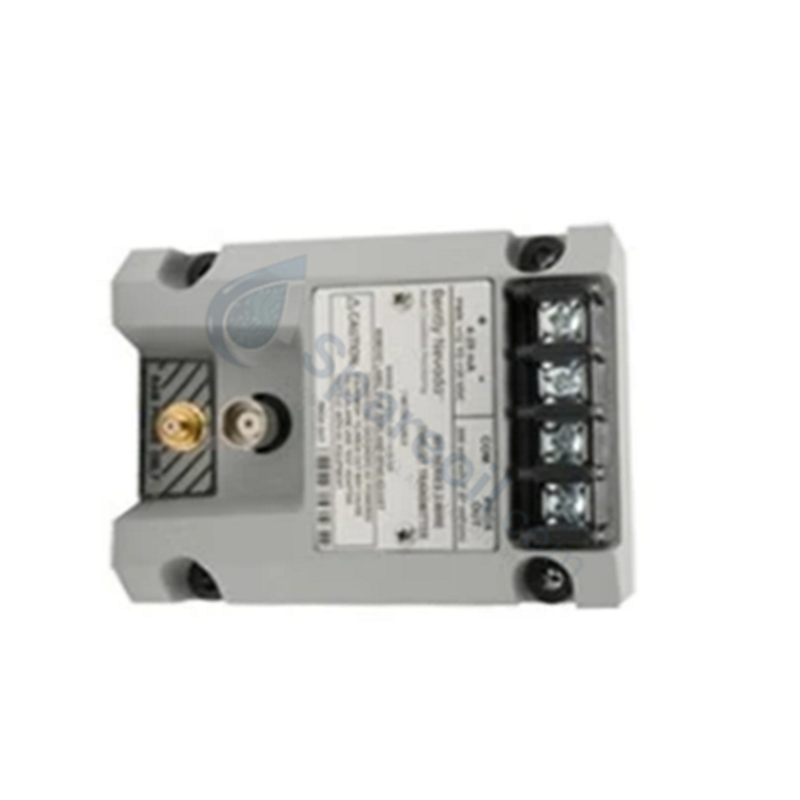

Configured for axial shaft displacement measurement in machinery monitoring networks, the Bently Nevada 991-06-50-01-01 (991 Thrust Transmitter) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Option Code Option Description Technical Definition
991 Base Model Thrust Transmitter Module
-06 Full-scale Option +/-0.6 mm axial shaft displacement measurement range
-50 System Length Option 5.0 metres (16.4 feet) total calibrated system length
-01 Mounting Option 35 mm DIN-rail mounting clips installed
-01 Agency Approval Option Standard field approval option

Hardware Specifications

Parameter Specification
Model 991-06-50-01-01
Brand Bently Nevada
Origin USA
Product Type Thrust Transmitters
Transmitter Type Thrust transmitter, 2-wire loop-powered
Measured Parameter Axial shaft displacement (thrust)
Full-Scale Range +/-0.6 mm axial displacement
Output Signal 4-20 mA proportional to thrust position
Compatible Probes 3300 NSv proximity probes with extension cables
System Length 5.0 metres (5 m and 7 m system lengths supported)
Power Supply 24 VDC loop-powered
Mounting Interface 35 mm DIN-rail mounting clips
Environmental Rating IP65, dust-tight and water-resistant
Operating Temp -20 to +70 deg C
Dimensions 100.1 x 73.9 x 53.3 mm
Weight 0.43 kg
Power Consumption Loop-powered via 24 VDC current loop

Gap Voltage Validation (-10 VDC Targets) & Rotor Dynamics

The module processes signal inputs from 3300 NSv non-contacting eddy-current proximity probes across a tuned system length to track real-time shaft movement. During installation, field technicians conduct gap voltage validation across test points to establish a static bias target of -10 VDC when the rotor rests at mechanical mid-span. This physical positioning establishes a linear baseline, allowing precise signal conditioning of dynamic axial position shifts into a 4-20 mA output for process automation systems.

Frequently Asked Questions

Q: How is field operating power supplied to the module terminals?

A: Operating power is supplied directly through the 2-wire 4-20 mA current loop interface connected to a 24 VDC power source.

Q: What environmental ingress protection rating does the enclosure provide?

A: The module housing is rated IP65, providing a dust-tight and water-resistant enclosure suitable for industrial control cabinets.

Q: Can this unit accept probe inputs from standard 3300 NSv proximity probe assemblies?

A: Yes, the input circuit is factory-calibrated to interface directly with 3300 NSv proximity probes and their matching extension cables.

Field Installation Guidelines

  1. Mount the module onto a clean 35 mm DIN rail inside the enclosure, ensuring the clips snap securely.
  2. Connect the 3300 NSv probe extension cable coaxial connector to the transmitter input jack, securing it finger-tight.
  3. Validate static DC gap voltage using a multimeter connected to raw test terminals, adjusting mechanical probe depth until a target of -10 VDC is obtained.
  4. Connect 2-wire shielded twisted-pair field wiring from the control system 24 VDC loop circuit to the loop terminals.
  5. Ground the cable shield wire at a single earth point on the cabinet bus bar to mitigate ground noise and electromagnetic interference.
