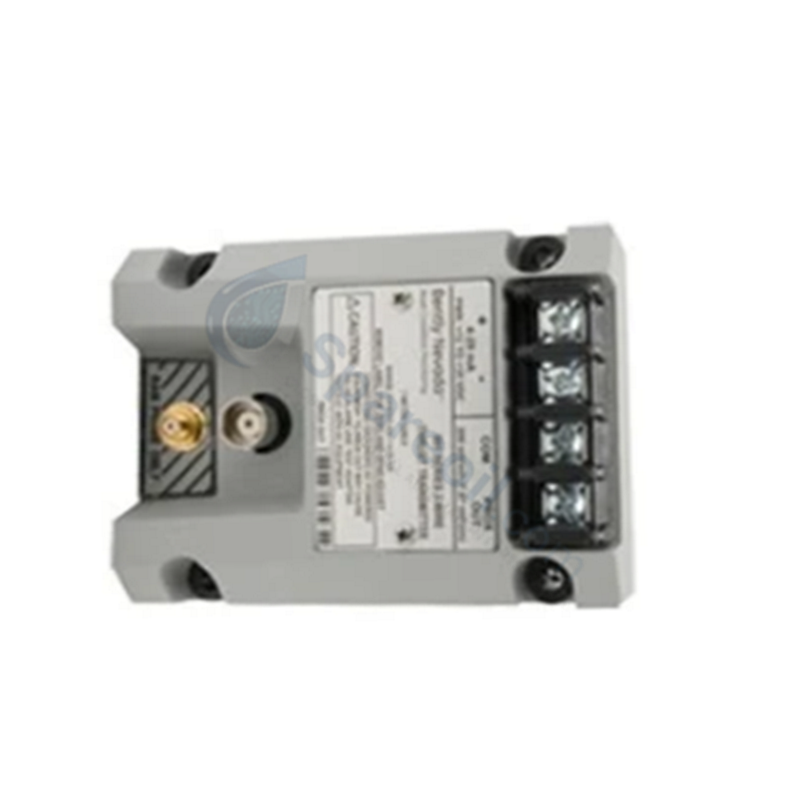

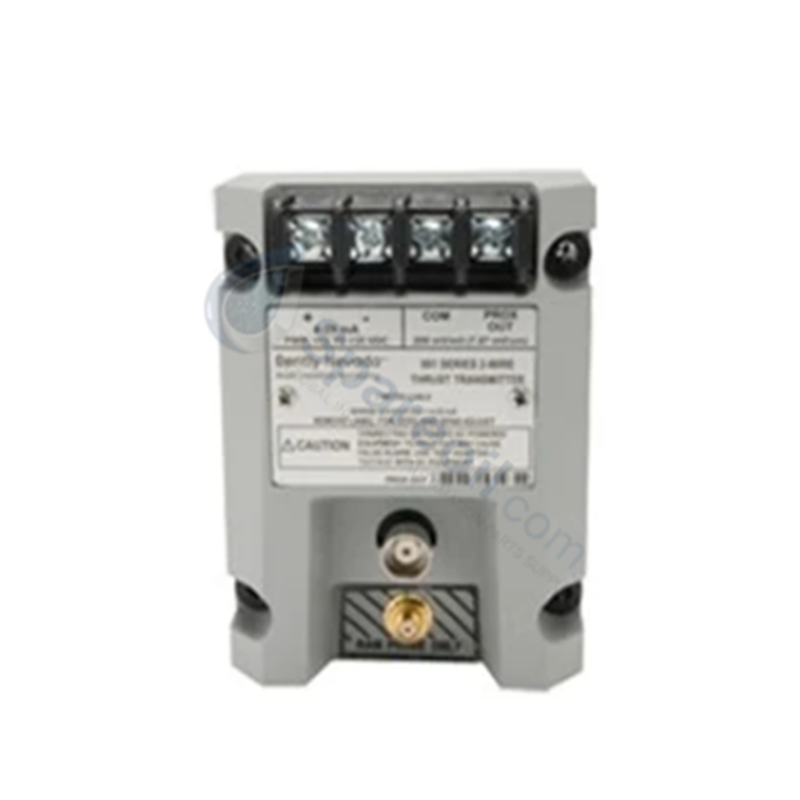

The Bently Nevada 991-06-70-01-00, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial shaft position signal conditioning within machinery protection systems.

Suffix Breakdown & Model Matrix

Option Code Option Description Technical Definition
991 Base Model Thrust Transmitter
-06 Full-scale Option 0.6 - 0 - 0.6 mm measurement range
-70 System Length Option 7.0 metres (23.0 feet) system cable length calibration
-01 Mounting Option 35 mm DIN-rail clips installed
-00 Agency Approval Option Not required (No hazardous area approvals)

Hardware Specifications

Parameter Specification
Model 991-06-70-01-00
Brand Bently Nevada
Origin USA
Weight Shipping Weight 2 kg
Power Consumption Loop-powered via 4-20 mA output loop
Product Type Thrust Transmitters
Full-Scale Range 0.6 - 0 - 0.6 mm axial displacement
System Length 7.0 metres (23.0 feet)
Mounting Interface 35 mm DIN-rail clips
Agency Approvals None (-00 option)
Signal Output Proportional 4-20 mA loop current

Gap Voltage Validation (-10 VDC Targets) & Rotor Dynamics

The transmitter processes inputs from proximity sensors across a calibrated 7.0-metre system length to continuously evaluate axial rotor displacement. Initial commissioning requires gap voltage validation at raw signal terminals to set a static baseline bias of -10 VDC when the machine shaft is positioned at the mechanical center of its thrust bearing allowance. Precise eddy-current probe scaling converts physical rotor movement into a linear 4-20 mA current output proportional to the 0.6 - 0 - 0.6 mm physical span.

Frequently Asked Questions

Q: How is power provided to the 991-06-70-01-00 module?

A: Operating power is supplied directly through the 2-wire 4-20 mA current loop output interface connected to the receiving control system analog input channel.

Q: Can the transmitter cable system length be altered in the field?

A: No, the transmitter is factory-calibrated for a total system length of 7.0 metres (23.0 feet); altering extension cable lengths changes capacitance and invalidates signal output accuracy.

Q: What mounting configuration is provided with the -01 option?

A: The -01 mounting option supplies factory-installed clips designed to snap directly onto standard 35 mm DIN rails inside field enclosures.

Field Installation Guidelines

  1. Mount the transmitter module securely to a clean 35 mm DIN rail via the integrated mounting clips.
  2. Connect the 7.0-metre matched proximity probe extension cable coaxial fitting to the transmitter input jack, securing it finger-tight.
  3. Validate static DC bias voltage across raw probe test terminals using a digital multimeter, adjusting mechanical probe depth until a target reading of -10 VDC is obtained.
  4. Route 2-wire shielded twisted-pair cabling from the 4-20 mA output terminals to the host automation system.
  5. Terminate the field cable shield wire to a single earth ground point inside the instrument panel to prevent ground loops and high-frequency noise interference.
