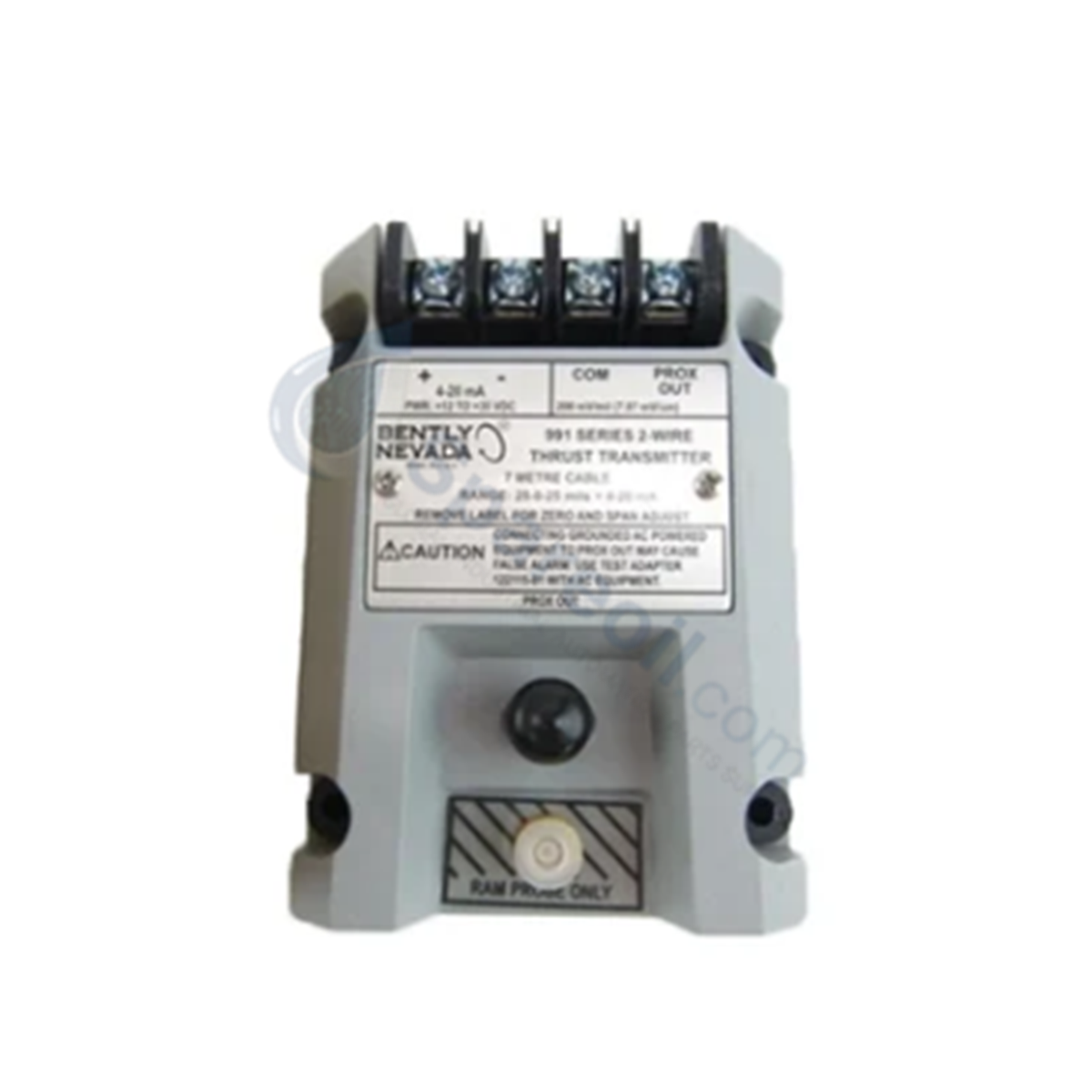

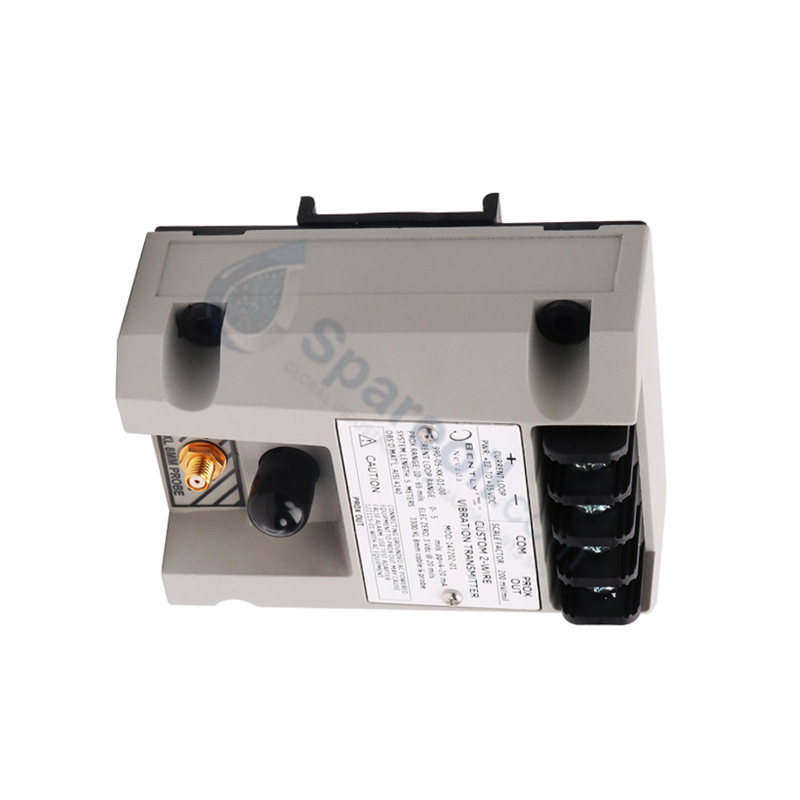

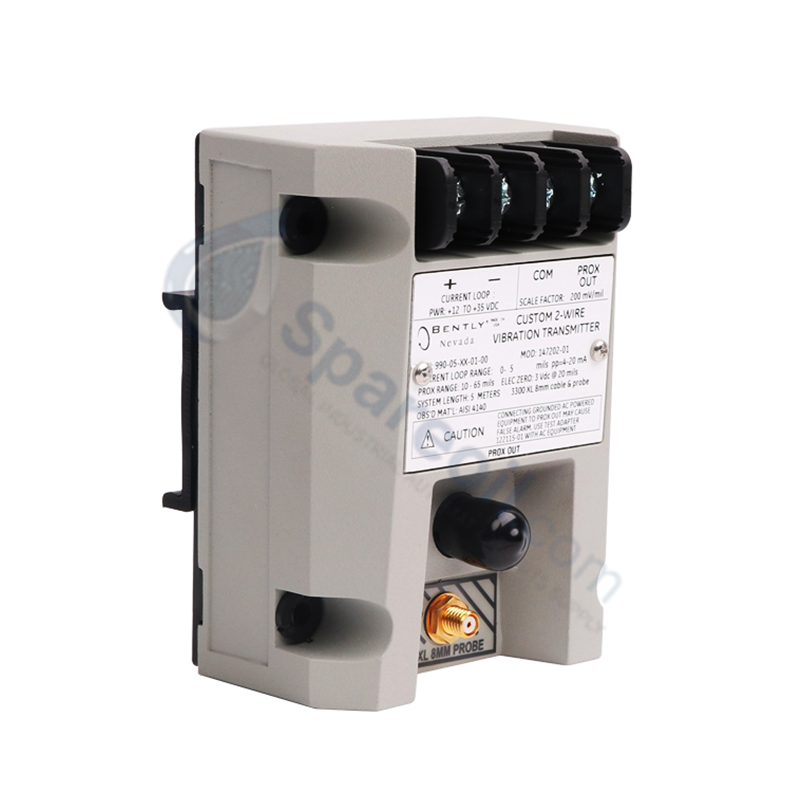

The Bently Nevada 991-25-70-01-CN, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for axial position signal conditioning within rotating machinery protection loops.

Suffix Breakdown & Model Matrix

Option Code Option Description Technical Definition
991 Base Model Thrust Transmitter
-25 Full-scale Option 25-0-25 mils (+/-25 mils) full-scale axial displacement range
-70 System Length Option 7.0 metres (23.0 feet) calibrated total system length
-01 Mounting Option 35 mm DIN-rail clips installed
-CN Agency Approval Option Not required

Hardware Specifications

Parameter Specification
Model 991-25-70-01-CN
Brand Bently Nevada
Origin USA
Product Type Thrust Transmitters
Measurement Type Axial shaft displacement (thrust position)
Full-Scale Range 25-0-25 mils (+/-25 mils)
System Cable Length 7.0 metres (23.0 feet)
Output Signal Proportional 4-20 mA loop current
Mounting Interface 35 mm DIN-rail clips
Agency Approvals Not required (-CN option)
Power Consumption Loop-powered via output 4-20 mA current interface

Eddy-Current Probe Scaling & Gap Voltage Validation (-10 VDC Targets)

The 991 transmitter accepts non-contacting eddy-current proximity sensor inputs over a factory-tuned 7.0-metre total system length. System commissioning mandates physical gap voltage validation across test terminals to verify the static baseline bias target of -10 VDC when the machine shaft resides at mechanical mid-span. Internal eddy-current probe scaling processes transducer impedance changes into a proportional 4-20 mA current output across the calibrated 25-0-25 mils physical span.

Frequently Asked Questions

Q: How is primary loop power provided to the 991-25-70-01-CN module terminals?

A: Operating power is drawn directly from the 2-wire 4-20 mA output current loop circuit connected to the host automation system.

Q: Can extension cable lengths be modified in the field without affecting scaling accuracy?

A: No, the 7.0-metre system length is factory-calibrated to specific probe inductance and line capacitance; altering cable lengths compromises output scaling.

Q: What physical mounting mechanism is included with the -01 option?

A: The -01 mounting option includes factory-fitted mounting clips for direct installation onto standard 35 mm DIN rails.

Field Installation Guidelines

  1. Snap the module securely onto an industrial 35 mm DIN rail inside a protective field panel.
  2. Fasten the 7.0-metre proximity probe extension cable coaxial connector to the transmitter input jack, securing it hand-tight.
  3. Validate static DC gap voltage using a multimeter across raw signal terminals, adjusting probe depth to achieve the -10 VDC target at mechanical center.
  4. Route 2-wire shielded twisted-pair conductors from the output terminals to the host control panel current loop input.
  5. Terminate the cable drain shield at a single earthing point on the main cabinet bus bar to mitigate ground noise and cross-talk interference.
