BMXCRA31210 Schneider Electric Modicon X80 Datasheet & Technical Manual

BMXCRA31210 Schneider Electric Ethernet Remote IO Drop Adaptor

BMXCRA31210 Schneider Electric Ethernet Remote IO Drop Adaptor

Availability: 94 left in stock

Schneider Electric BMXCRA31210 Modicon X80 Ethernet Remote IO Drop Adaptor Configured for Ethernet remote input/output data collection and deterministic routing...

SKU: BMXCRA31210

Manufacturer: Schneider
Product No.: BMXCRA31210
Product Type: Remote IO Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 225g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

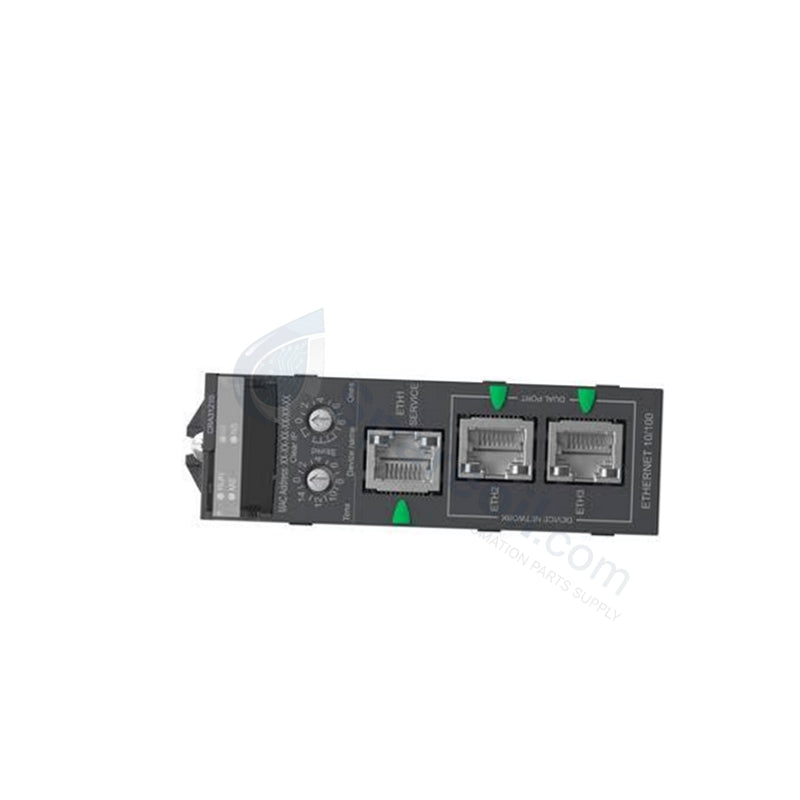

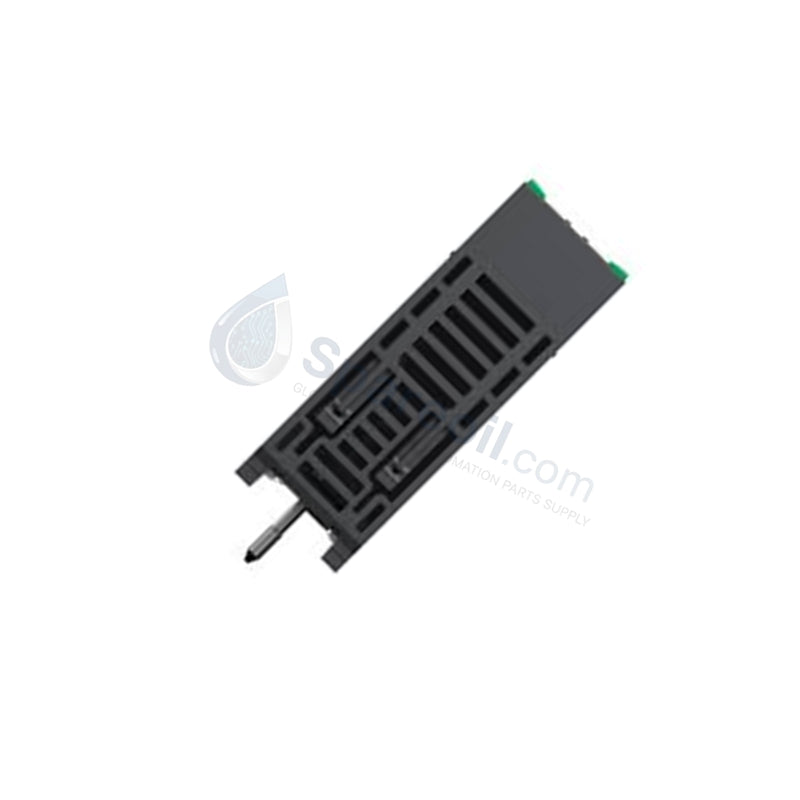

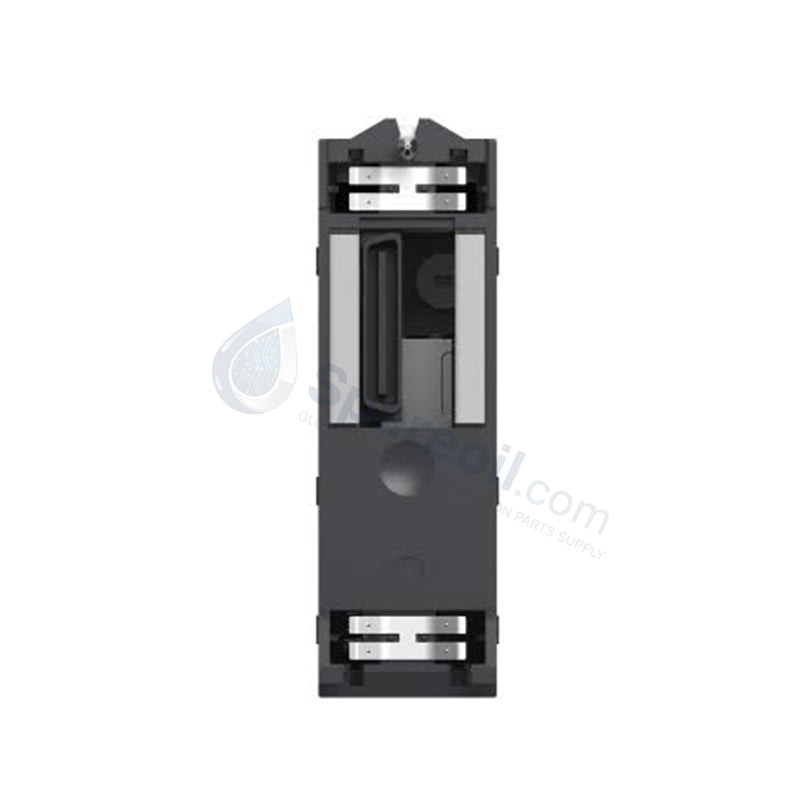

Schneider Electric BMXCRA31210 Modicon X80 Ethernet Remote IO Drop Adaptor

Configured for Ethernet remote input/output data collection and deterministic routing in Modicon M580 and M340 networks, the Schneider Electric BMXCRA31210 (BMXCRA31210 Ethernet Remote IO Drop Adaptor) provides direct physical/electrical execution. The module gathers input data from local X80 modules, publishes it to the remote I/O head adapter, and updates output modules via three RJ45 communication ports operating at 10/100 Mbit/s over IPv4 network topologies.

Hardware Specifications

Parameter	Specification
Model	BMXCRA31210
Brand	Schneider Electric
Origin	France
Weight	0.225 kg
Dimensions	32 x 100 x 87.5 mm
Operating Temp	0 to 60 deg C
Power Consumption	1200 mA at 3.3 VDC
Enclosure Rating	IP20
Port Count	3 RJ45 ports
Communication Protocols	EtherNet/IP, Modbus TCP, CIP explicit messaging
Maximum Channel Capacity	1024 discrete channels, 256 analog channels
Time Stamping Resolution	10 ms
Local Diagnostics	RUN, ERR, Mod Status, Net Status, STS LEDs

EtherNet/IP Deterministic Network Performance

This module executes real-time data transmission across EtherNet/IP deterministic networks utilizing a Rapid Spanning Tree Protocol (RSTP) ring topology. The internal hardware processes up to 1024 discrete channels and 256 analog channels with fixed 10 ms time-stamping intervals. Network routing and determinism are sustained through dual dedicated RIO ports alongside a single insulated service port configuration, preventing message collision and ensuring uniform backplane bus throughput to the connected PAC.

Frequently Asked Questions

Q: Does the module support Configuration Change On the Fly (CCOTF)?

A: Yes, the hardware architecture permits configuration modifications and module extensions during active runtime execution without interrupting the existing backplane bus state.

Q: What is the designated power source for this adaptor?

A: The module operates on an internal current draw of 1200 mA at a regulated input voltage of 3.3 VDC derived directly from the Modicon X80 rack backplane.

Field Installation Guidelines

Secure the module onto the Modicon X80 backplane slot using the integrated mechanical chassis screws to maintain structural stability and continuous grounding.
Utilize shielded twisted pair (STP) RJ45 cables for all Ethernet network connections to limit electromagnetic field interference.
Maintain unobstructed vertical clearances around the rack enclosure to facilitate natural thermal dissipation and ensure the surrounding air does not exceed 60 deg C.
