T8151C ICS Triplex Trusted Series Datasheet & Technical Manual

Communications Interface Module Automation | ICS Triplex T8151C

Communications Interface Module Automation | ICS Triplex T8151C

Availability: 20 left in stock

ICS Triplex T8151C Trusted Communications Interface Module The ICS Triplex T8151C, also cataloged as the T8151C Communications Interface Module, operates...

SKU: T8151C

Manufacturer: ICS Triplex
Product No.: T8151C
Product Type: Ethernet Communications Interface Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 920g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

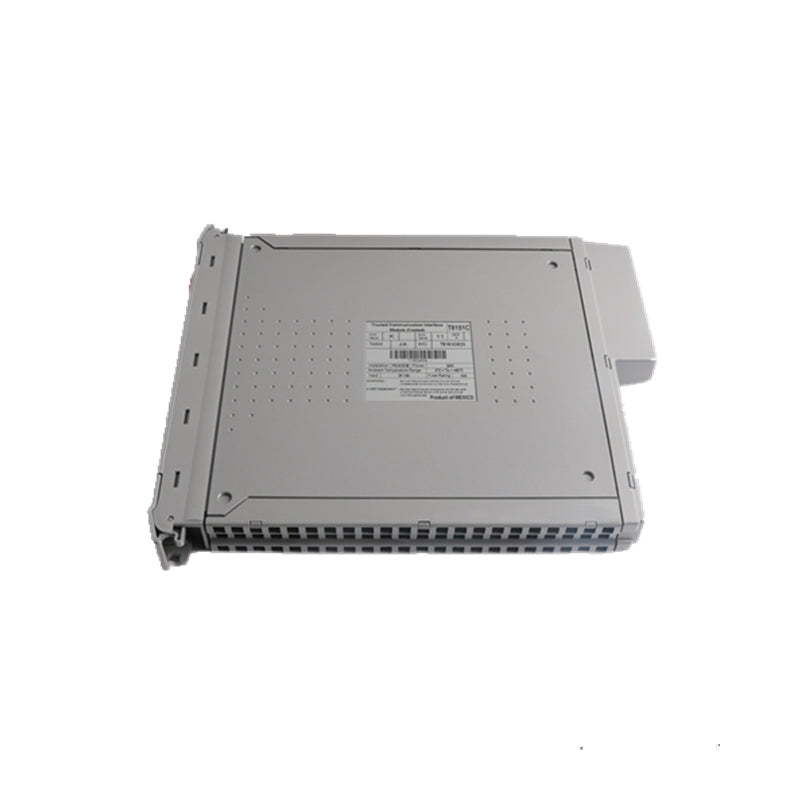

ICS Triplex T8151C Trusted Communications Interface Module

The ICS Triplex T8151C, also cataloged as the T8151C Communications Interface Module, operates as a dedicated hardware component for offloading network communication tasks within Trusted safety system platforms.

Hardware Specifications

Parameter	Specification
Model	T8151C
Brand	ICS Triplex (Rockwell Automation)
Origin	USA
Weight	0.92 kg
Dimensions	3 cm x 30.2 cm x 26.5 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	25 W
Operating Voltage	20-32 VDC (supplied via chassis backplane)
Network Ports	2 x 10/100BaseT Redundant Ethernet, 4 x RS422/485 Serial (via T8153 adapter), 1 x RS232 Diagnostic
Protocol Support	Modbus Slave (native), Modbus Master (optional), SOE over Modbus, Modbus TCP
Isolation	Reinforced 1500 VDC between communication circuits and chassis ground
Environmental Protection	Conformal coating (C variant)

Safety Instrumented System Data Integrity

The module decouples communication processing from the primary safety loops, ensuring that high network traffic loads do not disrupt deterministic triple modular redundancy (TMR) 2oo3 safety logic execution. It features a dedicated Motorola PowerPC processor that executes separate protocol handling and sequences-of-events (SOE) data buffering independent of the core controller backplane. Reinforced 1500 VDC isolation safeguards the internal bus from field-side network surges, maintaining SIL 3 certified structural safety boundaries between industrial SCADA, DCS networks, and the core fault-tolerant safety system.

Frequently Asked Questions

Q: How does the conformal coating change the physical application specifications of this module compared to the standard model?

A: The "C" suffix specifies that the circuit boards receive a specialized conformal coating during manufacturing. This physical layer provides enhanced defense against dust, ambient humidity, and airborne chemical compounds, permitting stable operation across an expanded range from -40 deg C to +70 deg C.

Q: Will an Ethernet link failure drop communication data packets transmitted to the DCS?

A: No. The dual 10/100BaseT Ethernet ports operate under a hardware-managed redundant scheme. If one physical path encounters a signal loss or wire break, the network traffic shifts instantly to the secondary link, preventing data drops to the host architecture.

Field Installation Guidelines

Chassis Seating: Insert the module firmly into its designated 3U Eurocard single-width slot inside the T8100 chassis. Ensure the dual retaining screws are fully locked to guarantee solid electrical contact with the backplane bus.
Shield Grounding: Connect all external RS422/485 and Ethernet shielded cables to the cabinet marshaling earth bar. Enforce a single-point grounding strategy to prevent high-frequency noise injection.
Cable Separation: Route serial and network communication cables through dedicated low-voltage wiring trays. Maintain a physical distance of at least 30 cm from high-power AC lines and motor control conductors.
Hot-Swap Execution: When executing a hot replacement, verify that the replacement module matches the exact model number, revision state, and firmware compatibility matrix before insertion into the live backplane.
