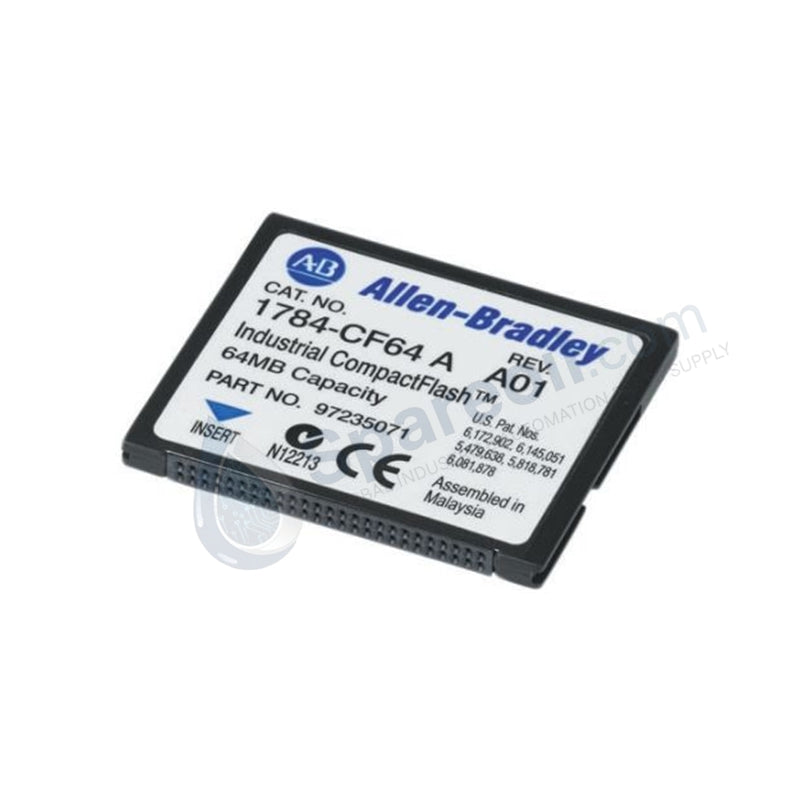

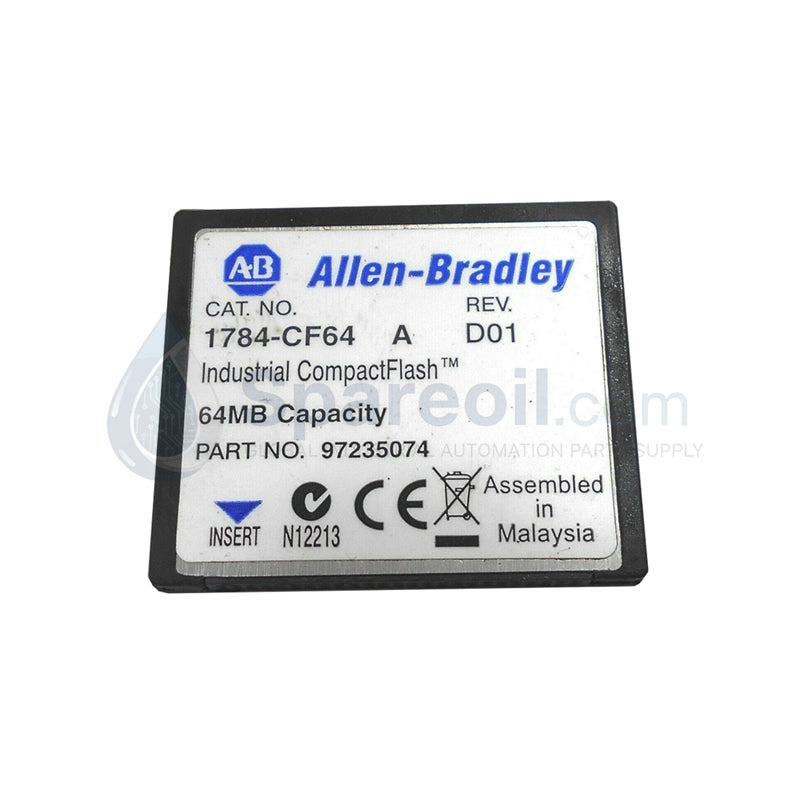

ControlLogix 64MB CompactFlash Card | 1784-CF64 Allen-Bradley

Availability: 20 left in stock

Product Overview The Allen-Bradley 1784-CF64 operates as an industrial-grade, high-endurance CompactFlash (CF Type I) memory card. This nonvolatile storage hardware...

SKU: 1784-CF64

Manufacturer: Allen Bradley
Product No.: 1784-CF64
Product Type: CompactFlash Memory Cards
Product Origin: USA
Payment:T/T, Western Union
Weight: 14g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Allen-Bradley 1784-CF64 operates as an industrial-grade, high-endurance CompactFlash (CF Type I) memory card. This nonvolatile storage hardware provides secure retention for programmable automation controller (PAC) user programs, system firmware files, historical data logs, and human-machine interface (HMI) application files. It integrates directly into the native CF card slots of ControlLogix 1756-L6x processors, select CompactLogix systems, and PanelView Plus operator terminals. By operating independently of internal chassis battery power, this module protects core automation intelligence against unexpected plant blackouts and long-term storage shutdowns.

We deliver this product exclusively as a 100% Brand New, original factory-sealed unit, guaranteeing pristine, zero-write-cycle flash blocks, intact original sector formatting, and unblemished physical connection rails.

Technical Specifications

Parameter	Specification Data
Manufacturer	Allen-Bradley / Rockwell Automation
Model Number	1784-CF64
Series Revision	Series A
Condition	100% Brand New Original Factory Sealed
Memory Capacity	64 Megabytes (64 MB)
Flash Architecture Type	Industrial-Grade CompactFlash Type I
Storage Element Style	Nonvolatile Solid-State Memory
Operating Temperature	0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Thermal Matrix	-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Relative Humidity Limits	5 to 95 percent non-condensing (IEC 60068-2-30)
Operating Vibration Rating	2 g at 10 to 500 Hz (IEC 60068-2-6)
Operating Physical Shock	30 g peak acceleration (IEC 60068-2-27)
Non-Operating Shock Limit	50 g peak acceleration (IEC 60068-2-27)
Physical Dimensions	43 mm x 36 mm x 3.3 mm (Standard CF Type I)
Net Hardware Weight	0.014 Kilograms (0.03 lbs)
Hardware Compatibility	ControlLogix 1756-L6x, CompactLogix, PanelView Plus

Engineering Advantages

Enforce Automatic CPU Recovery via Auto-Load: Factory blackouts can purge volatile RAM when backup batteries fail. The 1784-CF64 executes an automatic firmware and user-program reload sequence instantly during system power-up loops, eliminating manual programming terminal intervention and restoring assembly line operations within seconds.
Withstand Extreme Manufacturing Environments: Consumer-grade flash cards corrupt quickly under extreme temperatures and machine oscillations. This industrial memory cell passes stringent IEC 60068-2 testing matrix specifications, resisting 30 g operational shocks and continuous 2 g machine vibrations on heavy manufacturing floors.
Extend Flash Cell Operational Lifespan: Continuous data logging degrades cheap silicon wafers via write fatigue. The 1784-CF64 utilizes premium, high-endurance industrial flash architecture that handles thousands of erase-write cycles smoothly, ensuring stable, long-term diagnostic tracking and recipe storage without sector deterioration.
Standardize Plant Deployment Profiles: The standardized CompactFlash Type I physical form factor slides cleanly into legacy ControlLogix and modern PanelView Plus hardware alike. This interchangeability allows engineering teams to maintain a single, highly durable nonvolatile storage medium across multiple controller platforms.

FAQs

Can I use a standard off-the-shelf consumer CompactFlash card instead of the 1784-CF64?

No. Commercial-grade flash cards lack the robust internal firmware control, shock isolation, and wide thermal operational limits required by industrial controllers. Standard consumer cards often fail to initialize within ControlLogix slots, leading to data corruption, file loss, or boot failure during automatic load sequences.
How do I configure the controller to load the program from this card automatically?

You configure the image load parameters directly inside your RSLogix 5000 programming software. Under the Controller Properties Nonvolatile Memory tab, you select the specific image file, store the project to the 1784-CF64 card, and define the load condition (such as "On Power Up" or "On Corrupt Memory") to establish automatic recovery.
Does this memory card require an internal battery to retain its saved files?

No. The 1784-CF64 uses entirely nonvolatile solid-state technology. It stores and retains your controller logic configurations, application recipes, and active firmware files indefinitely without drawing electrical current from the chassis power supply or the processor backup battery.
