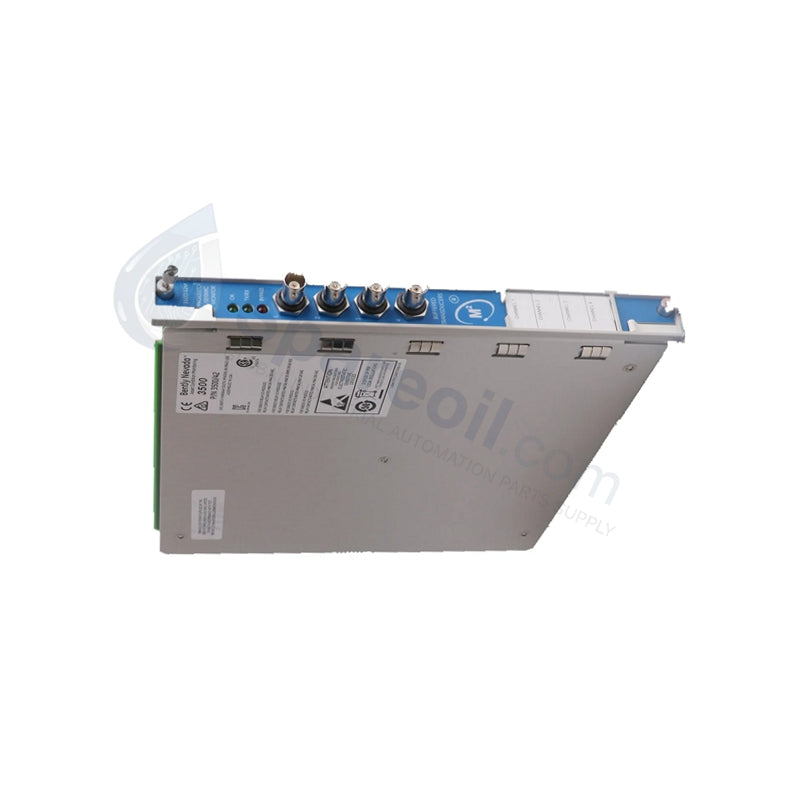

CSA Approved EGD Gateway | New Bently Nevada 3500/91

CSA Approved EGD Gateway | New Bently Nevada 3500/91

Availability: 10 left in stock

Product Overview The Bently Nevada 3500/91-01-02-02 functions as the high-speed Ethernet Global Data (EGD) Communication Gateway for the 3500 Machinery Protection System. This specific configuration...

SKU: 3500/91-01-02-02

Manufacturer: Bently Nevada
Product No.: 3500/91-01-02-02
Product Type: Fiber Optic I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 790g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 3500/91-01-02-02 functions as the high-speed Ethernet Global Data (EGD) Communication Gateway for the 3500 Machinery Protection System. This specific configuration utilizes a 100BASE-FX Fiber Optic I/O module to transmit critical machinery parameters—vibration, position, speed, and temperature—directly to plant control networks. By providing a deterministic digital link to GE-based control systems and other Ethernet-compatible DCS platforms, it eliminates the latency and noise issues associated with traditional analog signal transmission. We supply this unit as 100% Brand New and Original in Factory Packing, ensuring compliance with strict CSA safety standards.

Part Number Breakdown: 3500/91-AA-BB-CC

Option Code	Specification	Detail
01	Main Module Type	EGD Communication Gateway Module
02	I/O Module Type	Ethernet 100BASE-FX (Fiber Optic) I/O Module
02	Agency Approval	CSA/NRTL/C (Class 1, Div 2)

Technical Specifications

Attribute	Specification Value
Protocol	Ethernet Global Data (EGD)
I/O Interface	100BASE-FX (Fiber Optic)
Safety Certification	CSA/A / SIL3 System Compliant
Operating Temp	0°C to +60°C (32°F to +140°F)
Storage Temp	–40°C to +85°C (–40°F to +185°F)
Humidity	20%–95% non-condensing
Mounting	Standard 3500 Rack Slot (Full-height)
Weight	0.79 kg (Shipping weight 2.0 kg)
Country of Origin	United States (U.S.A)

Engineering Advantages

Fiber Optic Noise Immunity: The 100BASE-FX interface uses fiber optic cabling to transmit data. This provides absolute immunity to electromagnetic interference (EMI) and radio frequency interference (RFI), which frequently plague copper-based communications in high-voltage turbine environments.
Deterministic EGD Protocol: The Ethernet Global Data protocol ensures predictable, high-speed data delivery. This allows your control system to receive machinery status updates at precise intervals, facilitating faster logic execution for safety interlocks and alarm management.
Long-Distance Transmission: Unlike copper Ethernet limited to 100 meters, the fiber optic I/O module supports much longer cable runs between the machinery rack and the control room. This capability simplifies plant architecture in large-scale petrochemical or power generation facilities.
Redundant Data Pathways: Dual Ethernet ports allow for redundant network configurations. This ensures that the machinery protection system continues to provide data visibility to the DCS even if a single network switch or cable fails.
CSA Certified for Hazardous Areas: The 02 agency approval indicates the module meets CSA/NRTL/C standards for Class 1, Division 2 environments. This certification guarantees the module operates safely in areas where flammable gases or vapors may exist.

FAQs

What is the primary benefit of the 100BASE-FX option?

The "02" I/O module type provides a fiber optic connection. Use this to eliminate ground loops and ensure signal integrity over long distances or in areas with heavy electrical interference from large motors or generators.
Can this module replace a standard 3500/92 Modbus gateway?

No. The 3500/91 uses the EGD protocol, which is primarily designed for high-speed integration with GE control systems. If your DCS requires Modbus RTU or Modbus/TCP, you should use the 3500/92 Communication Gateway.
Is this a genuine GE / Bently Nevada product?

Yes. We guarantee the 3500/91-01-02-02 is 100% Brand New and Original. It ships from our stock in factory-sealed packaging, manufactured in the USA, and includes a full 12-month warranty.
Does the module require external power?

No. The module draws its operating power directly from the 3500 rack backplane. Simply insert the module into the designated slot and connect your fiber optic cables to the rear I/O module to begin operation.
