T8451 ICS Triplex Digital Output Module

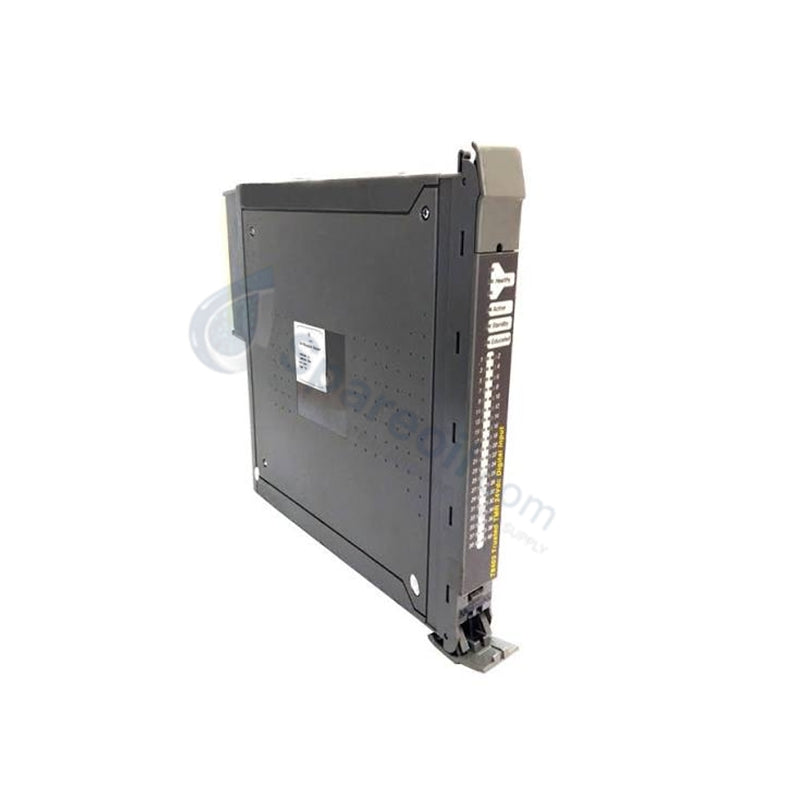

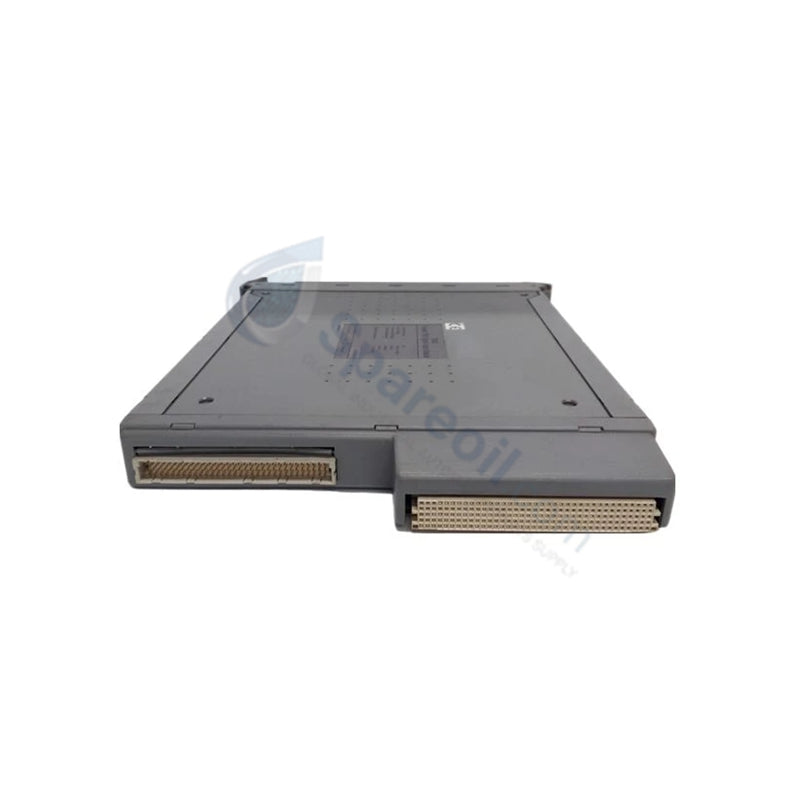

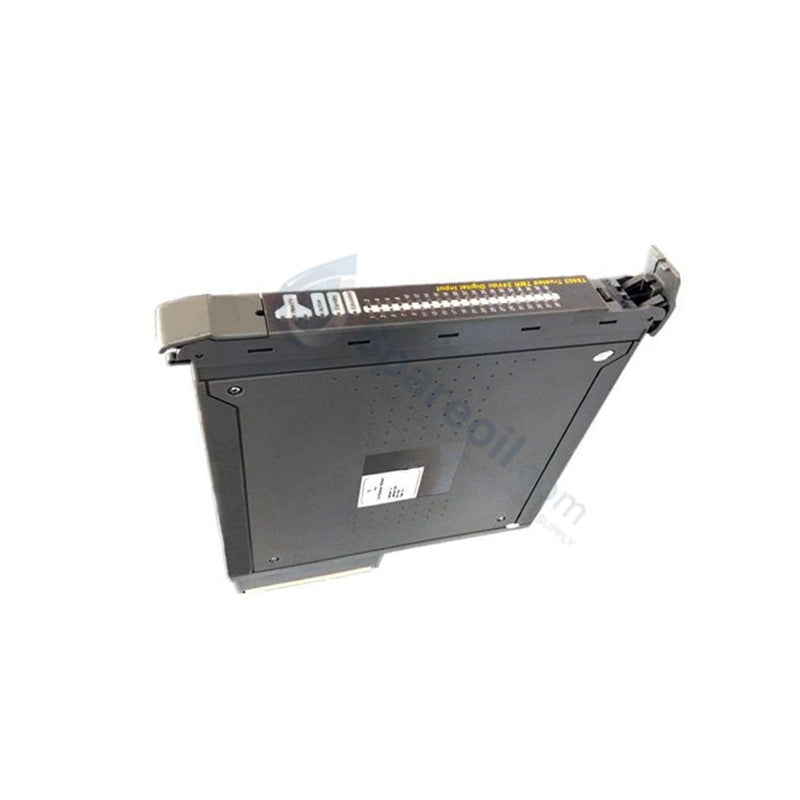

Digital Output Modules ICS Triplex T8451 Trusted TMR Module

Digital Output Modules ICS Triplex T8451 Trusted TMR Module

Availability: 20 left in stock

ICS Triplex T8451 Trusted TMR 24 Vdc Digital Output Module The ICS Triplex T8451, also cataloged as the T8451 Digital...

SKU: T8451

Manufacturer: ICS Triplex
Product No.: T8451
Product Type: Digital Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1130g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS Triplex T8451 Trusted TMR 24 Vdc Digital Output Module

The ICS Triplex T8451, also cataloged as the T8451 Digital Output Module, operates as a dedicated hardware component for high-integrity discrete signal execution within Trusted TMR safety platforms.

Hardware Specifications

Parameter	Specification
Model	T8451
Brand	ICS Triplex
Origin	Industrial Standard Specification
Weight	1.13 kg
Dimensions	30 cm × 3 cm × 24.1 cm
Operating Temp	-5 deg C to 60 deg C
Power Consumption	24 W System Supply / 24 W Field Supply
Number of Outputs	40 Channels (5 groups of 8 outputs)
Output Current Rating	2 A continuous per channel (8 A max per power group)
System Supply Voltage	20 to 32 VDC
Maximum Withstanding Voltage	-1 to 40 VDC
Isolation Voltage	2.5 kV VDC maximum withstanding

Triple Modular Redundancy (TMR) and Fail-Safe Execution

The ICS Triplex T8451 internal hardware architecture incorporates a fully triplicated, fault-tolerant triple modular redundancy (TMR) 2oo3 architecture to secure execution lines for 40 independent digital outputs. The module processes all application logic commands across three isolated, parallel electronic branches. A hardware-driven majority voting matrix continuously monitors and cross-checks the physical switching states of every channel. If a component failure or signal divergence occurs within one sub-circuit branch, the remaining two operational branches maintain command over the field actuator without inducing process interruptions or nuisance alarms. The hardware enforces a strict fail-safe state execution path, defaulting the module to a predetermined safe de-energized or energized configuration during unrecoverable systemic exceptions to maintain compliance with TÜV certified IEC 61508 SIL 3 standbys. Galvanic isolation barriers rated at 2.5 kV VDC protect the internal control domain backplane from field-side electrical surges and common-mode transient noise.

Frequently Asked Questions

Q: Does the T8451 permit online module extraction and replacement during active plant operations?

A: Yes, the T8451 supports hot-swap replacement capabilities via SmartSlot or Companion Slot configurations. Technicians can remove or insert the module into the active chassis under power without disrupting the execution of safety loops.

Q: What is the sequence-of-events reporting resolution for output state modifications?

A: The module records output transitions and diagnostic events into its internal logs with a continuous sequence-of-events (SOE) timestamp resolution of 1 ms, backed by an update sampling period of 0.5 ms.

Field Installation Guidelines

Chassis Insertion: Direct the module along the internal plastic slot runners of the Trusted chassis. Push the front panel firmly to ensure the high-density rear pins fully mate into the Inter-Module Bus backplane before securing the manual lock screws.
Shielding Protocols: Route all discrete field actuator wiring through high-density shielded cables. Ground the shield terminations at the primary cabinet copper earth bus bar while leaving the module-side shield floating to eliminate ground loops.
Load Constraints: Verify that continuous current demands do not exceed 2 A per individual channel and remain limited to a cumulative 8 A across each of the 5 independent power groups to avoid thermal overstress.
Short Circuit Verification: The module integrates electronic latching short-circuit protection. Clear any field wiring short circuits and reset the diagnostic latch via the application interface before returning the isolated channel to operational status.
