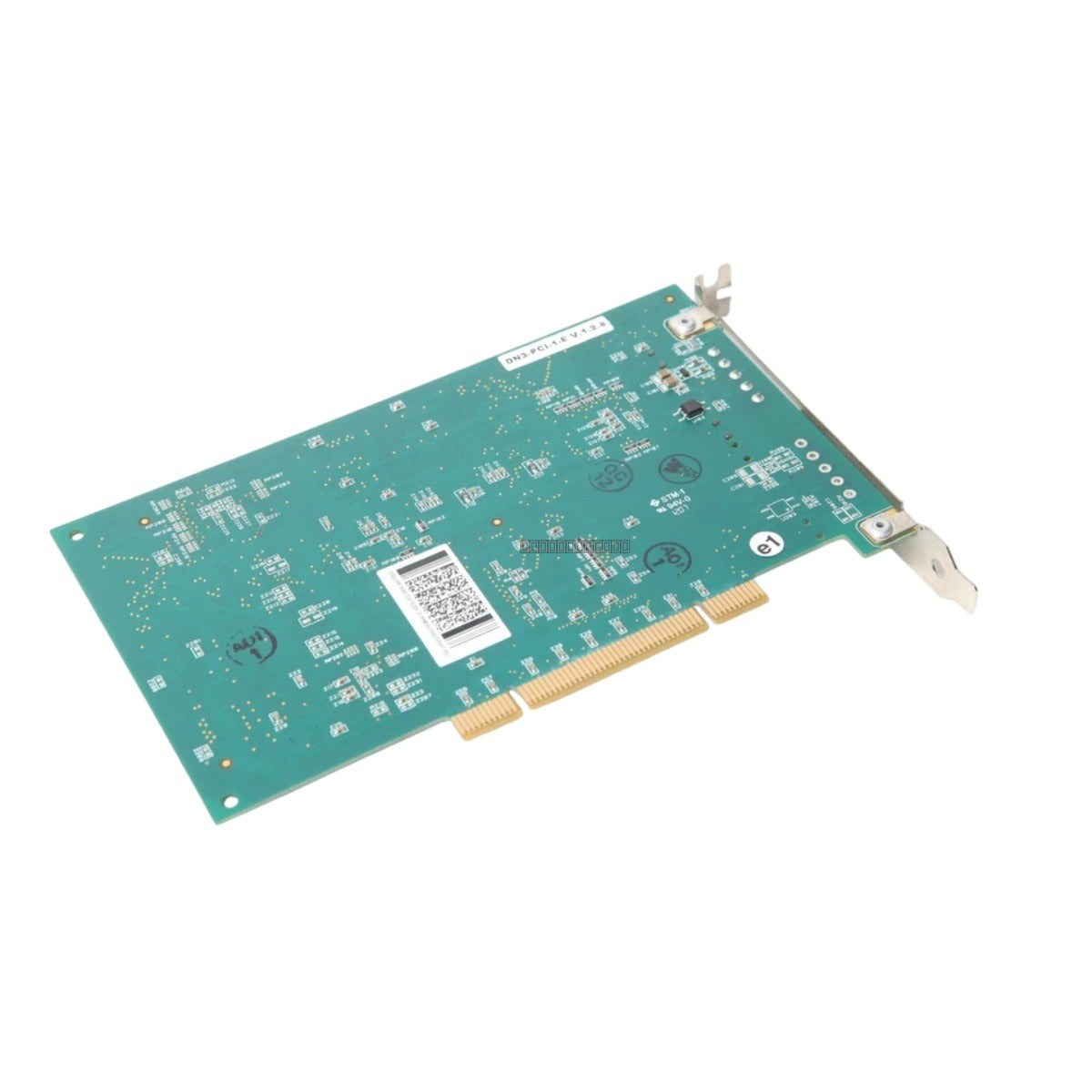

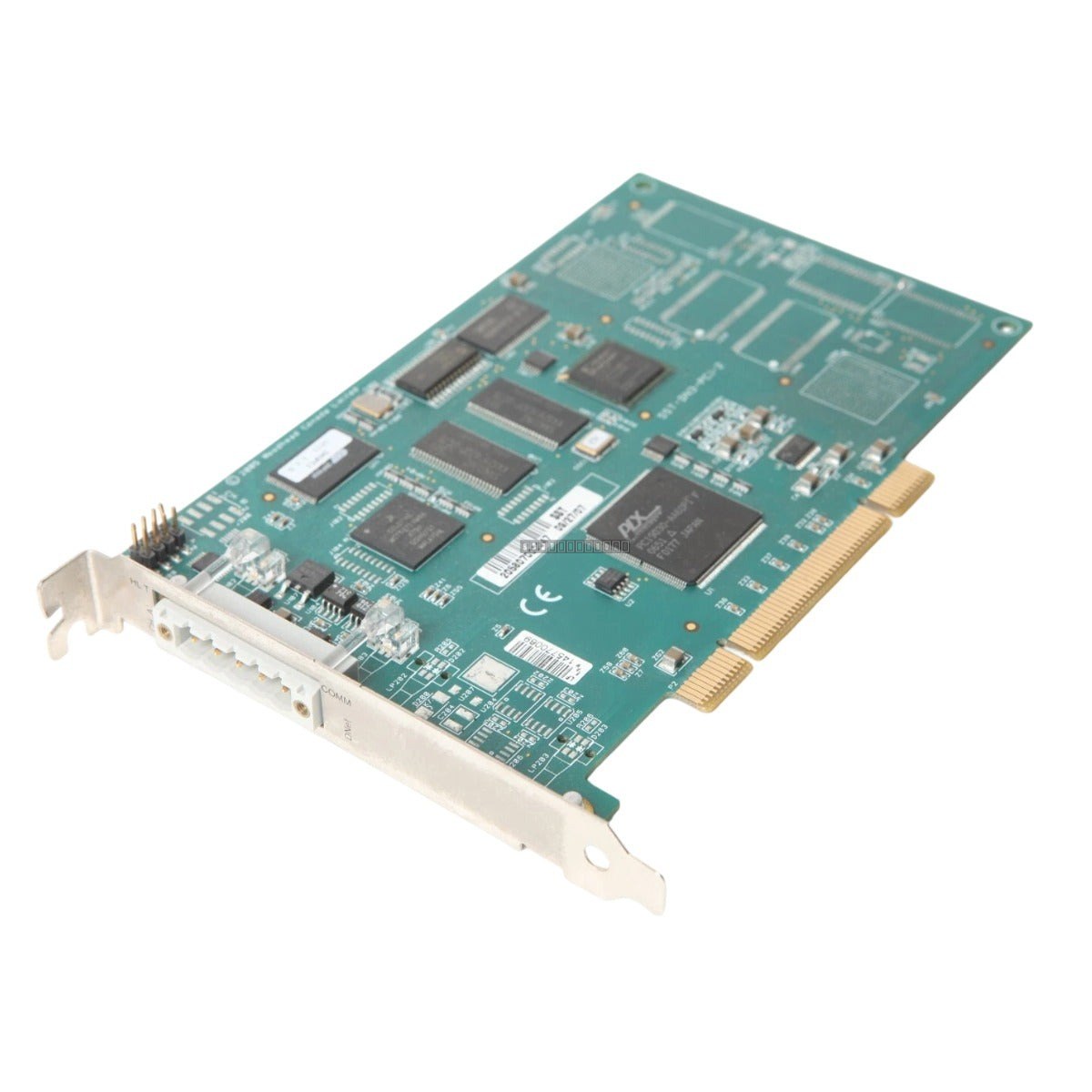

Woodward DN3-PCI-1-E DeviceNet Interface Card

Availability: 3 left in stock

DescriptionThe Woodward DN3-PCI-1-E is a high-speed communication interface card designed to facilitate seamless data exchange between industrial control systems and...

SKU: DN3-PCI-1-E

Manufacturer: Woodward
Product No.: DN3-PCI-1-E
Product Type: Communication Interface Card
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Woodward DN3-PCI-1-E is a high-speed communication interface card designed to facilitate seamless data exchange between industrial control systems and DeviceNet networks. This module serves as a critical bridge for real-time monitoring and control in demanding environments such as power generation facilities, oil refineries, and large-scale industrial automation plants. By offloading complex protocol management from the main processor, the DN3-PCI-1-E ensures deterministic network performance, helping to maintain system stability and reduce unplanned downtime.

Features

High-speed DeviceNet communication interface.
Supports both master and slave modes for flexible network configuration.
Onboard firmware handles the protocol stack to ensure low-latency data throughput.
Galvanic isolation (500 VDC) to protect host hardware from electrical transients and field-side noise.
Ruggedized hardware design suitable for high-vibration industrial environments.
Optimized for integration into industrial PC-based control platforms using PCI bus architecture.

Applications

The DN3-PCI-1-E is intended for use in critical control loops where high-speed I/O synchronization and robust diagnostic reporting are required. It is commonly deployed in systems requiring reliable communication between industrial PCs and field devices on a DeviceNet network.

Technical Specifications

Model	DN3-PCI-1-E
Brand	Woodward
Bus Interface	PCI Express (PCIe)
Communication Protocol	DeviceNet
Power Consumption	250 mA at 5 VDC
Isolation	500 VDC
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the host industrial PC is powered down before inserting or removing the interface card.
Handle the module using proper ESD (electrostatic discharge) precautions to prevent damage to internal components.
Ensure the card is firmly seated in the PCI slot and secured with the appropriate mounting hardware to maintain signal integrity in high-vibration environments.
Route DeviceNet cabling away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to ensure reliable communication.
Verify that the DeviceNet network is properly terminated at both ends of the trunk line according to standard specifications.

FAQ

What is the primary function of the DN3-PCI-1-E?

The DN3-PCI-1-E acts as a communication interface card that allows an industrial PC to connect to and communicate with devices on a DeviceNet network, offloading protocol processing from the main CPU.

Is this module compatible with standard PCI slots?

Yes, the module is designed for integration into industrial PC-based control platforms utilizing the PCI Express (PCIe) bus architecture.

Does this card require external power?

The module is powered via the host bus, consuming 250 mA at 5 VDC.
