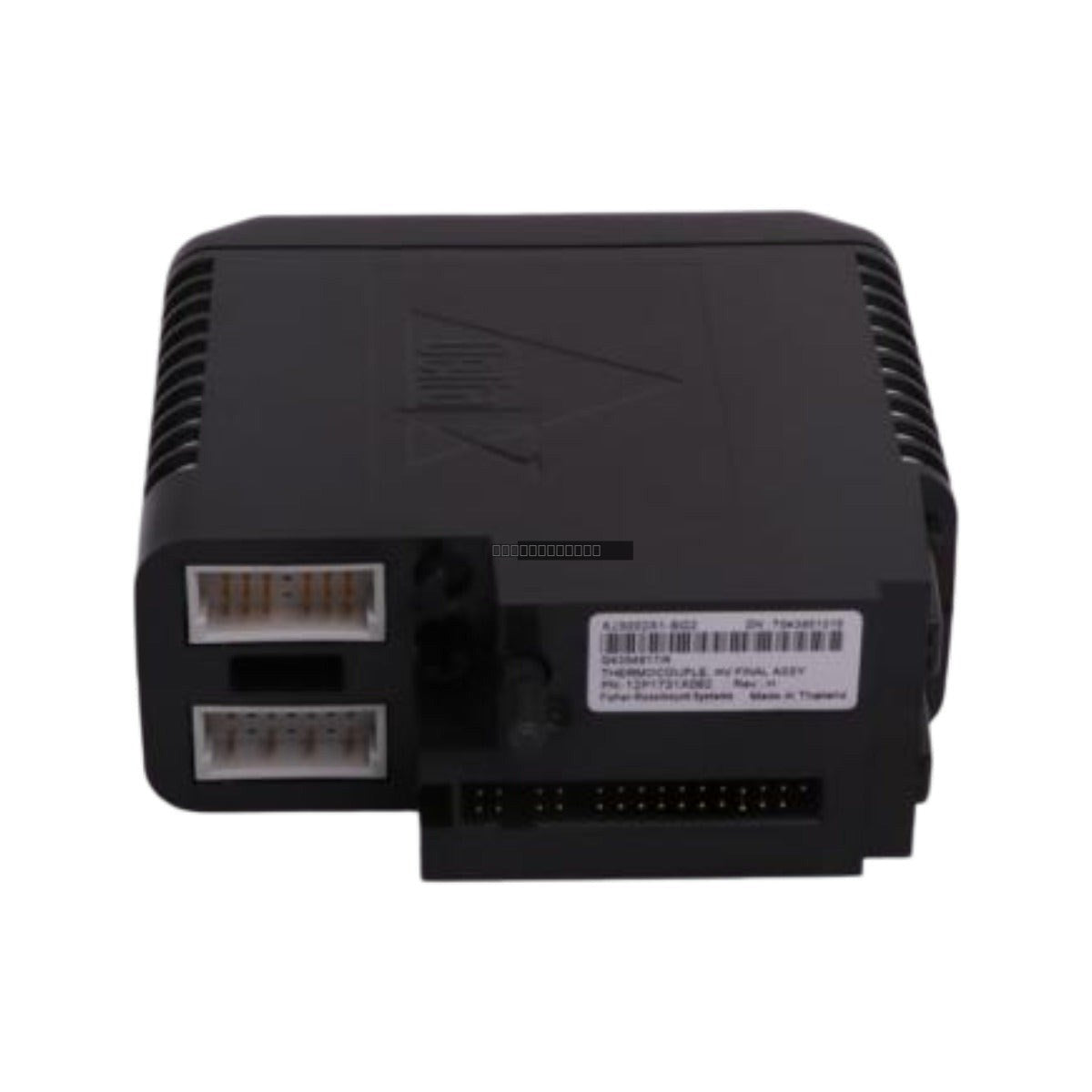

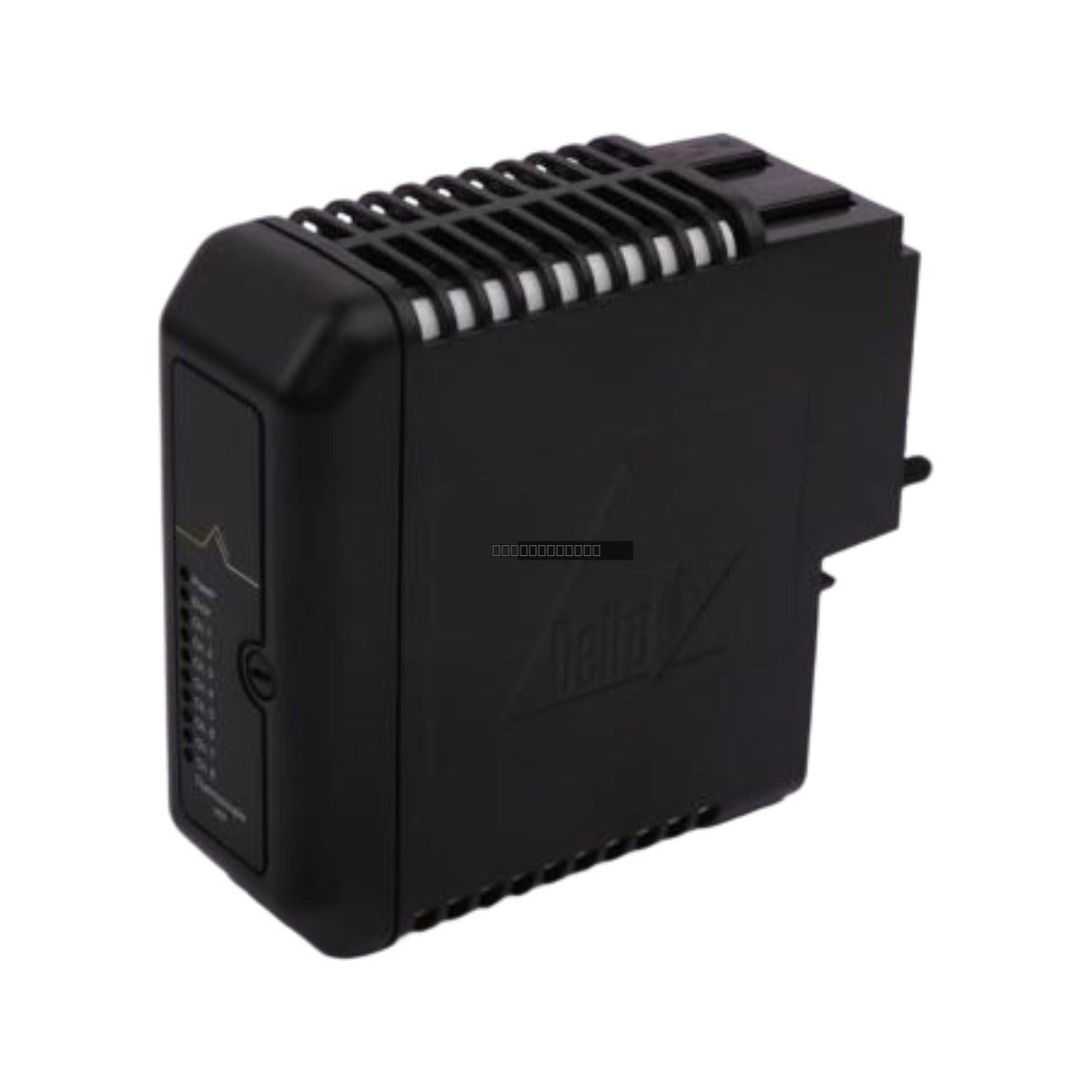

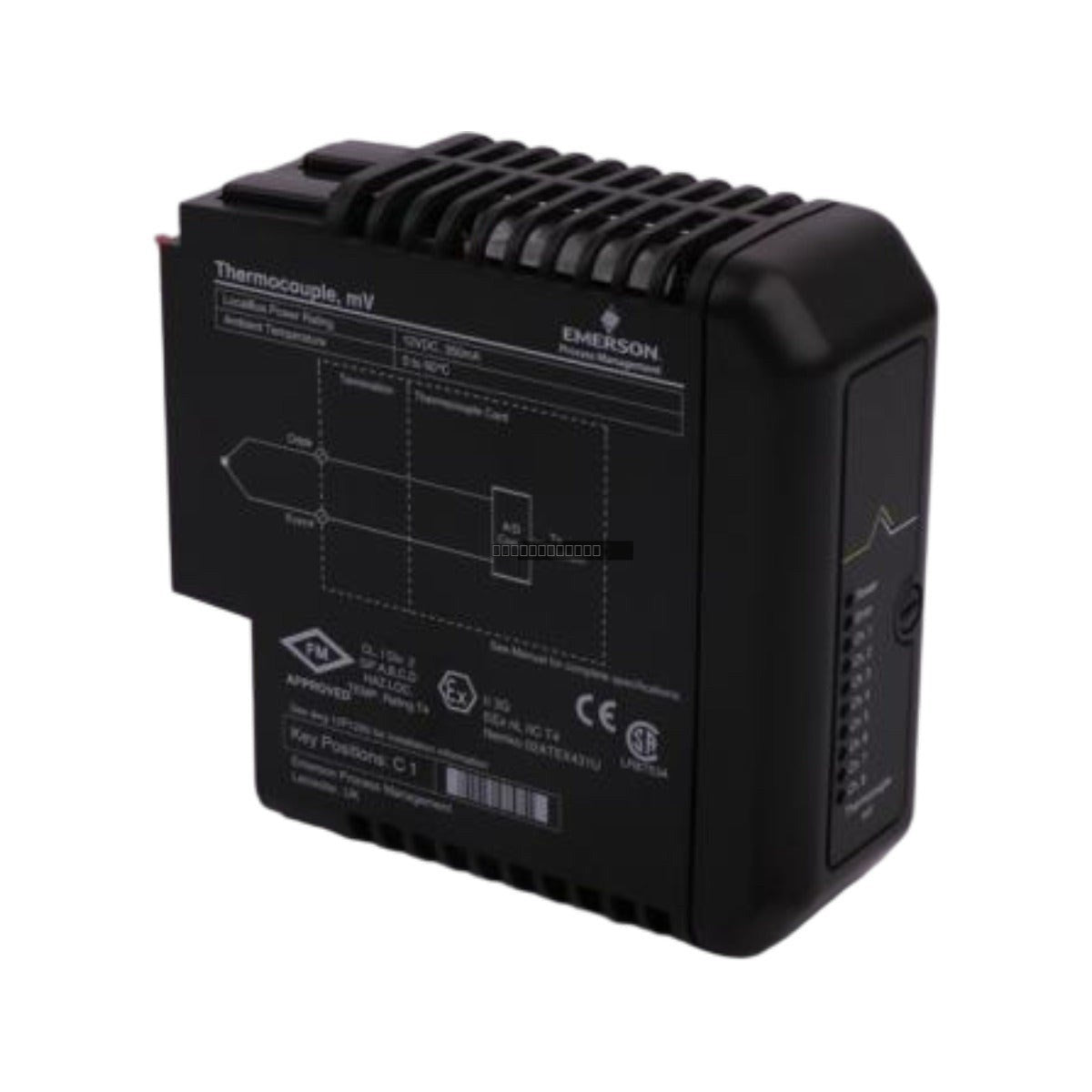

Emerson DeltaV KJ3002X1-BG2 8-Channel Thermocouple Input Module

Emerson DeltaV KJ3002X1-BG2 12P1731X082 8-Channel Thermocouple/mV Input Module

Availability: 2 left in stock

The Emerson DeltaV KJ3002X1-BG2 (12P1731X082) is an 8-channel analog input module designed for precision signal acquisition within the DeltaV Scalable...

SKU: KJ3002X1-BG2 12P1731X082

Manufacturer: Emerson
Product No.: KJ3002X1-BG2 12P1731X082
Product Type: I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Emerson DeltaV KJ3002X1-BG2 (12P1731X082) is an 8-channel analog input module designed for precision signal acquisition within the DeltaV Scalable Process System. This module is specifically optimized for processing thermocouple and millivolt (mV) inputs, providing reliable data conversion for critical temperature and low-voltage monitoring applications in demanding industrial environments.

Features

8-channel input capacity for high-density signal monitoring.
Direct compatibility with various thermocouple types and millivolt sensors.
Supports Removal and Insertion Under Power (RIUP) in designated Zone 2 environments.
Designed for G3 harsh environment compliance per ISA-S71.04-1985.
Integrated mechanical keying (Position B2) to prevent incorrect module-to-terminal block mating.

Applications

This module is widely utilized in process control sectors, including petrochemical refining, power generation, and heavy manufacturing, where accurate thermal sensing is essential for maintaining process stability and safety.

Technical Specifications

Model	KJ3002X1-BG2
Part Number	12P1731X082
Input Channels	8
Input Types	Thermocouple, Millivolt (mV)
LocalBus Power	12 VDC @ 350 mA
Field Circuit Rating	5.5 VDC @ 0.6 mA per channel
Operating Temperature	0 to 60 deg C
Humidity	5 to 95% Non-Condensing
Ingress Protection	IP 20
Shock Resistance	10g (1/2 Sinewave, 11 msec)
Vibration Resistance	1mm P-P (5-16Hz); 0.5g (16-150Hz)
Compliance	ISA-S71.04-1985 Class G3

Installation Guidelines

Ensure the terminal block is correctly keyed to position B2 before installation.
RIUP functionality requires adherence to power conditions; verify primary circuit inductance is below 23 uH.
Always disconnect field power at the terminal level before removing the module to ensure circuit integrity.
Maintain proper ventilation in the cabinet to stay within the 0-60 deg C ambient temperature range.
Handle with standard ESD precautions to prevent damage to sensitive electronic components.

FAQ

Is this module field-calibrated?

No, the KJ3002X1-BG2 is factory-calibrated and contains no user-serviceable parts. Field calibration is not required or supported.

What is the required keying for this module?

The module must be used with a terminal block keyed to position B2 to ensure correct hardware alignment and safety.

Can this module be used in hazardous areas?

Yes, it is certified for use in Zone 2 hazardous atmospheres under the designation II 3 G, EEx nL IIC T4, provided it is installed according to local safety regulations.
