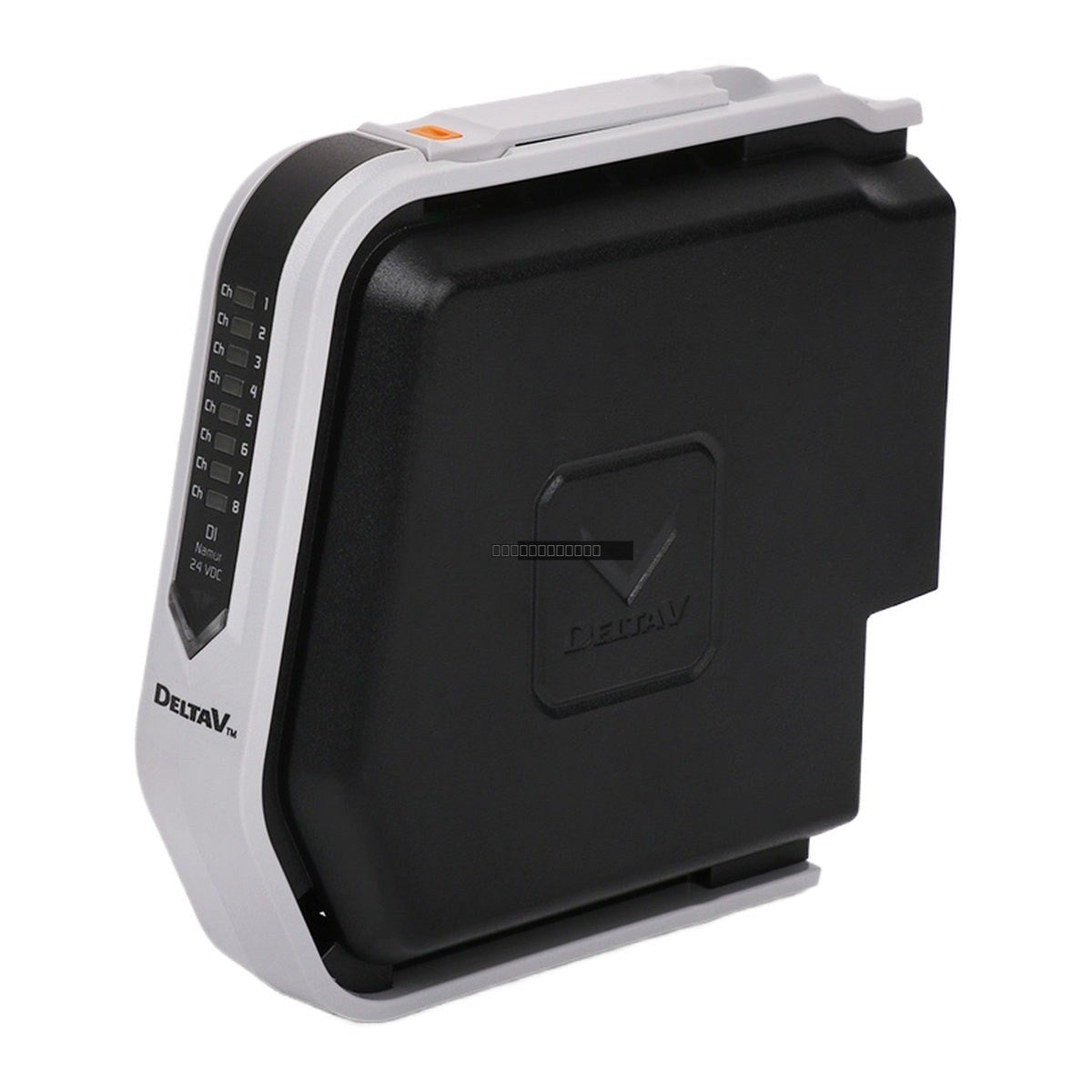

Emerson DeltaV KJ3201X1-BK1 12P4692X042 Digital Input Module

Emerson KJ3201X1-BK1 12P4692X042 SE4001S2T1B1

Emerson DeltaV KJ3201X1-BK1 12P4692X042 Digital Input Module

Availability: 10 left in stock

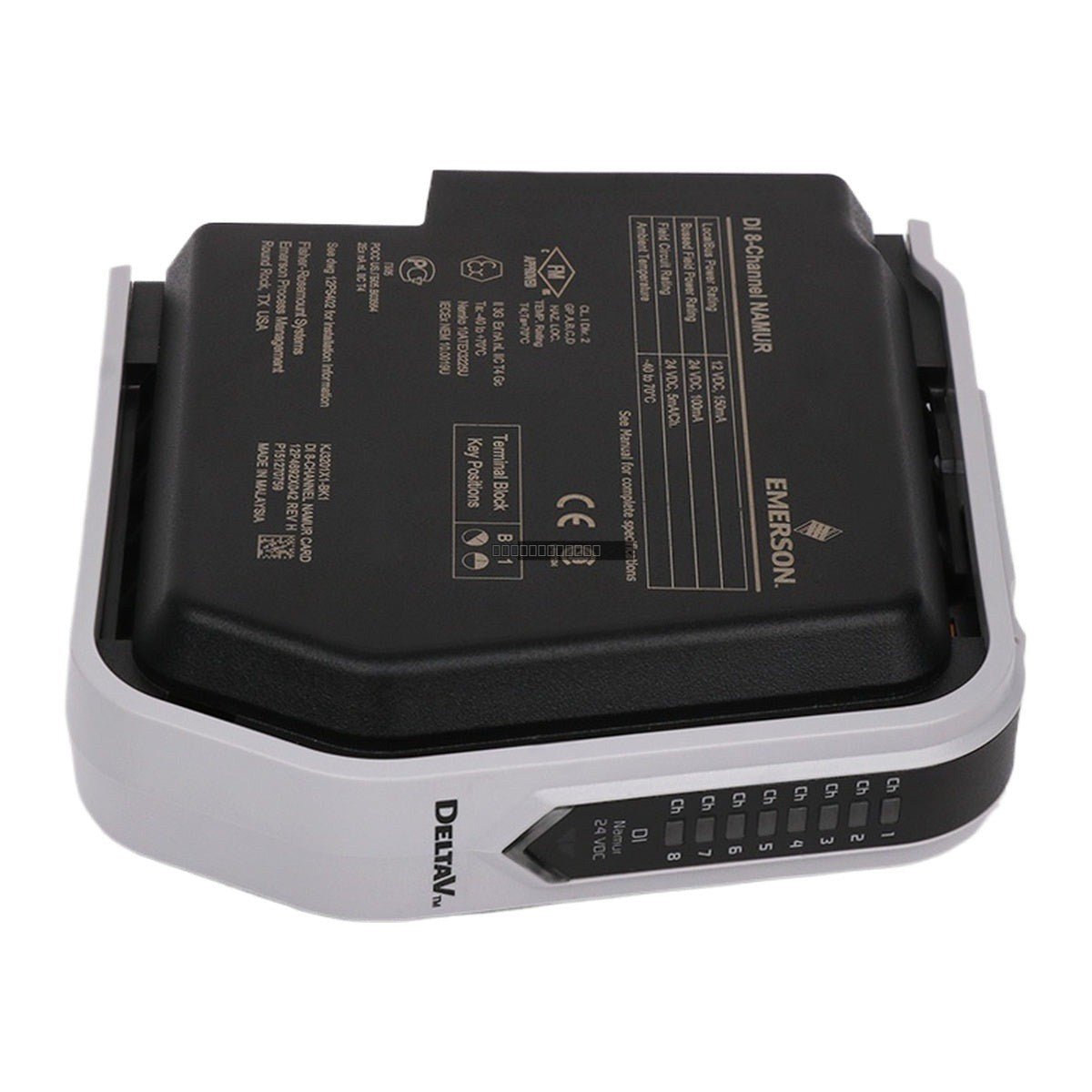

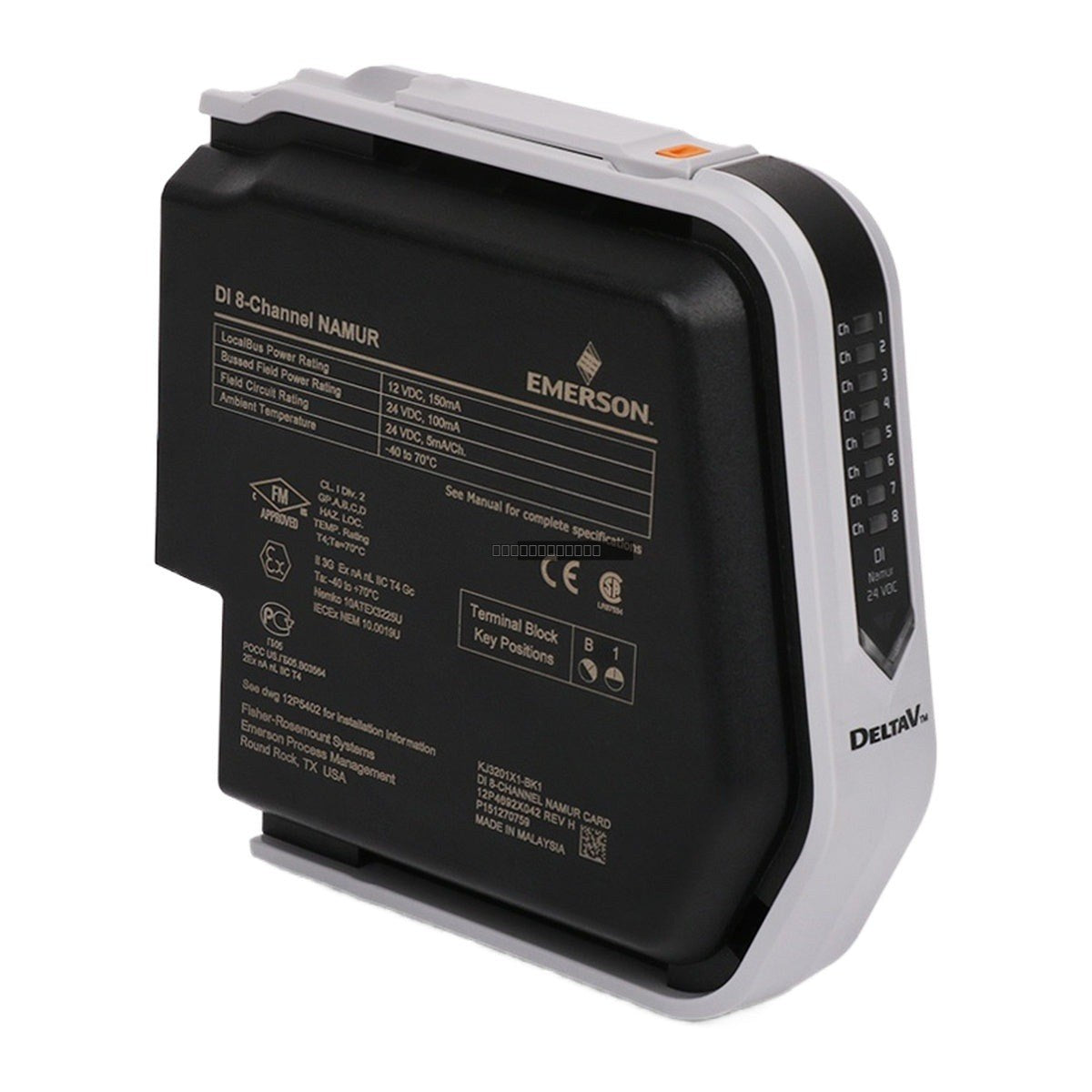

The Emerson KJ3201X1-BK1 (12P4692X042) is an 8-channel S-Series Digital Input (DI) card designed for the DeltaV Distributed Control System (DCS)....

SKU: KJ3201X1-BK1 12P4692X042 SE4001S2T1B1

Manufacturer: Emerson
Product No.: KJ3201X1-BK1 12P4692X042 SE4001S2T1B1
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Emerson KJ3201X1-BK1 (12P4692X042) is an 8-channel S-Series Digital Input (DI) card designed for the DeltaV Distributed Control System (DCS). This module provides reliable signal acquisition for industrial automation, supporting both dry contact inputs and NAMUR-style proximity sensors.

Features

8-channel 24V DC dry contact digital input capability.
Configurable as discrete input or pulse count input (up to 75 Hz).
Optical isolation per channel (factory-tested to 1,500 VDC).
Supports NAMUR sensor compatibility.
Rotary keying system (B1) for secure terminal block matching.
Wide operating temperature range: -40 degC to +70 degC.

Applications

Oil & Gas: Monitoring valve positions and safety interlocks on offshore platforms and refineries.
Chemical/Petrochemical: Managing flow and pressure switches in hazardous environments.
Pharmaceutical: Tracking batch reactor status and containment switch states.
Power Generation: Monitoring critical isolation dampers and fuel-trip valves.

Technical Specifications

Model	KJ3201X1-BK1 (12P4692X042)
Channels	8
Input Impedance	Approx. 5 kOhm
Wetting Voltage	15 V
ON Detection	> 2.2 mA
OFF Detection	< 1 mA
Local Bus Power	12 VDC at 150 mA (max)
Field Circuit Power	24 VDC at 5 mA/Ch
Operating Temp	-40 degC to +70 degC
Humidity	5% to 95% Non-Condensing

Installation Guidelines

Ensure the system power is disconnected before inserting or removing the module from the I/O carrier.
Verify the rotary keying position is set to B1 to match the corresponding terminal block.
For NAMUR sensors, connect wires directly to the channel terminals (Channel+ and Channel-).
When using standard dry contact mechanical switches, external resistors must be installed in series and parallel to maintain correct current levels and prevent false fault detection.
Ensure proper grounding and shielding of field wiring to minimize EMI in accordance with standard industrial practices.

FAQ

What is the primary function of the KJ3201X1-BK1?

This module is an 8-channel digital input card for the DeltaV S-Series, used to detect the state of field switches or NAMUR sensors without supplying external power to the devices.

Is this module compatible with pulse counting?

Yes, the channels are configurable for pulse train inputs up to 75 Hz, in addition to standard discrete input monitoring.

What happens if I use a dry contact switch without resistors?

Without the required series and parallel resistors, the module will be unable to distinguish between open/closed states correctly and will likely flag an open or short-circuit line fault.
