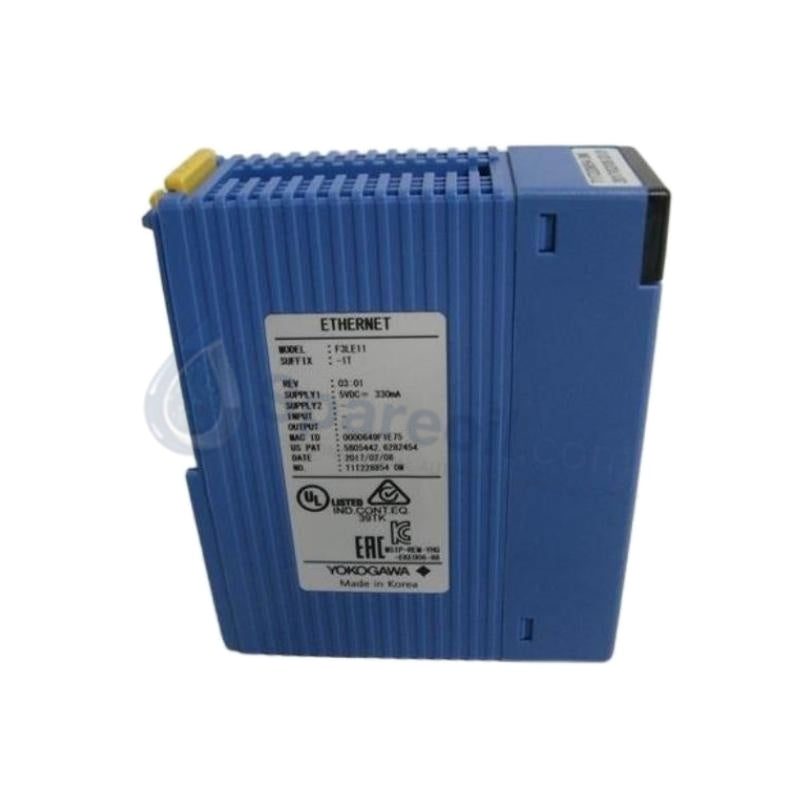

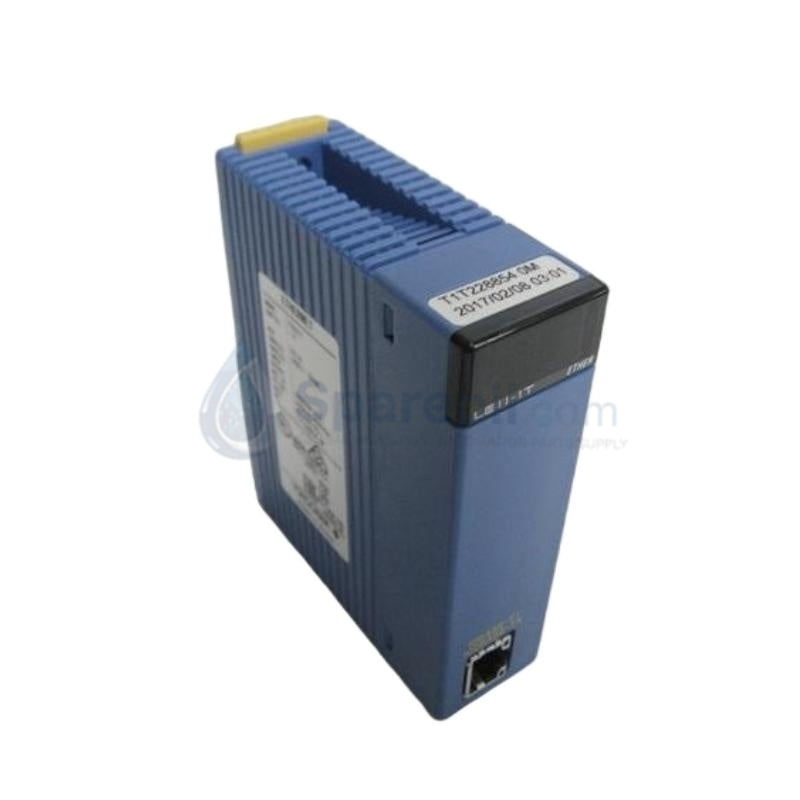

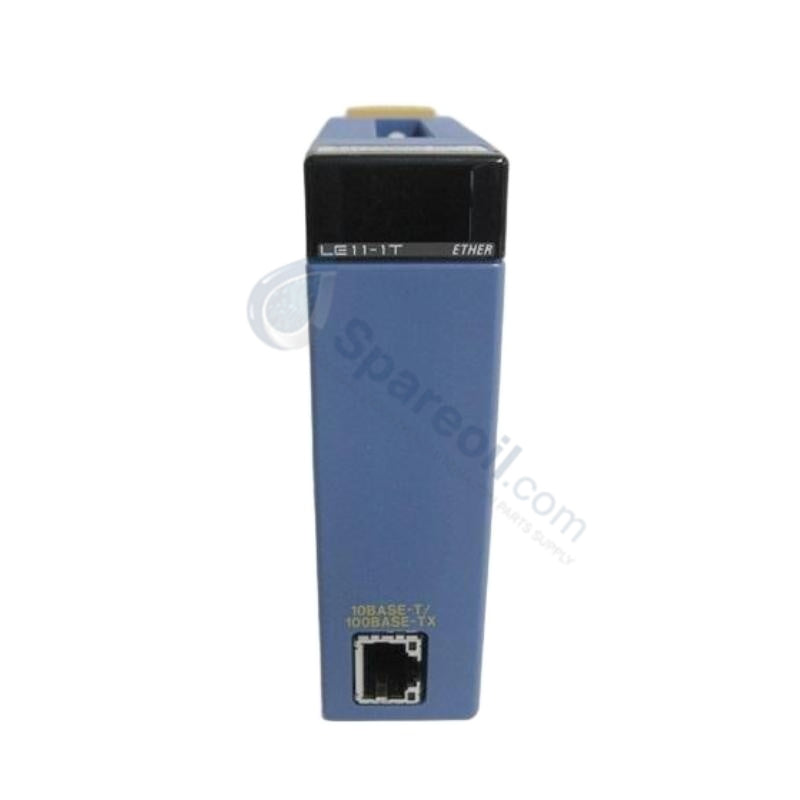

F3LE11-1T Yokogawa Ethernet Interface Module

F3LE11-1T FA-M3 Yokogawa PLC Ethernet Communication Interface Module

F3LE11-1T FA-M3 Yokogawa PLC Ethernet Communication Interface Module

Availability: 10 left in stock

Yokogawa F3LE11-1T FA-M3 Ethernet Interface Module The Yokogawa F3LE11-1T, also cataloged as the F3LE11-1T Ethernet Interface Module, operates as a...

SKU: F3LE11-1T

Manufacturer: Yokogawa
Product No.: F3LE11-1T
Product Type: Ethernet Interface Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 160g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa F3LE11-1T FA-M3 Ethernet Interface Module

The Yokogawa F3LE11-1T, also cataloged as the F3LE11-1T Ethernet Interface Module, operates as a dedicated hardware component for network data exchange and TCP/IP protocol processing within FA-M3 PLC platforms.

Hardware Specifications

Parameter	Specification
Model	F3LE11-1T
Brand	Yokogawa Electric Corporation
Origin	Japan
Weight	0.16 kg
Dimensions	28.9 x 100 x 83.2 mm
Operating Temp	0 to 55 deg C
Power Consumption	220 mA at 5 VDC (internal bus)
Physical Connector	RJ45 modular jack (10BASE-T / 100BASE-TX)
Communication Protocols	TCP/IP, UDP/IP, ICMP, ARP, SMTP, POP3
Max Transmission Distance	100 meters per segment (Cat5 or higher)
System Mounting	FA-M3 / FA-M3V base unit slot insertion

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The F3LE11-1T interface module executes deterministic Ethernet communication while routing digital state data from field instrumentation across the internal FA-M3 backplane bus. Photocoupler and Ethernet-to-logic galvanic isolation protect internal microprocessor circuits from high-frequency electromagnetic noise and field voltage spikes. When integrated with process I/O arrays processing 4-20 mA HART loop protocol parameters, the module enforces clear electrical channel-to-channel isolation boundaries, preventing ground loops from disrupting TCP/IP packet transmission or corrupting automated email alarm triggers.

Frequently Asked Questions

Q: Does the F3LE11-1T module require external power supply connections?

A: No. The unit draws power directly from the internal 5 VDC backplane supply of the FA-M3 base unit, consuming a maximum current of 220 mA during active packet processing.

Q: What network topology limits apply when cascading segments with the F3LE11-1T?

A: The module adheres to IEEE 802.3 standards, supporting maximum segment lengths of 100 meters over Category 5 twisted-pair cabling with CSMA/CD access control across standard star or cascaded configurations.

Field Installation Guidelines

Insert the F3LE11-1T module vertically into the designated slot of the FA-M3 base unit, pressing firmly until the retention mechanism fully engages. Ensure the base unit main power is completely de-energized prior to module insertion or removal. Connect standard Category 5 or higher shielded twisted-pair (STP) cable to the front RJ45 connector, maintaining proper cable shield grounding at the patch panel to mitigate external electrical noise. Maintain a minimum bending radius for Ethernet cabling inside the panel to prevent conductor fatigue and signal degradation.
