Foxboro FBM223 P0917HD Profibus-DP Interface Module

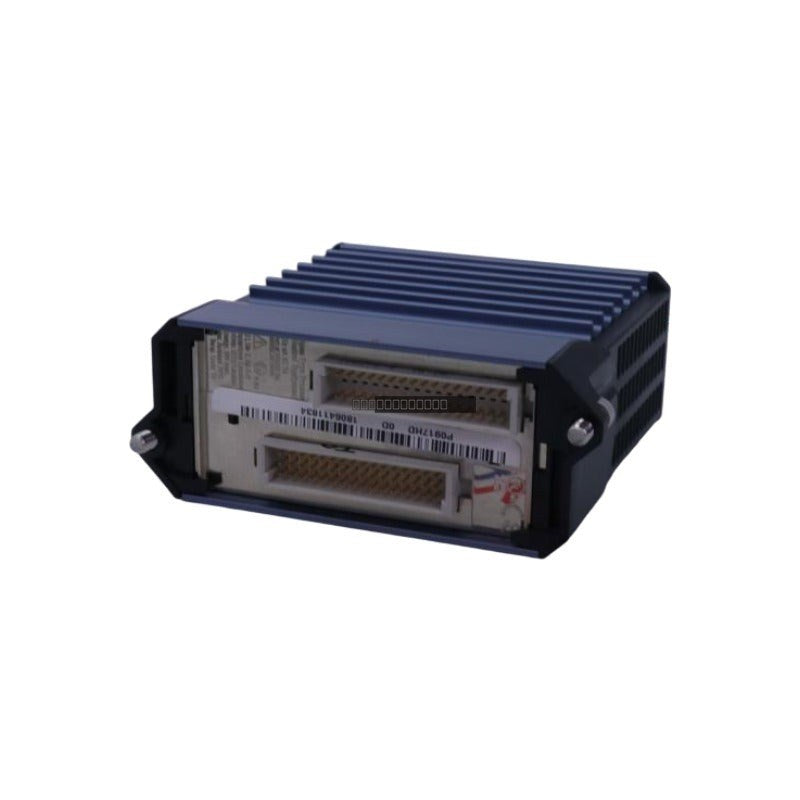

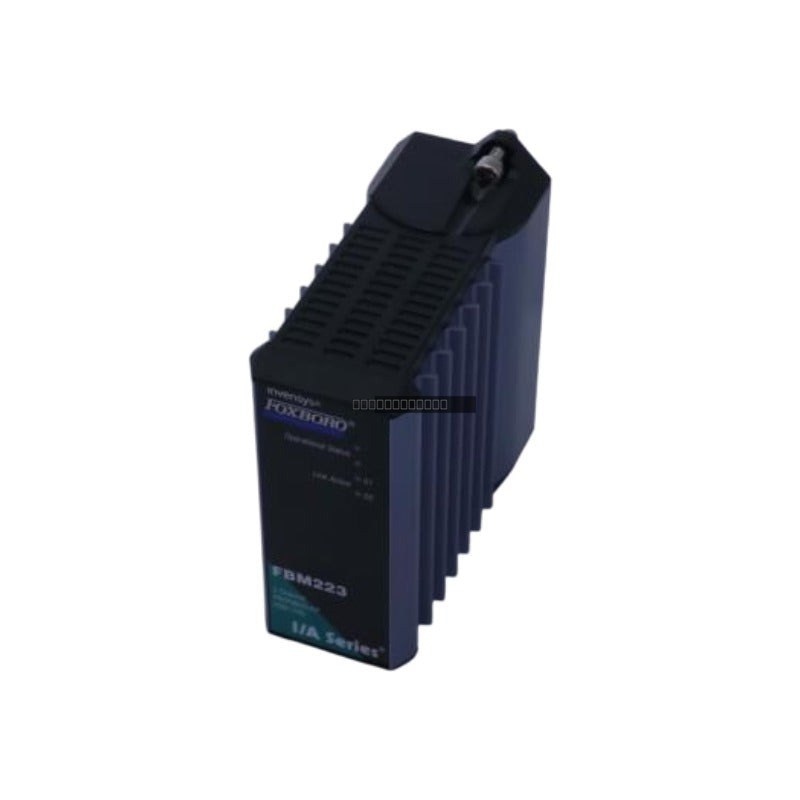

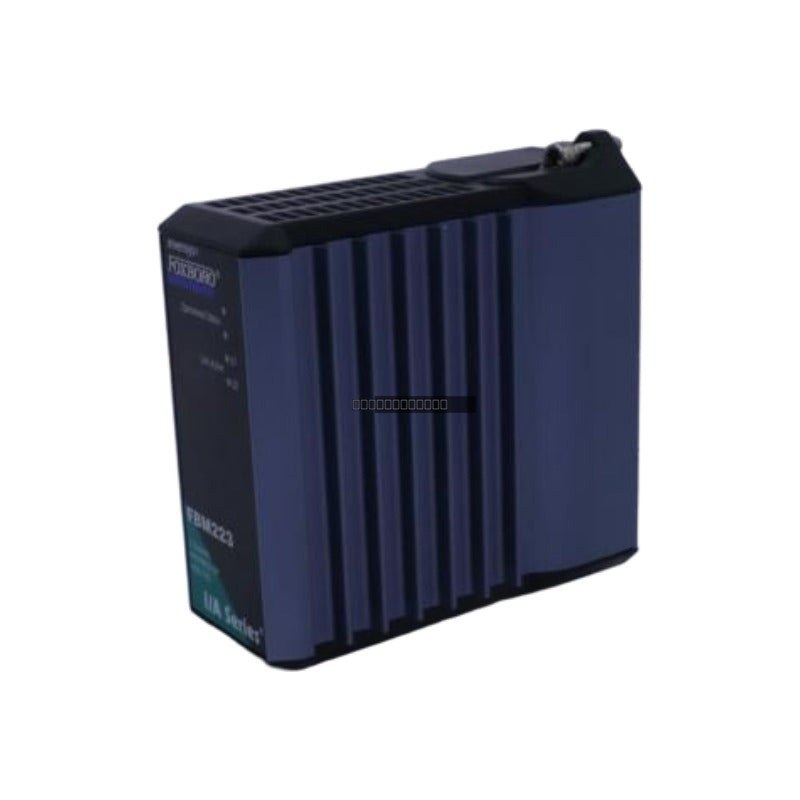

Foxboro FBM223 Fieldbus Interface Module (P0917HD)

Availability: 2 left in stock

The Foxboro FBM223 (P0917HD) is a specialized Fieldbus Module designed for the I/A Series Distributed Control System, serving as a...

SKU: FBM223

Manufacturer: Foxboro
Product No.: FBM223
Product Type: Fieldbus Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Foxboro FBM223 (P0917HD) is a specialized Fieldbus Module designed for the I/A Series Distributed Control System, serving as a high-performance Profibus-DP Master. This module enables the integration of intelligent field devices—such as variable frequency drives, motor control centers, and smart instrumentation—directly into the control environment. By providing a digital interface, the FBM223 reduces complex hardwiring requirements and enhances the diagnostic capabilities of the overall control system.

Features

Serves as a Profibus-DP Master for seamless integration of field-side devices.
Supports up to 125 slave devices per network segment.
Galvanic isolation protects the system backplane from field-side electrical interference.
Communicates with the station-level Control Processor via a redundant 2 Mbps HDLC link.
Supports redundant pair configurations on compatible baseplates to ensure continuous operation during hardware faults.
Onboard diagnostics monitor port health and internal logic integrity.

Applications

The FBM223 is engineered for demanding industrial environments, including oil and gas refining, power generation facilities, and municipal water and wastewater treatment plants. It is ideal for applications requiring high-speed data synchronization and comprehensive device-level monitoring in distributed control architectures.

Technical Specifications

Model	FBM223 (P0917HD)
Brand	Foxboro (Schneider Electric)
Module Type	Profibus-DP Interface
Communication Rate	9.6 kbps to 12 Mbps
Max Slave Devices	125
Power Consumption	4 W (max)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C
Relative Humidity	5 to 95 percent (non-condensing)

Installation Guidelines

Ensure the system power is removed before inserting or removing the module from the baseplate to prevent electrical damage.
The module must be installed in a Series 200 I/O subsystem baseplate.
Observe proper grounding practices for the Profibus-DP network to minimize EMI and signal degradation.
Ensure adequate ventilation within the cabinet to maintain ambient temperatures within the 0 to 60 deg C range.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuit components.

FAQ

Does the FBM223 support redundancy? Yes, the module supports redundant pair configurations when installed on a dedicated baseplate, allowing for automatic failover.

What protocol does this module use? The FBM223 acts as a Profibus-DP Master for communicating with field devices.
