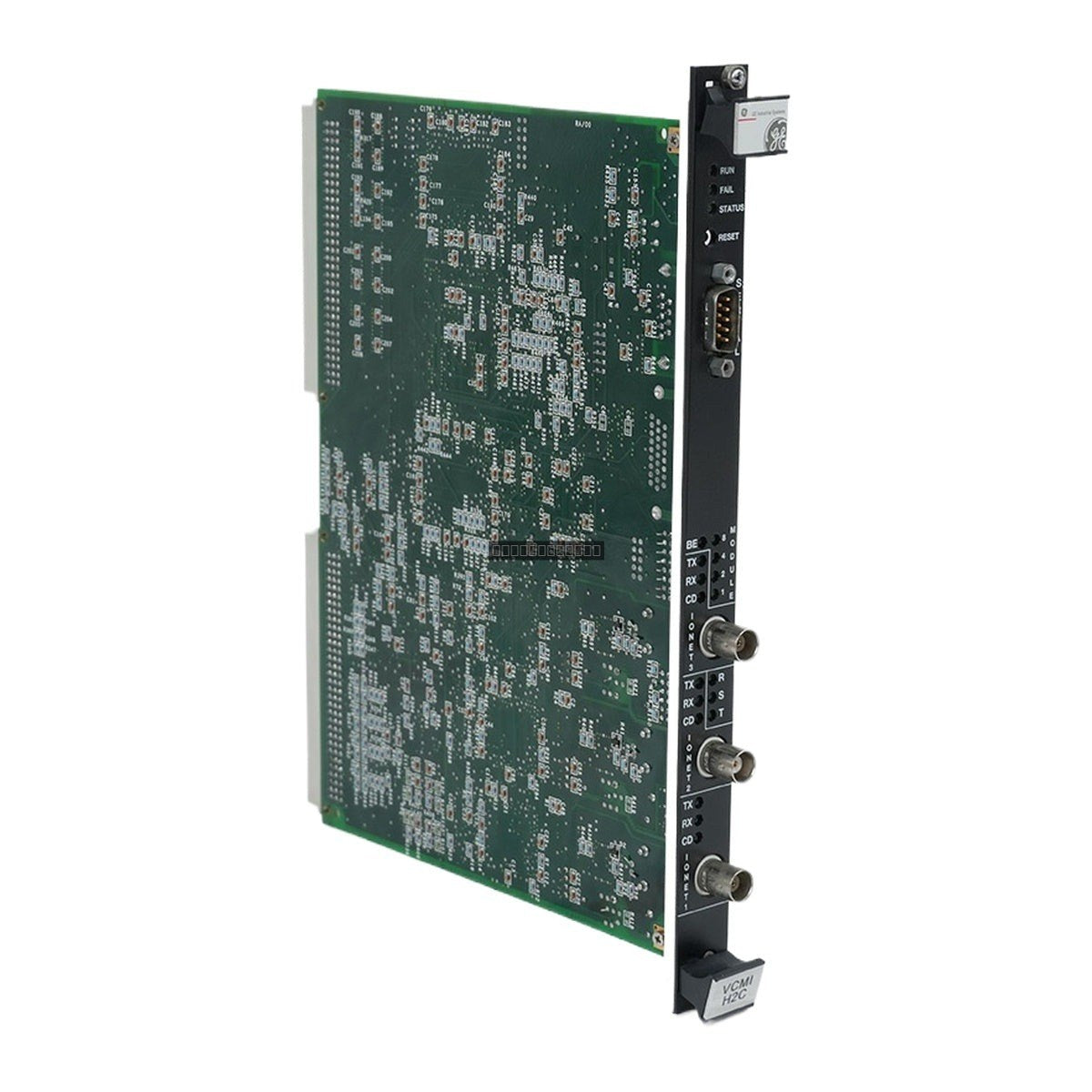

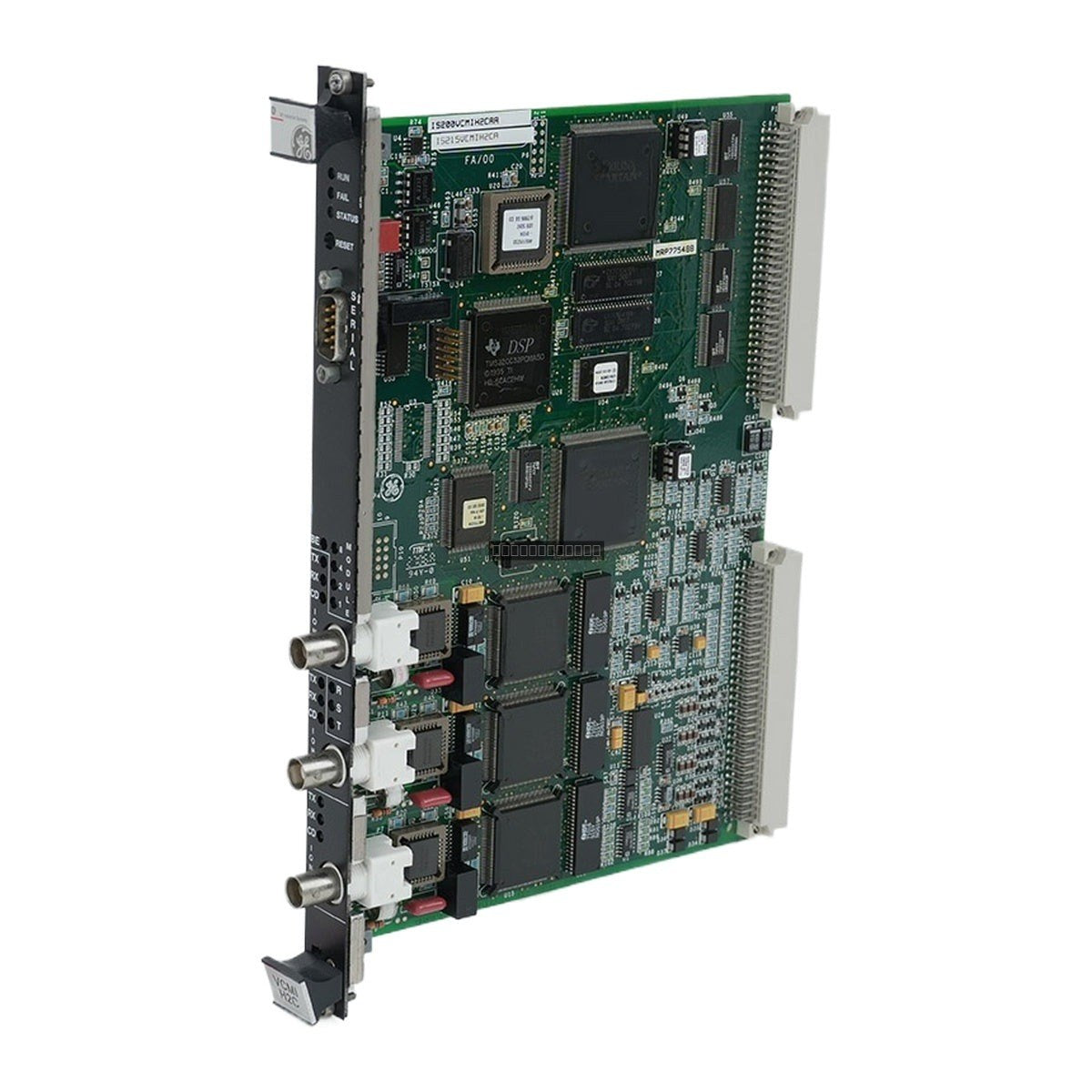

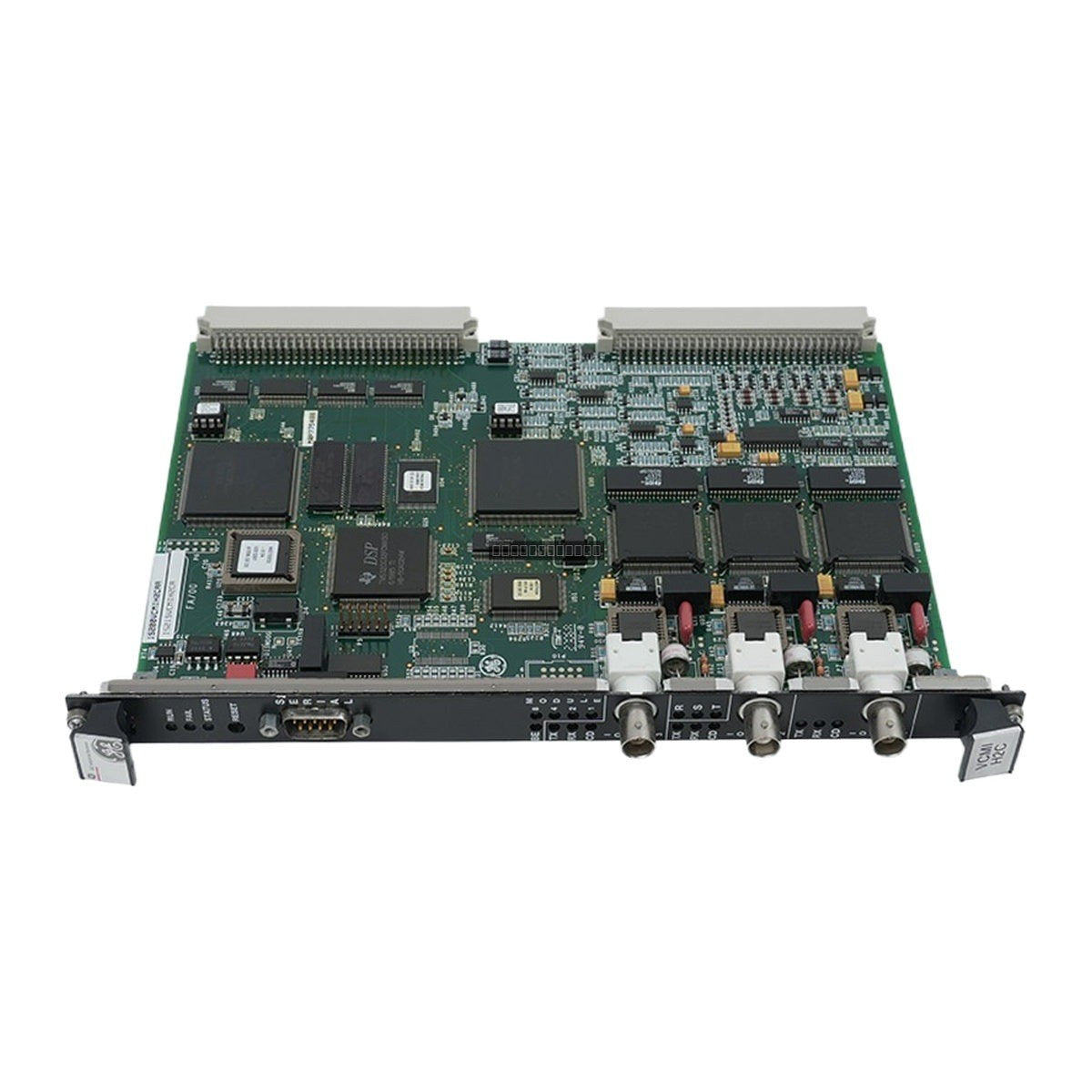

GE IS200VCMIH2CAA / IS215VCMIH2CA VME Communication Interface Card

General Electric IS200VCMIH2CAA/IS215VCMIH2CA

General Electric IS200VCMIH2CAA / IS215VCMIH2CA VME Communication Interface Card

Availability: 4 left in stock

The General Electric IS200VCMIH2CAA and IS215VCMIH2CA serve as critical VME Communication Interface (VCMI) cards within the Speedtronic Mark VI gas...

SKU: IS200VCMIH2CAA/IS215VCMIH2CA

Manufacturer: General Electric
Product No.: IS200VCMIH2CAA/IS215VCMIH2CA
Product Type: Communication Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The General Electric IS200VCMIH2CAA and IS215VCMIH2CA serve as critical VME Communication Interface (VCMI) cards within the Speedtronic Mark VI gas turbine control system. This module acts as the primary bridge between I/O boards and the main controller, facilitating high-speed data exchange across the IONet system control network.

Features

Advanced VME Bus Master Controller architecture with 32-bit digital signal processing.
Integrated front faceplate connectivity featuring one RS-232C serial port and three 10Base2 Ethernet IONet ports.
Comprehensive LED diagnostic system providing real-time status, run, fail, and communication link monitoring.
High-frequency noise suppression via integrated inductor beads and robust circuit design.
Supports Triple Modular Redundant (TMR) system configurations.

Applications

Gas and steam turbine control in combined-cycle power plants.
Critical process monitoring for compressors, pumps, and rotating equipment in oil and gas refineries.
Large-scale automation for hydroelectric and wind power generation units.
Process control and coordination in petrochemical and water treatment facilities.

Technical Specifications

Model	IS200VCMIH2CAA / IS215VCMIH2CA
Processor	32-bit DSP
Power Requirements	+5 V dc, 6 A
Supply Voltage	28 V dc
Communication Ports	3x IONet (10Base2), 1x RS-232C
Mounting	VME Rack / DIN-rail compatible

Installation Guidelines

Ensure the turbine control system is fully powered down before inserting or removing the VCMI module.
Always utilize an Electrostatic Discharge (ESD) protective wrist strap when handling the PCB to prevent damage to integrated circuits.
When performing a board replacement, ensure all PROM modules are carefully transferred from the original board to the new unit to maintain firmware consistency.
Align pins carefully when seating PROMs; use a flat-bladed screwdriver to gently lift components if necessary.
Slide the board into the designated VME rack slot, ensuring it is fully seated and securely locked into the backplane.

FAQs

What is the primary role of the IS215VCMIH2CA?

This module acts as the VME Communications Interface for the Mark VI system, managing network traffic on the IONet and linking I/O boards to the main controller.

How does the H2CA version differ from earlier models?

The H2CA variant is designed for enhanced connectivity, featuring three IONet ports compared to the single port found on the VCMIH1, making it the preferred choice for TMR systems.

What do the LEDs on the faceplate indicate?

The LEDs provide visual feedback for system status, run/fail conditions, and specific TX/RX/CD activity for each of the three IONet communication ports.
