130944-01 Bently Nevada 3500 Series Datasheet & Technical Manual

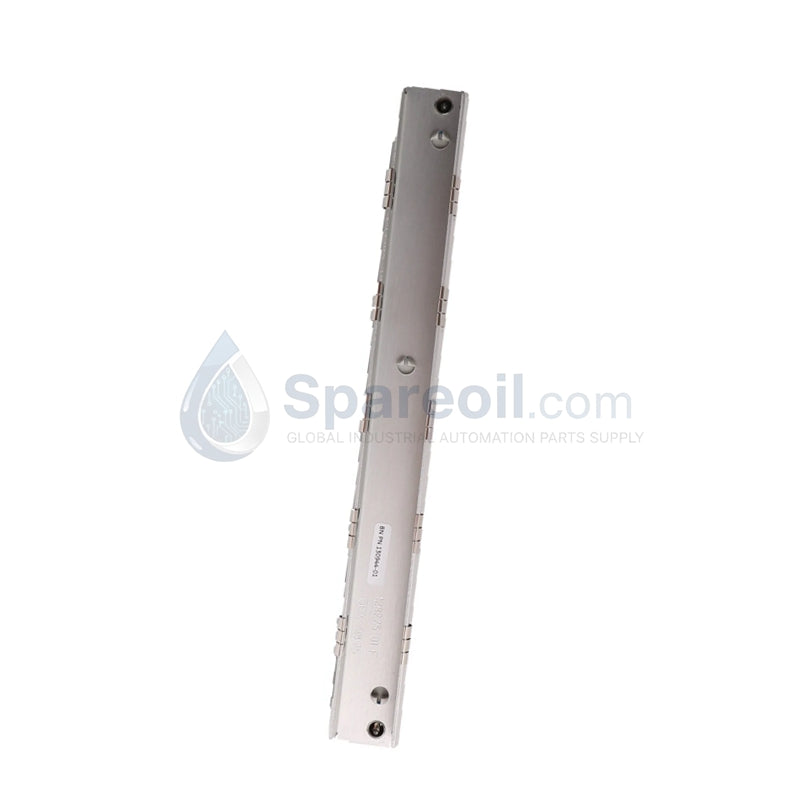

Half-Height Blank Filler Module Bently Nevada 130944-01 3500 Series

Half-Height Blank Filler Module Bently Nevada 130944-01 3500 Series

Availability: 10 left in stock

Bently Nevada 130944-01 Half-Height Blank Filler Module The Bently Nevada 130944-01, also cataloged as the 130944-01 Half-Height Blank Filler Module,...

SKU: 130944-01

Manufacturer: Bently Nevada
Product No.: 130944-01
Product Type: Blank Filler Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 130944-01 Half-Height Blank Filler Module

The Bently Nevada 130944-01, also cataloged as the 130944-01 Half-Height Blank Filler Module, operates as a dedicated hardware component for rack enclosure integrity and thermal management within Bently Nevada 3500 Series Monitoring System platforms.

Hardware Specifications

Parameter	Specification
Model	130944-01
Brand	Bently Nevada
Origin	USA
Weight	1.00 kg
Dimensions	3500 series half-height form factor
Operating Temp	-30 deg C to +65 deg C
Power Consumption	N/A (Passive component)
Slot Coverage	One (1) half-height rack slot

Mechanical Monitoring and TSI Characteristics

The Bently Nevada 130944-01 maintains proper rack pressure, which prevents air bypass and supports forced-air cooling across active monitor modules. Engineers utilize this module to ensure cross-talk suppression by shielding the backplane from electromagnetic interference (EMI). While the filler does not perform signal processing, it protects the backplane gold-pin connectors from contaminants. Proper installation facilitates the environmental stability required for high-fidelity eddy-current probe scaling and rotor dynamics monitoring performed by adjacent active modules in the 3500 rack.

Frequently Asked Questions

Q: Can the 130944-01 be installed while the 3500 rack is powered on?

A: Yes, as this is a passive mechanical component, it does not interface with the electrical backplane bus and may be inserted or removed without disrupting system operation.

Q: Is this module required for API 670 compliant installations?

A: Yes, filling unused slots is a standard practice to maintain the designed cooling airflow path and environmental protection of the internal circuitry.

Field Installation Guidelines

Align the module with the guide rails of the unoccupied half-height slot in the 3500 rack.
Slide the module into the rack until it seats flush against the front panel interface.
Tighten the fastening screws to ensure the module maintains a secure mechanical connection and creates an effective seal against dust and moisture.
Verify that the module is properly seated to prevent vibration-induced loosening within the rack enclosure.
