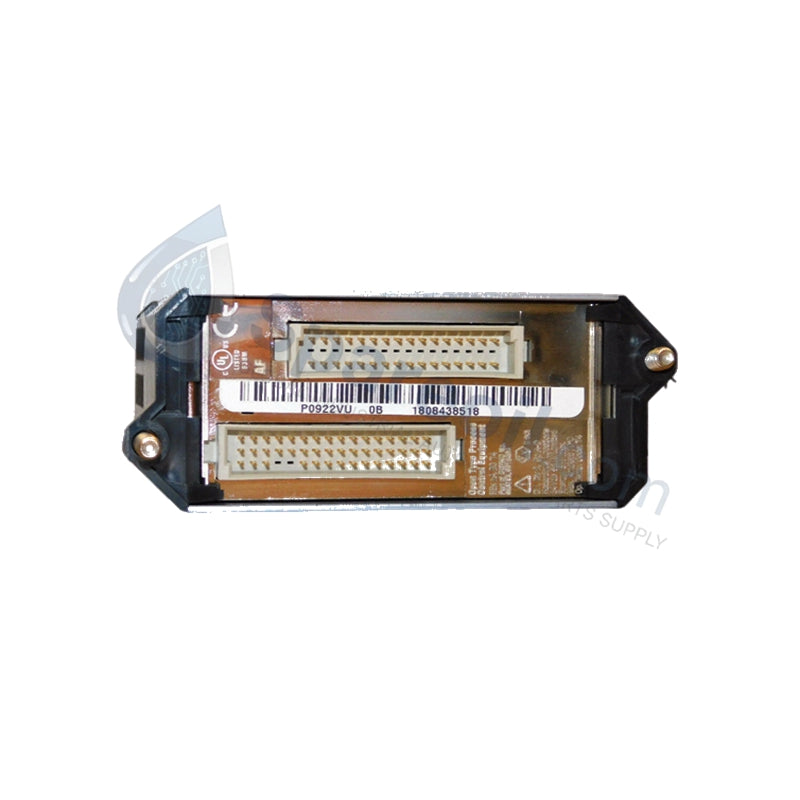

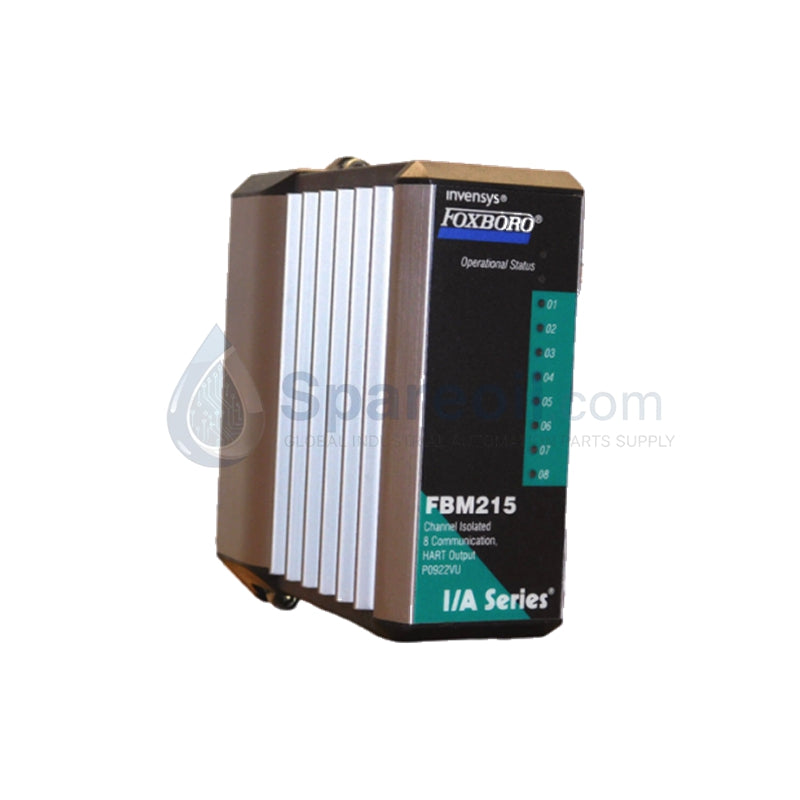

HART Communication Module | Foxboro I/A Series FBM215

HART Communication Module | Foxboro I/A Series FBM215

Availability: 10 left in stock

Product Overview The Foxboro FBM215 (Part Number: P0922VU) provides a high-performance interface between HART-compatible field devices and the I/A Series Distributed Control...

SKU: FBM215 P0922VU

Manufacturer: Foxboro
Product No.: FBM215 P0922VU
Product Type: 4-20mA Signal Conditioners
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM215 (Part Number: P0922VU) provides a high-performance interface between HART-compatible field devices and the I/A Series Distributed Control System (DCS). This module collects 16 independent 4–20 mA analog signals while simultaneously supporting bidirectional HART digital communication. It allows operators to access advanced device diagnostics and configuration data without interrupting the primary process variable. We supply this unit as 100% Brand New original factory stock, ensuring seamless integration for high-uptime environments in the oil & gas and chemical sectors.

Technical Specifications

Item	Specification
Model / Part Number	FBM215 / P0922VU
Input Channels	16 Isolated Analog Inputs with HART
Signal Range	4–20 mA DC
Accuracy	±0.05% of span
Resolution	12-bit
Input Impedance	250 Ω
Isolation	Galvanic; 600 V AC for 1 minute
Communication	Redundant 2 Mbps Foxboro Fieldbus
Power Consumption	Max 7 W
Operating Temp	–20 °C to +60 °C (Module) / +70 °C (TA)
Dimensions	102 x 45 x 104 mm
Weight	0.3 kg
Certifications	UL, CSA, CE, ATEX, Class 1 Div 2

Engineering Advantages

Integrated HART Data Access: The FBM215 eliminates the need for external HART multiplexers. It passess secondary variables and device status bits directly to the DCS, enabling predictive maintenance strategies and reducing unplanned shutdowns.
Superior Signal Precision: An accuracy rating of ±0.05% ensures that critical process loops—such as those found in turbine control or chemical dosing—operate at peak efficiency with minimal signal deviation.
Per-Channel Galvanic Isolation: This module features robust galvanic isolation for every channel. This architecture prevents ground loops from distorting 4-20mA signals and shields the internal fieldbus from high-voltage transients (up to 600 V AC) occurring on the field side.
Optimized Space Utilization: By packing 16 HART-capable channels into a single modular footprint, the FBM215 reduces the number of baseplates required. This density lowers the total cost of ownership (TCO) and simplifies cabinet thermal management.
Live System Maintenance: The hot-swappable design allows technicians to replace the P0922VU module while the system remains under power. The redundant 2 Mbps fieldbus ensures that the replacement does not interrupt the communication of adjacent modules.

FAQs

Does the FBM215 support both digital and analog signals simultaneously?

Yes. The FBM215 processes the standard 4-20mA analog signal for primary control while using the superimposed HART digital signal for asset management and diagnostics.
Is the P0922VU compatible with standard 2-wire transmitters?

Absolutely. The module interfaces with 2-wire or 4-wire HART-compatible transmitters, providing the necessary input impedance and isolation for reliable signal acquisition.
How does this module handle hazardous area requirements?

The FBM215 carries ATEX and Class 1 Div 2 / Zone 2 certifications. When paired with appropriate intrinsic safety barriers or installed in protected enclosures, it operates safely in volatile environments common in refineries.
Can I replace an older FBM module with the FBM215 P0922VU?

The FBM215 is a standard 200 series module. While it seats into standard modular baseplates, you must verify that your control software and Termination Assemblies (TA) support HART pass-through functionality.
