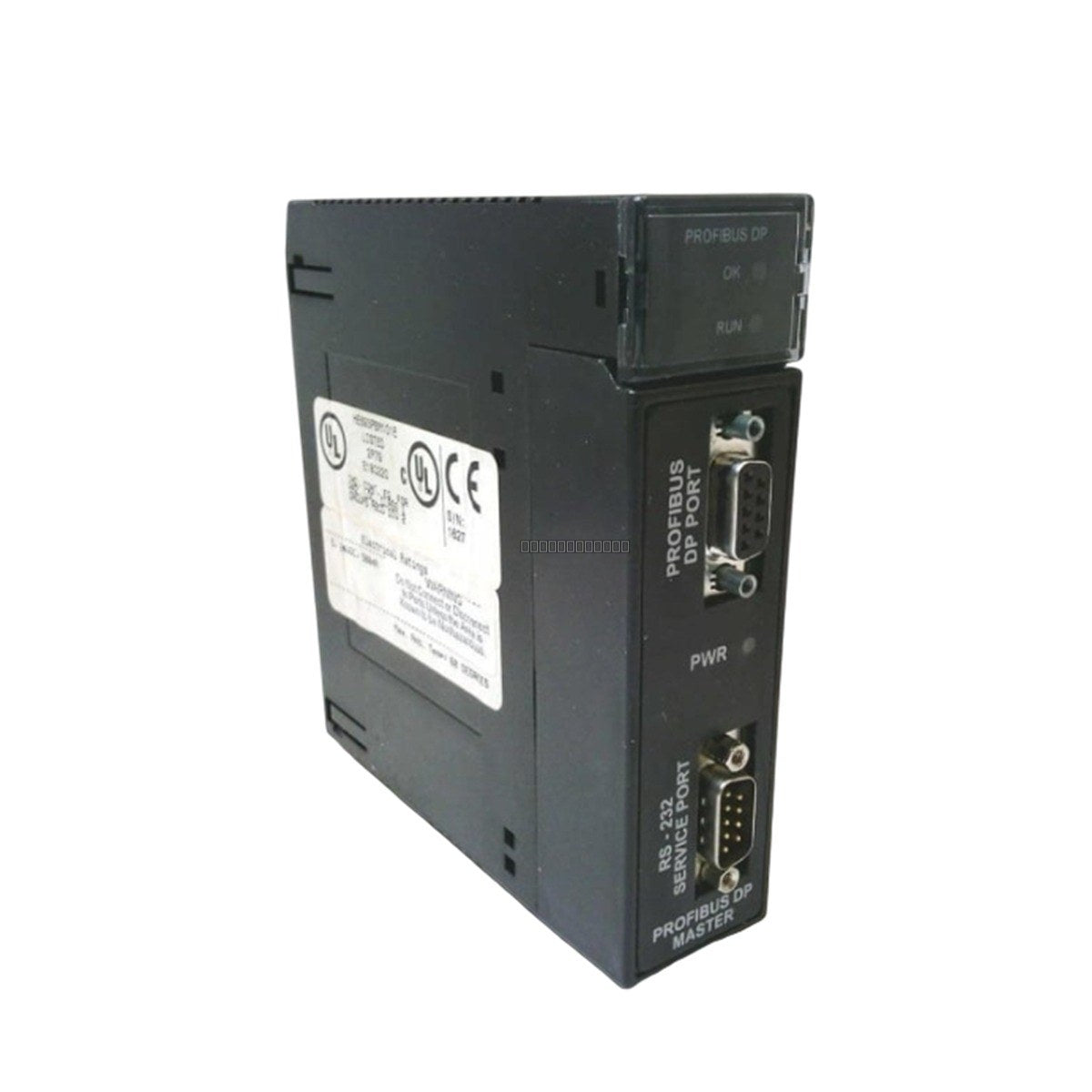

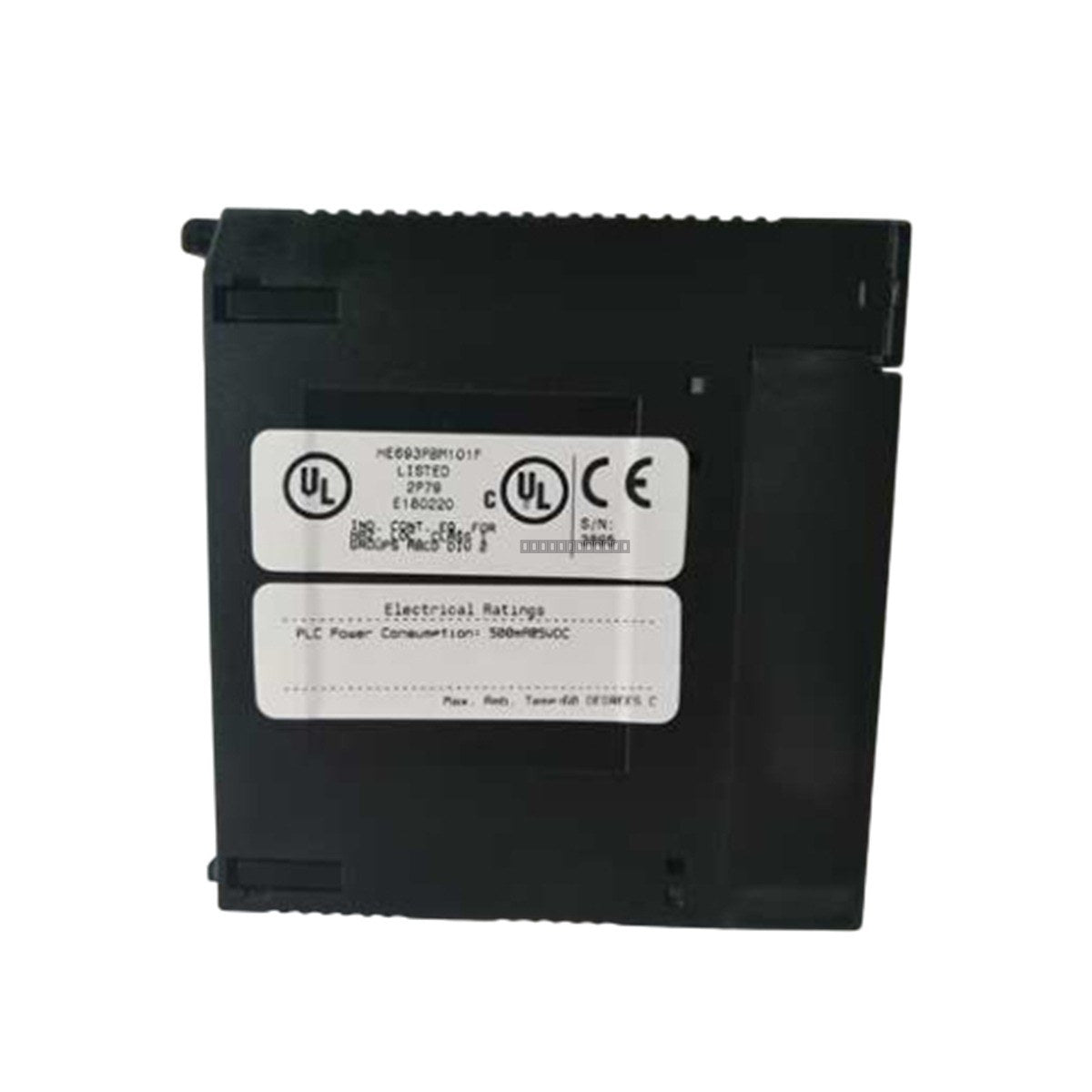

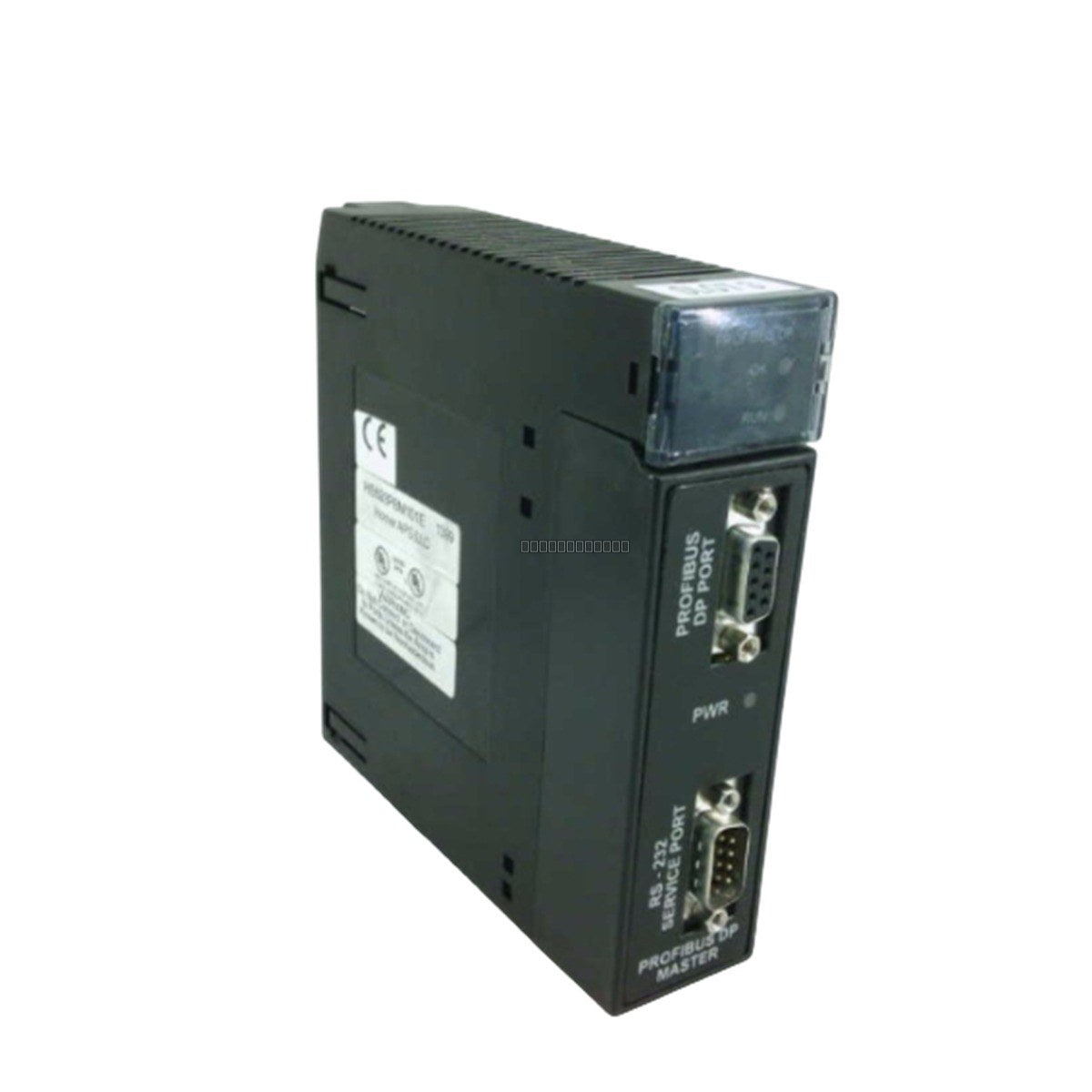

General Electric HE693PBM101 Profibus Master Module

General Electric HE693PBM101 Series 90-30 Profibus Master Network Module

Availability: 5 left in stock

DescriptionThe General Electric HE693PBM101 is a specialized network module designed for the Series 90-30 PLC platform. This module functions as...

SKU: HE693PBM101

Manufacturer: General Electric
Product No.: HE693PBM101
Product Type: PLC Network Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric HE693PBM101 is a specialized network module designed for the Series 90-30 PLC platform. This module functions as a Profibus Master, enabling the PLC to communicate with and control various Profibus-DP slave devices within an industrial automation network. It provides a robust interface for distributed I/O, drives, and other field devices, facilitating seamless data exchange and system expansion in complex control architectures.

Features

Designed specifically for integration with the GE Fanuc Series 90-30 PLC system.
Acts as a Profibus Master, supporting high-speed communication with slave nodes.
Includes an RS-232 interface for configuration and diagnostic purposes.
Enables efficient distributed control by offloading communication tasks from the main CPU.
Compact module design for standard Series 90-30 rack mounting.

Applications

This module is widely utilized in manufacturing and process control environments where Profibus-DP protocol is required for fieldbus communication. Typical applications include motor control centers, remote I/O stations, and integration of third-party instrumentation into the GE 90-30 control ecosystem.

Technical Specifications

Product Model	HE693PBM101
Manufacturer	General Electric
Module Type	Profibus Master Network Module
Series	Series 90-30
Interface	Profibus-DP, RS-232
Weight	0.34 kg

Installation Guidelines

Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
Slide the module into an available slot in the Series 90-30 baseplate, ensuring the backplane connector is fully seated.
Secure the module using the integrated mounting screws to ensure proper grounding and mechanical stability.
Use shielded Profibus-rated cabling for all network connections to minimize EMI interference.
Verify that the module configuration matches the network baud rate and slave address settings via the PLC programming software.
Maintain adequate ventilation around the rack to prevent overheating during continuous operation.

FAQ

What is the primary function of the HE693PBM101?

The HE693PBM101 acts as a Profibus Master module, allowing a GE Series 90-30 PLC to manage and communicate with Profibus-DP compatible field devices.

Is this module compatible with other PLC series?

No, this module is specifically engineered for the GE Series 90-30 PLC backplane architecture.

Does this module require external power?

The module draws its operating power directly from the Series 90-30 PLC rack backplane.
