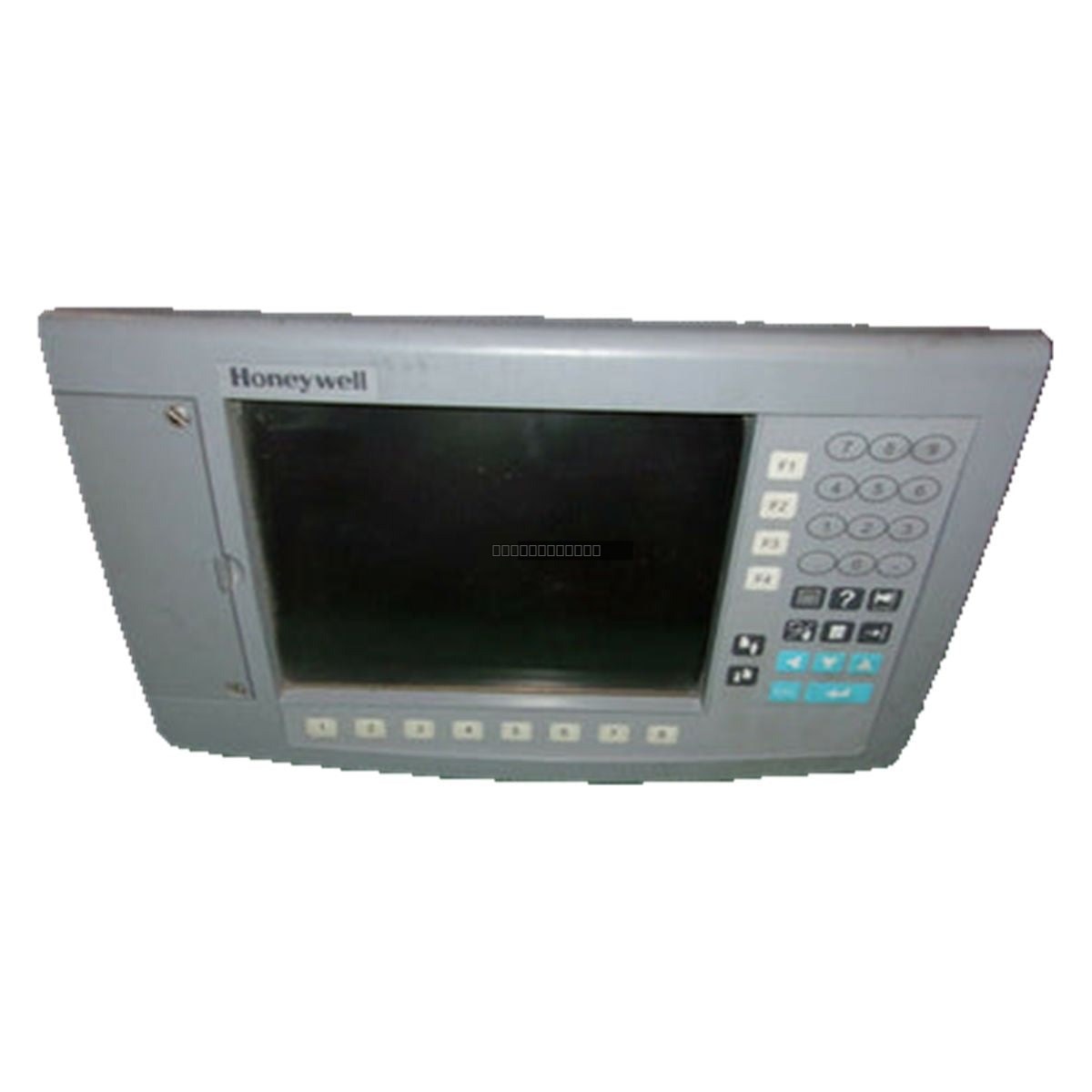

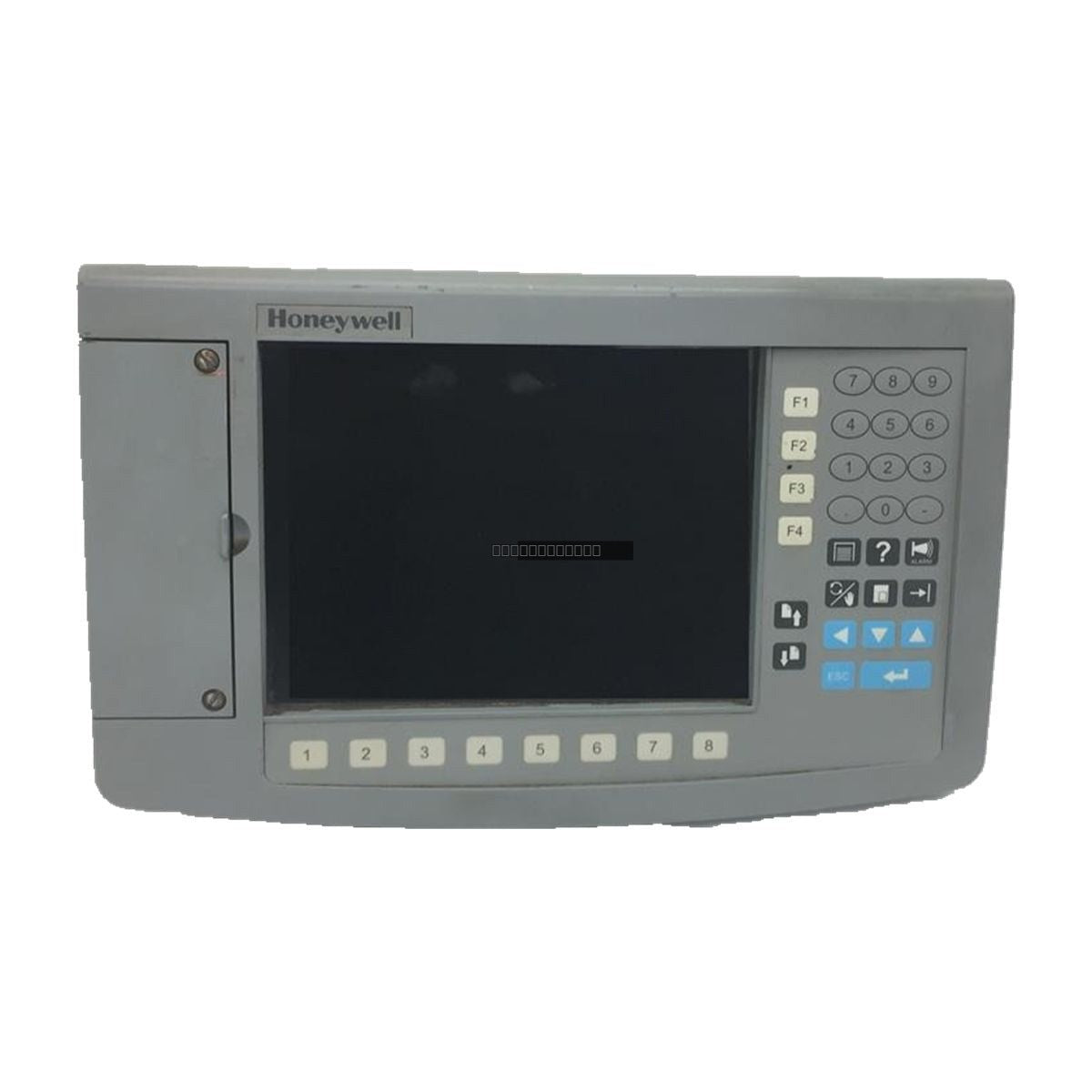

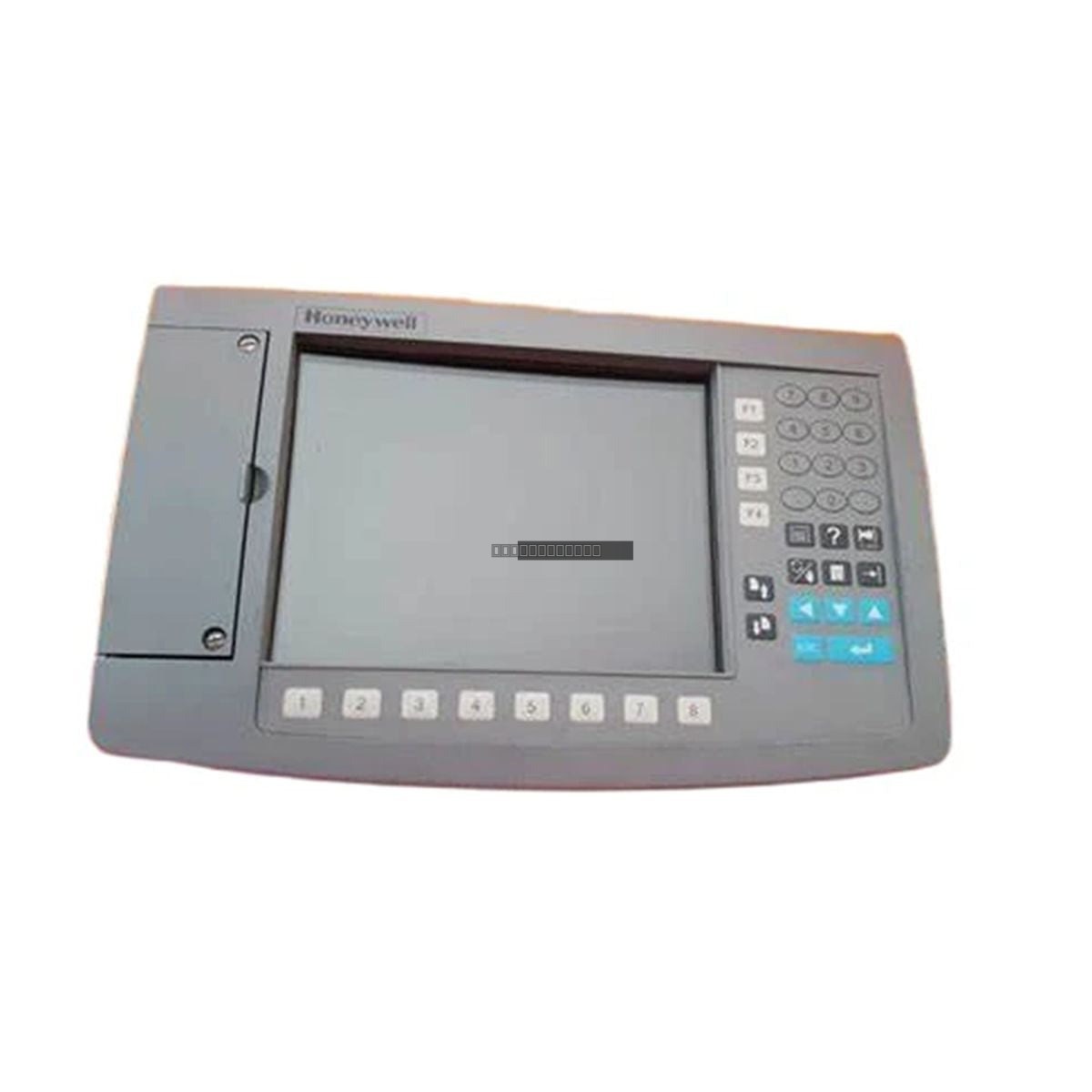

Honeywell 10420F-0042-42 HC900 HMI Operator Panel

Honeywell 10420F-0042-42 HC900 Operator Interface Panel

Availability: 5 left in stock

DescriptionThe Honeywell 10420F-0042-42 is a high-reliability operator interface panel engineered for the HC900 process control system. This HMI unit serves...

SKU: 10420F-0042-42

Manufacturer: Honeywell
Product No.: 10420F-0042-42
Product Type: Operator Interface Panel
Product Origin: USA
Payment:T/T, Western Union
Weight: 950g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 10420F-0042-42 is a high-reliability operator interface panel engineered for the HC900 process control system. This HMI unit serves as a critical visualization and control node, allowing operators to monitor real-time process data, manage setpoints, and interact with complex automation loops. Designed for durability in demanding industrial sectors such as water treatment, chemical manufacturing, and power generation, this panel ensures continuous uptime and intuitive system management.

Features

Equipped with a 600 MHz ARM Cortex-A8 processor for responsive interface navigation.
Features a high-clarity SVGA resolution display (800 x 600 pixels) for detailed process monitoring.
Resistive touchscreen technology allows for reliable input even when operators are wearing industrial gloves.
Includes 128 MB of SDRAM and 256 MB of flash memory to ensure stable runtime performance and secure configuration storage.
Optimized for deterministic operation in continuous duty industrial environments.

Applications

This operator interface is specifically designed for integration with Honeywell HC900 controller architectures. It is commonly deployed in applications requiring localized process control visualization, such as batch processing, boiler control, and environmental monitoring systems where consistent human-machine interaction is essential.

Technical Specifications

Model	10420F-0042-42
Brand	Honeywell
Processor	ARM Cortex-A8, 600 MHz
Display Resolution	800 x 600 (SVGA)
Input Method	Resistive Touchscreen
SDRAM	128 MB
Flash Storage	256 MB
Operating Temperature	0 to 60 deg C
Storage Temperature	-20 to 70 deg C

Installation Guidelines

Ensure the panel is mounted in a NEMA-rated enclosure suitable for the application environment to protect against dust and moisture.
Verify that the mounting surface is clean and level to prevent stress on the display frame during installation.
Maintain adequate clearance around the unit to facilitate airflow and heat dissipation, ensuring the ambient temperature remains within the 0 to 60 deg C range.
Use shielded communication cables to minimize electromagnetic interference (EMI) when connecting to the HC900 controller.
Always disconnect power before performing any wiring or maintenance tasks to prevent electrical damage.
Ensure the unit is properly grounded to the cabinet chassis to maintain signal integrity and operator safety.

FAQ

Is this panel compatible with non-HC900 systems?

The 10420F-0042-42 is specifically optimized for the Honeywell HC900 platform. Please consult your system integration documentation to confirm compatibility with specific firmware versions of your controller.

Does the touchscreen require a stylus?

No, the unit uses a resistive touchscreen, which is designed to be responsive to finger touch, even while wearing standard industrial gloves.
