GE IC655PER500 Series Five Operator Interface Unit

General Electric IC655PER500 Series Five Operator Interface Unit

Availability: 5 left in stock

DescriptionThe General Electric IC655PER500 is a robust Operator Interface Unit (OIU) designed for the GE Series Five Programmable Logic Controller...

SKU: IC655PER500

Manufacturer: General Electric
Product No.: IC655PER500
Product Type: Operator Interface Unit
Product Origin: USA
Payment:T/T, Western Union
Weight: 950g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

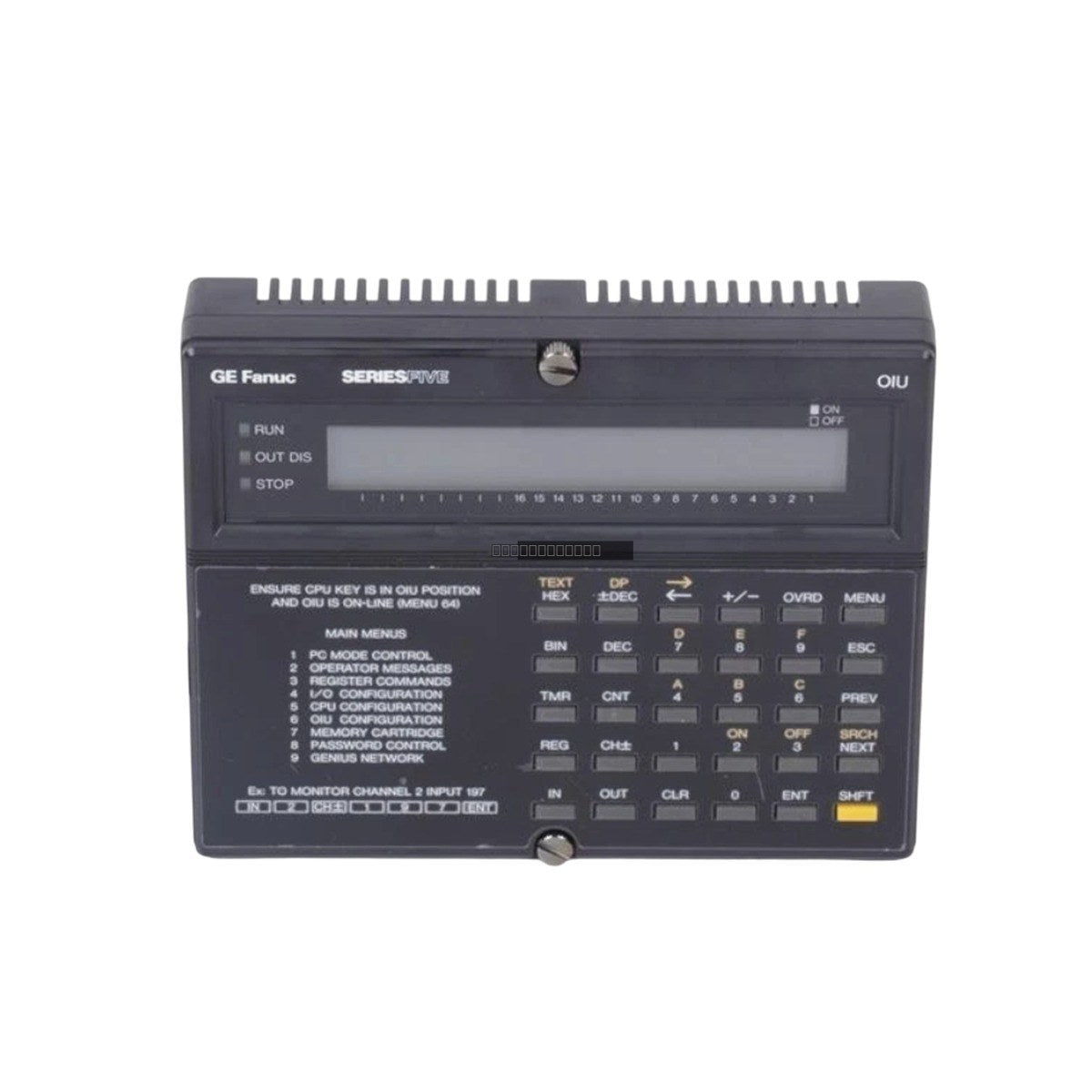

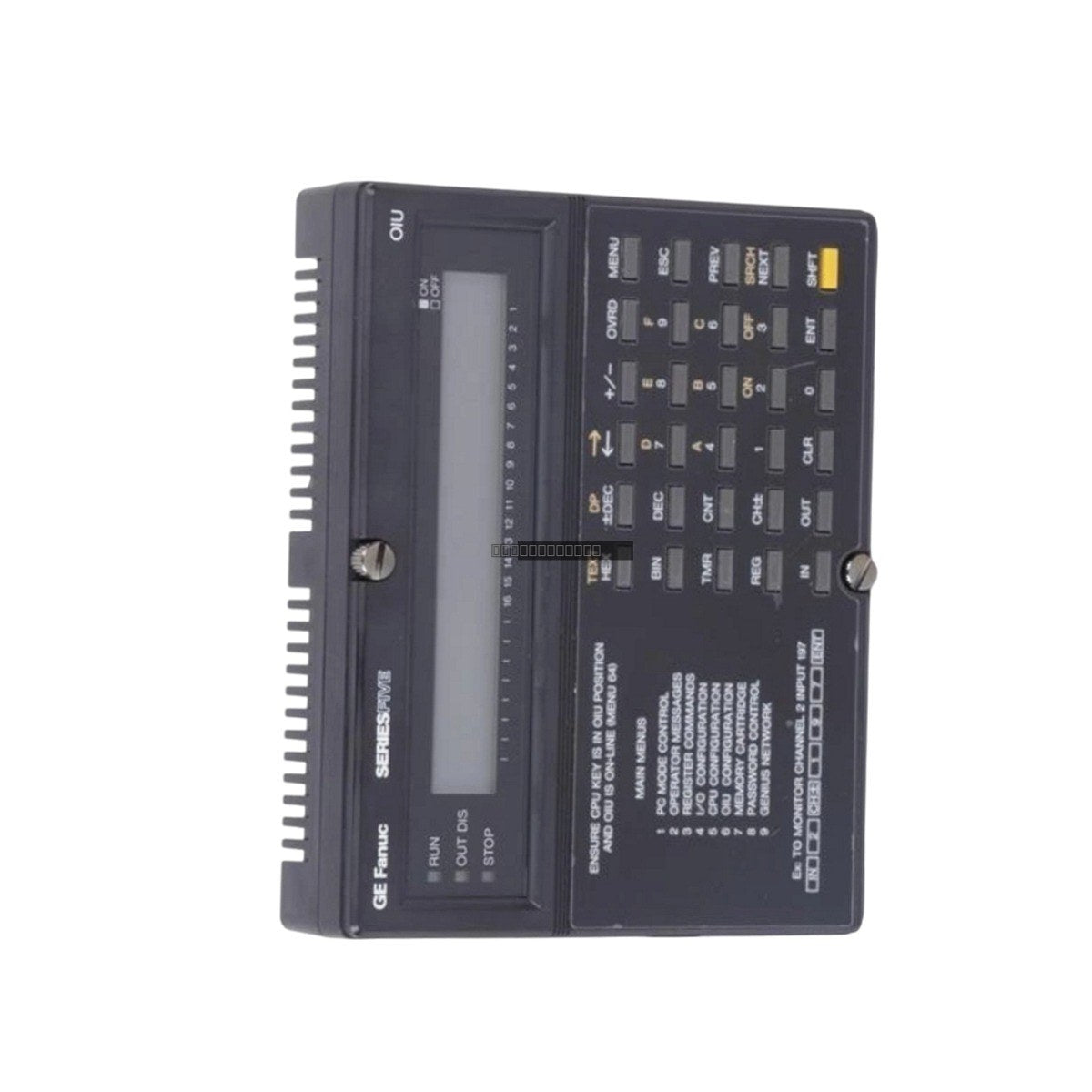

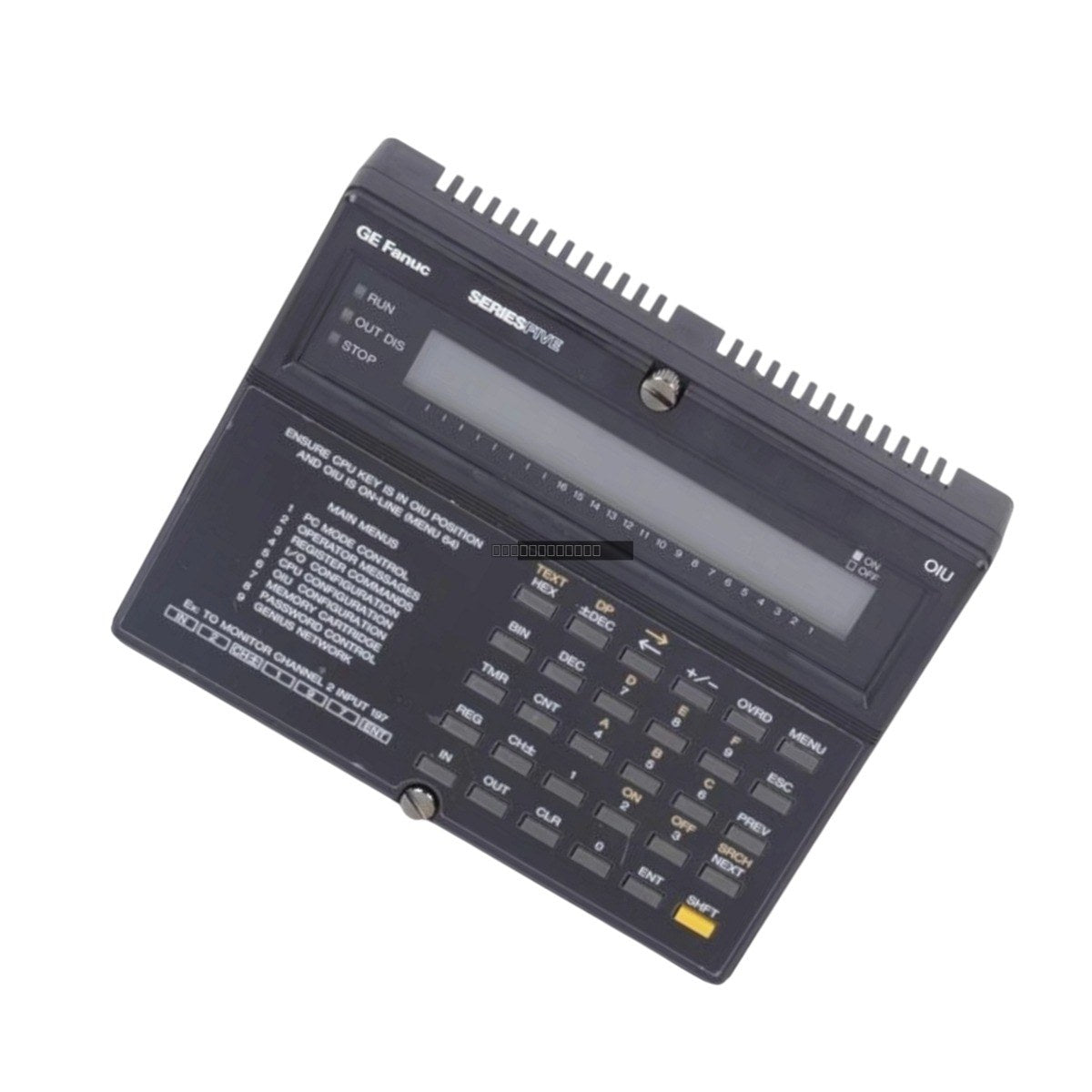

The General Electric IC655PER500 is a robust Operator Interface Unit (OIU) designed for the GE Series Five Programmable Logic Controller (PLC) system. This unit provides operators with a direct interface for monitoring system performance, modifying register data, and managing logic program deployment. Featuring a 10-inch monochrome LCD touchscreen with a 640 x 480 VGA resolution, the IC655PER500 offers clear visual feedback for industrial control environments.

Features

10-inch monochrome LCD touchscreen display
Integrated front panel keypad with dedicated yellow Shift key for advanced function access
Diagnostic LED indicators (RUN, OUT, DIS, STOP) for real-time operational status monitoring
Direct connectivity to the CCM port of the GE Series Five PLC CPU
Integrated memory card slot and EPROM programmer for logic program storage and transfer
RS-232 communication port for programming and peripheral device compatibility
Efficient power consumption at 400 mA

Applications

Food and Beverage: Monitoring automated bottling and packaging lines
Automotive Manufacturing: Coordinating assembly line conveyors and robotic arm sequences
Material Handling: Managing sorters and palletizers requiring constant operator oversight
Chemical and Water Treatment: Monitoring temperature and flow parameters in safety-critical processes
Transportation: Signaling systems and baggage handling infrastructure

Technical Specifications

Model	IC655PER500
Display Type	10-inch monochrome LCD touchscreen
Resolution	640 x 480 pixels (VGA)
Power Supply	24 VDC
Power Consumption	400 mA
Operating Temperature	0 degC to 50 degC (32 degF to 122 degF)
Storage Temperature	-20 degC to 70 degC (-4 degF to 158 degF)
Communication	RS-232 / CCM Port

Installation Guidelines

Ensure the PLC system is powered down before connecting or disconnecting the OIU communication cables.
The unit is designed for mounting within standard 19-inch industrial racks or control panels.
Ensure adequate ventilation around the unit to maintain operating temperatures within the 0-50 degC range.
Use shielded communication cables for the RS-232/CCM connection to minimize EMI interference in high-noise industrial environments.
Verify power supply polarity before connecting the 24 VDC input.
Handle the EPROM programmer and memory card slots with care to prevent electrostatic discharge (ESD) damage to sensitive internal components.

FAQs

What is the IC655PER500?

It is a compact Operator Interface Unit (OIU) used to interface with the Series Five Programmable Logic Controller (PLC) system.

What are the main functions of IC655PER500?

It allows users to monitor critical I/O or register references, diagnose system faults, and display pre-programmed messages under the control of user logic programs.

Where can it be installed?

It is designed for integration within the Series Five PLC system and can be mounted in 19-inch racks.

How is it powered?

The unit operates on a 24 VDC power supply. Ensure the power source is stable and properly grounded according to local electrical codes.
