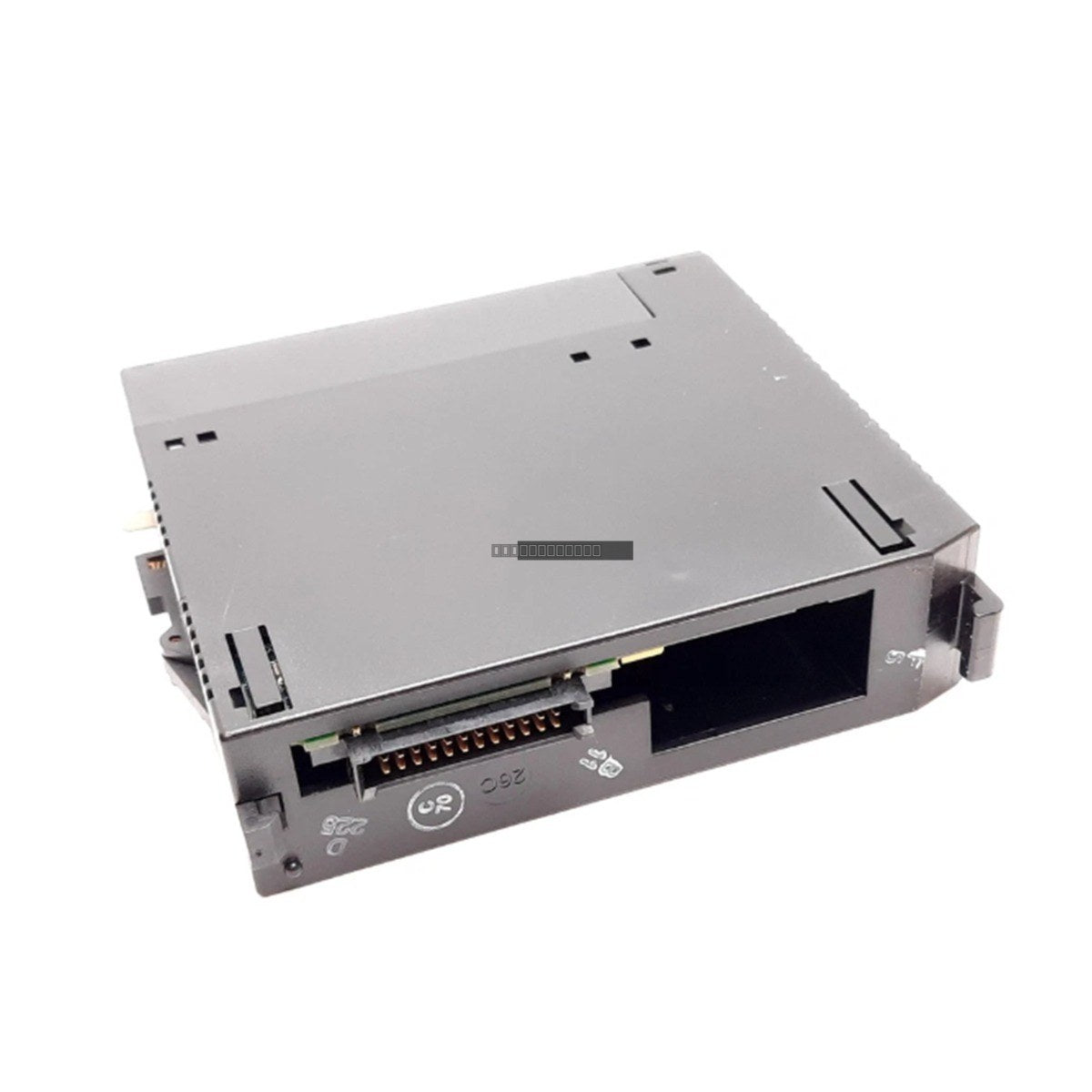

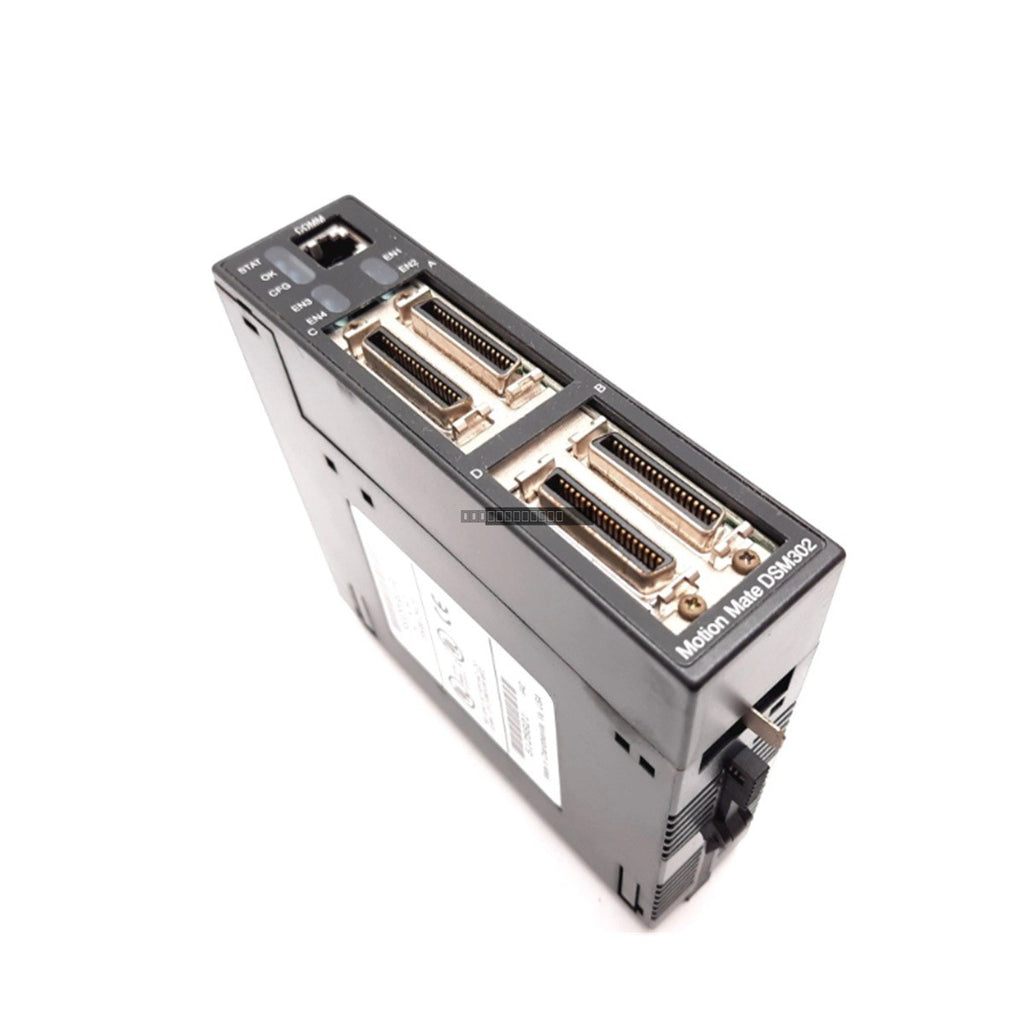

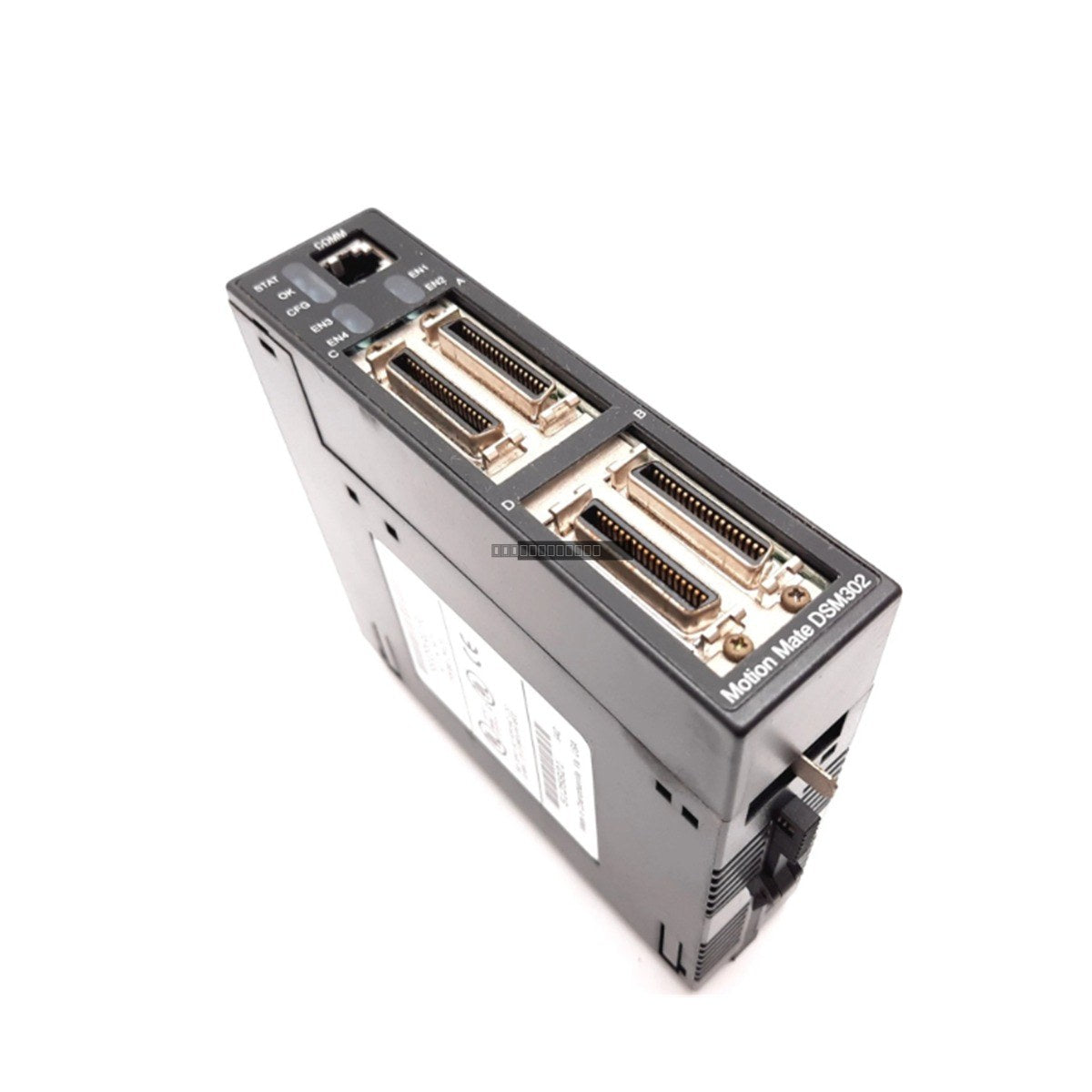

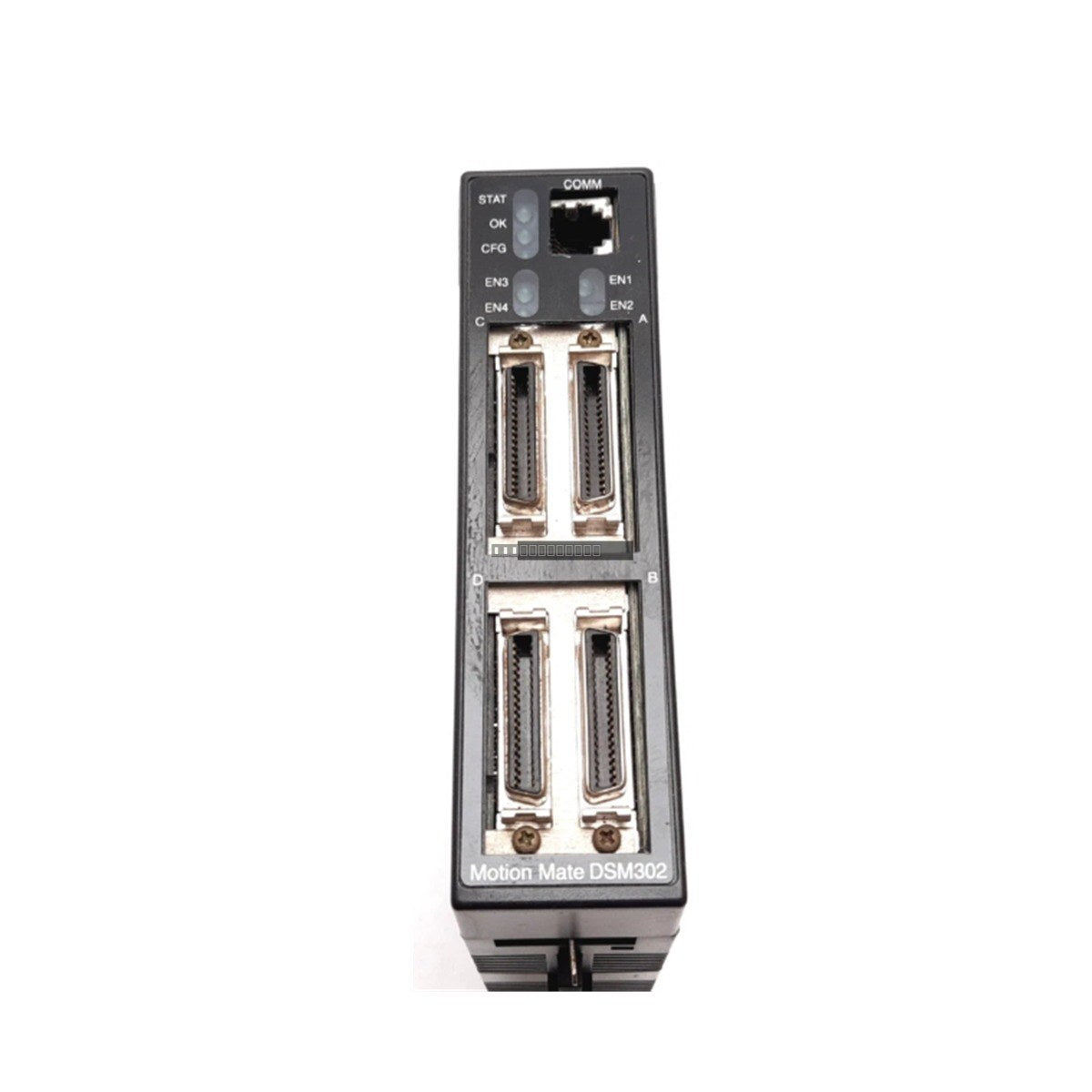

General Electric IC693DSM302 Motion Mate Control Module

Availability: 3 left in stock

The General Electric IC693DSM302 is a specialized Motion Mate control module designed for the Series 90-30 PLC platform. This module...

SKU: IC693DSM302

Manufacturer: General Electric
Product No.: IC693DSM302
Product Type: Motion Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The General Electric IC693DSM302 is a specialized Motion Mate control module designed for the Series 90-30 PLC platform. This module provides high-performance motion control capabilities, enabling precise management of multi-axis applications within industrial automation systems.

Features

Supports control for up to 2 axes.
Integrated RS-232 serial port for communication and configuration.
Efficient block processing time of less than 5 milliseconds.
Robust non-volatile memory capacity, supporting up to 10 programs and 40 subroutines.
High-resolution control parameters for position, velocity, and acceleration.

Technical Specifications

Model	IC693DSM302
Series	90-30
Axes Supported	2
Backplane Current	450 mA at 5V DC
Position Resolution	-8,388,608 to 8,388,607 user units/s
Velocity Resolution	1 to 8,388,607 user units/s
Acceleration Resolution	1 to 134,217,727 user units/s
Operating Temperature	0 to 60 degC
Storage Temperature	-40 to 85 degC

Installation Guidelines

Ensure the PLC rack power is disconnected before installing or removing the module.
Handle the module using proper ESD (Electrostatic Discharge) prevention techniques to protect internal circuitry.
Seat the module firmly into the designated Series 90-30 backplane slot to ensure reliable electrical contact.
Verify that the ambient temperature remains within the specified 0 to 60 degC range and that adequate ventilation is provided within the control cabinet.
Use shielded cables for serial communication to minimize EMI interference in industrial environments.

FAQ

What is the primary function of the IC693DSM302?
This module acts as a motion controller within the GE Series 90-30 PLC system, allowing for the precise control of up to two axes of motion.

What are the power requirements for this module?
The module typically consumes 450 mA from the 5V DC backplane supply.
