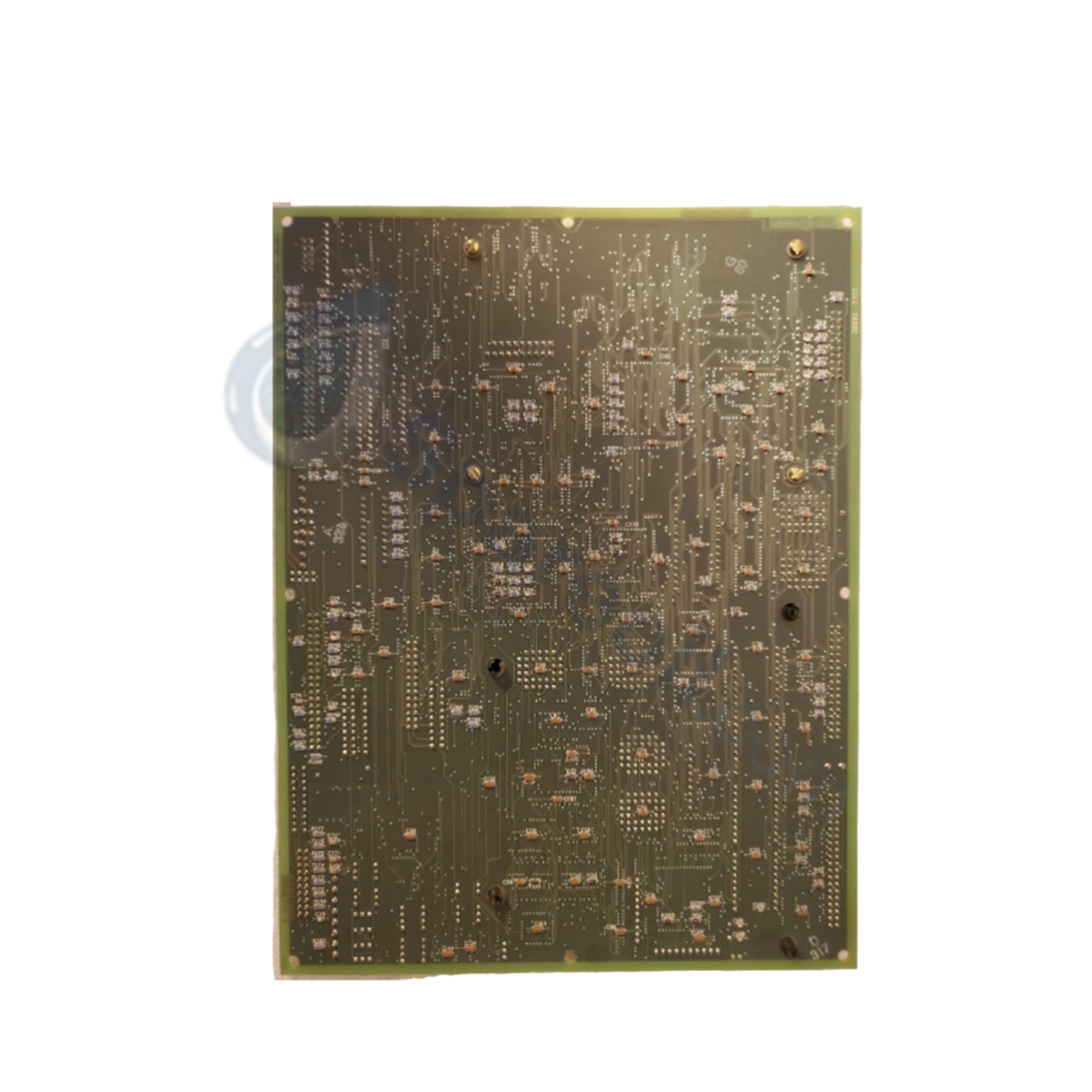

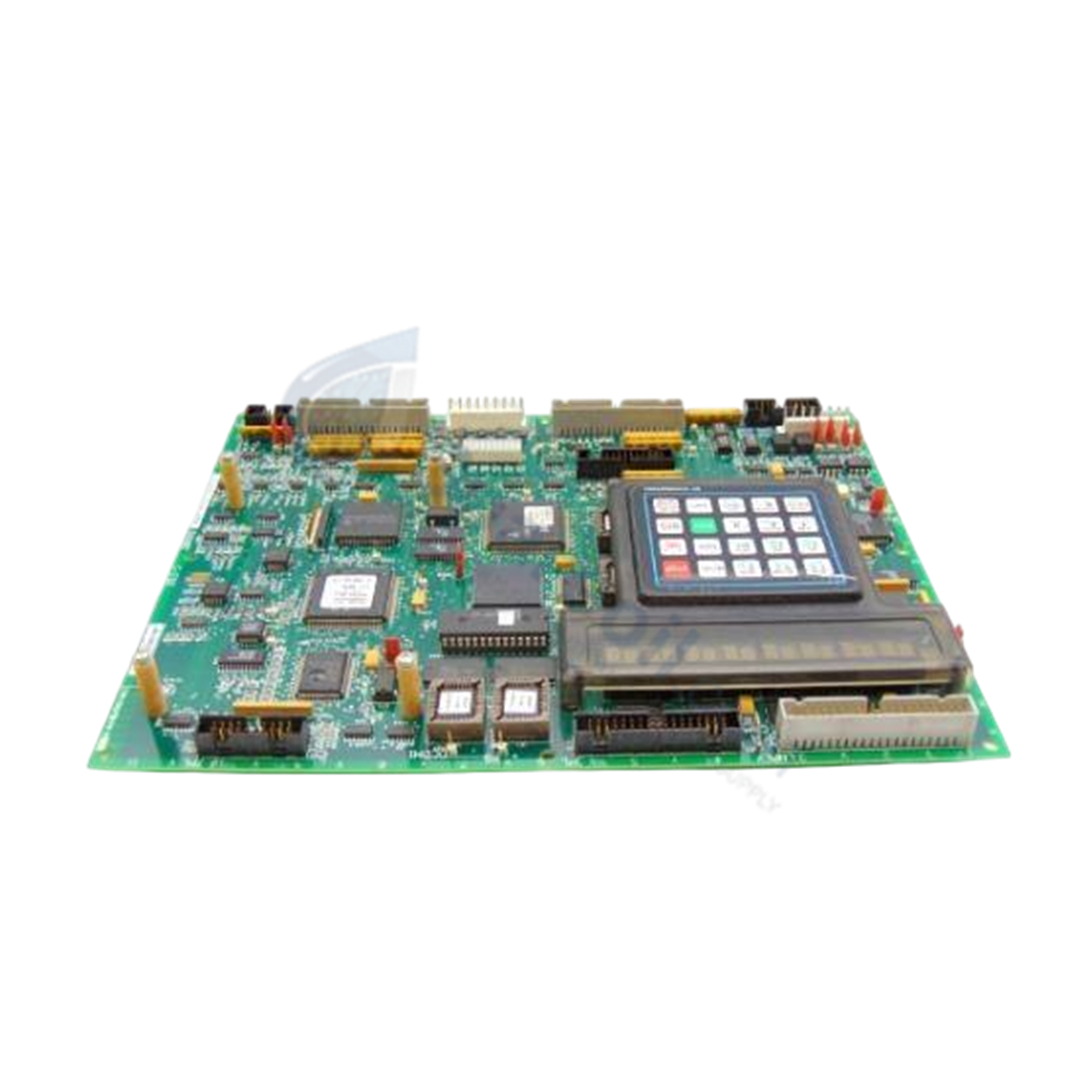

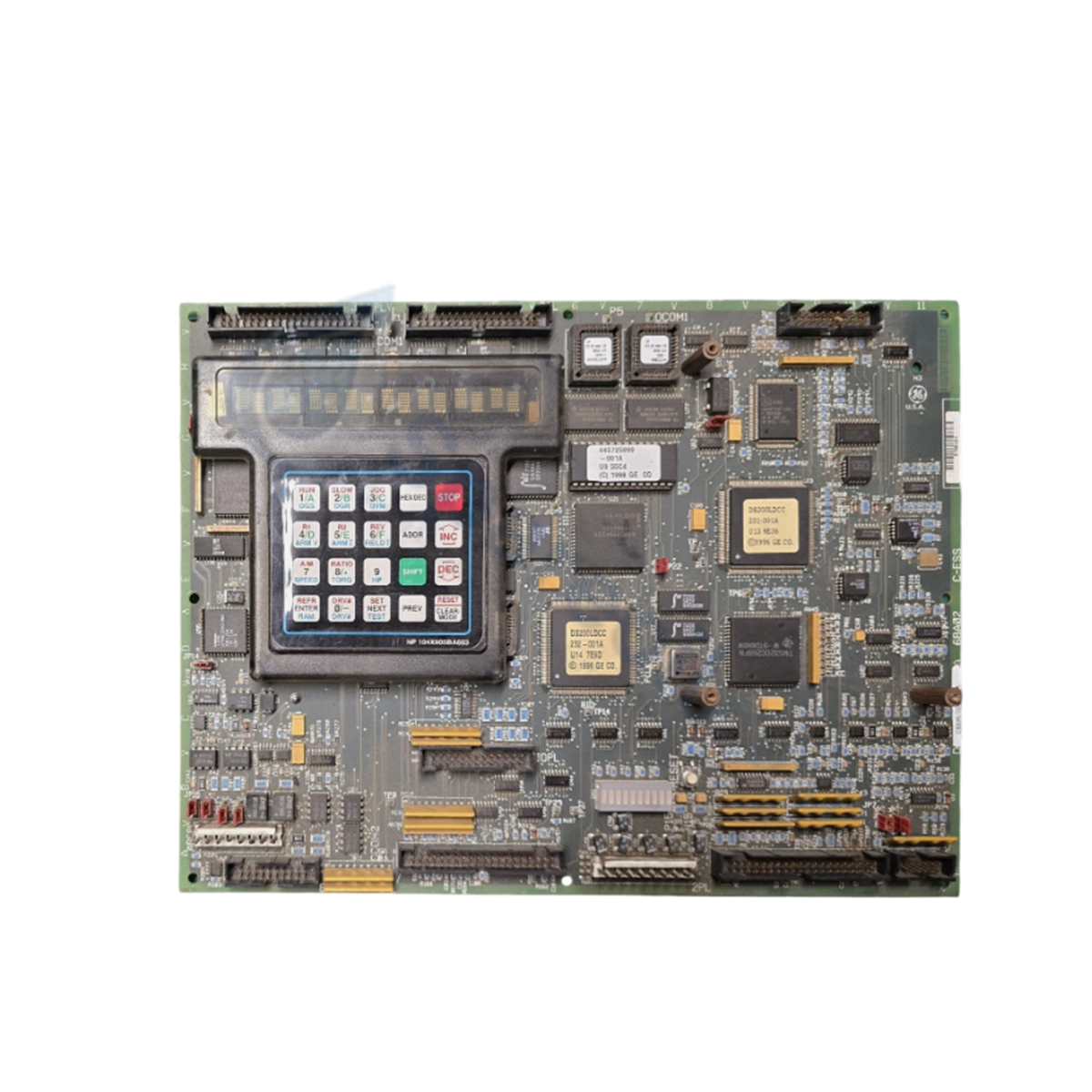

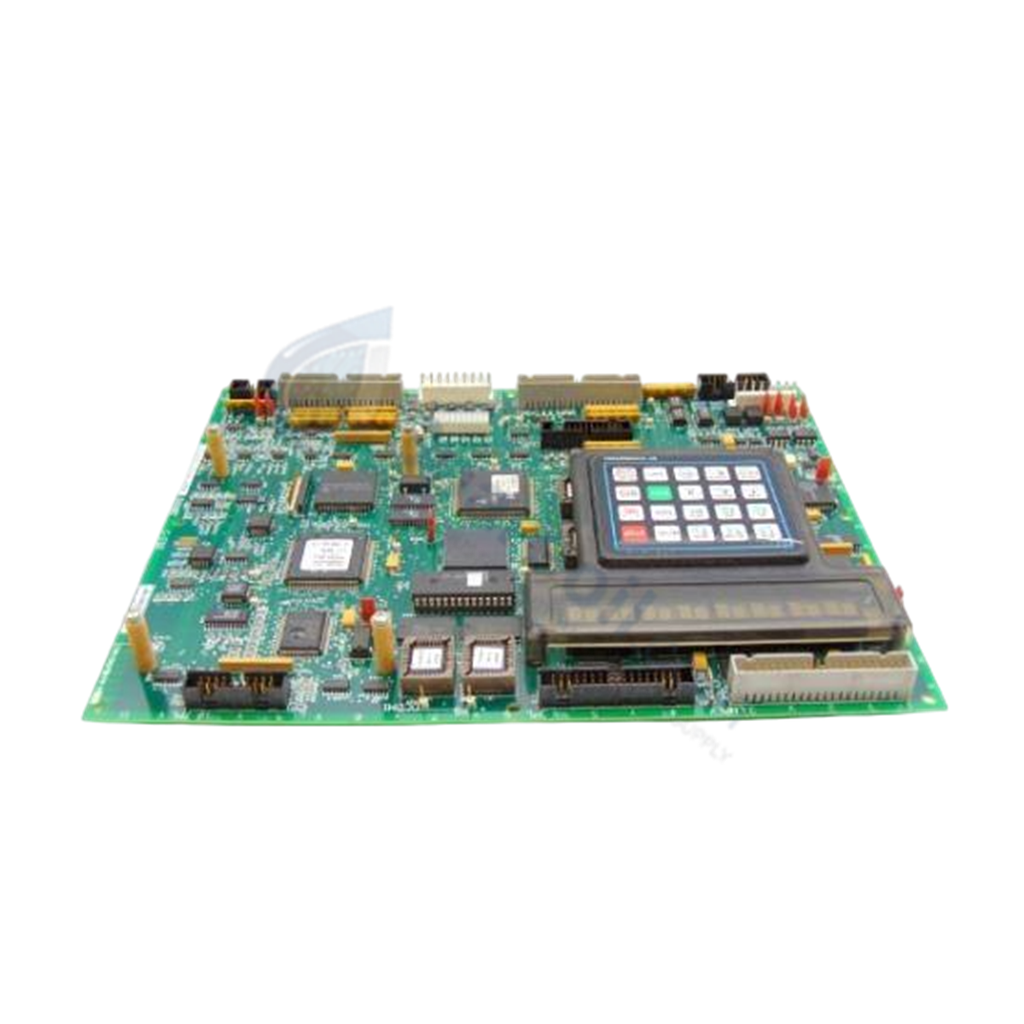

The GE DS200LDCCH1ANA, also cataloged as the LDCC Drive Control/LAN Communications Board, operates as a dedicated hardware component for multi-processor motor execution and network bus processing within GE Mark V Speedtronic platforms.

Hardware Specifications

Parameter Specification
Model DS200LDCCH1ANA
Brand GE (General Electric)
Origin USA
Weight 10 lbs (4.54 kg)
Dimensions Standard Mark V card enclosure form factor
Operating Temp 0 to 60 deg C
Power Consumption Bus-powered via rack backplane
Product Series Speedtronic Mark V
Microprocessor Architecture Four onboard processors (Drive Control, Motor Control, Co-Motor, LAN Control)
Memory Componentry Six flash PROMs (U7 through U21)
PCB Protective Coating Conformal Coating
Instruction Manual GEI-100216

Multi-Processor & LAN Communications Dynamics

The DS200LDCCH1ANA features four dedicated microprocessors assigned to drive control, motor control, co-motor calculation, and local area network processing tasks. Flash PROMs located at sockets U7 through U21 retain configuration data and system parameters, maintaining field-reprogrammable operations and firmware flash compatibility. Interfacing across the Mark V backplane preserves deterministic backplane bus communication velocity and I/O density scaling. An integrated auxiliary stab connector provides an isolated grounding interface to minimize ground loops and signal interference in high-noise electrical environments.

Frequently Asked Questions

Q: How are operational processing duties allocated across the DS200LDCCH1ANA onboard microprocessors?

A: Processing is split across four discrete microprocessors dedicated individually to drive control execution, motor control algorithms, co-motor routines, and LAN communication control.

Q: How is system configuration memory managed on the module?

A: Configuration data is stored in six onboard flash PROMs designated as U7 through U21, which support field reprogramming for system updates.

Q: What physical hardware features assist with noise immunity in industrial environments?

A: The board includes conformal coating over the circuit trace matrix and a specialized auxiliary stab connector for direct grounding in high-noise installations.

Field Installation Guidelines

  1. Power down the drive cabinet completely and verify all DC bus capacitors are fully discharged prior to board installation.
  2. Wear an ESD grounding wrist strap connected to an unpainted enclosure surface during all handling steps.
  3. Align the card edge guides with the rack slots and slide the board firmly until backplane connectors seat completely.
  4. Verify that the auxiliary stab connector is grounded to the panel frame to ensure high-frequency noise mitigation.
  5. Secure all interface cables to their corresponding board headers, confirming locking clips are fully engaged.
