Description

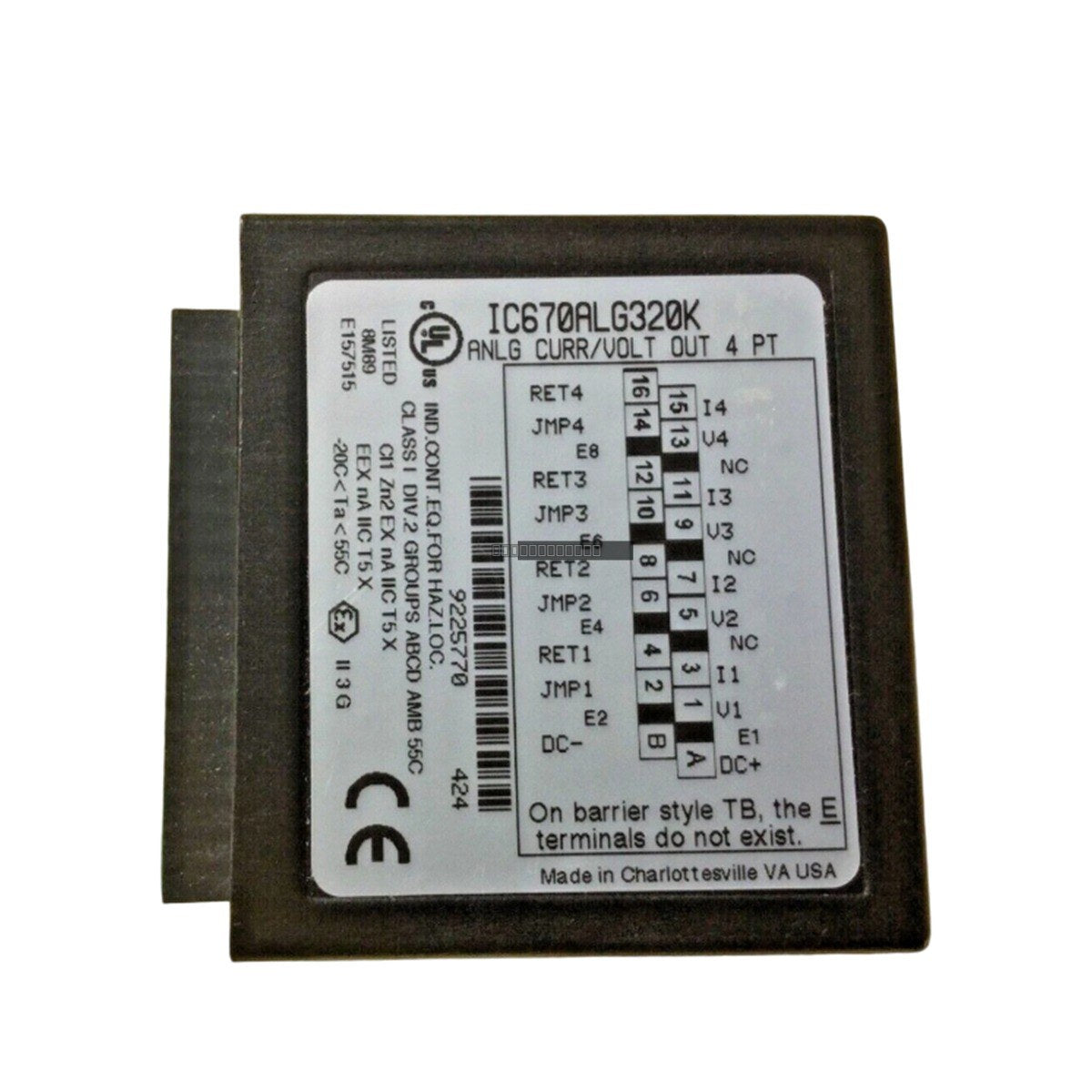

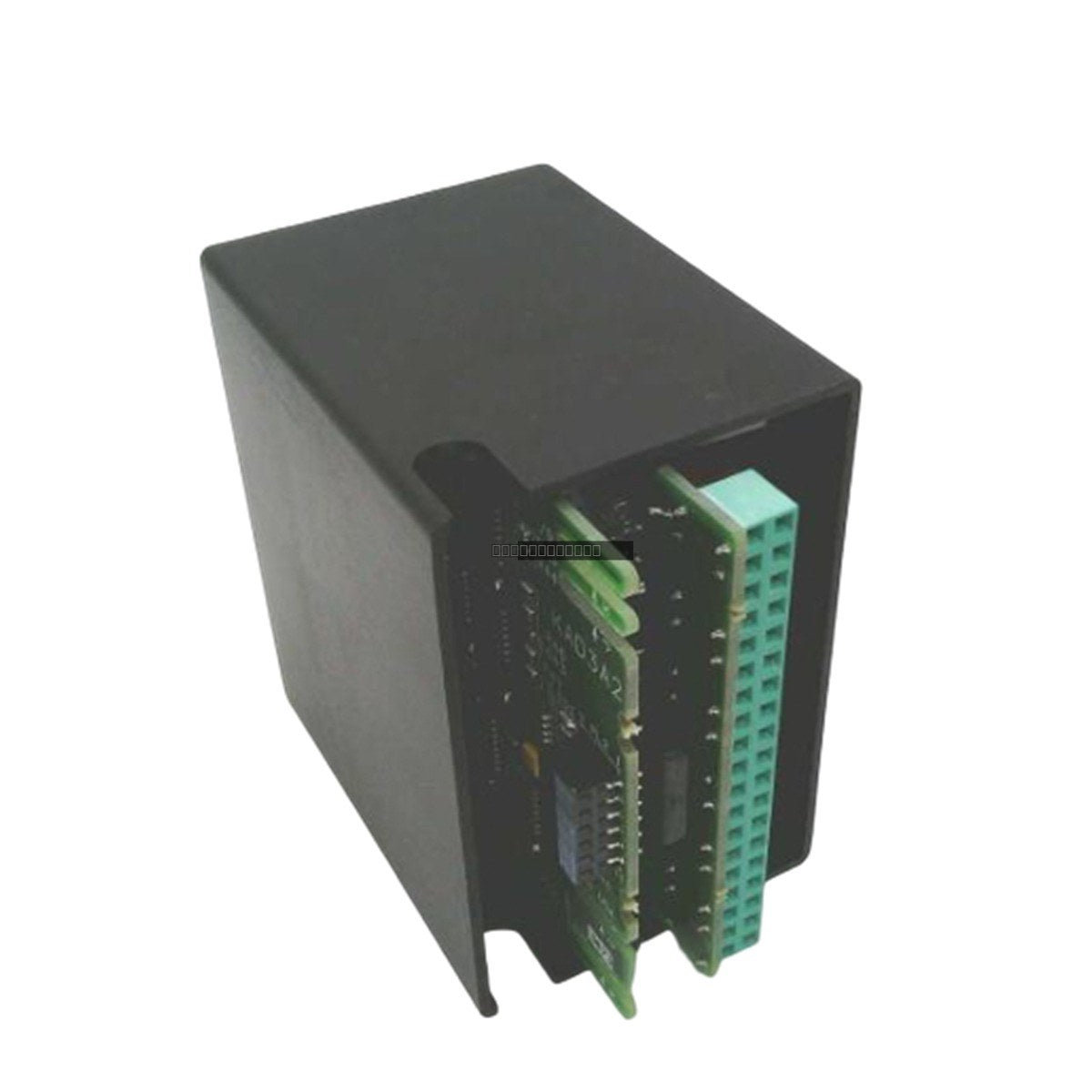

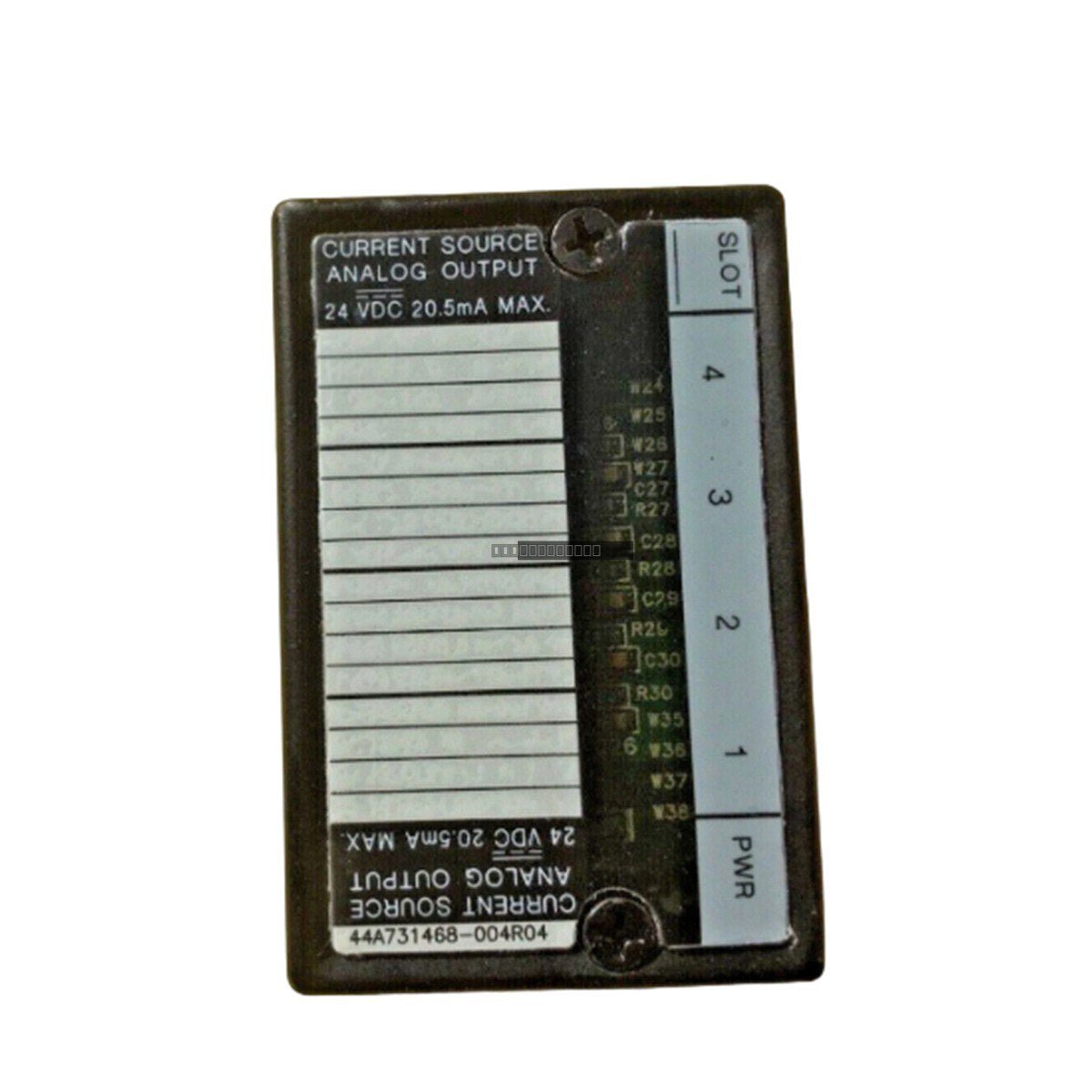

The GE Fanuc IC670ALG320 is a 4-channel analog output module designed for the Field Control I/O system. This module converts digital control signals from a host processor into precise analog current or voltage outputs, facilitating the control of industrial actuators, regulating valves, dampers, and positioners. It is widely utilized in process automation environments, including power generation, oil and gas, and chemical manufacturing, where high-resolution signal stability is required.
Features
- Four independent sourcing channels for current or voltage output.
- Configurable output ranges: 0-20 mA, 4-20 mA, 0-10 VDC, and 0-12.5 VDC.
- 12-bit digital-to-analog conversion resolution.
- Integrated EMI filtering and ground isolation to protect signal integrity against electrical noise.
- Front-panel LED indicators for monitoring field power and backplane bus status.
- Configurable via external jumper links on the terminal block or internal register adjustment.
Applications
This module is suitable for applications requiring precise analog control, such as modulating control valves, variable frequency drive (VFD) speed references, and position control for industrial actuators. It is compatible with Field Control and Rx7i PACSystems architectures.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC670ALG320 |
| Channels | 4 Sourcing |
| Resolution | 12-bit |
| Output Ranges | 0-20 mA, 4-20 mA, 0-10 VDC, 0-12.5 VDC |
| Conversion Speed | 60 microseconds per channel |
| External Power | 20-29 VDC (24 VDC nominal) |
| Isolation | 1500 VAC (1 min) / 250 VAC (continuous) |
| Power Dissipation | 1.4 W (min) to 4.3 W (max) |
| Weight | 0.26 kg |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the carrier.
- Use instrumentation-grade shielded twisted-pair cabling to minimize susceptibility to electromagnetic interference.
- Verify that the external 24 VDC power supply is within the 20-29 VDC range and meets the ripple requirements.
- Configure output ranges using the appropriate jumper settings on the terminal block assembly before applying power.
- Maintain proper ventilation in the enclosure to manage thermal dissipation, which can reach up to 4.3 Watts.
- Ensure the module is installed in a clean, dry environment free from conductive dust and liquid ingress.
FAQ
Is this module compatible with all Field Control systems?
The IC670ALG320 is designed for the Field Control I/O series and is also compatible with specific Rx7i PACSystems architectures. Please verify your specific rack and Bus Interface Unit (BIU) compatibility before installation.
How do I change the output range?
The output range can be modified by adjusting the external jumper links located on the mounting terminal block assembly or by configuring the internal registers via a handheld programmer.
What's clients say about us
Excellent Emergency Support!
Our production line was down due to a faulty Bently Nevada monitor. We found it in stock here and they shipped it via DHL immediately. Back in operation within 48 hours—truly a lifesaver for our plant.
Mark Thompson
Maintenance Manager, USAReliable Source for New Spares
Finding brand new, original modules is critical for our safety. This team delivers factory-fresh components with full certification. Their commitment to only selling new products makes them our most trusted partner.
Robert Hoffmann
Engineering Lead, GermanyTop-tier Service and Quality
We have sourced Honeywell and Schneider parts here for two years. Every shipment arrives well-packaged with original factory seals intact. Clear communication and the best lead times in the industry.
Lucas Müller
Operations Director, GermanyRelated Products
Bently Nevada 330930-065-05-05 3300 NSv Extension Cable
$99.00
$199.00
ABB DSDI110AV1 Digital Input Module 3BSE018295R1
$99.00
$199.00
ABB PM864AK01 3BSE018161R1 Processor Unit Kit
$99.00
$199.00
ABB FENA-21 3AUA0000089108 2-Port Ethernet Adapter
$99.00
$199.00
GE IS200EDCFG1A Exciter DC Feedback Board
$99.00
$199.00
ABB AI810 3BSE008516R1 Analog Input Module
$120.00
$200.00
Bently Nevada 190501-00-00-CN Velomitor CT Transducer
$99.00
$199.00
ABB Bailey Infi 90 NRDO02 Relay Output Termination Unit
$99.00
$199.00
ABB CI867K01 3BSE043660R1 Modbus TCP Interface Kit
$99.00
$199.00
Bently Nevada 3300/48-03-02-00-00 Case Expansion Monitor
$50.00
$100.00
ABB Bailey Infi 90 PHARPS32000000 Power Supply Module
$99.00
$199.00

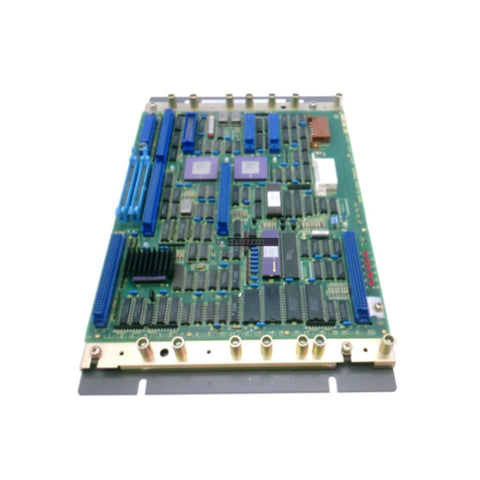

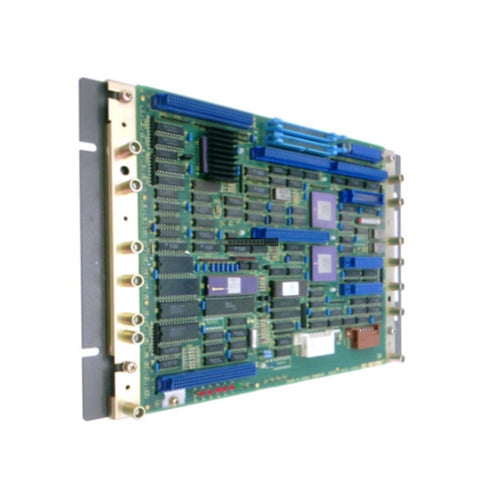

GE FANUC A02B-0098-B501 O-MC Series Motherboard
$99.00
$199.00
ABB CMA135 Synpol D Diesel Start/Stop Automatic Module
$99.00
$199.00
ABB DI811 3BSE008552R1 Digital Input Module
$99.00
$199.00

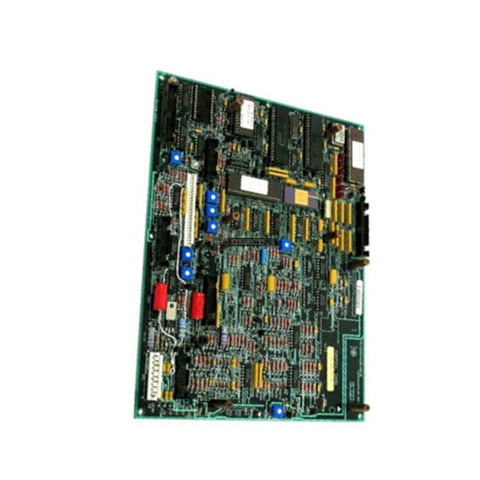

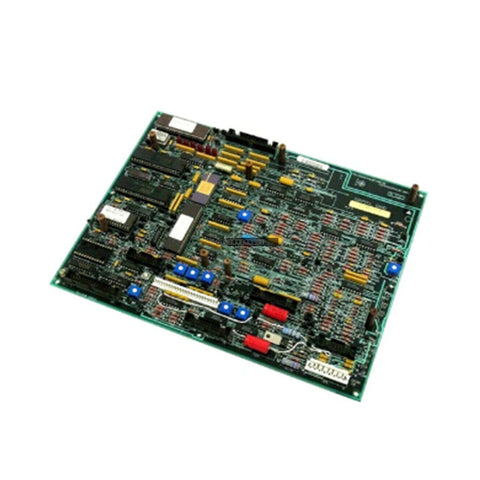

GE Fanuc 531X300CCHBDM3 Control Board
$99.00
$199.00
ABB DI840 Digital Input Module 3BSE020836R1
$99.00
$199.00
ABB RLM02 3BSE091723R1 Redundancy Link Module
$99.00
$199.00

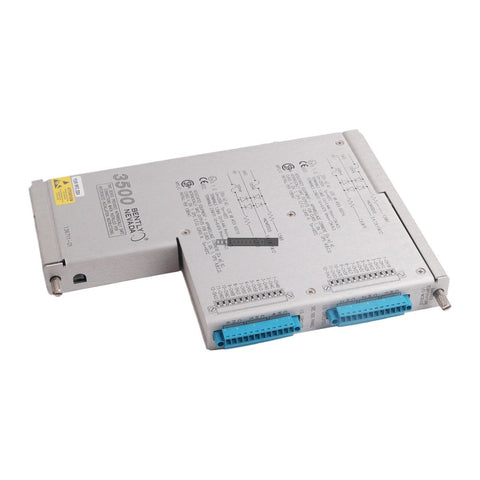

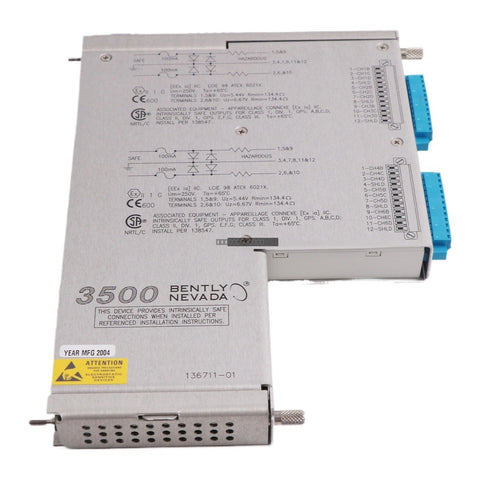

Bently Nevada 136711-01 3500/60 I/O Module
$99.00
$199.00
ABB 086348-001 Control Module
$99.00
$199.00
ABB LDMTR-01 63940135F LCDC Module
$99.00
$199.00
ABB 3BSE039293R1 AI880A High Integrity Analog Input Module
$120.00
$200.00
ABB 3BHL000390P0104 IGCT Module Board
$99.00
$199.00

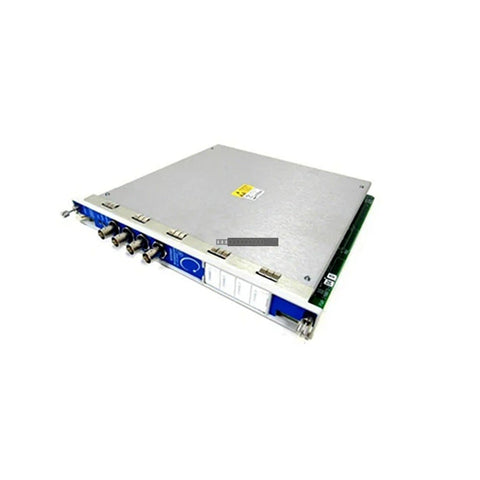

Bently Nevada 3500/34 4-Channel Relay Module
$100.00
$120.00

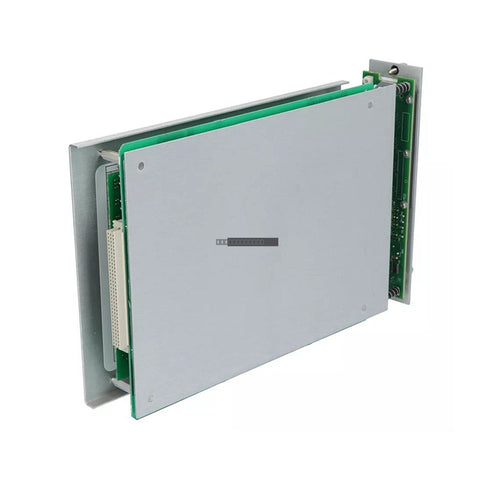

Bently Nevada 3300/01 System Monitor Module
$50.00
$100.00

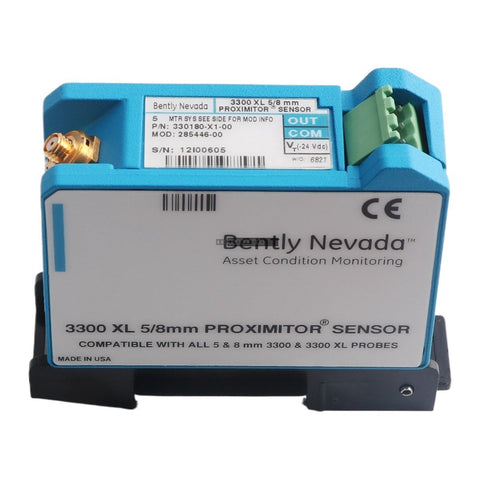

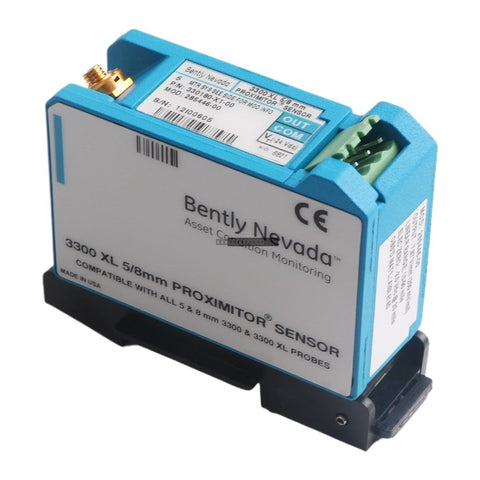

Bently Nevada 330180-X1-00 MOD:145004-81 Proximitor Sensor
$99.00
$199.00
ABB SAMC11POW Power Supply Board
$99.00
$199.00
ABB TC516 RS485 Twisted Pair Modem 3BSE012632R1
$99.00
$199.00

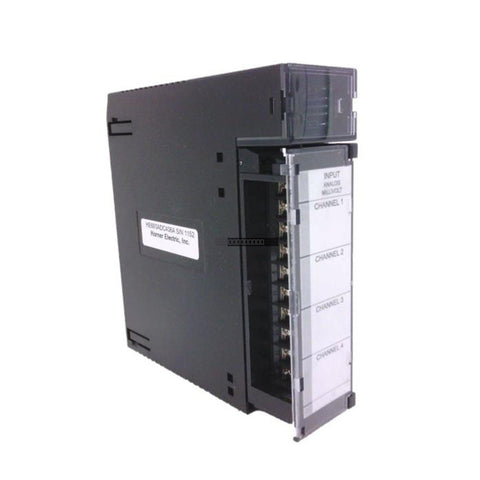

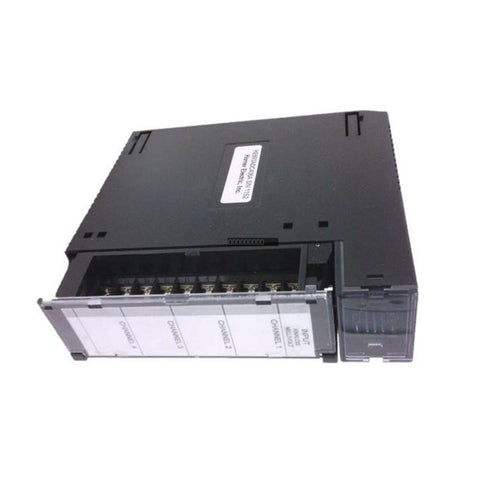

GE FANUC HE693ADC409 Millivolt Input Module
$99.00
$199.00
ABB CPM810 Common Processor Module
$99.00
$199.00
ABB HIEE450964R0001 SA9923a-E Procontrol P14 Circuit Board
$99.00
$199.00
Bently Nevada 3300/70-XX-00 Dual Valve Position Indicator
$50.00
$100.00

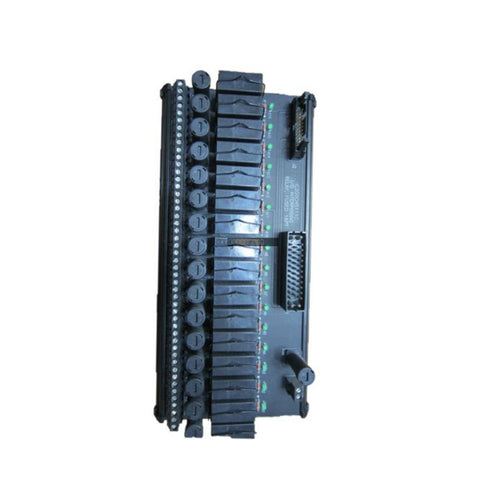

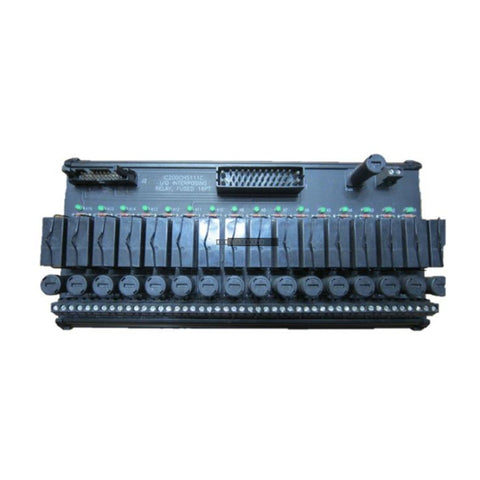

GE Fanuc IC200CHS112 Versamax Expansion Base
$99.00
$199.00

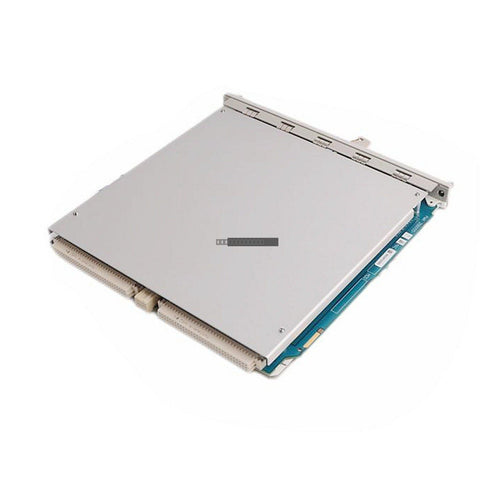

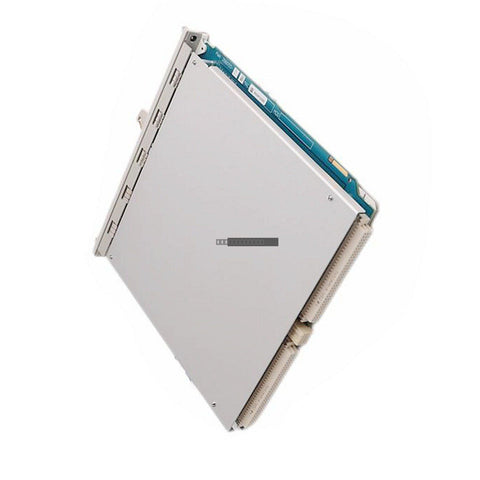

Bently Nevada 3500/50-04-01 Tachometer Module
$80.00
$120.00

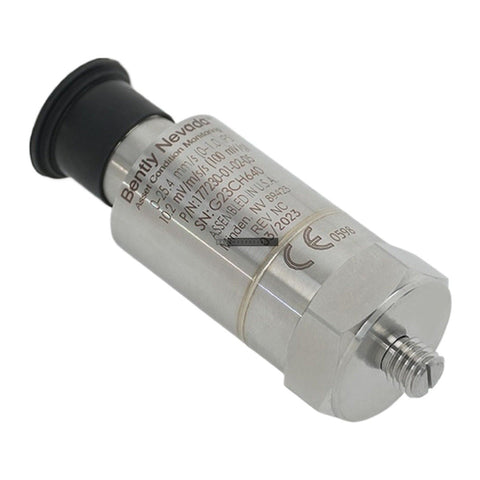

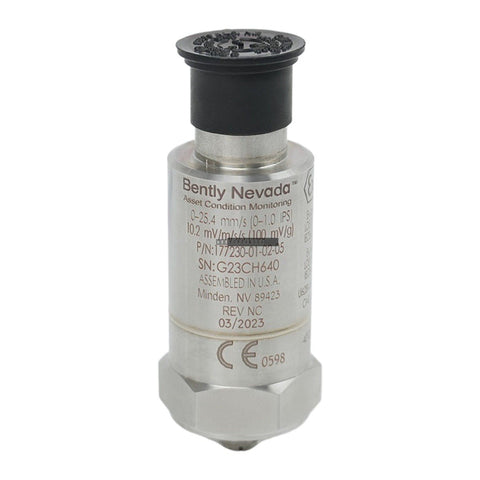

Bently Nevada 177230-01-02-05 Seismic Transmitter
