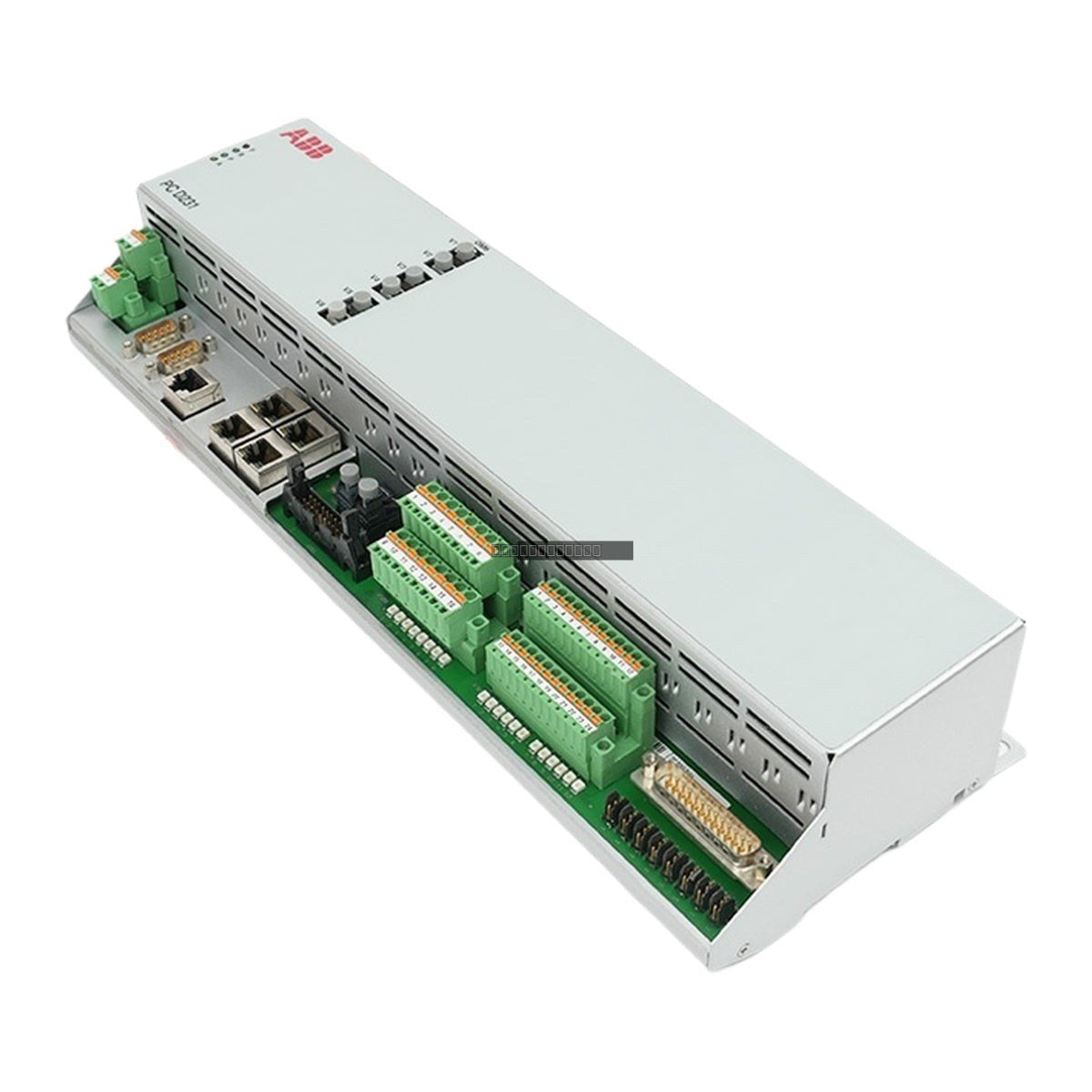

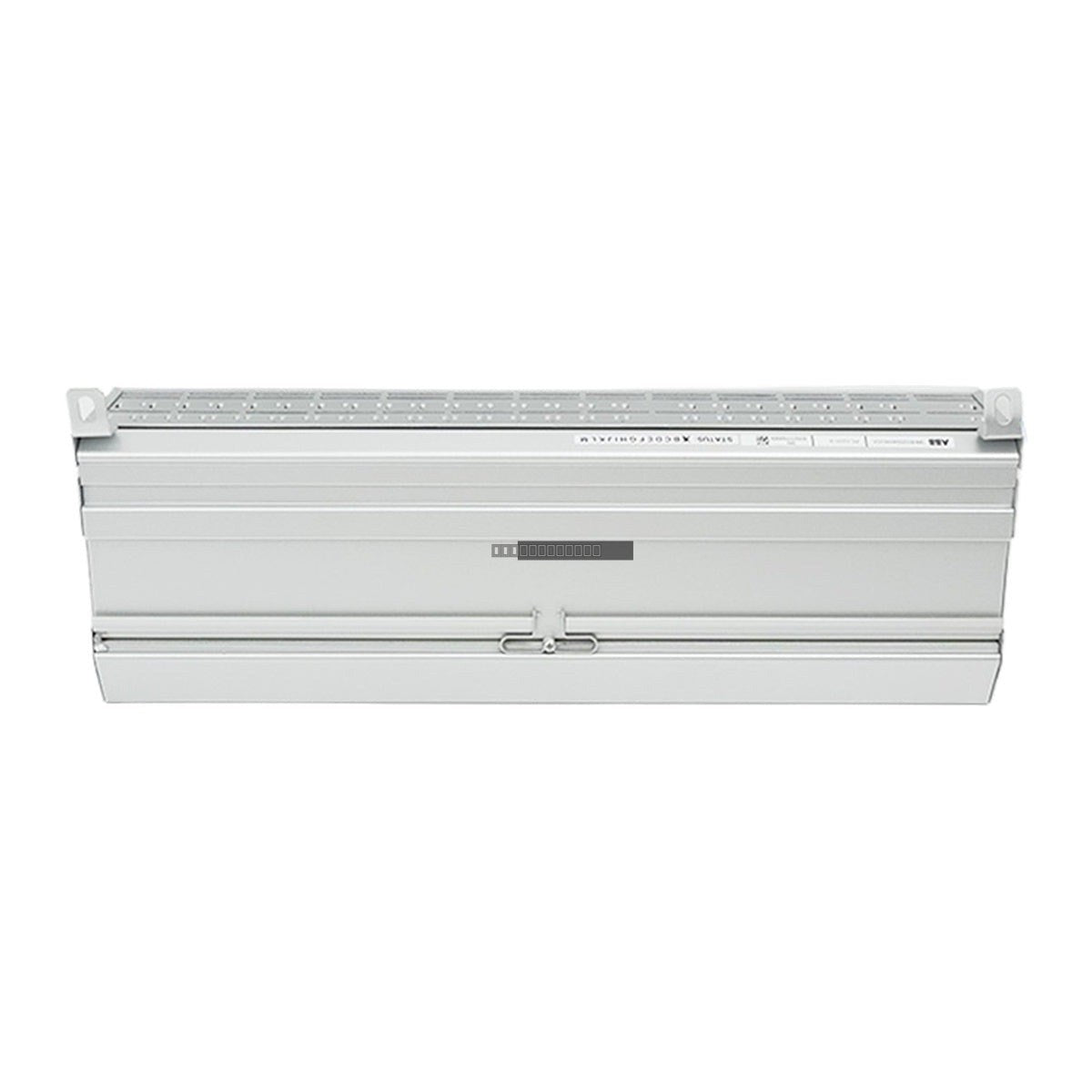

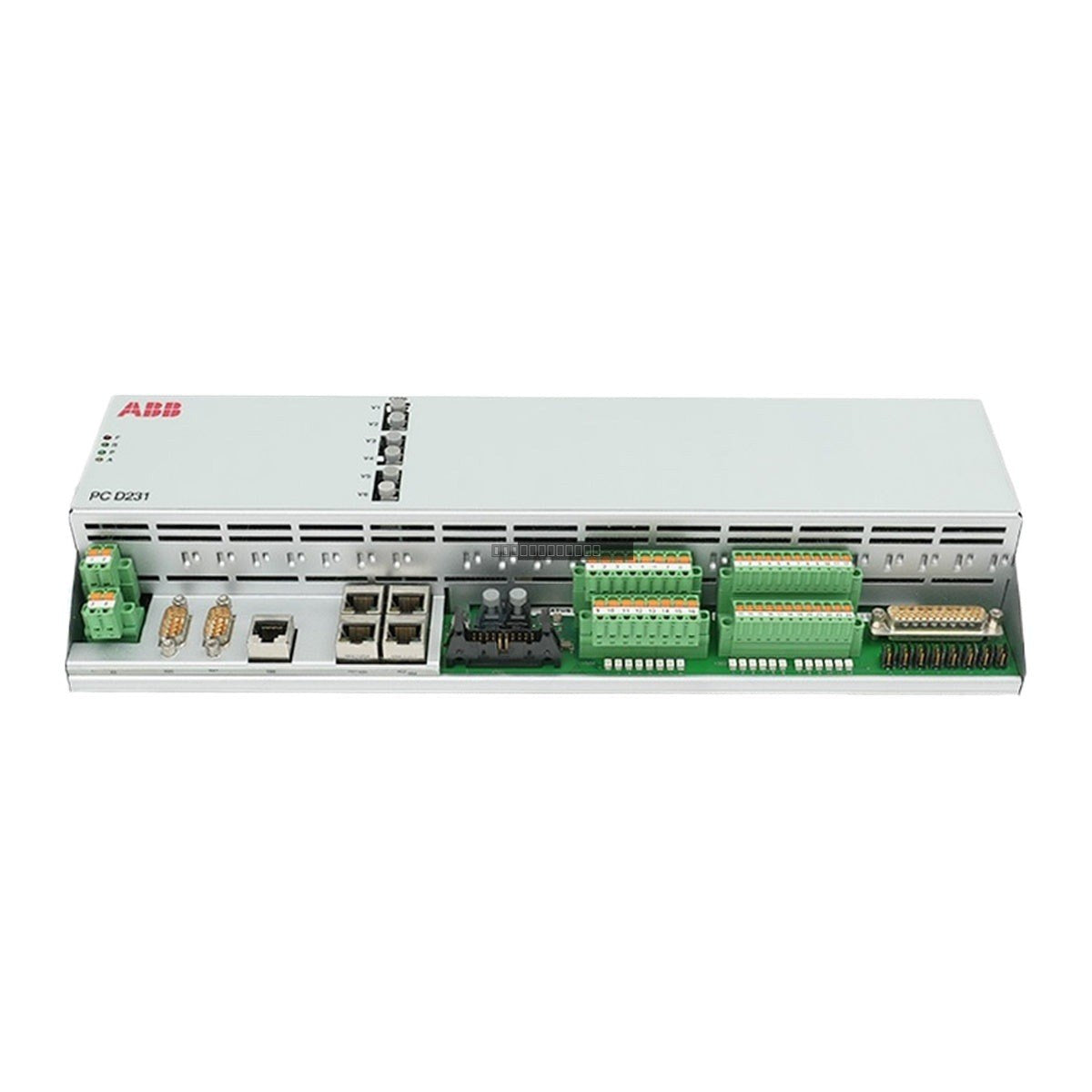

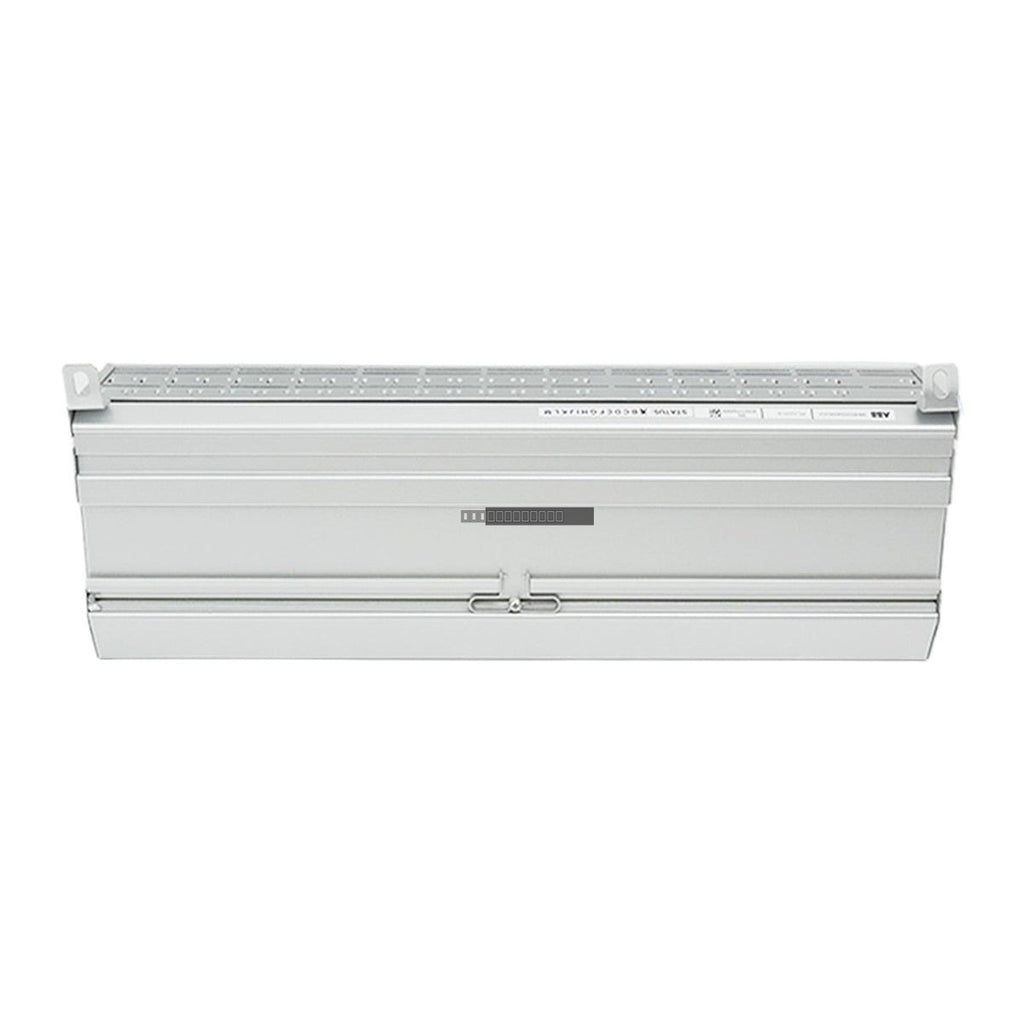

The ABB 3BHE025541R0101 (PCD231B) is a specialized Converter Control Interface (CCI) module designed for the AC 800PEC control platform. This communications I/O module serves as a critical link in high-performance industrial control systems, facilitating reliable data exchange and interface management for power electronics and drive applications.
Features
- Designed for seamless integration with ABB AC 800PEC controller systems.
- Supports high-speed data communication rates ranging from 9.6 kbps up to 12 Mbps.
- Robust electrical isolation, featuring 3000V AC output isolation and 1500V AC signal isolation for enhanced system protection.
- Low power consumption profile, typically operating at 4W.
- Engineered for demanding industrial environments with a wide operating temperature range.
Technical Specifications
| Product Model | 3BHE025541R0101 / PCD231B |
| Manufacturer | ABB |
| Supply Voltage | 24V DC (+/- 10%) |
| Power Consumption | 4W (typical) |
| Data Rates | 9.6 kbps to 12 Mbps |
| Output Isolation | 3000V AC |
| Signal Isolation | 1500V AC |
| Operating Temperature | -25 degC to +60 degC |
| Storage Temperature | -40 degC to +85 degC |
| Relative Humidity | 5% to 95% RH (non-condensing) |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module to prevent electrical damage or data corruption.
- Handle the module using ESD-safe practices to protect sensitive internal electronic components.
- Verify that the 24V DC supply voltage is stable and within the specified +/- 10% tolerance before connection.
- Ensure proper grounding of the AC 800PEC rack to minimize electromagnetic interference (EMI) and maintain signal integrity.
- Route communication cables away from high-voltage power lines or heavy inductive loads to prevent signal noise.
- Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.
FAQ
What is the primary function of the PCD231B module?
The PCD231B is a Converter Control Interface (CCI) module used within the ABB AC 800PEC platform to manage communications and I/O tasks specifically for converter control applications.
Is this module compatible with other ABB controller series?
This module is specifically engineered for the AC 800PEC platform. Please consult your system documentation or hardware compatibility list before attempting integration with other controller families.
