Description

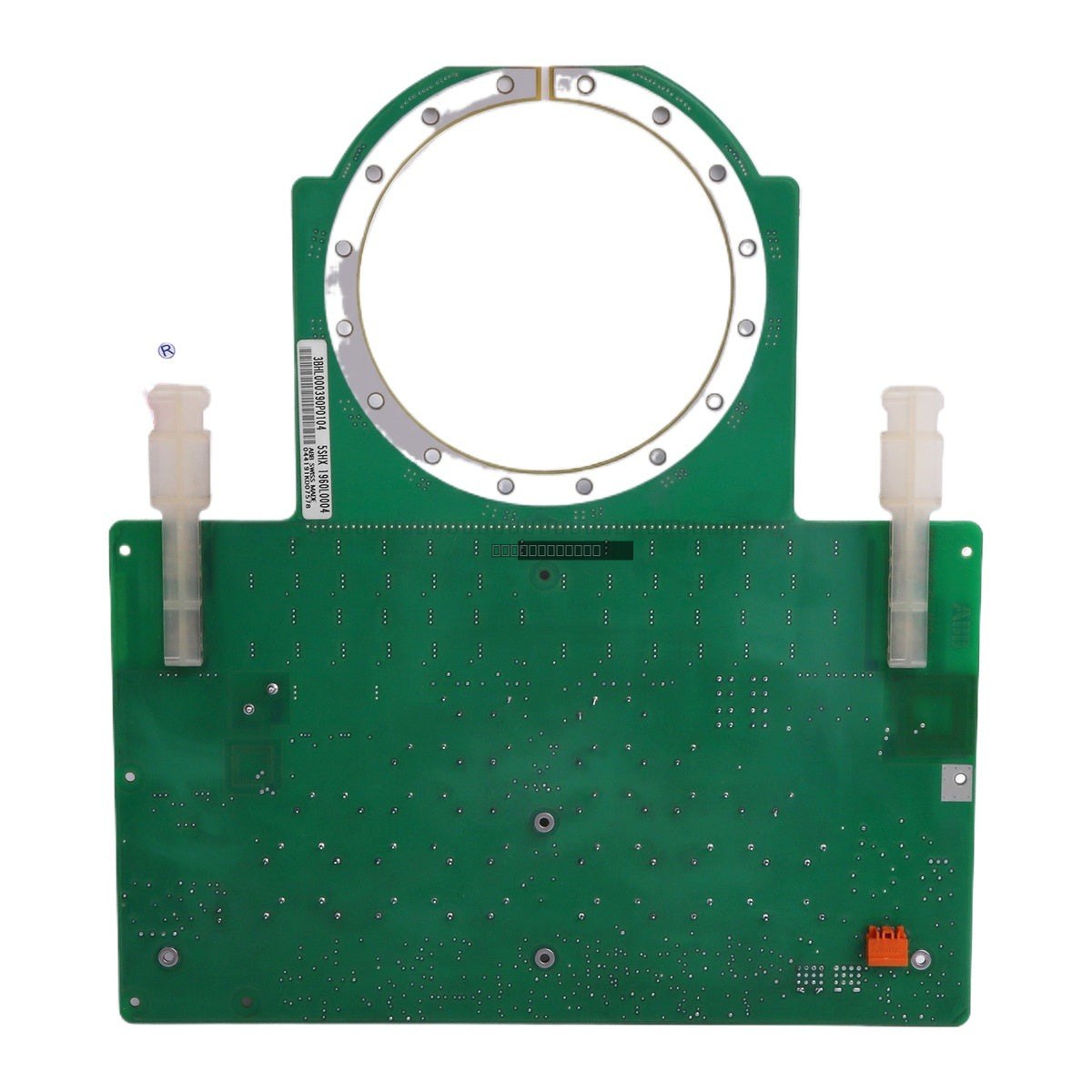

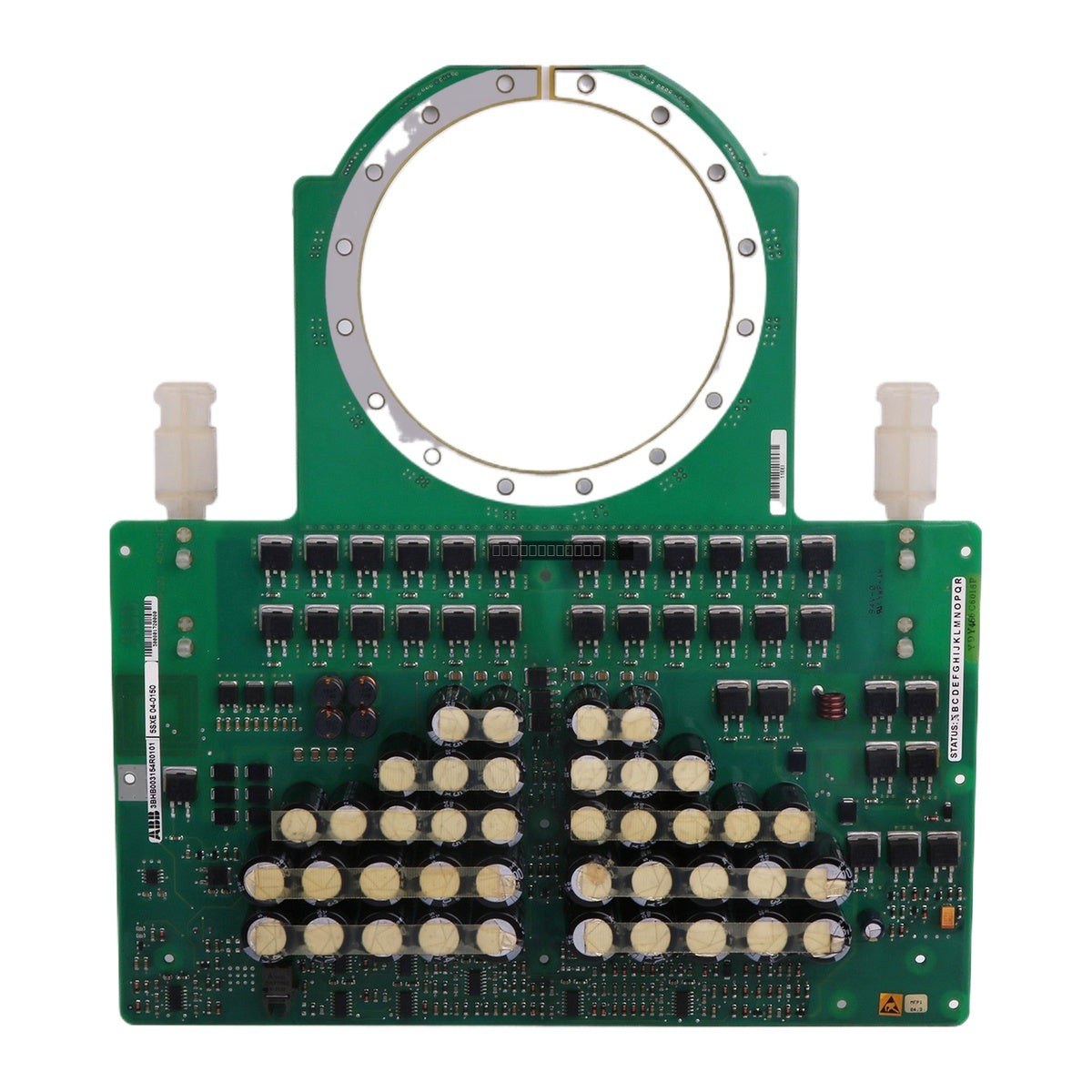

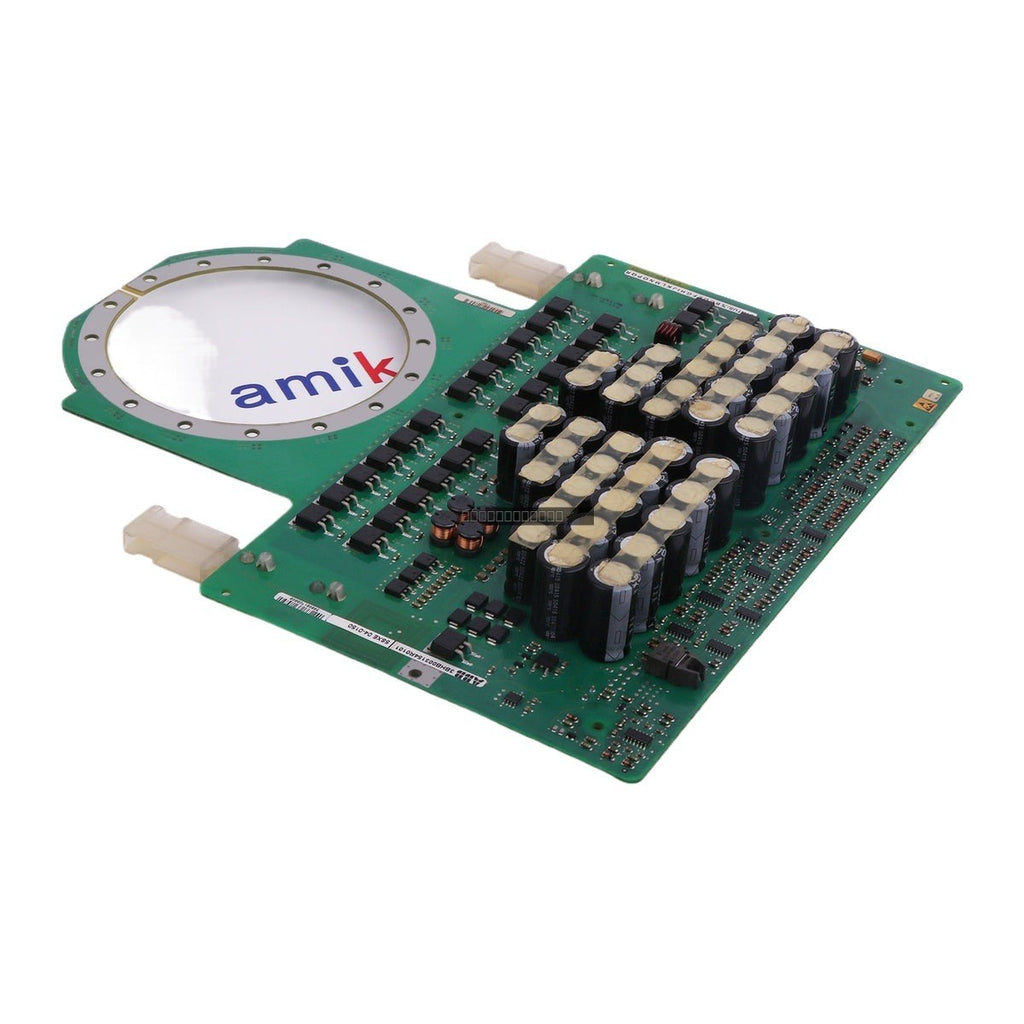

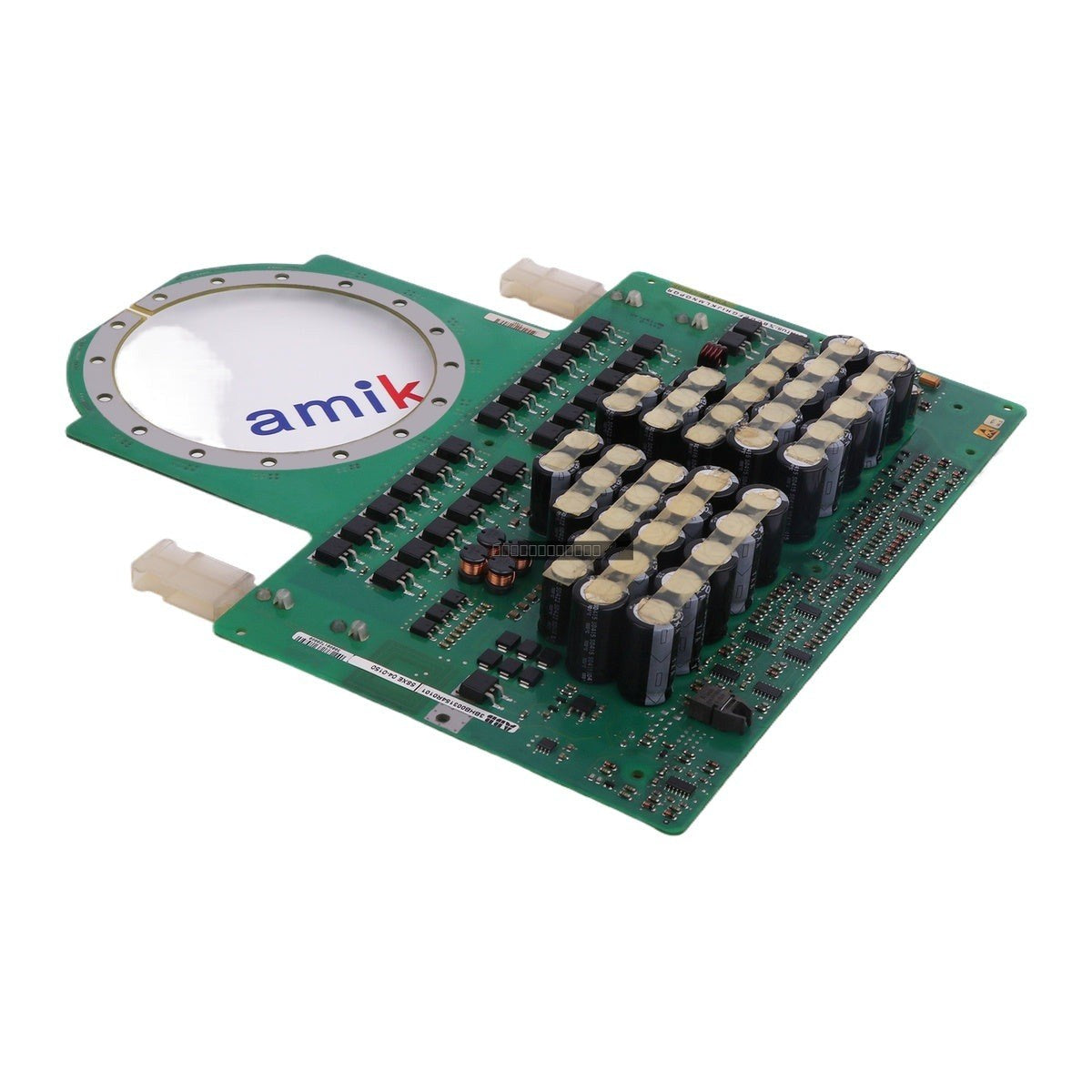

The ABB 3BHL000390P0104 is an Integrated Gate-Commutated Thyristor (IGCT) module board, designed for high-power industrial power electronics applications. This component is a critical part of power conversion systems, facilitating efficient switching and control of high-voltage, high-current electrical loads. Please note that this specific model has been discontinued by the manufacturer.
Features
- High-performance IGCT technology for robust power switching.
- Engineered for integration within ABB power electronic assemblies.
- Designed for high-reliability industrial environments.
- Compact board-level construction for efficient space utilization in power stacks.
Technical Specifications
| Manufacturer | ABB |
| Model / Part Number | 3BHL000390P0104 |
| Associated Part Numbers | 3BHB003154R0101, 5SHX1960L0004 |
| Component Type | IGCT Module Board |
| Weight | 0.85 kg |
Installation Guidelines
- Ensure all power is disconnected from the system before attempting to install or remove the IGCT module.
- Handle the module with care, utilizing proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive electronic components.
- Verify that all mounting surfaces are clean and free of debris to ensure proper thermal contact and mechanical stability.
- Ensure that all electrical connections are properly seated and tightened to the manufacturer's specified torque requirements to prevent arcing or high-resistance connections.
- Verify that the cooling system (heatsinks, fans, or liquid cooling loops) is fully functional and unobstructed to prevent thermal overload during operation.
FAQ
Is this product still in production?
No, this model has been discontinued by ABB. We provide high-quality spare parts to support legacy systems.
What is an IGCT module used for?
IGCT modules are primarily used in high-power converters, such as those found in medium-voltage drives, traction inverters, and utility-scale power transmission systems, where high switching speed and low conduction losses are required.
