Description

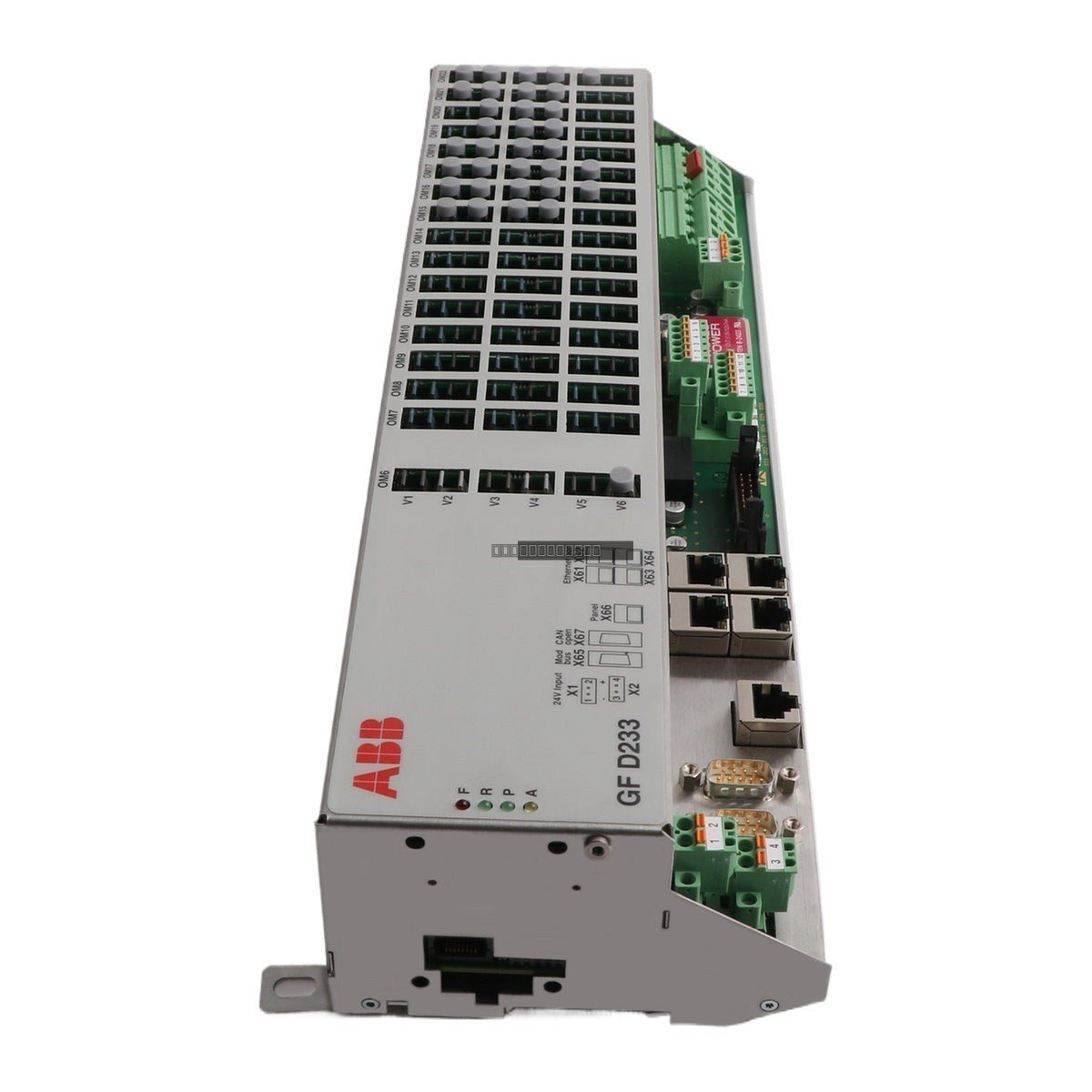

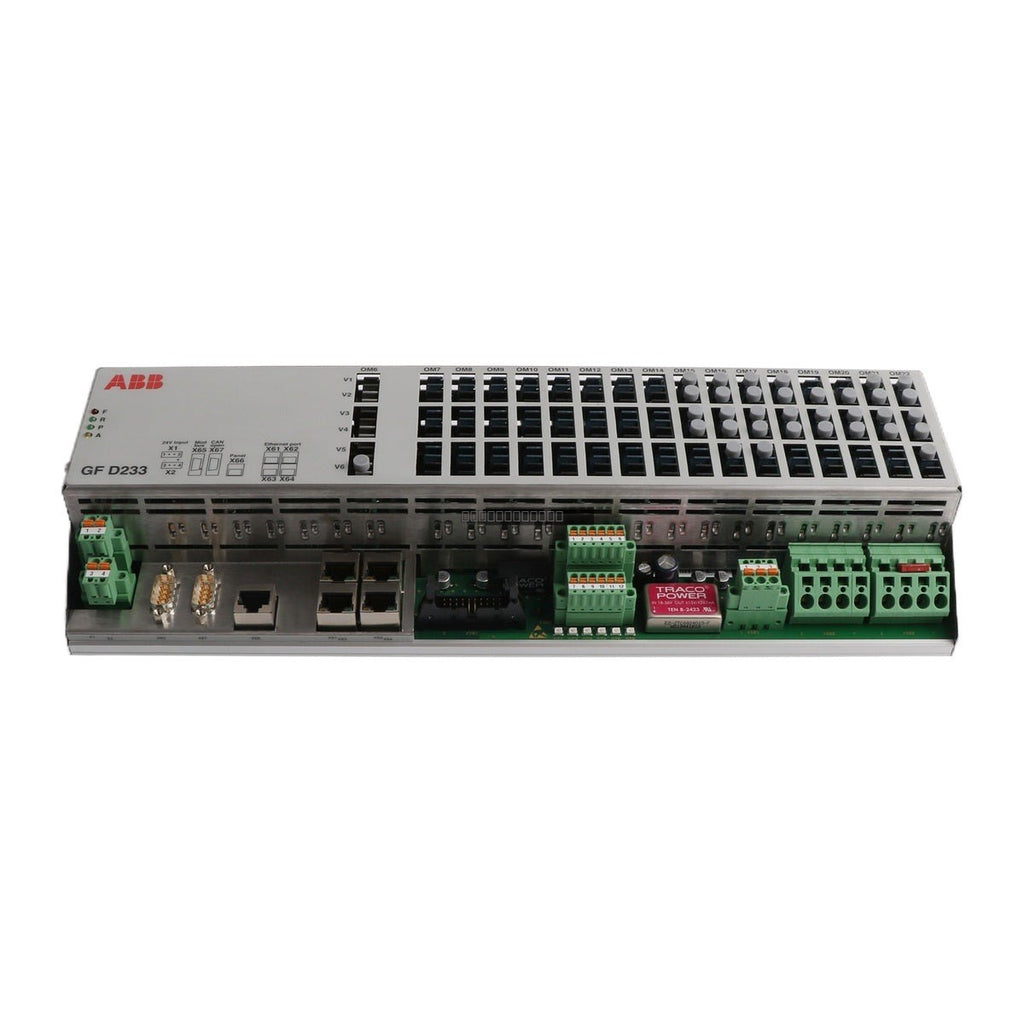

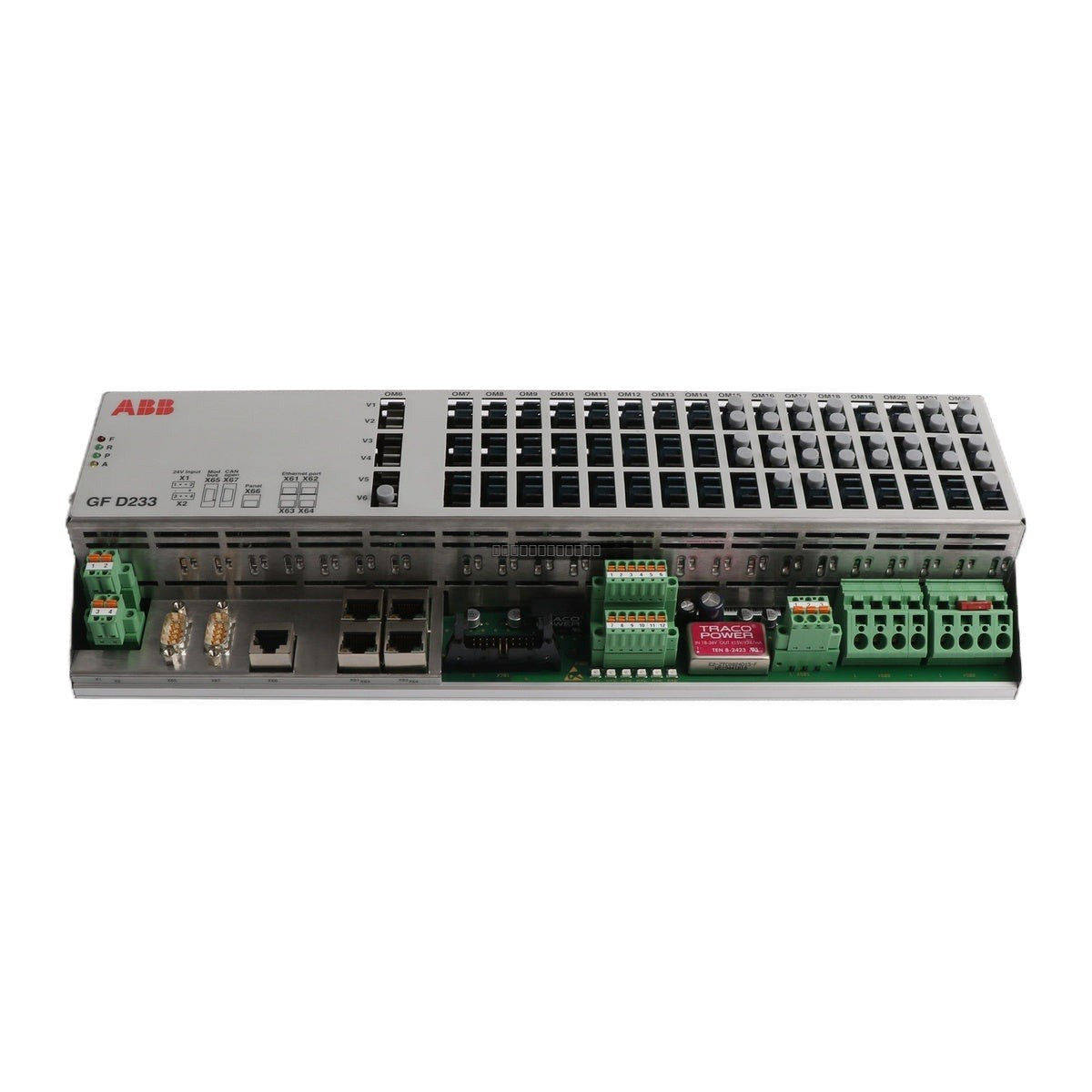

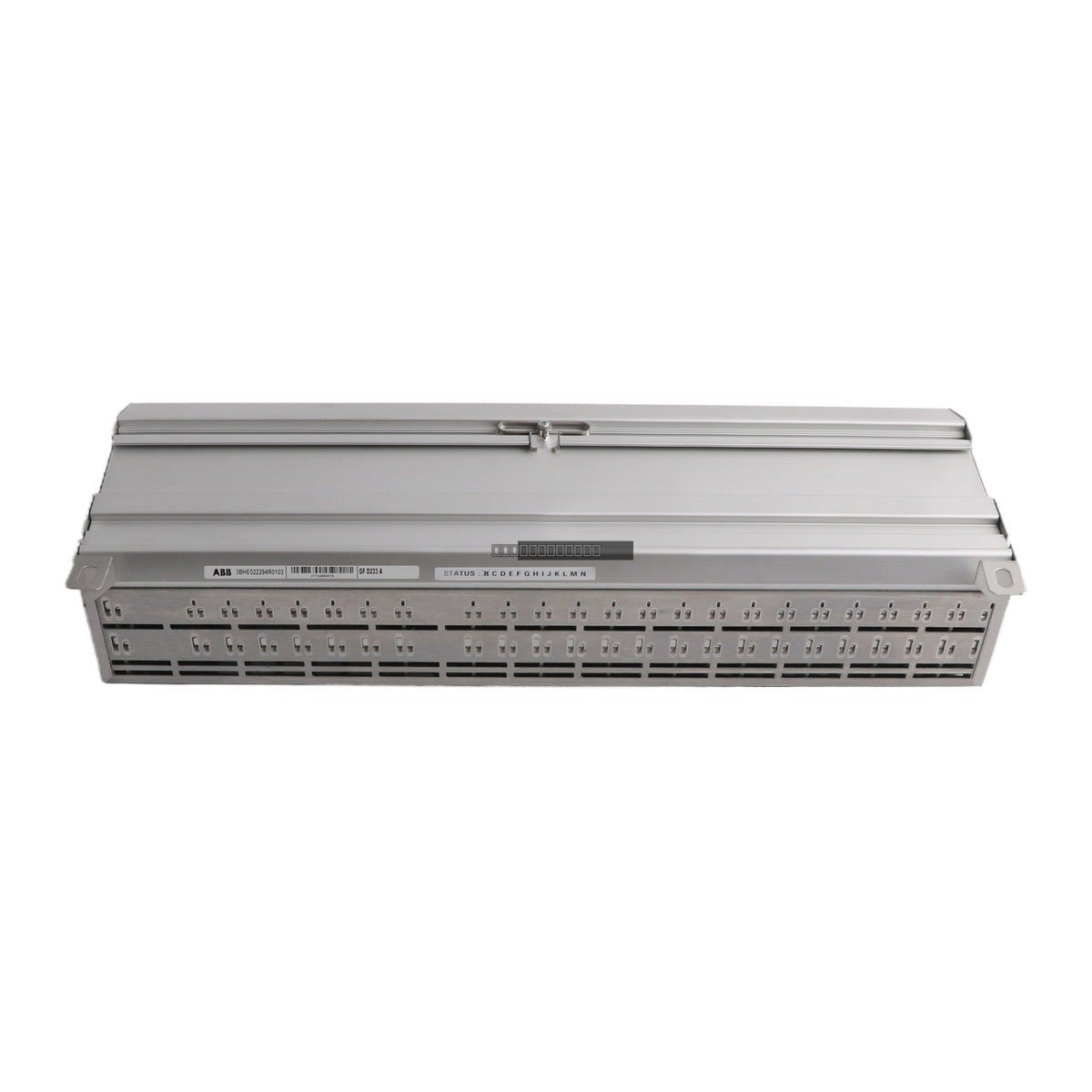

The GFD233 A (3BHE022294R0103) is a high-performance IGBT module designed for use within ABB Advant OCS and Advant-800xA industrial control systems. Engineered for demanding power electronics applications, this module provides reliable switching performance in high-voltage environments, ensuring efficient power conversion and control for industrial drives and power distribution equipment.
Features
- High-voltage capability with a typical collector-emitter voltage of 3300 V.
- Robust gate-emitter voltage handling up to +/- 20 V.
- Supports continuous collector currents ranging from 1200 A to 1500 A.
- Capable of handling peak currents up to 3000 A for transient load requirements.
- High isolation voltage (6-10 kV) for enhanced system safety and protection.
- Designed for high-temperature operation with a maximum junction temperature rating of 125-150 degC.
Technical Specifications
| Product Model | GFD233 A 3BHE022294R0103 |
| Manufacturer | ABB |
| Component Type | IGBT Module |
| Collector-Emitter Voltage | 3300 V |
| Gate-Emitter Voltage | +/- 20 V (max) |
| Continuous Collector Current | 1200 - 1500 A |
| Peak Current | Up to 3000 A |
| Max Junction Temperature | 125 - 150 degC |
| Isolation Voltage | 6 - 10 kV |
Installation Guidelines
- Ensure the mounting surface is clean, flat, and thermally conductive to facilitate proper heat dissipation.
- Apply a high-quality thermal interface material (TIM) between the module baseplate and the heatsink.
- Verify that all electrical connections are tightened to the manufacturer's specified torque to prevent overheating and contact resistance.
- Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent damage to internal gate structures.
- Ensure the cooling system (forced air or liquid) is fully operational before applying power to the module.
- Always power down and discharge the DC bus capacitors before performing any installation or maintenance on the module.
FAQ
Q: Is this module compatible with all Advant OCS systems?
A: The GFD233 A is specifically intended for use in compatible ABB power electronics configurations. Please verify your system's hardware compatibility list or the original equipment documentation before installation.
Q: What is the primary function of this IGBT module?
A: This module acts as a high-power electronic switch, facilitating the rapid switching required for pulse-width modulation (PWM) in motor drives and power converters.
