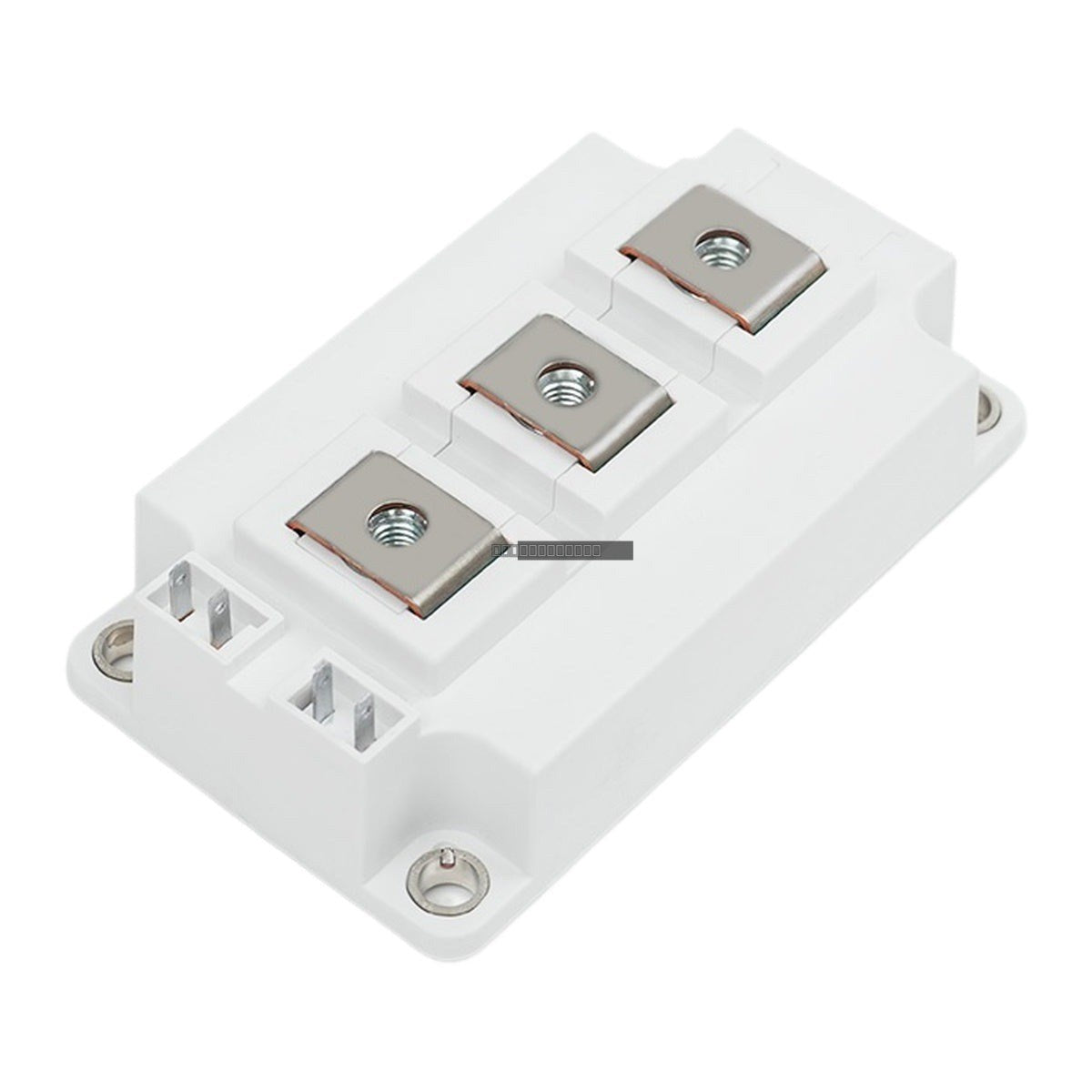

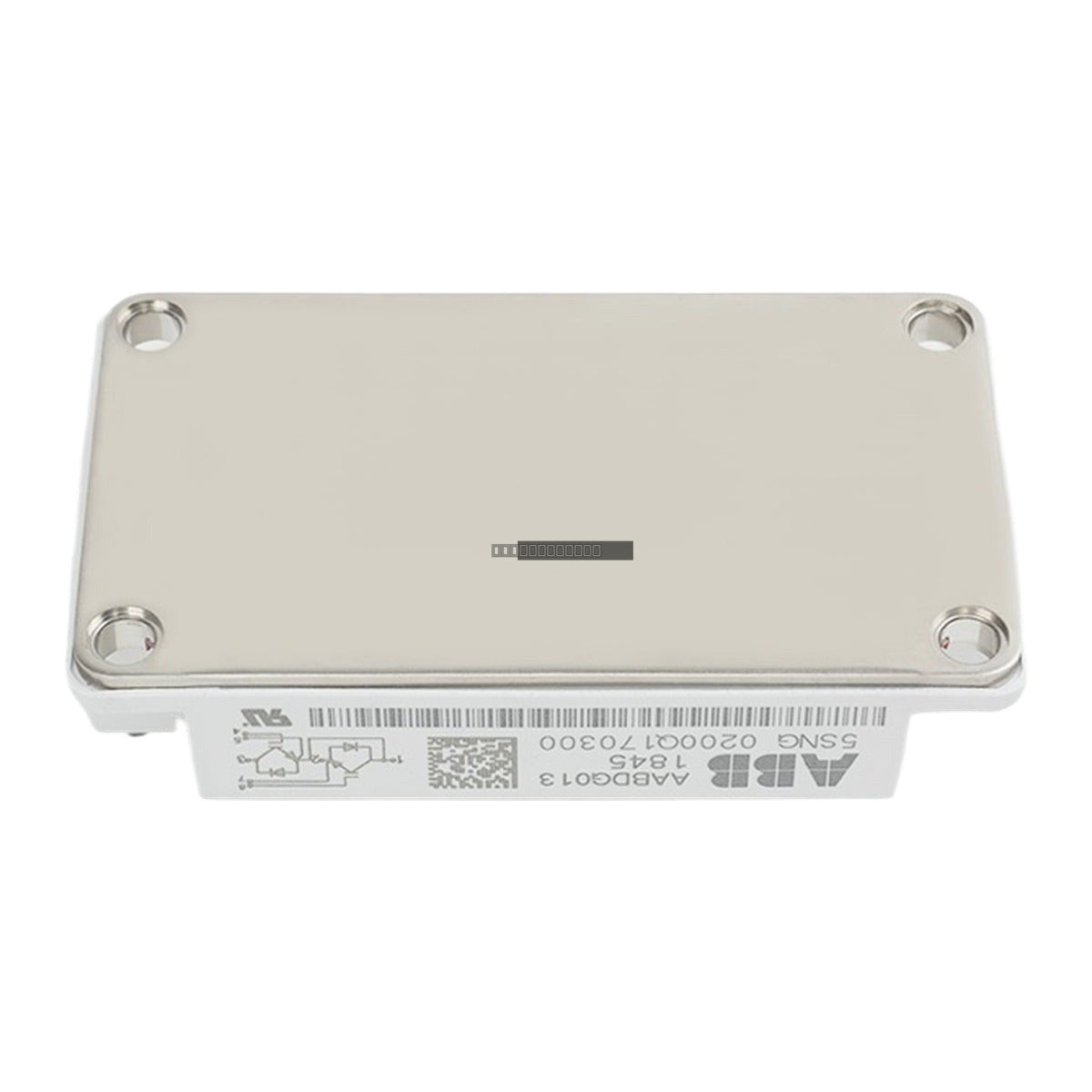

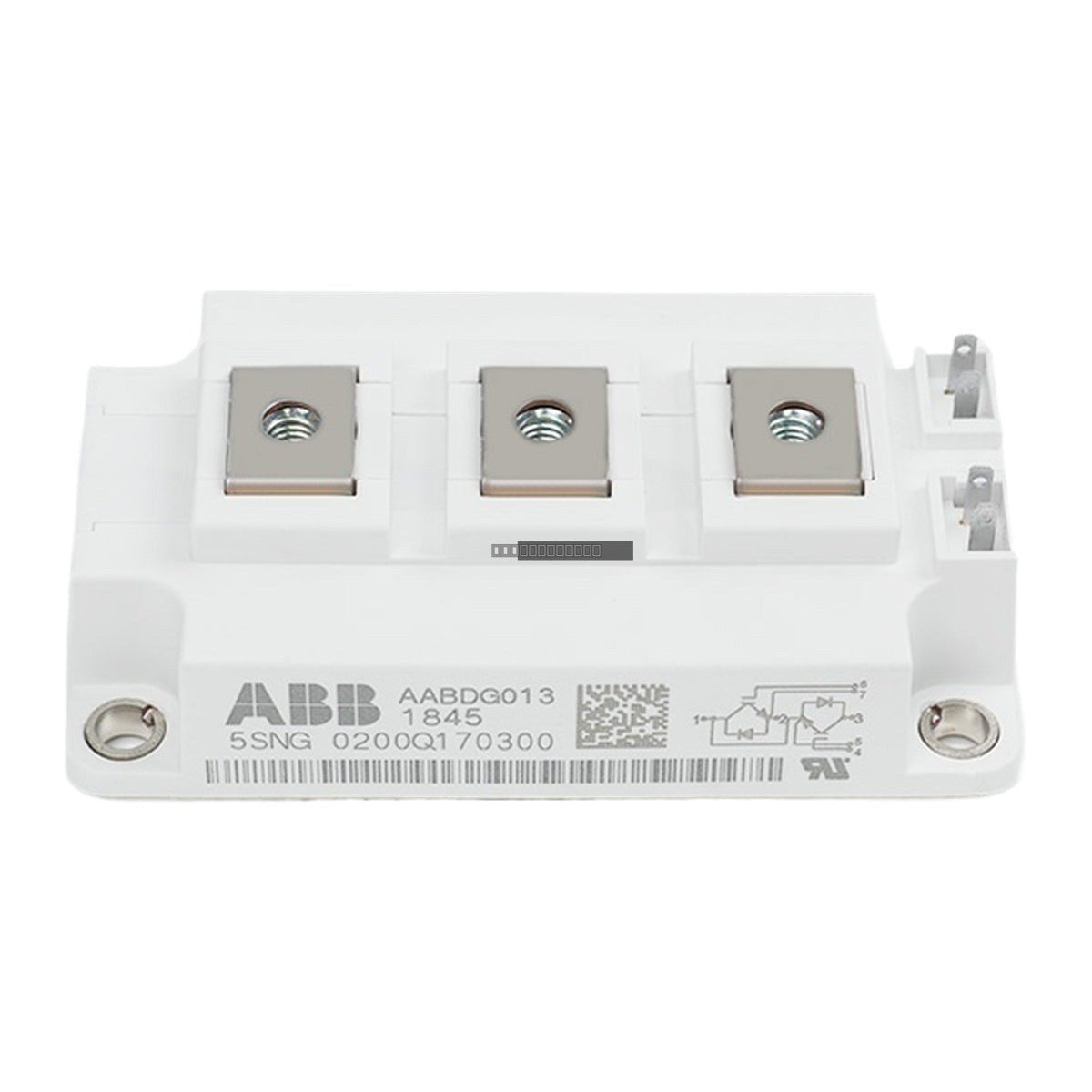

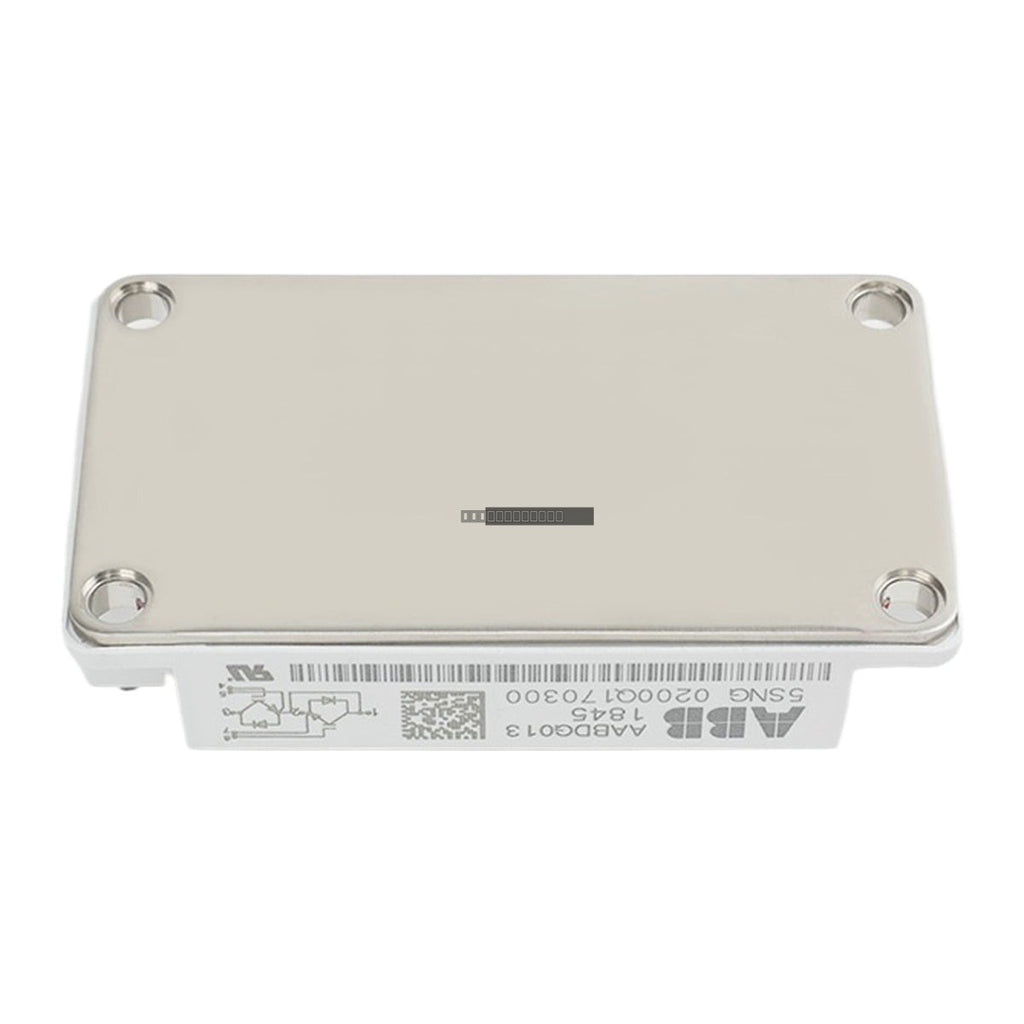

The ABB 5SNG0200Q170300 is a high-performance 1700V, 200A phase-leg IGBT module from the 62Pak series. Engineered with rugged SPT++ chip technology, this module is designed to provide ultra-low switching losses and high power density for demanding industrial power conversion applications.
Features
- 1700V SPT++ fast switching IGBT/diode chipset for optimized efficiency.
- Full 175 degC operating temperature capability with full square Safe Operating Area (SOA).
- Best-in-class temperature cycling performance utilizing advanced bond-wire chip connection technology.
- Standard 62mm package design, facilitating drop-in replacement in existing systems.
Applications
- Industrial Motor Drives and power conversion systems.
- Renewable energy infrastructure, including wind turbine converters and solar inverters.
- Traction converters for railway and electrified transportation.
- Uninterruptible Power Supply (UPS) systems requiring high reliability.
- Medium Voltage Drives (MVD).
Technical Specifications
| Model | 5SNG0200Q170300 |
| Voltage Rating | 1700 V |
| Current Rating | 2 x 200 A |
| Configuration | Phase leg IGBT |
| VCEsat | 2.65 V |
| Max Operating Temperature | 175 degC |
Installation Guidelines
- ESD Precautions: IGBT modules are sensitive to Electrostatic Discharge. Always handle in an ESD-controlled environment and keep in anti-static packaging until the moment of installation.
- Mounting: Refer to ABB Document No. 5SYA 2106 for detailed mechanical mounting procedures, including torque requirements for terminal and mounting screws.
- Cooling: Ensure adequate thermal management. Thermal fatigue is a primary failure mode; verify that the heatsink interface is clean, flat, and that thermal grease is applied according to manufacturer specifications to maintain optimal heat transfer.
- Safety: Ensure the system is fully de-energized and capacitors are discharged before attempting to install or remove the module.
FAQ
What is the 5SNG0200Q170300?
The 5SNG0200Q170300 is a 1700V, 200A 62Pak phase-leg IGBT module designed for high-power switching applications in industrial environments.
What are the primary specifications?
This module features a 1700V, 200A rating, utilizing SPT++ chip technology in a standard 62mm package, capable of operating at temperatures up to 175 degC.
What are common failure modes for this module?
Typical failure modes include thermal fatigue due to inadequate cooling, overcurrent conditions, and overheating. Maintaining proper thermal contact with the heatsink is critical for long-term reliability.
