Description

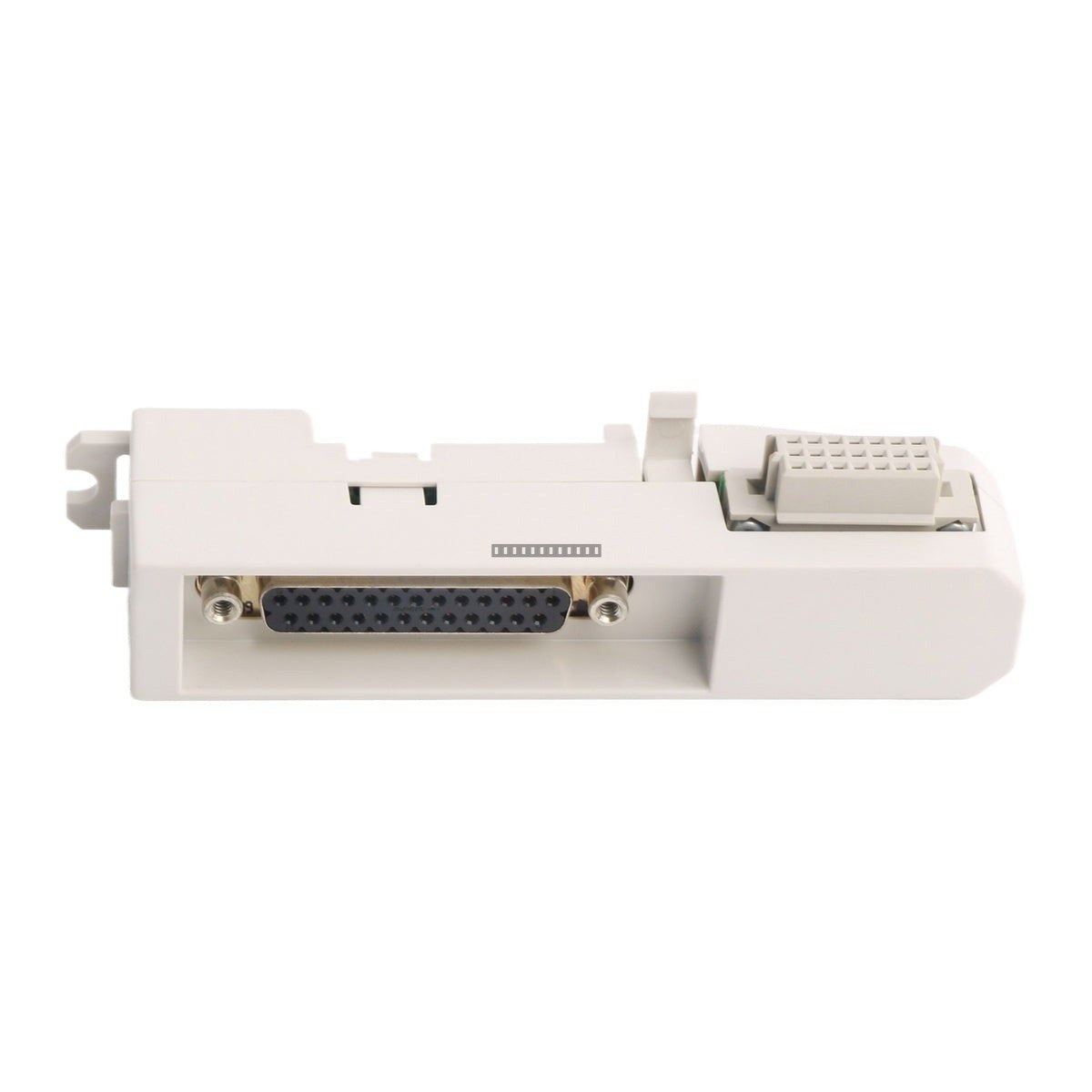

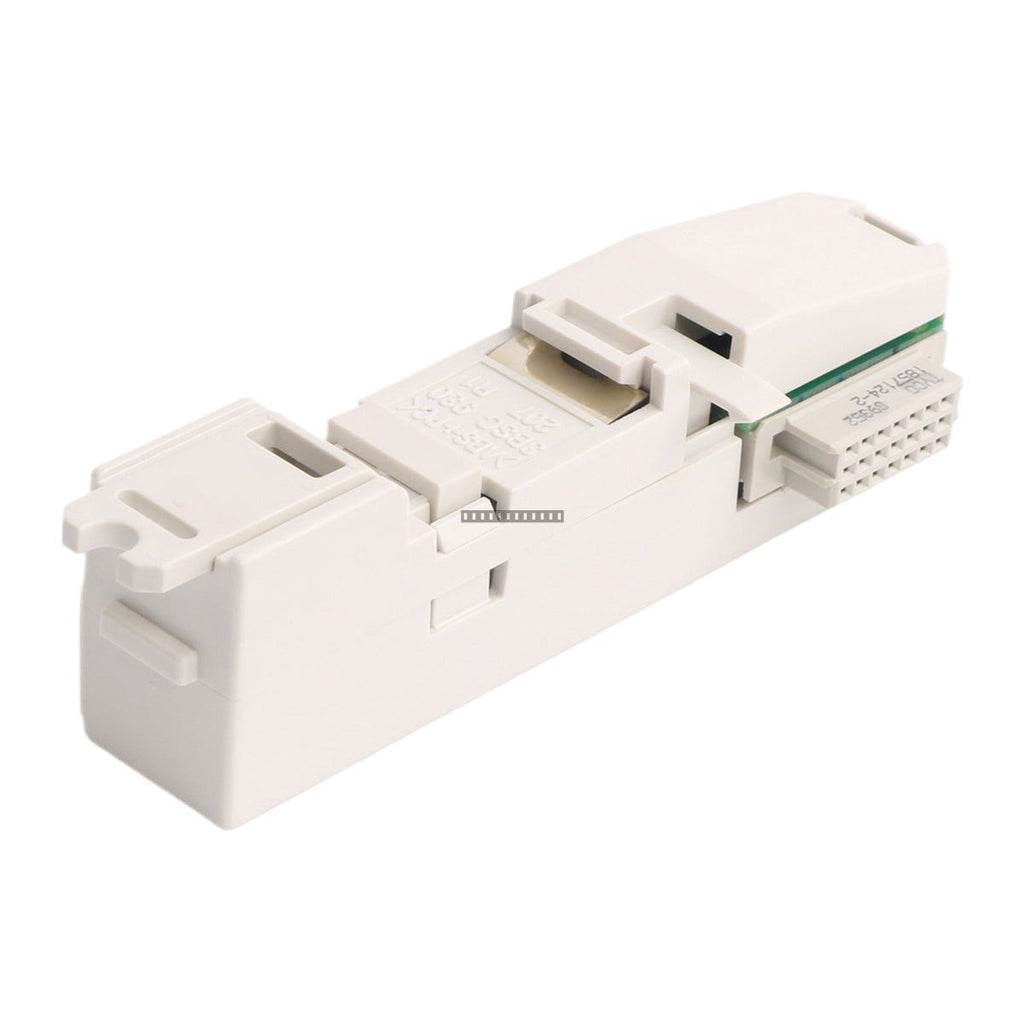

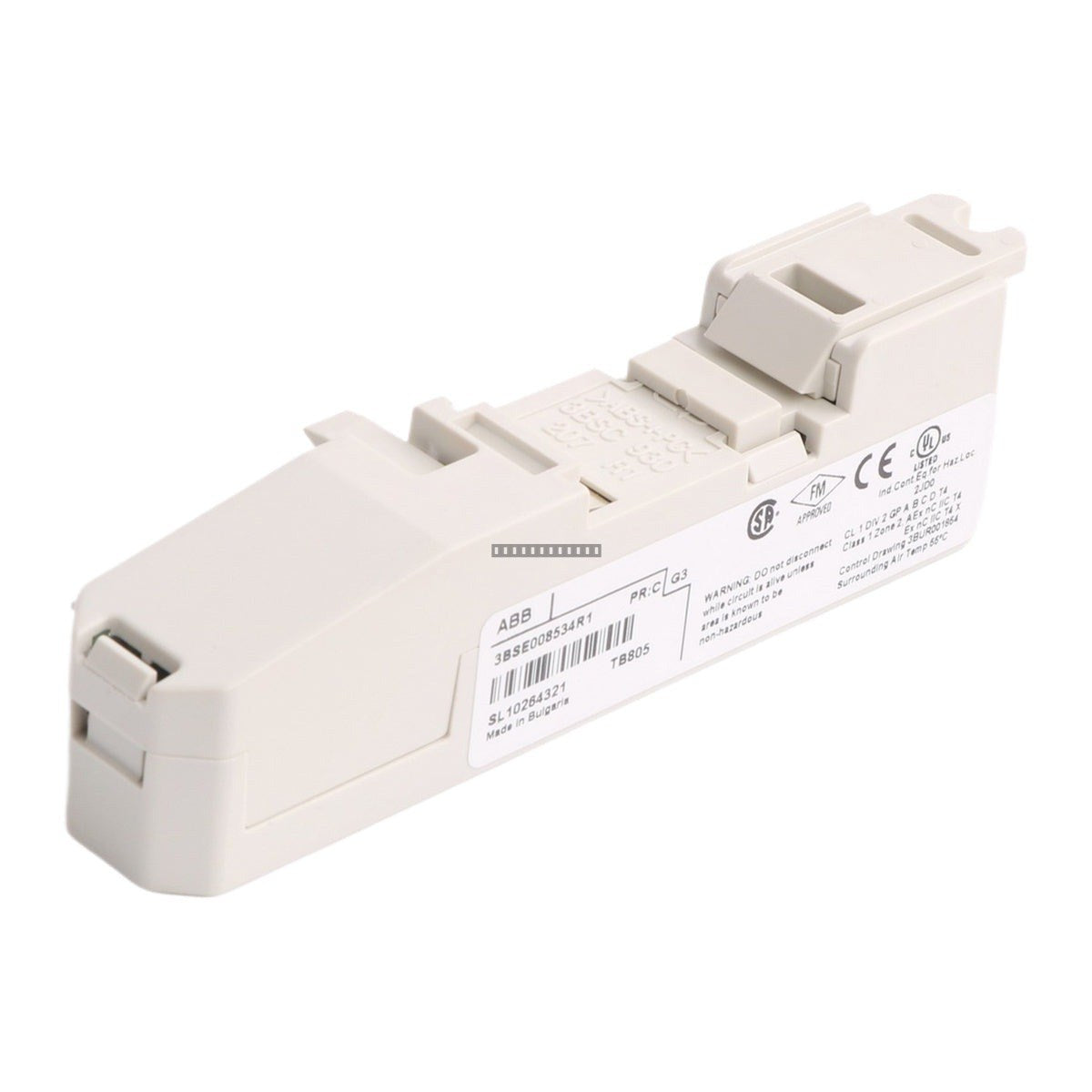

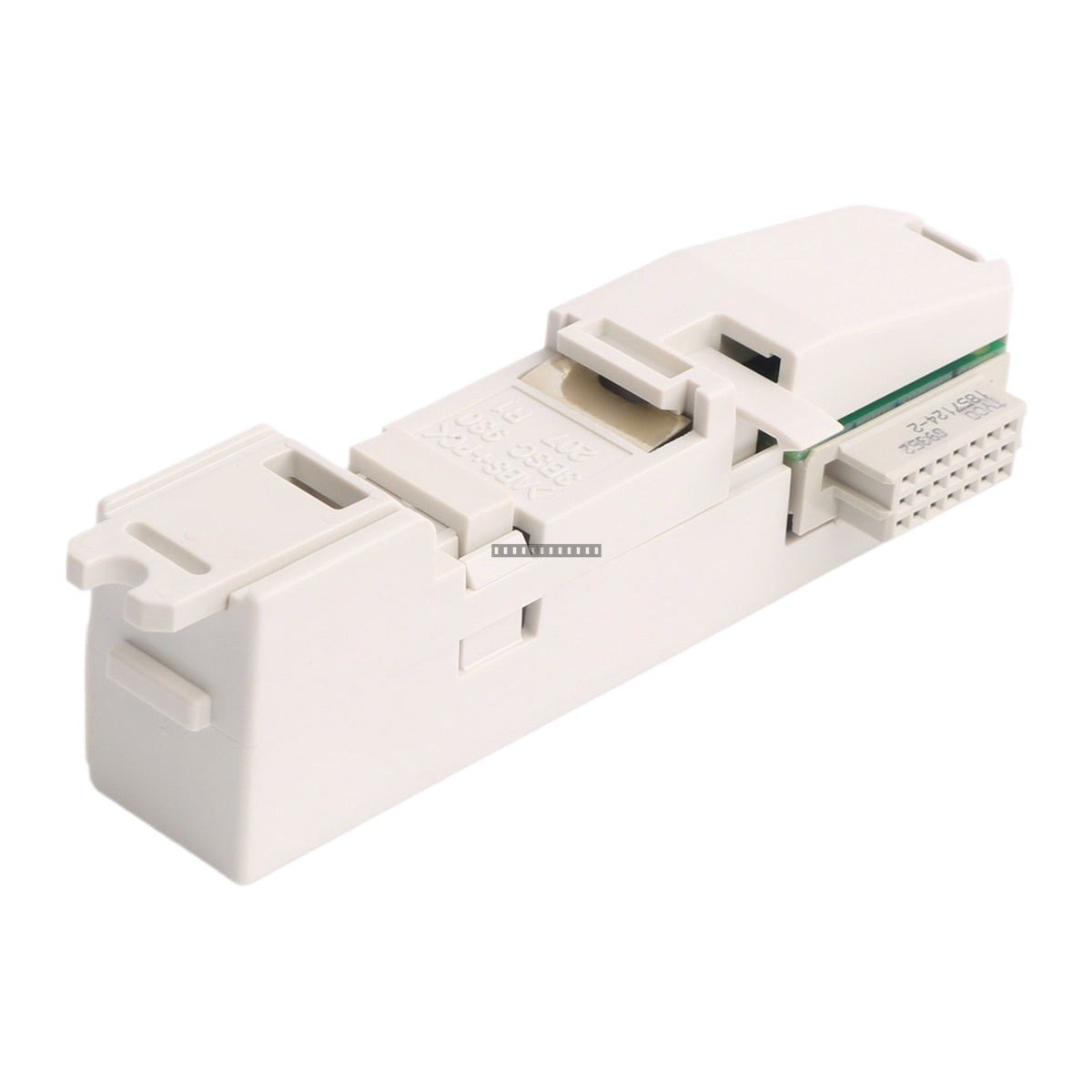

The ABB TB805 is a bus outlet module designed for the S800 I/O system. This component functions as a bus extension adapter (female), facilitating reliable communication and connectivity within the distributed I/O architecture. It is engineered to maintain signal integrity in industrial control environments where modular expansion is required.
Features
- Designed specifically for ABB S800 I/O series integration.
- Functions as a bus extension adapter (female interface).
- Compact form factor for efficient cabinet space utilization.
- Robust construction suitable for demanding industrial automation environments.
Applications
The TB805 is typically utilized in process automation systems where S800 I/O modules are deployed. It is commonly found in power generation, water treatment, and chemical processing facilities that rely on the ABB Advant or 800xA control platforms for distributed I/O management.
Technical Specifications
| Product Model | TB805 |
| Order Code / Spare Model | 3BSE008534R1 |
| Manufacturer | ABB |
| Function | Bus Outlet / Bus Extension Adapter |
| Connector Type | Female |
| Weight | 0.04 kg |
Installation Guidelines
- Ensure the control system is powered down before installing or removing any bus interface modules to prevent electrical damage.
- Verify that the bus cable connectors are clean and free of debris before mating with the TB805 female interface.
- Ensure the module is securely seated in the designated I/O rack position to maintain proper electrical contact.
- Maintain proper grounding practices within the control cabinet to minimize EMI/RFI interference with bus communications.
- Handle with care to avoid bending pins or damaging the housing during installation.
FAQ
What is the primary function of the TB805?
The TB805 serves as a bus outlet module and extension adapter for the ABB S800 I/O system, allowing for the physical extension of the I/O bus.
Is this module compatible with all S800 I/O systems?
The TB805 is designed for the S800 I/O series. Please verify your specific system configuration and part number (3BSE008534R1) against your existing hardware documentation to ensure compatibility.
