Description

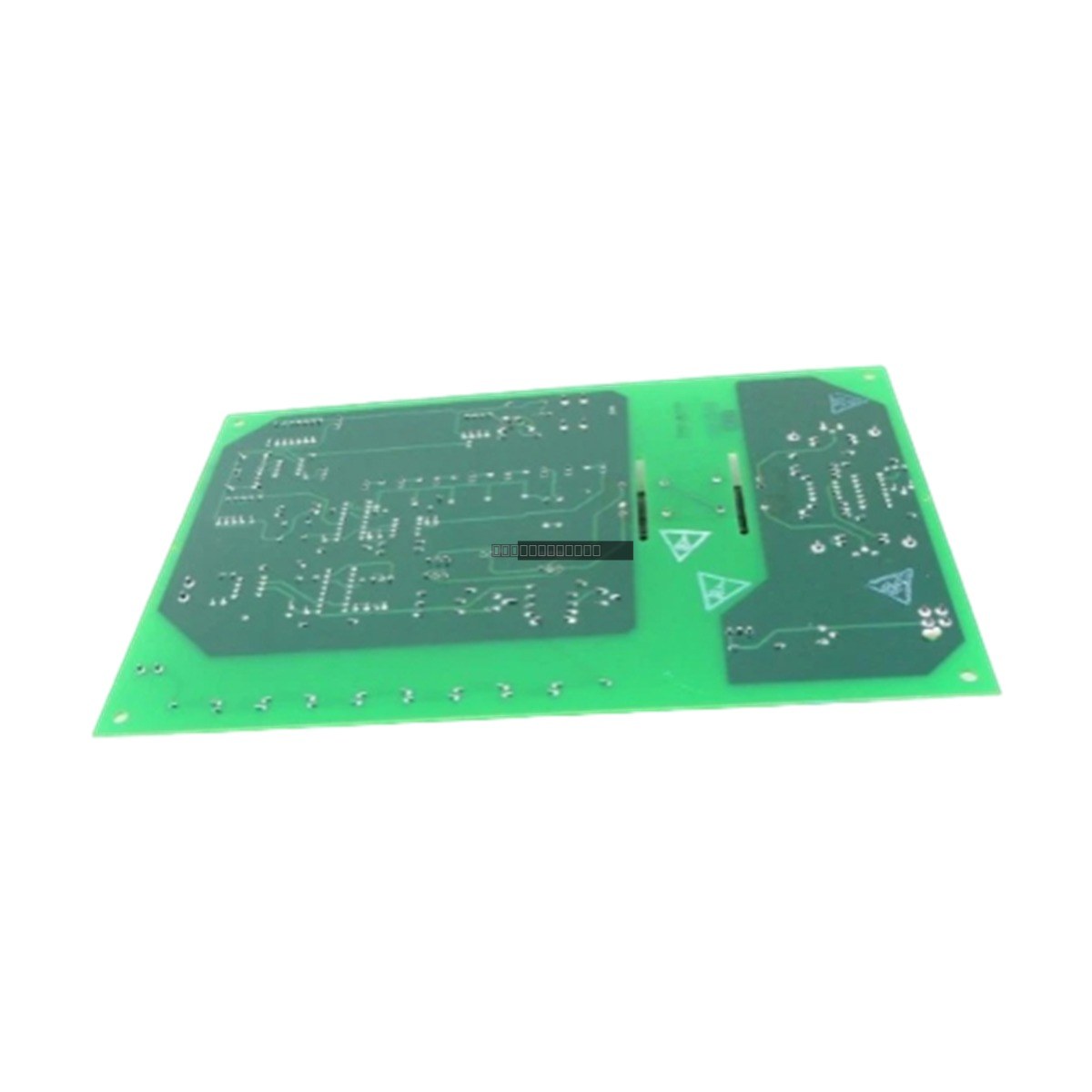

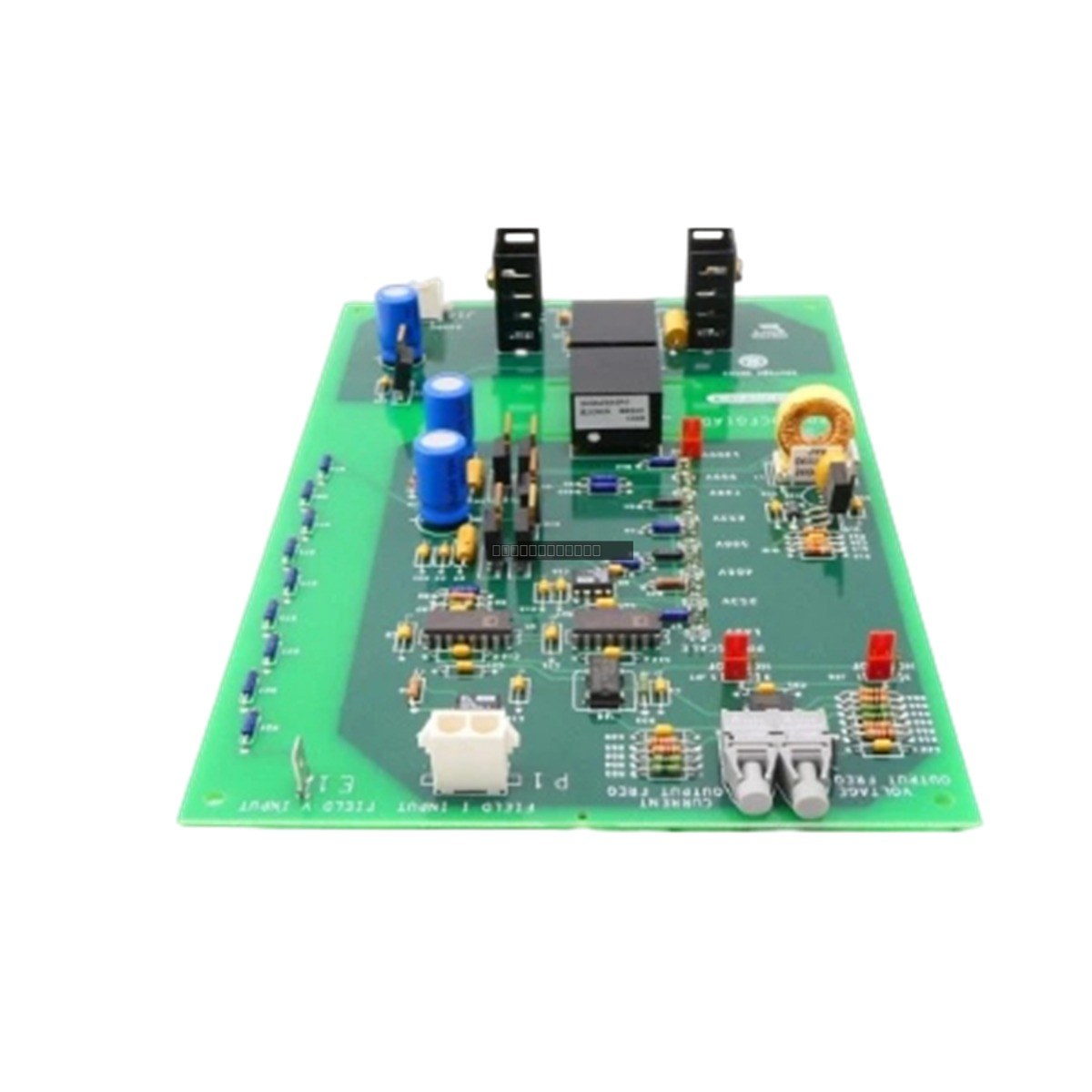

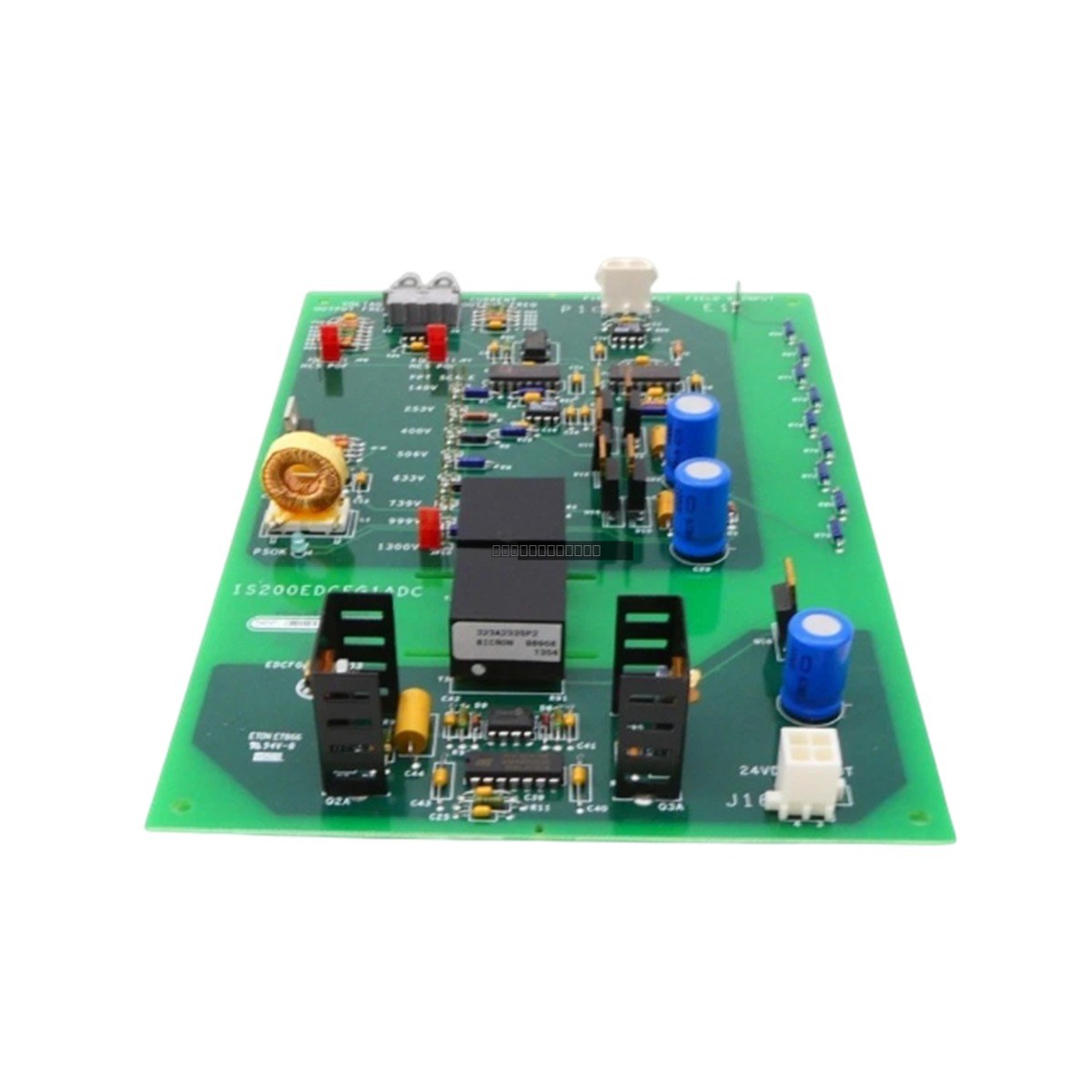

The IS200EDCFG1A is an Exciter DC Feedback Board designed for use within the General Electric EX2100 excitation control system. This module serves as a critical interface for monitoring field current and voltage parameters directly at the SCR bridge. By utilizing advanced fiber-optic communication, the board provides robust galvanic isolation and high noise immunity, shielding sensitive control logic from high-voltage transients and electrical interference common in power generation environments.
Features
- Designed specifically for the GE EX2100 series excitation control architecture.
- Facilitates precise field current and field voltage monitoring at the SCR bridge.
- Employs high-speed fiber-optic links for signal transmission to the EISB board.
- Provides superior electrical isolation to prevent ground loops and protect control hardware.
- Supports flexible fiber-optic cable lengths: up to 10 meters for plastic-type fiber and up to 90 meters for hard-clad silica fiber.
- Engineered for reliable operation in demanding industrial temperature ranges.
Applications
This feedback board is primarily utilized in power generation facilities, specifically within excitation control systems for synchronous generators. It is essential for maintaining stable excitation control and protecting the integrity of the control system during high-voltage operations.
Technical Specifications
| Model | IS200EDCFG1A |
| Brand | General Electric (GE) |
| Series | EX2100 |
| Product Type | Exciter DC Feedback Board |
| Operating Temperature | -30 to 65 degC |
| Communication | Fiber-optic (Plastic: 10 m; Hard-clad silica: 90 m) |
| Compatibility | EISB Board |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module.
- Handle the board using standard ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
- Verify that fiber-optic connections are clean and properly seated to ensure signal integrity.
- Ensure the module is securely mounted within the designated EX2100 rack slot to maintain proper grounding and thermal dissipation.
- Route fiber-optic cables away from high-power AC lines to minimize potential physical stress on the cables.
FAQ
What is the primary function of the IS200EDCFG1A?
The IS200EDCFG1A acts as a feedback interface for the EX2100 system, responsible for monitoring field current and voltage at the SCR bridge and transmitting this data to the EISB board.
What type of communication does this module use?
It uses high-speed fiber-optic communication, which provides excellent galvanic isolation and immunity to electromagnetic interference compared to copper-based signaling.
What is the maximum distance for the fiber-optic connection?
The module supports up to 10 meters using plastic-type fiber and up to 90 meters when using hard-clad silica fiber.
