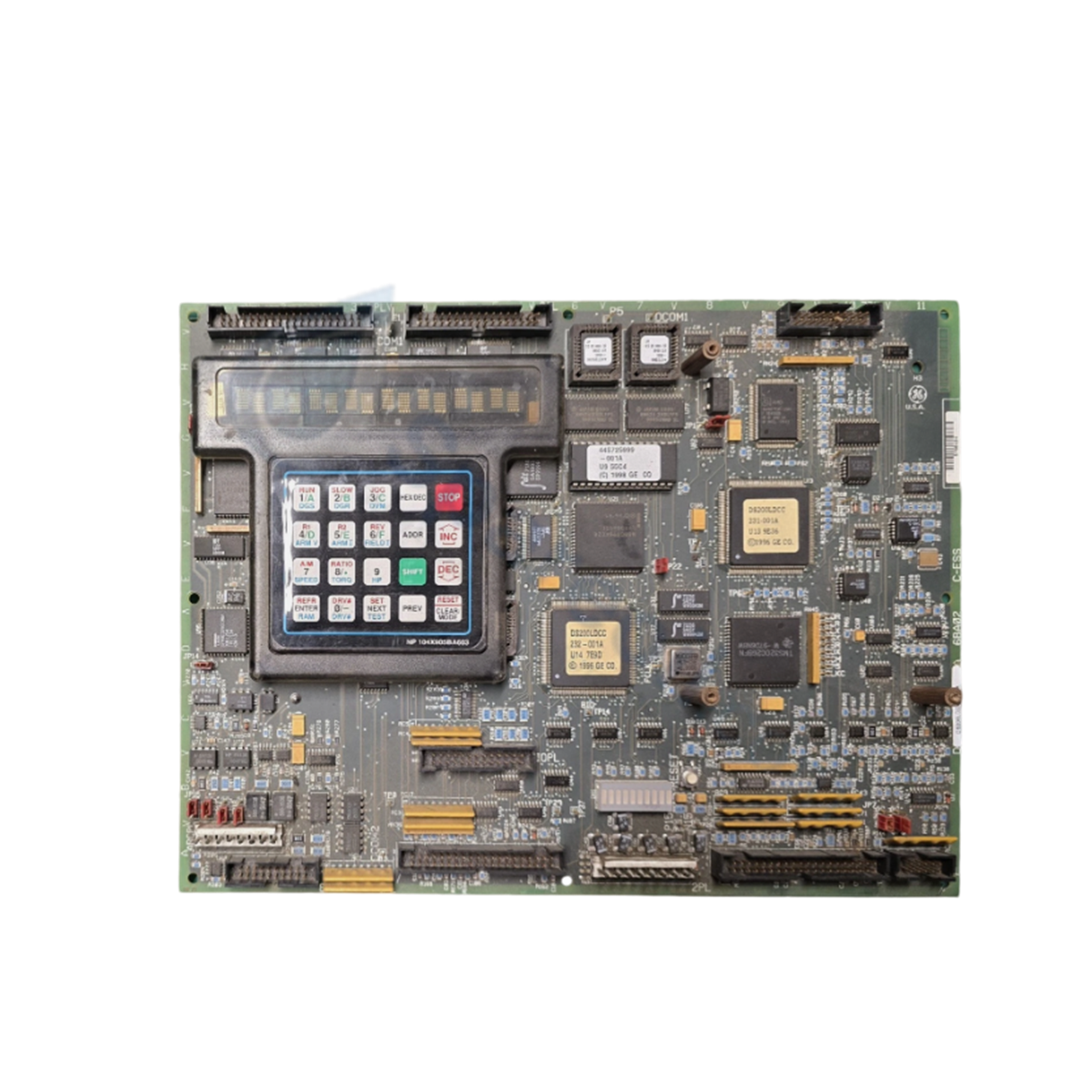

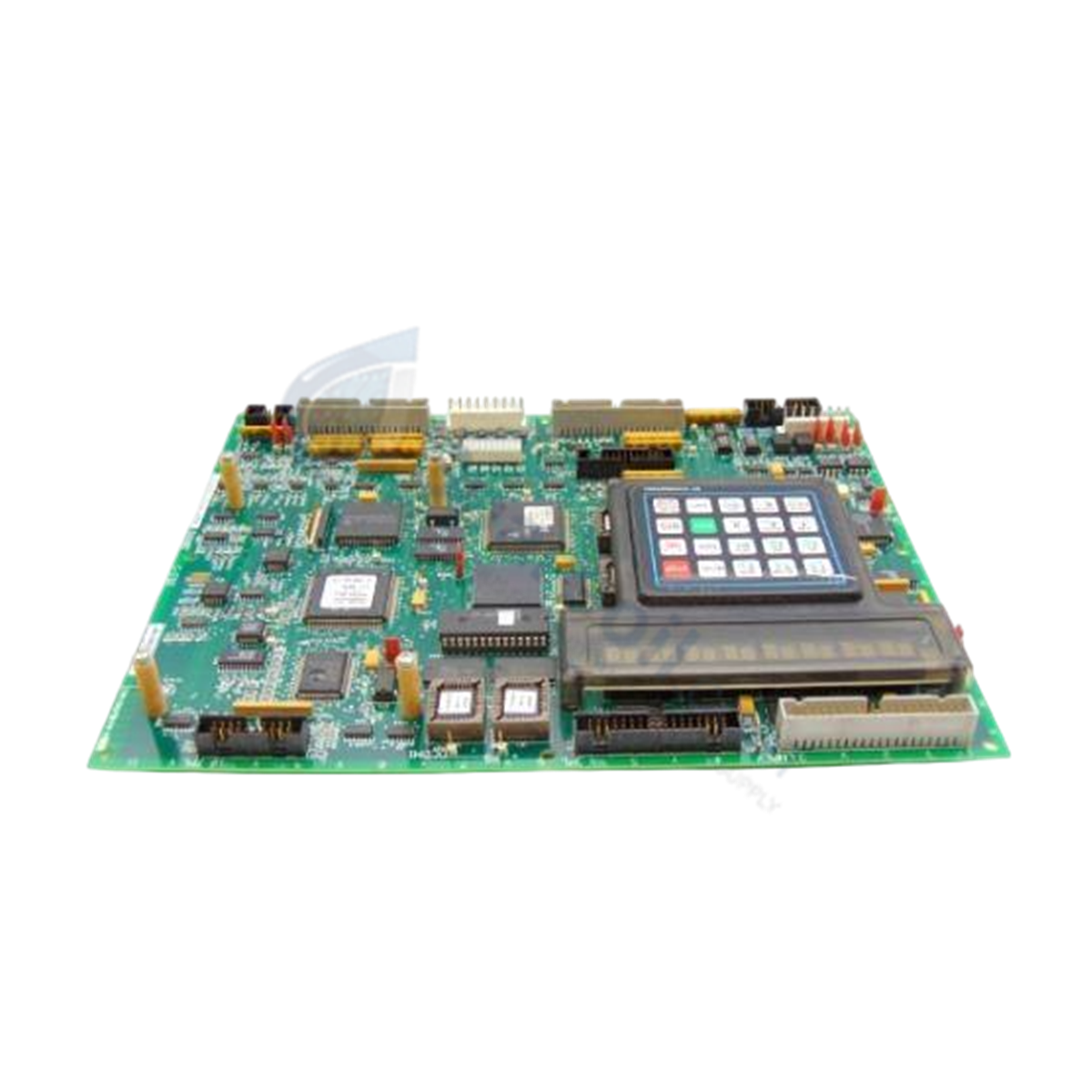

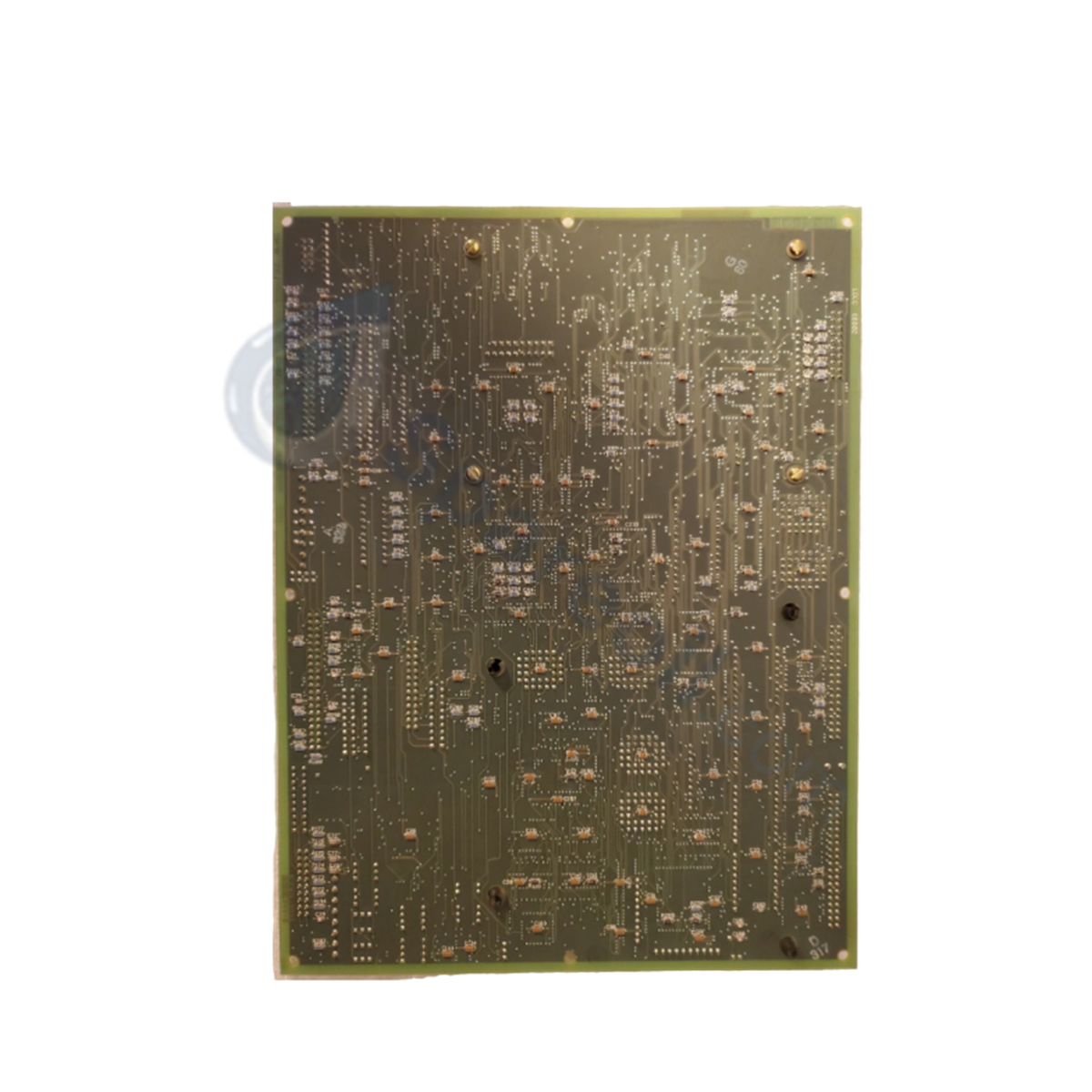

Configured for multi-processor signal processing and network bus conversion in GE Mark V Speedtronic and DIRECTO-MATIC 2000 systems, the GE DS200LDCCG1ADA (LDCC Drive Control/LAN Communications Board) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
| Revision Component | Designator Code | Description |
|---|---|---|
| Base PCB Architecture | DS200 | Standard GE Mark V form factor circuit board baseline |
| Functional Acronym | LDCC | Drive Control and LAN Communications Board |
| Coating Variant | G | Normal (standard) protective PCB coating |
| 1st Functional Revision | A | Initial functional design revision |
| 2nd Functional Revision | D | Secondary functional design modification |
| Artwork Revision | A | Base circuit trace and silkscreen artwork revision |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200LDCCG1ADA |
| Brand | GE (General Electric) |
| Origin | USA |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Internal backplane DC power supplied |
| Product Series | Speedtronic Mark V / DIRECTO-MATIC 2000 |
| Processing Architecture | Quad-processor array (DCP, MCP, CMP, LCP) |
| Coating Type | Normal Coating |
| Instruction Manual | GEI-100216 |
Industrial Control & Processing Dynamics
The DS200LDCCG1ADA leverages an integrated quad-processor architecture to ensure backplane bus communication velocity and real-time processing execution. Drive control tasks are partitioned across the Drive Control Processor (DCP) for peripheral I/O processing and signal conversion, the Motor Control Processor (MCP) for digital loop execution, and the Co-Motor Processor (CMP) for processing complex mathematical algorithms. Network interfacing is managed independently by the LAN Control Processor (LCP), maintaining firmware flash compatibility and deterministic network throughput across connected DIRECTO-MATIC 2000 drive nodes.
Frequently Asked Questions
Q: How does the Co-Motor Processor (CMP) interact with the Motor Control Processor (MCP) during operation?
A: The CMP acts as a math coprocessor to offload advanced math calculations from the primary MCP, maintaining execution timing for complex motor control loops without overloading main processing routines.
Q: What network tasks are offloaded to the LAN Control Processor (LCP)?
A: The LCP handles all protocol translations and message formatting required to interface the card with local area network buses, insulating drive control tasks from communication traffic overhead.
Field Installation Guidelines
- Power down the drive cabinet completely and discharge all DC bus capacitors prior to handling the circuit board.
- Wear an ESD grounding strap attached to an unpainted metal surface on the enclosure framework before removing the card from its protective bag.
- Verify onboard jumper configuration settings against system schematic documentation before inserting the card into the rack.
- Align the board edges with the enclosure card guides and press firmly until the edge connectors seat completely into the backplane socket.
- Ensure all wiring shield drain wires are terminated directly to the cabinet earth ground bus using low-impedance connection points.
