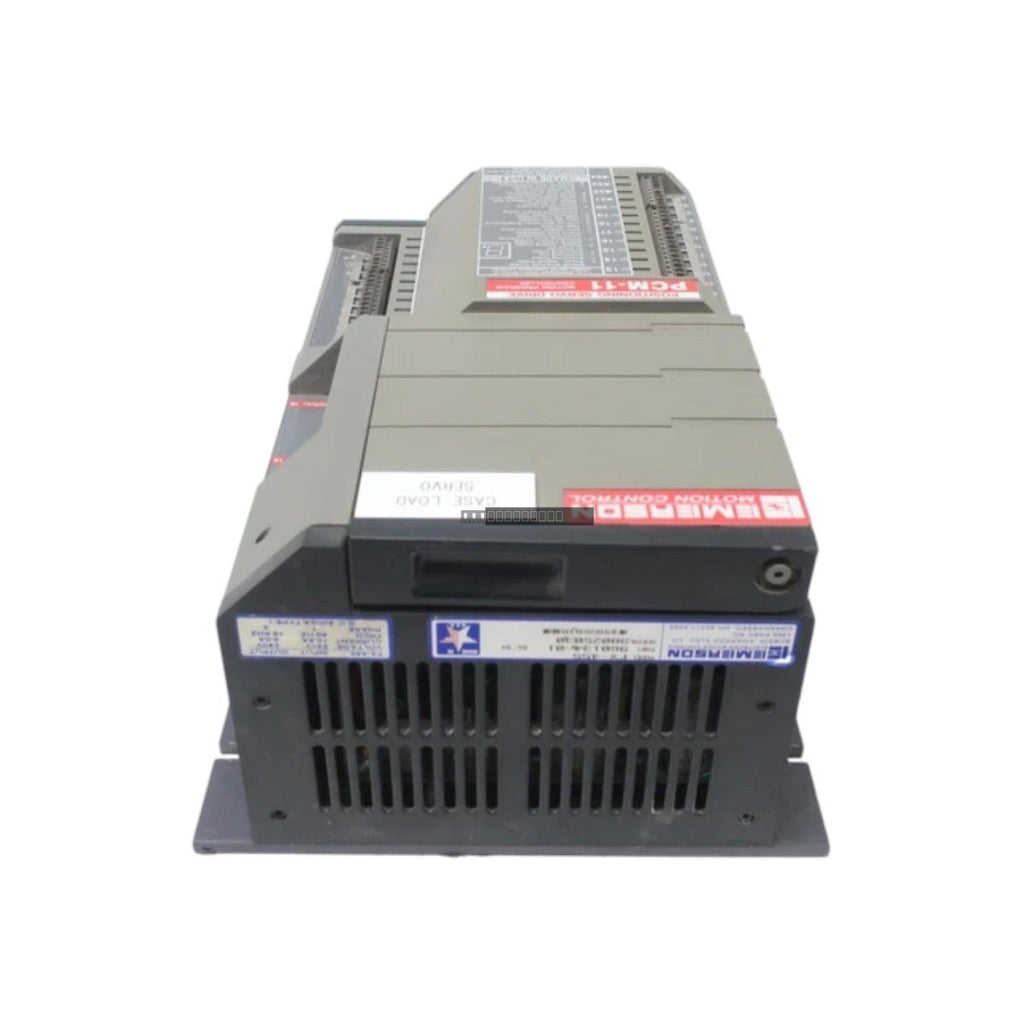

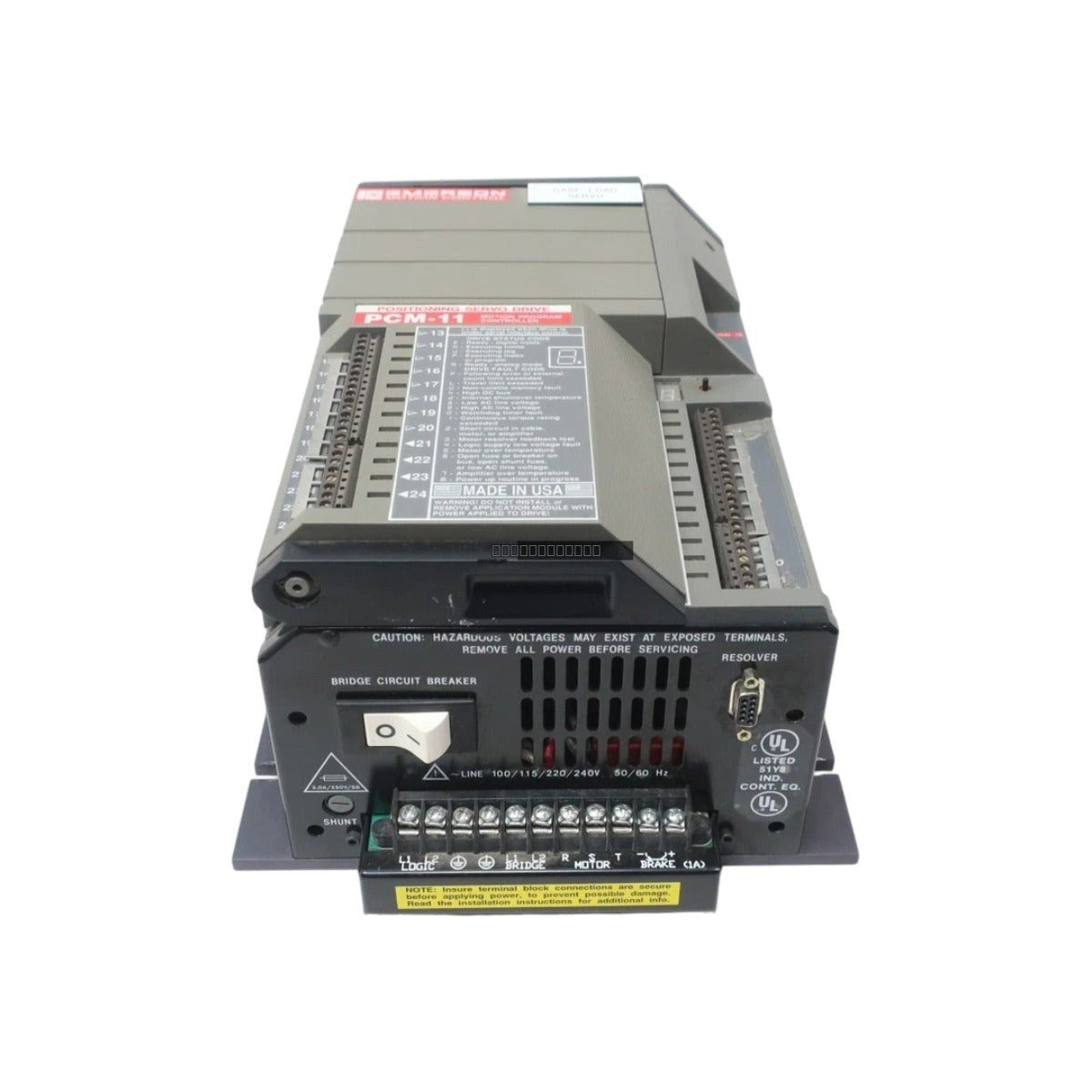

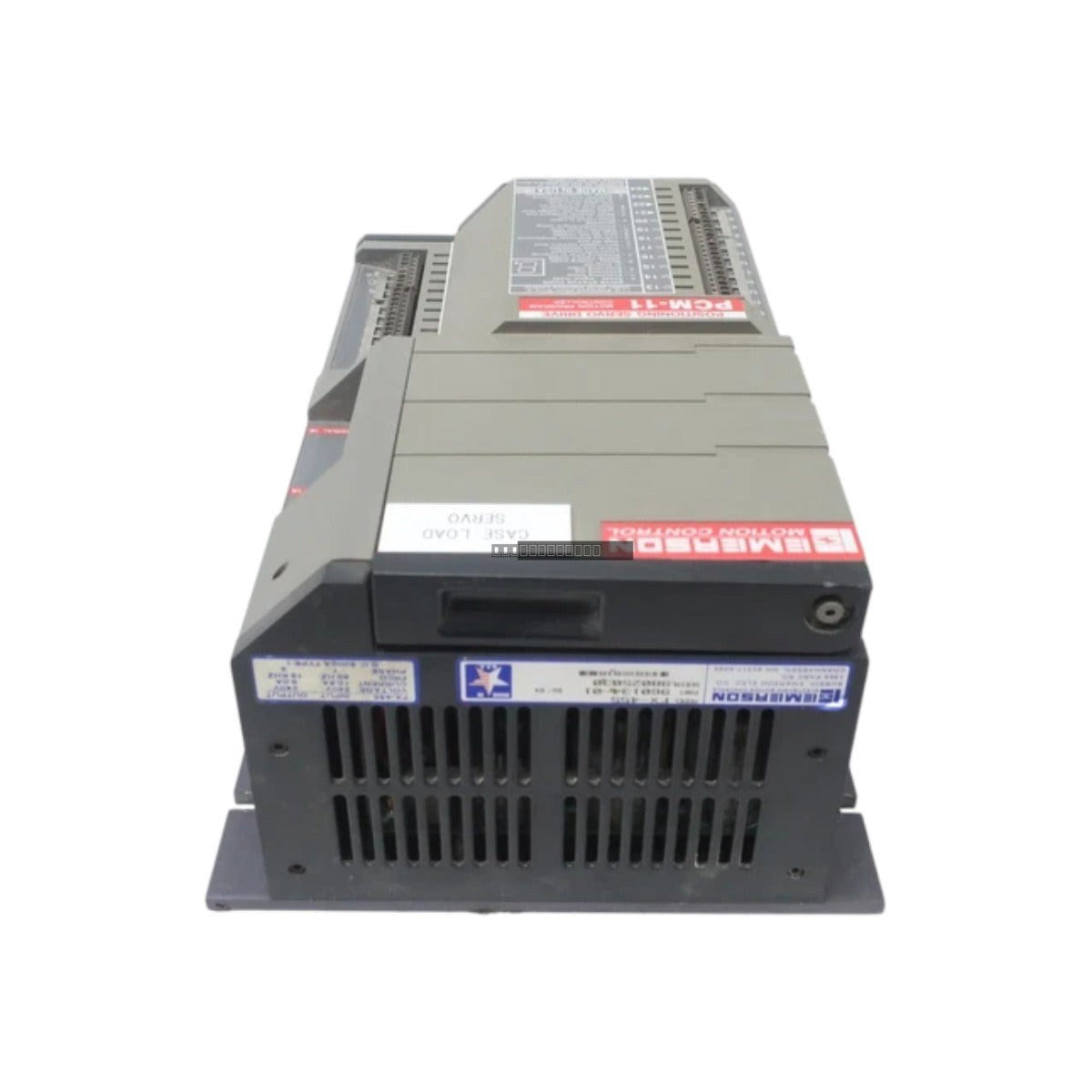

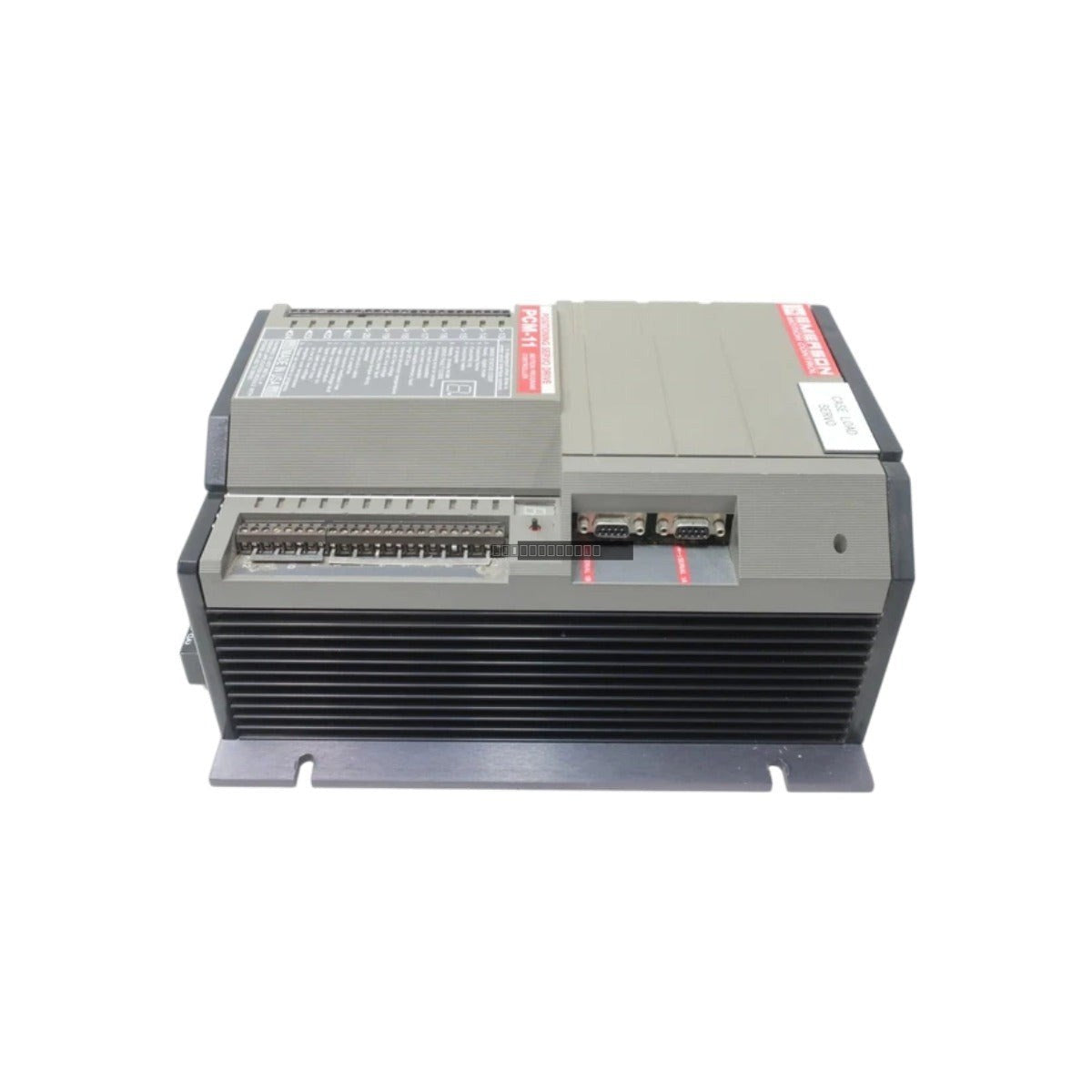

Emerson Control Techniques PCM-11 Motion Control Module

Emerson Control Techniques PCM-11 Motion Control Module

Availability: 9 left in stock

DescriptionThe PCM-11 (PCM11) is a high-performance Application Motion Program Controller designed to provide advanced motion control capabilities within the Emerson...

SKU: PCM-11

Manufacturer: Emerson
Product No.: PCM-11
Product Type: Motion Control Module
Product Origin: United Kingdom
Payment:T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The PCM-11 (PCM11) is a high-performance Application Motion Program Controller designed to provide advanced motion control capabilities within the Emerson and Control Techniques ecosystems. Functioning as a specialized processor module, it executes complex motion profiles and logic programs independently of the primary drive control loop. This module is essential in high-precision industrial sectors such as automated assembly, packaging, and high-speed material handling, where synchronized multi-axis coordination is required. By offloading motion-specific tasks from the main controller, the PCM-11 significantly reduces system overhead and increases the deterministic response of the machinery, playing a central role in maximizing throughput and minimizing mechanical wear through optimized motion trajectories.

Features

Dedicated microprocessor for high-speed program execution and real-time task management.
Onboard non-volatile flash memory for storage of sophisticated motion programs and parameters.
Direct interface with drive internal bus for instantaneous parameter adjustment and high-resolution feedback monitoring.
Supports electronic camming, gearing, and precise positioning functions.
Ruggedized hardware design for reliable operation in demanding thermal environments.
Acts as a localized master in distributed control networks.

Applications

The PCM-11 is typically utilized in industrial automation environments requiring high-speed, multi-axis synchronization. Common applications include:

Automated assembly lines
High-speed packaging machinery
Material handling and conveyor systems
Precision positioning and electronic gearing applications

Technical Specifications

Model	PCM-11
Brand	Emerson / Control Techniques
Product Category	Application Motion Program Controller
Operating Temperature	0 to 50 deg C
Storage Temperature	-20 to 70 deg C
Power Supply	Internal via drive backplane
Programming Port	RS485 / Serial Interface
Memory Type	Flash memory
Cooling	Natural convection
Enclosure Rating	IP 20

Installation Guidelines

Ensure the drive is powered down and isolated before inserting or removing the PCM-11 module.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Ensure the module is fully seated in the drive backplane slot to maintain reliable bus communication.
Maintain adequate clearance around the module to allow for natural convection cooling; do not obstruct ventilation paths.
Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
Verify that the ambient temperature remains within the specified 0 to 50 deg C range during operation.

FAQ

What is the primary function of the PCM-11 module?

The PCM-11 serves as an application motion program controller that offloads complex motion logic from the main drive processor to improve system response time and coordination.

How is the PCM-11 powered?

The module receives its power supply directly through the drive backplane connection, requiring no external power wiring.

What programming environment is used for this module?

The PCM-11 supports programs typically developed using specialized motion languages or IEC 61131-3 compliant environments, which are loaded via the RS485/Serial interface.
