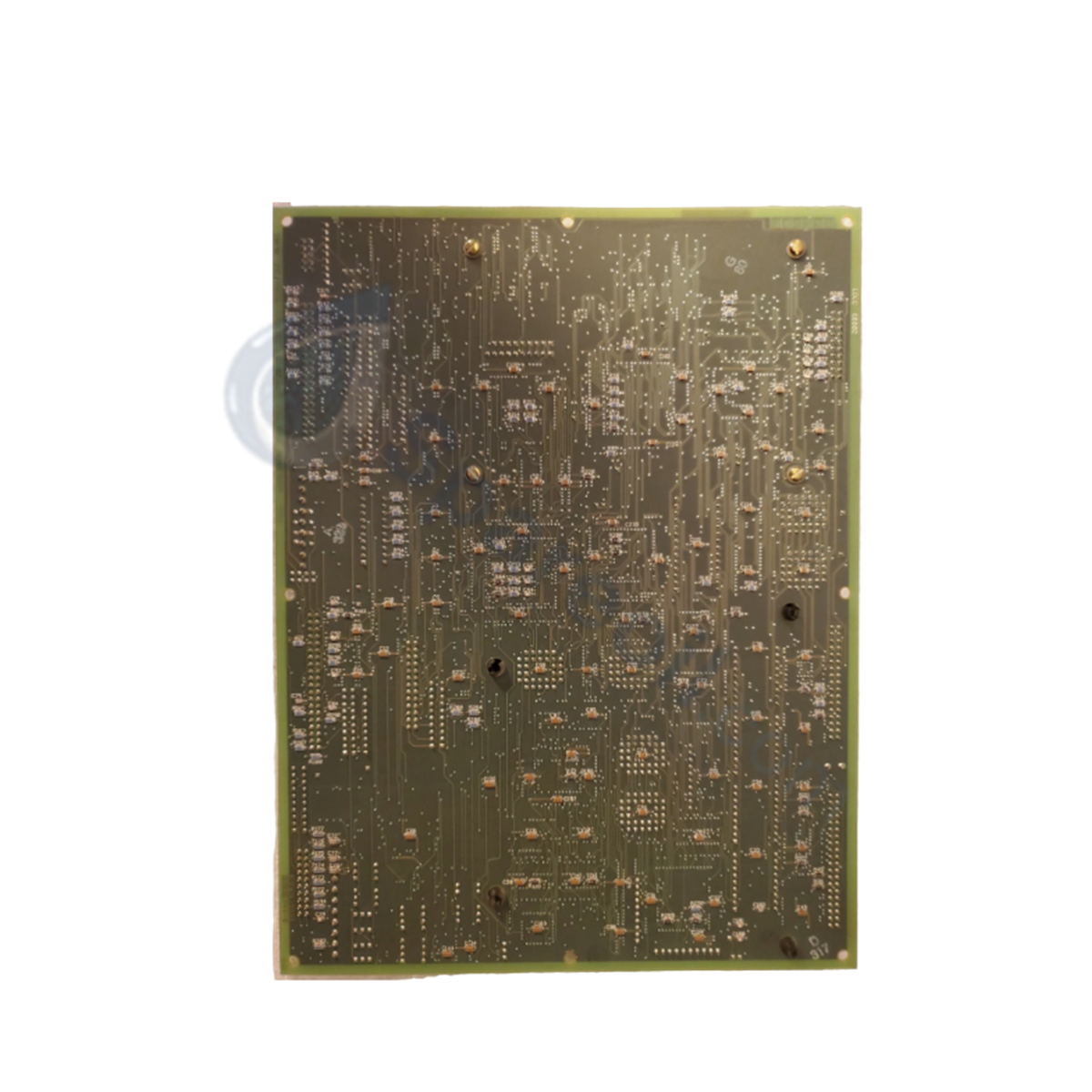

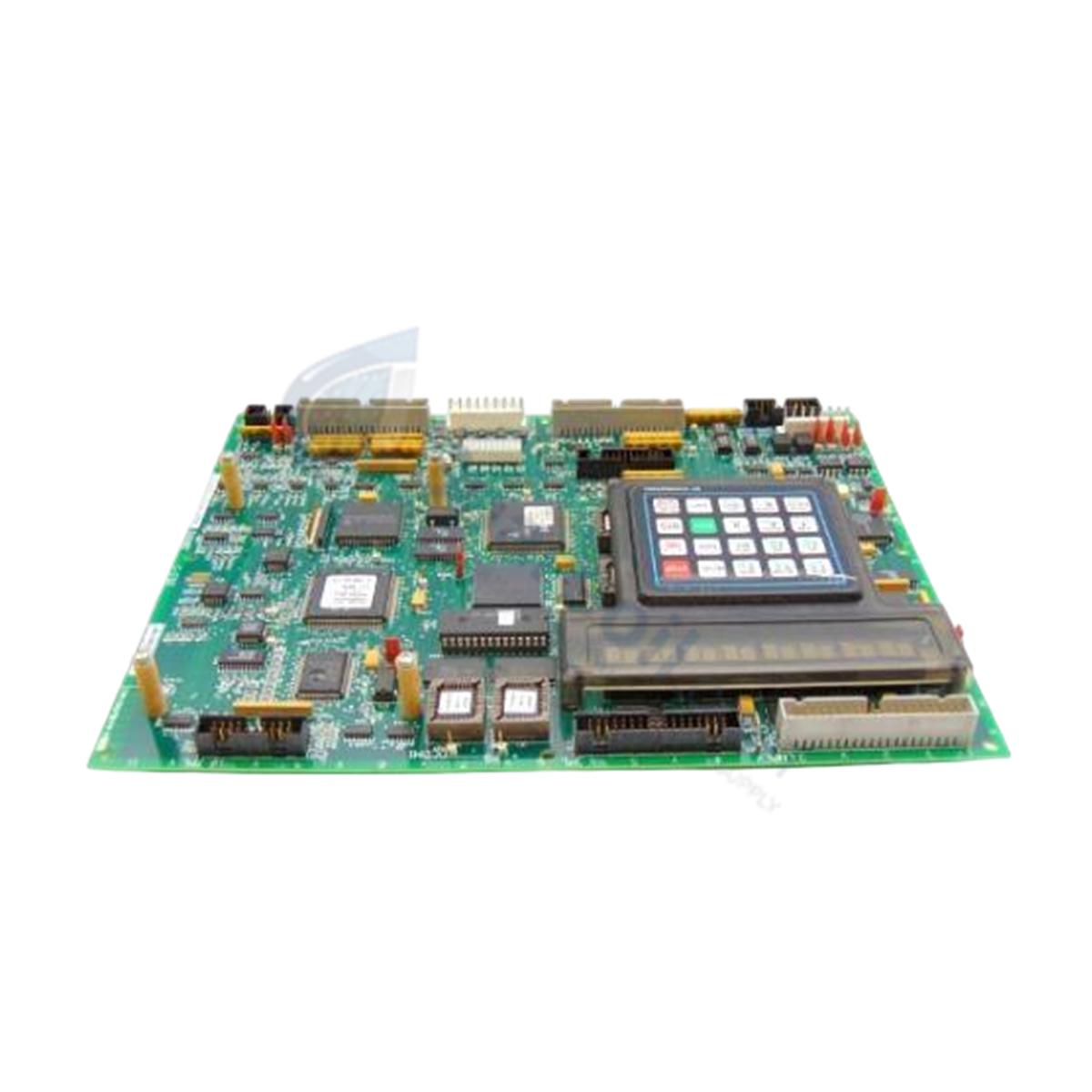

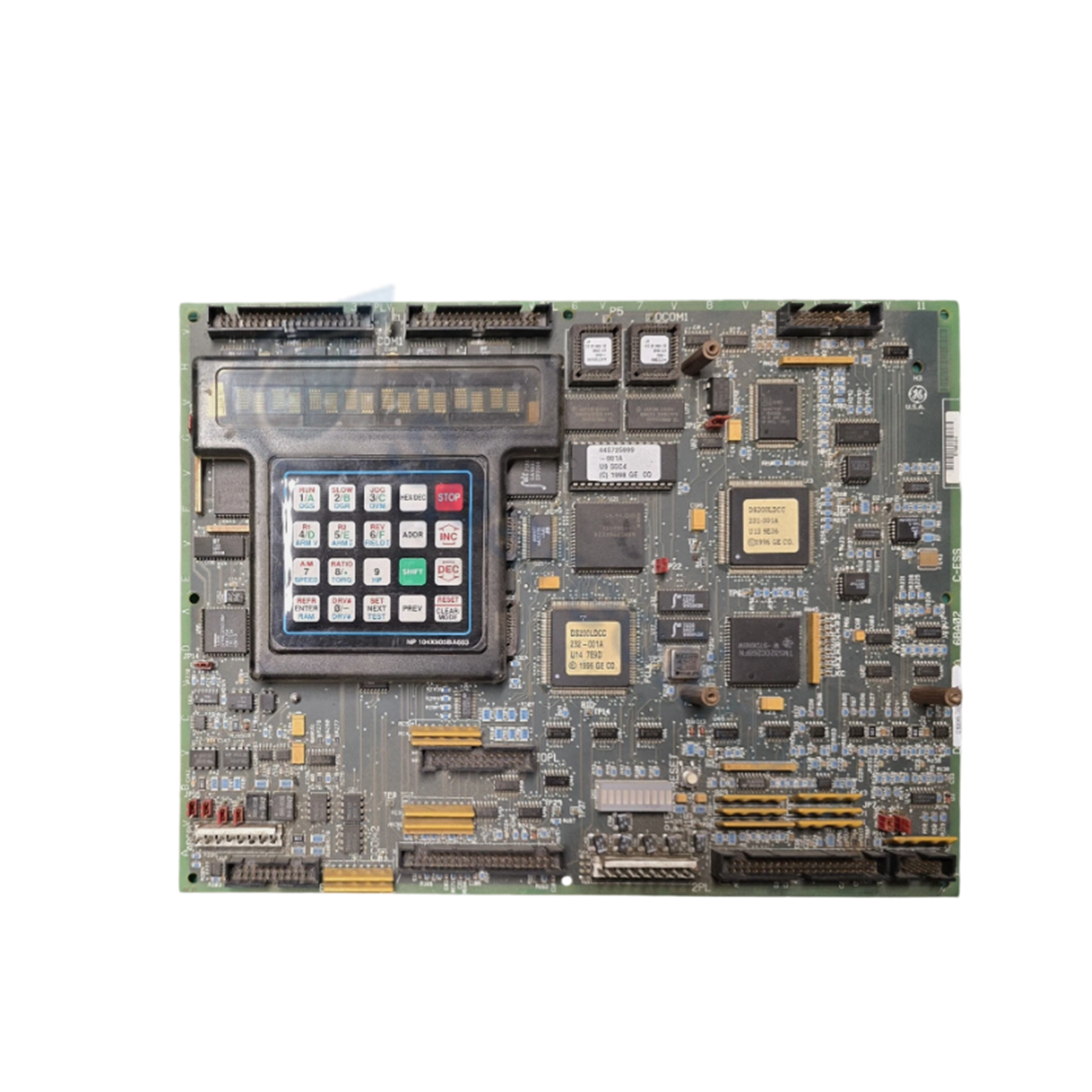

The GE DS200LDCCH1AMA, also cataloged as the LDCC Drive Control/LAN Communications Board, operates as a dedicated hardware component for multi-processor motor control and network signal processing within GE Speedtronic Mark V and DIRECTO-MATIC 2000 platforms.
Suffix Breakdown & Model Matrix
| Revision Component | Designator Code | Description |
|---|---|---|
| Base PCB Architecture | DS200 | Standard GE Mark V domestic baseline PCB layout |
| Functional Acronym | LDCC | Drive Control and LAN Communications Board |
| Group Variant | H1 | High-density Group 1 configuration |
| 1st Functional Revision | A | First functional circuit revision |
| 2nd Functional Revision | M | Secondary functional circuit revision |
| Artwork Revision | A | Base circuit trace layout and artwork revision |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200LDCCH1AMA |
| Brand | GE (General Electric) |
| Origin | USA |
| Weight | Less than 3 lbs (1.36 kg) |
| Dimensions | Standard Mark V full-height card size |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Bus-powered via internal rack assembly |
| Product Series | Speedtronic Mark V / DIRECTO-MATIC 2000 |
| Processor Architecture | 4 Microprocessors (DCP, LCP, MCP, CMP) |
| Configuration Hardware | Berg-type manually moveable jumpers, flash PROMs |
| Backwards Compatibility | Replaces 531X301DCC, 531X306LCC, DS200SDCC, DS200SLCC |
| Instruction Manual | GEI-100216 |
Multi-Processor Drive Architecture & Network Execution
The DS200LDCCH1AMA delegates I/O execution across four specialized onboard microprocessors. The Drive Control Processor (DCP) processes primary analog and digital I/O signals. System network signals are filtered via the LAN Control Processor (LCP). Drive actuation and digital algorithms are calculated by the Motor Control Processor (MCP), while the Co-Motor Processor (CMP) provides coprocessing capacity for high-density calculations. This multi-core setup maintains real-time backplane bus communication velocity and firmware flash compatibility via socketed PROMs while executing deterministic control logic.
Frequently Asked Questions
Q: Which older GE drive control board part numbers can be replaced by the DS200LDCCH1AMA?
A: The board functions as a direct replacement for legacy models 531X301DCC, 531X306LCC, DS200SDCC, and DS200SLCC.
Q: How are processing duties divided among the four onboard microprocessors?
A: The DCP handles incoming I/O signals, the LCP manages LAN traffic filtering, the MCP processes motor control logic, and the CMP supplies auxiliary processing power for heavy computational loads.
Q: How are operational parameters configured on the card?
A: Hardware configuration is set using manually moveable Berg-type jumpers and field-programmable onboard flash PROMs connected to a host PC interface.
Field Installation Guidelines
- Power down the drive cabinet completely and confirm that all DC bus capacitors are discharged prior to insertion.
- Put on a wrist strap connected to a verified enclosure earth ground to avoid ESD damage during board handling.
- Configure all Berg-type moveable jumpers on the replacement DS200LDCCH1AMA to match the hardware settings of the original card.
- Insert the card into its designated rack slot along the guide rails until edge connectors engage securely with the backplane.
- Secure all interface cables to their corresponding pin headers, ensuring harness shield wires are connected to chassis ground to prevent signal noise.
