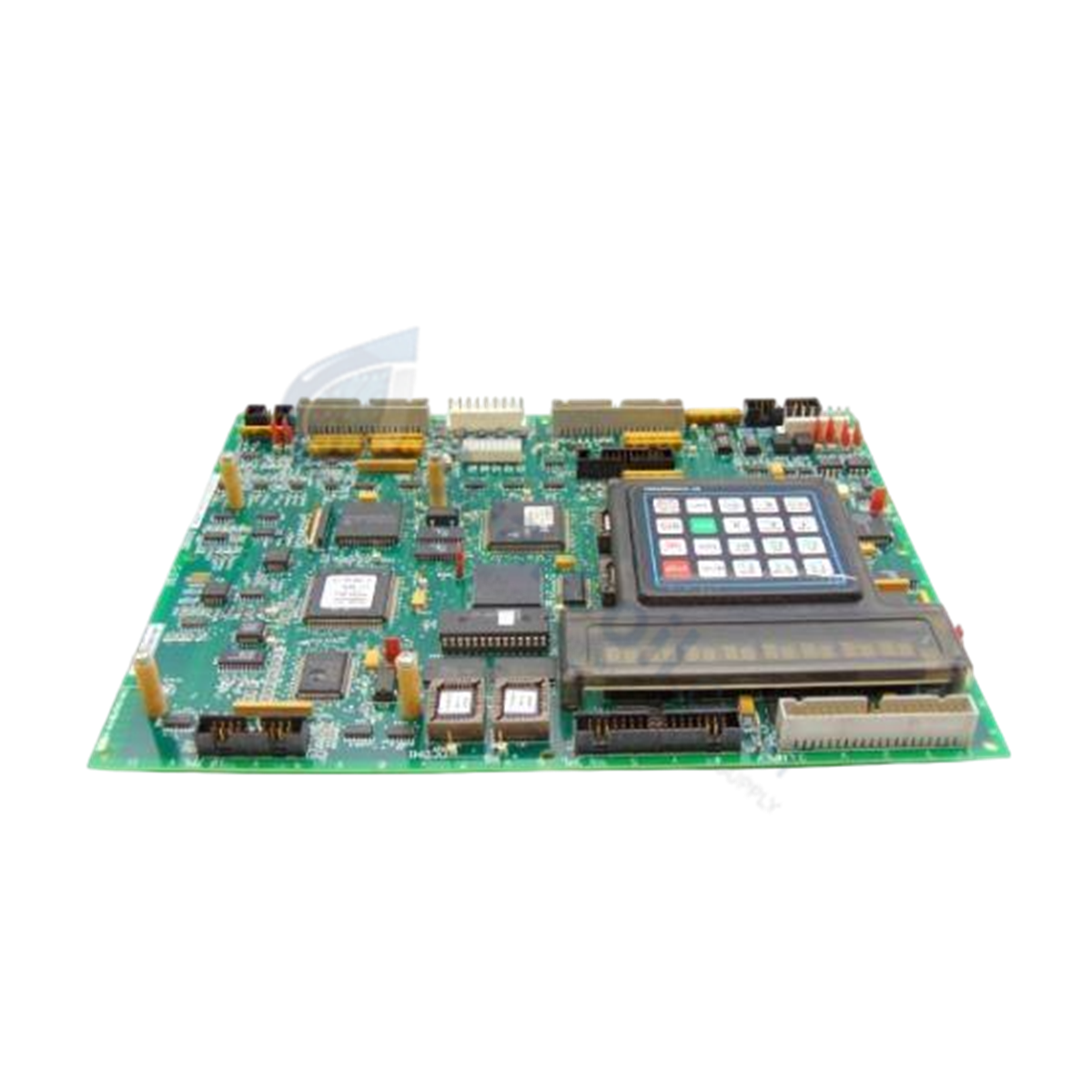

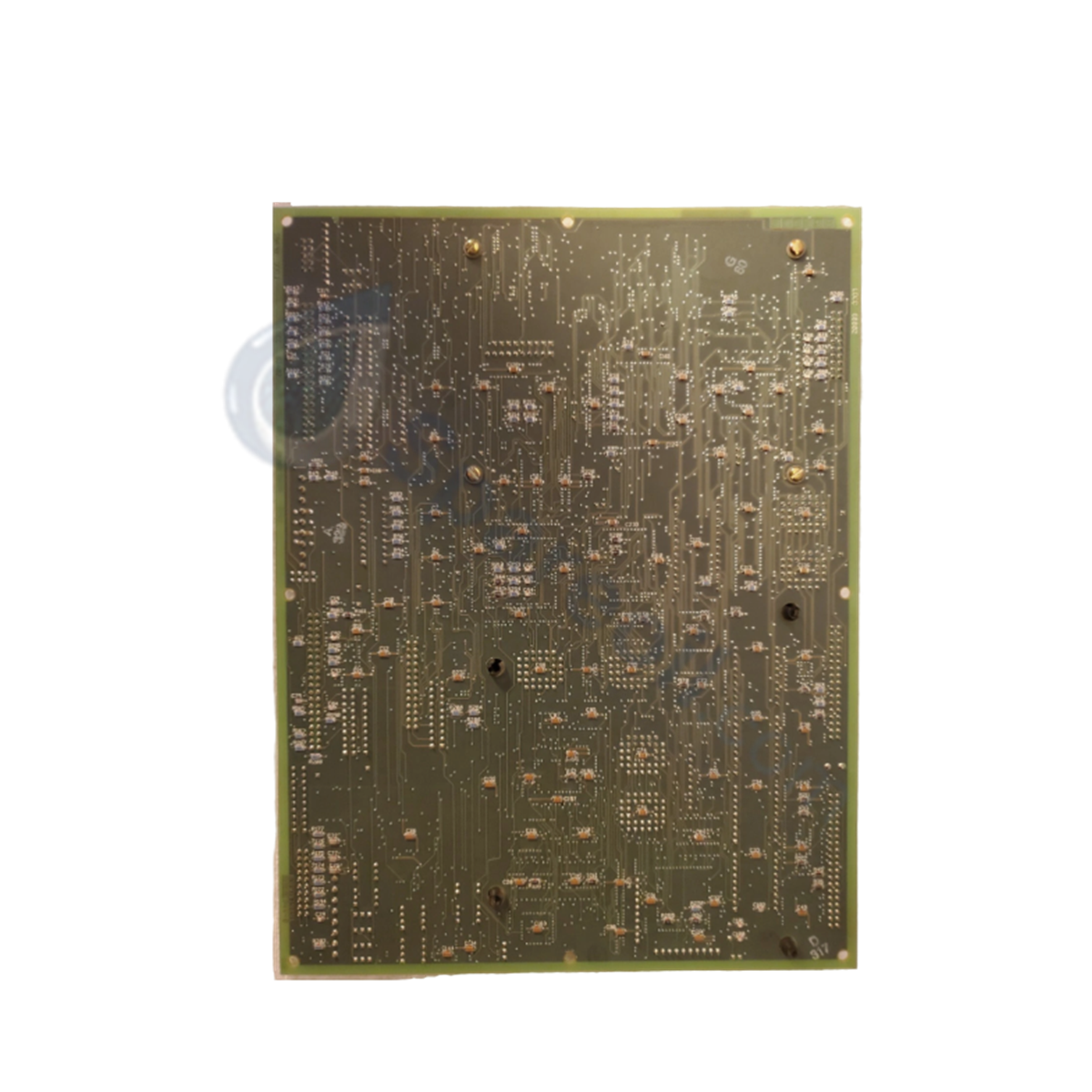

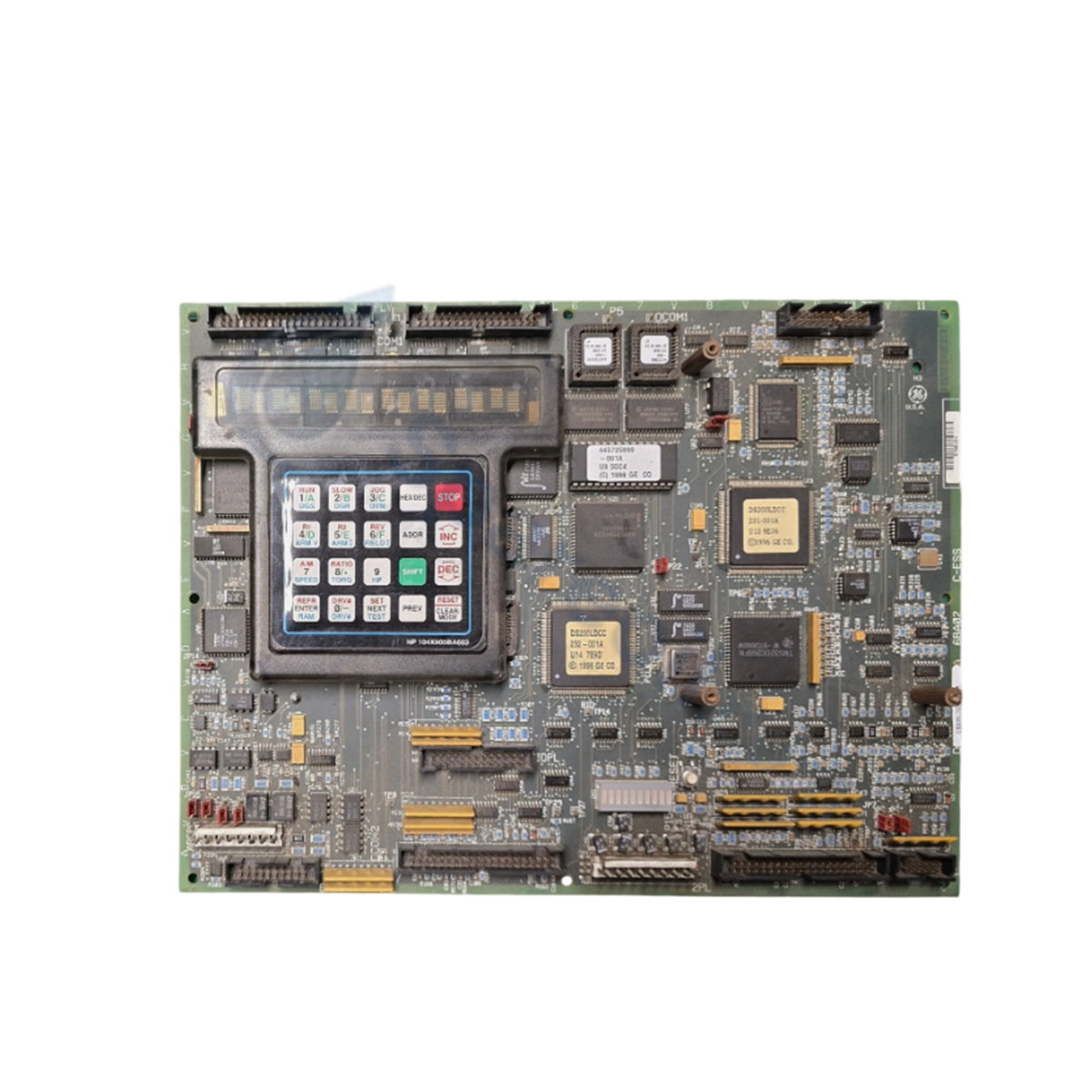

The GE Fanuc DS200LDCCH1AJA, also cataloged as the DS200LDCCH1A Drive Control/LAN Communications Board, operates as a dedicated hardware component for drive motor processing and network communication within Mark V and EX2000 platforms.

Hardware Specifications

Parameter Specification
Model DS200LDCCH1AJA
Brand GE Fanuc
Origin USA
Weight 1.0 lb
Dimensions Standard Mark V Board Form Factor
Operating Temp 0 to 60 deg C
Power Consumption Power Supplied via Backplane Connection
Platform Compatibility Mark V Series, EX2000, DIRECTO-MATIC 2000
Core Functions Operator Interface, LAN Communications, Motor Processing, Drive Reset

Backplane Bus Communication & Firmware Compatibility

The GE Fanuc DS200LDCCH1AJA coordinates system-wide communication and drive execution over local area network channels. High backplane bus communication velocity allows deterministic real-time transfer of drive status, speed feedback, and control parameters between the main processing core and peripheral cards. Onboard logic provides full firmware flash compatibility, enabling synchronized execution of user-configured drive control programs across DIRECTO-MATIC 2000 and EX2000 drive architectures.

Frequently Asked Questions

Q: What key functions are integrated on the DS200LDCCH1AJA circuit board?

A: The module executes drive and motor processing algorithms, handles local area network (LAN) communication, supports operator interface functionality, and manages local drive reset actions.

Q: How does the DS200LDCCH1AJA interface with the drive system backplane?

A: Electrical connections and internal bus data transfers occur directly through rear edge pin connectors when inserted into the standard rack assembly.

Q: Is the DS200LDCCH1AJA compatible with DIRECTO-MATIC 2000 drive setups?

A: Yes, the board is engineered specifically for use across Mark V, EX2000, and DIRECTO-MATIC 2000 series drive/exciter platforms.

Field Installation Guidelines

  1. Power Isolation: Shut down all AC line supply feeds and auxiliary control power to the drive rack before installing or servicing the board.
  2. ESD Protection: Wear a grounded anti-static wrist strap connected to an unpainted metal surface on the cabinet frame to prevent static damage to surface-mount components.
  3. Card Installation: Align the board edges with the enclosure slot guides, slide the card in smoothly, and press firmly to seat the backplane multi-pin connectors.
  4. Cable Connections: Connect all local area network communication cables, ribbon cables, and auxiliary control lines according to cabinet wiring schematics.
