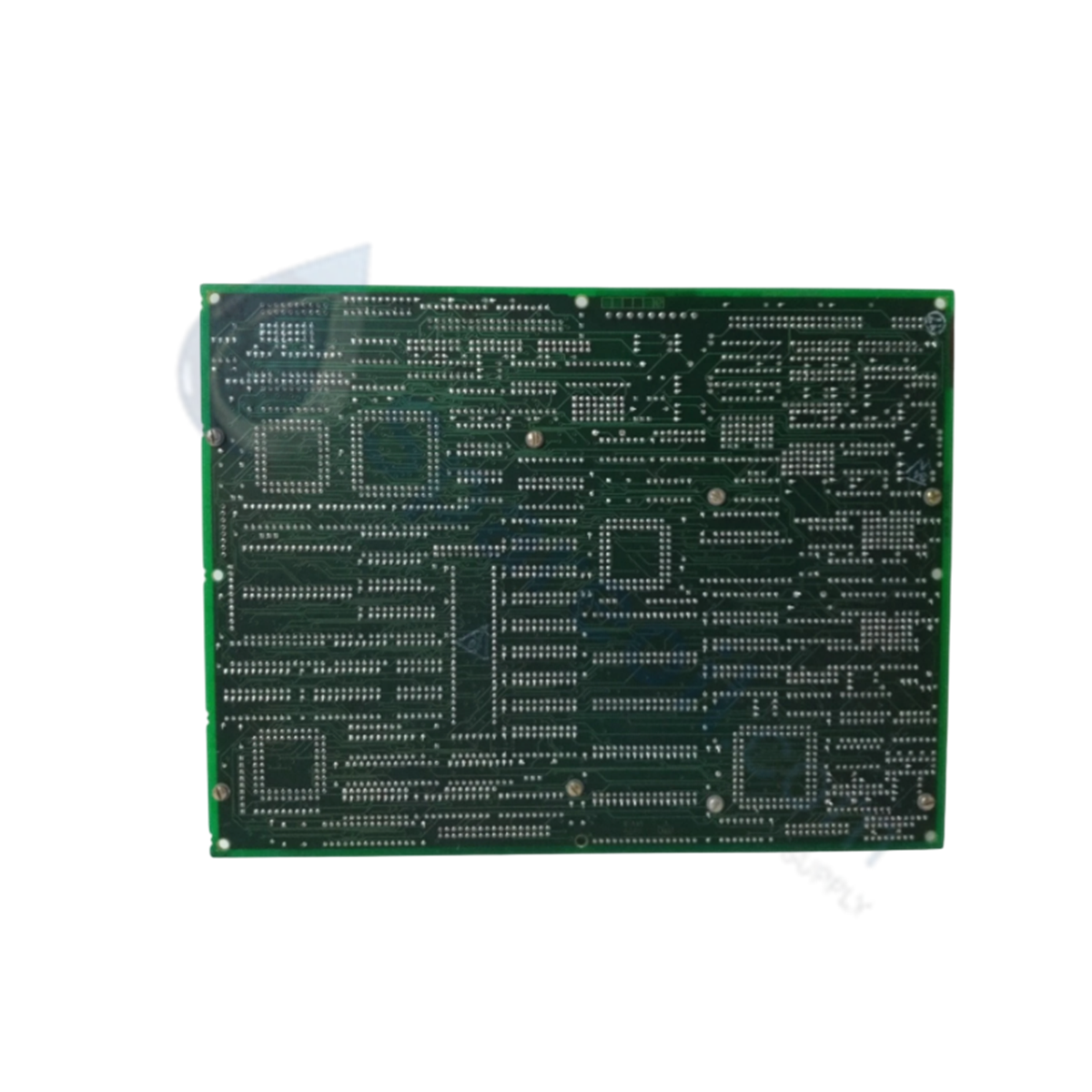

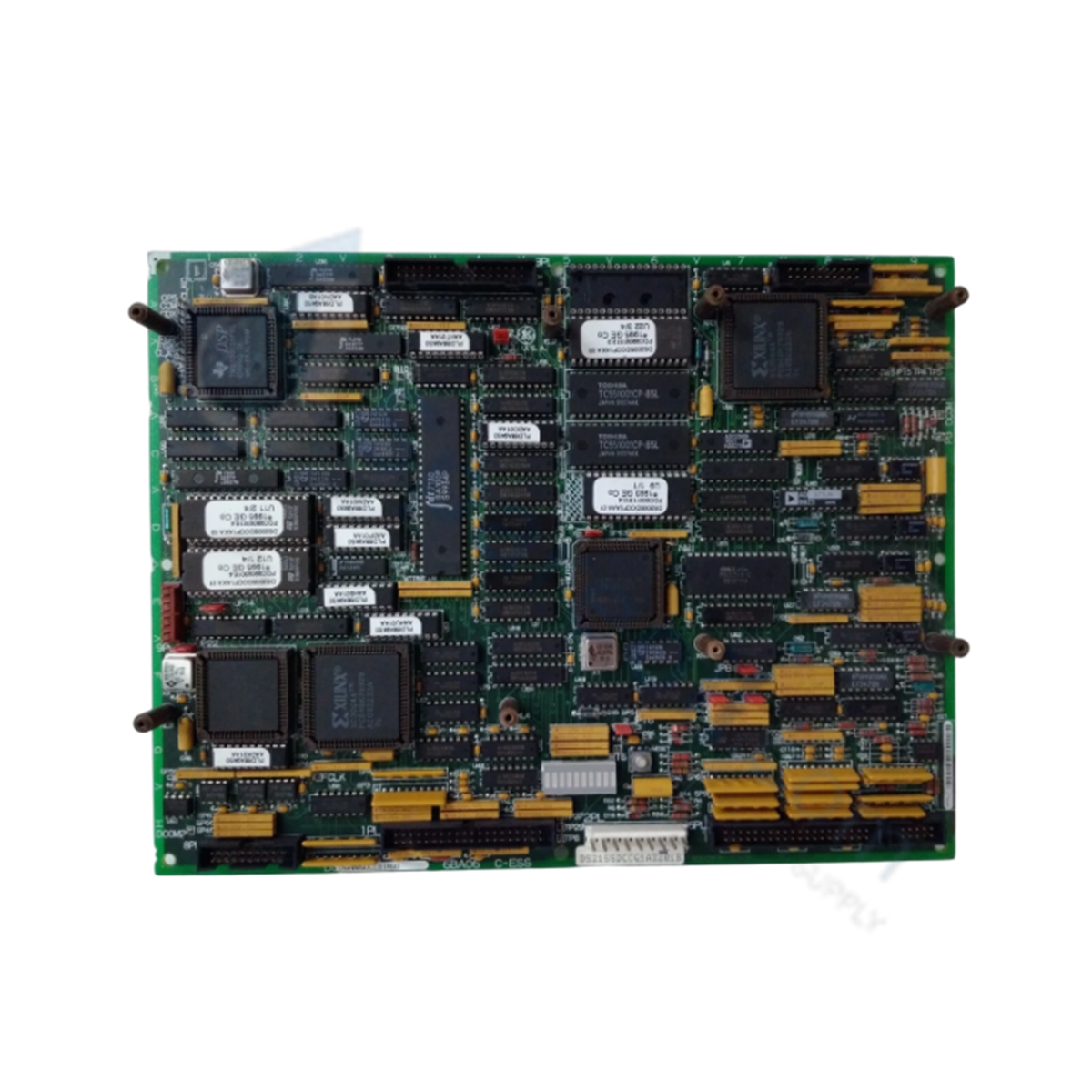

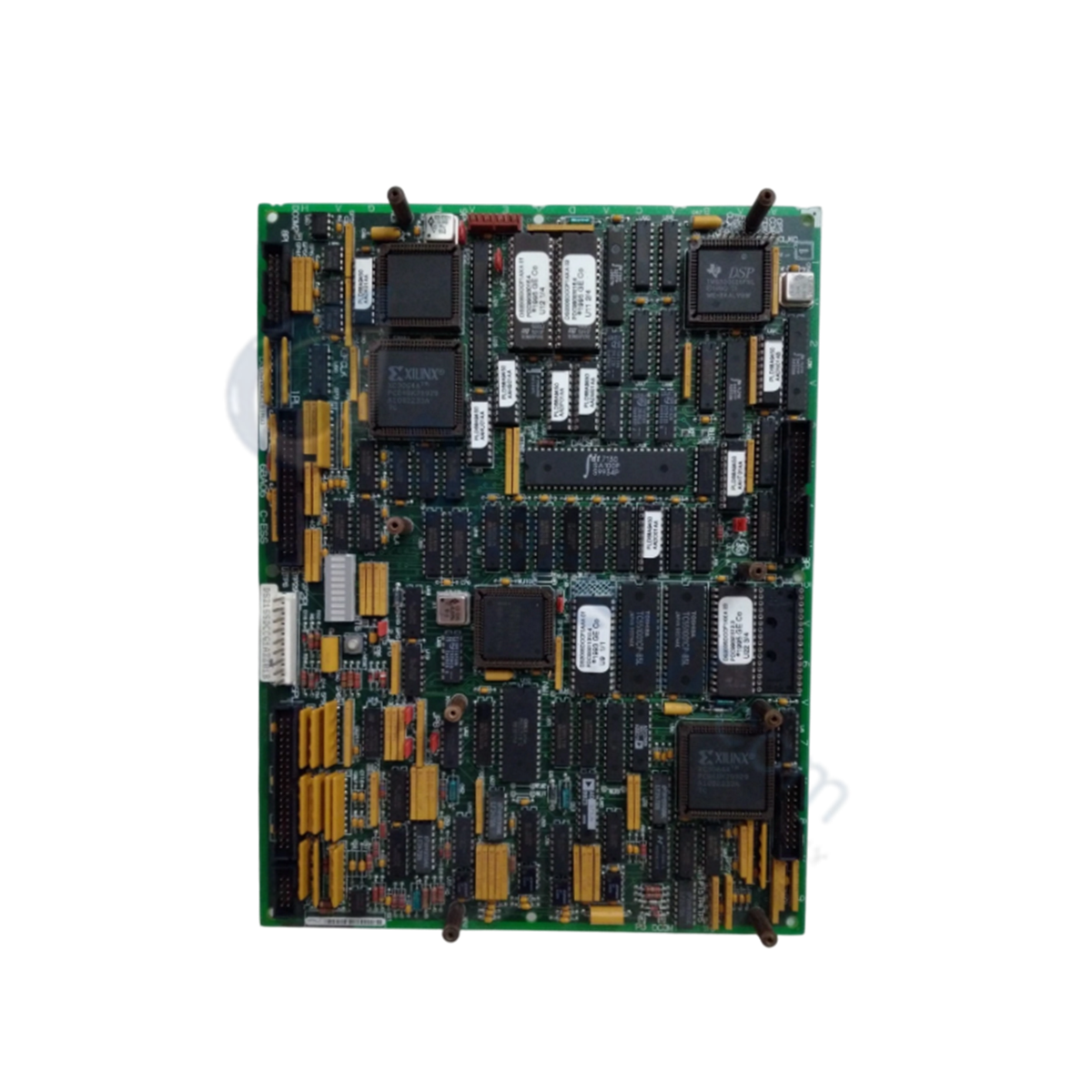

Configured for primary drive processing and signal execution in Mark V Speedtronic systems, the GE Fanuc DS200SDCCG1AEC (DS200SDCC Drive Control Card) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model DS200SDCCG1AEC
Brand GE Fanuc
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Power Supplied via Cabinet Backplane
Microprocessors 3 Onboard Microprocessors (Dual-Port RAM Access)
Visual Diagnostics 10 Linear LEDs (Sequential Flash, Slow Flash 1-399, Fast Flash 400-1023)
Interface Ports RS-232 Serial Port (Diagnostic Logging / Laptop Interface)
Hardware Test Points Onboard Metal Post Signal Test Points
Compatible Auxiliary Boards SLCC, LCC, SPC, PSCB

Backplane Bus Communication & Firmware Compatibility

The GE Fanuc DS200SDCCG1AEC coordinates drive processing via high-velocity backplane bus communication, utilizing three microprocessors sharing dual-port RAM for concurrent task processing. Onboard serial interfaces allow direct connection for laptop diagnostic logging, while firmware flash compatibility ensures synchronized parameter updates across attached auxiliary modules (SLCC, LCC, SPC, PSCB) without compromising deterministic loop timing.

Frequently Asked Questions

Q: How do the ten front-panel status LEDs indicate system error severity?

A: Sequential flashing across the row indicates normal operation. A slow flashing sequence indicates error codes from 1 to 399, while a fast flashing sequence indicates error codes from 400 to 1023.

Q: How is diagnostic data extracted from the DS200SDCCG1AEC card?

A: Diagnostic data and fault logs are downloaded from the onboard serial interface connection directly to a field technician's laptop running GE diagnostic software.

Q: What auxiliary cards can be mounted or interfaced directly with the DS200SDCCG1AEC?

A: The board interfaces directly with SLCC, LCC, SPC, and PSCB auxiliary functional boards to extend local drive processing capabilities.

Field Installation Guidelines

  1. Power Isolation: De-energize primary and auxiliary power supplies to the drive cabinet prior to inserting or removing the drive control card.
  2. Static Protection: Wear a grounded wrist strap attached to an unpainted metal surface on the drive enclosure to protect onboard microprocessors from electrostatic discharge.
  3. Card Alignment: Carefully align the PCB card edges with the card guide rails inside the drive frame and push firmly until the rear edge connectors seat fully into the backplane.
  4. Wiring & Shielding: Connect all required auxiliary board ribbon cables, ground leads, and the RS-232 serial diagnostic cable following cabinet wiring schematics.
