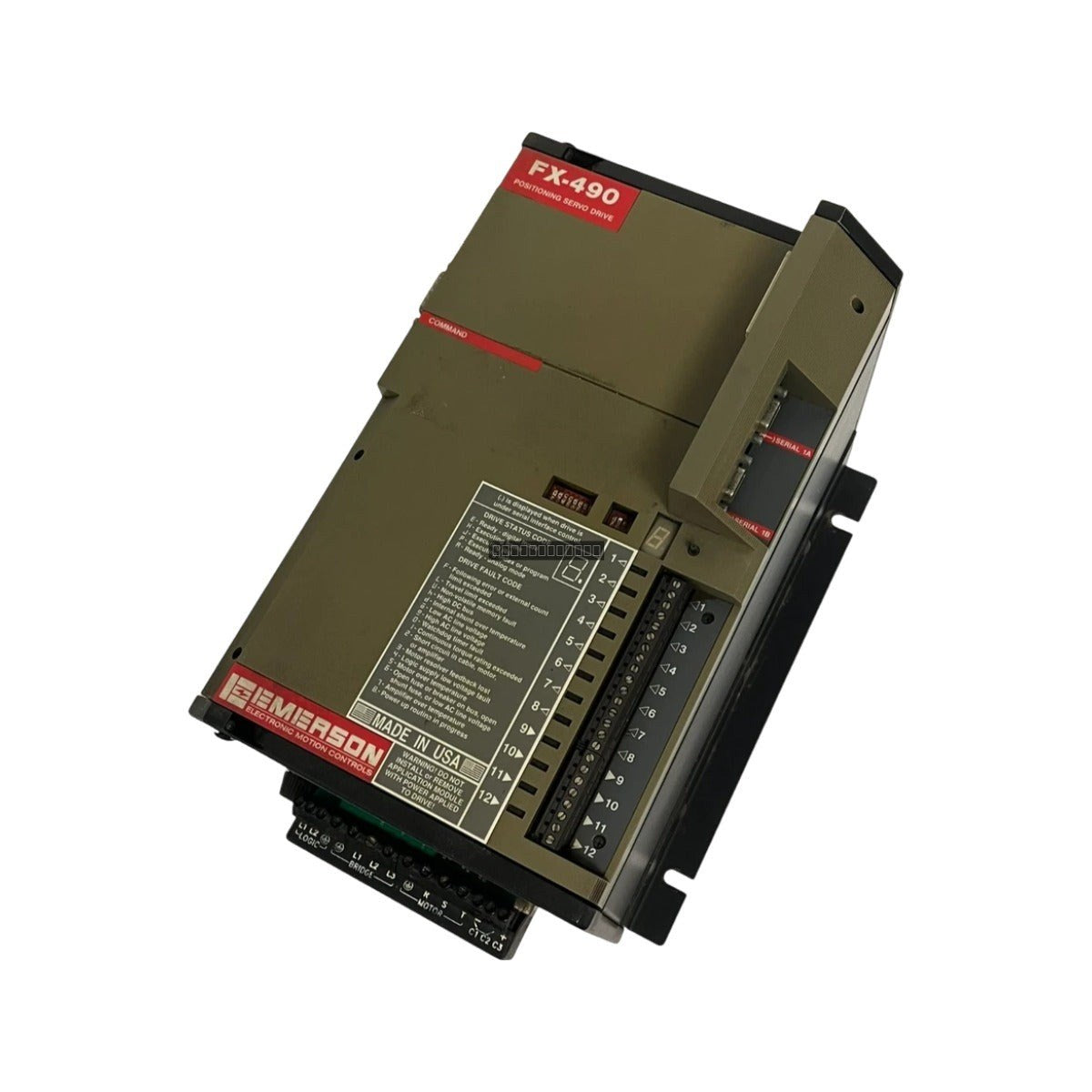

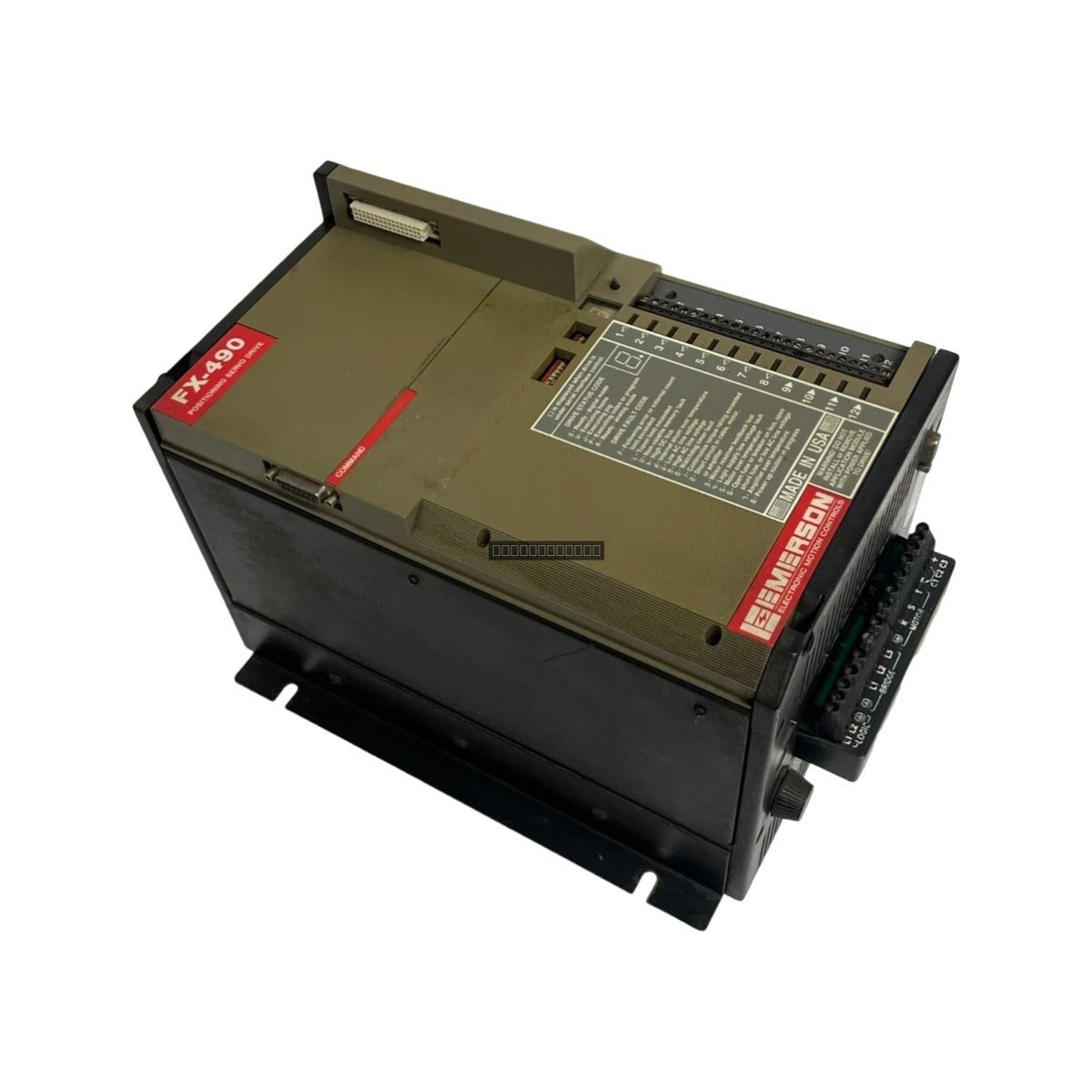

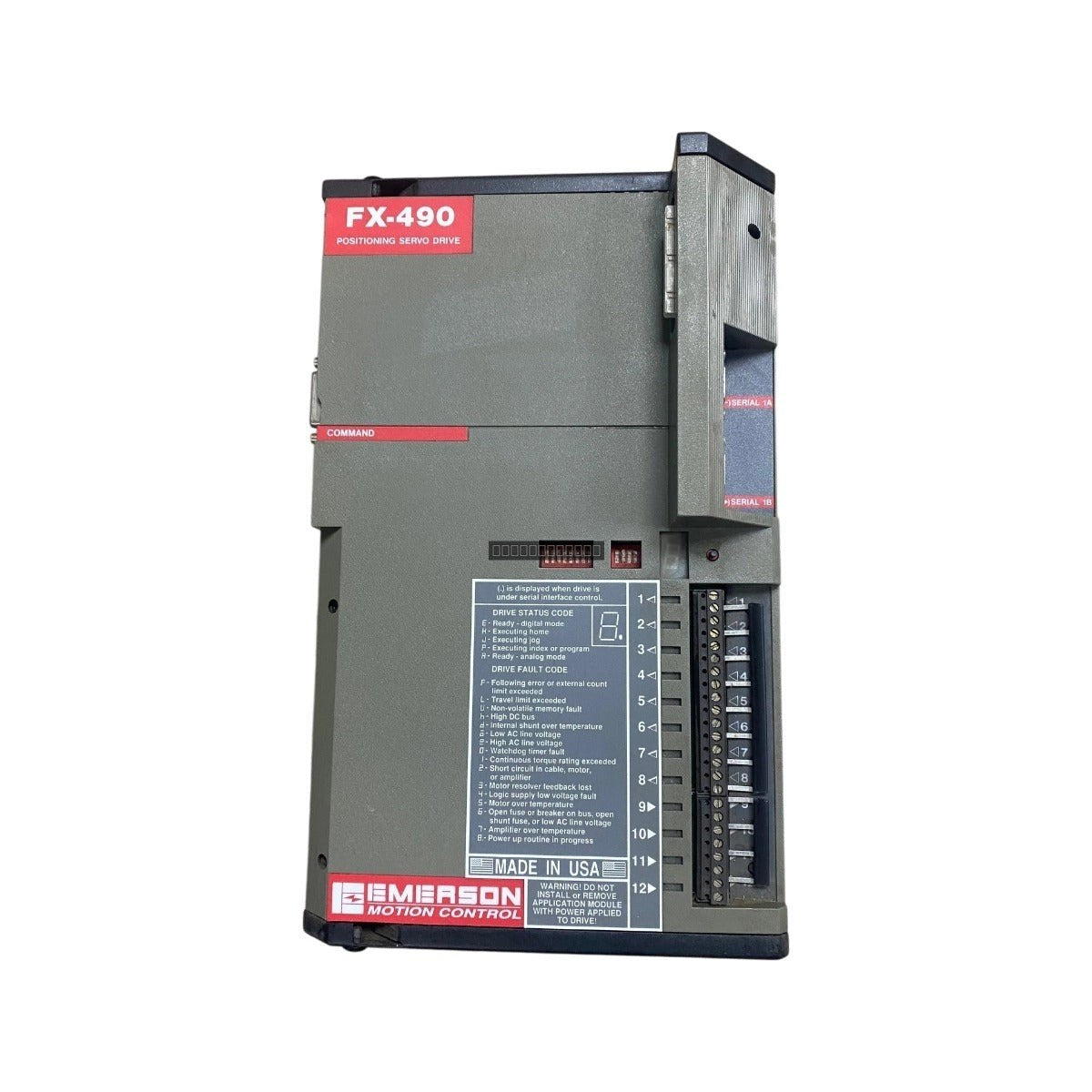

Emerson Control Techniques FX-490 Digital Servo Drive

Emerson Control Techniques FX-490 Digital Servo Drive

Availability: 10 left in stock

DescriptionThe Emerson Control Techniques FX-490 is a high-performance digital servo drive designed for precision motion control applications. Engineered for reliability...

SKU: FX-490

Manufacturer: Emerson
Product No.: FX-490
Product Type: Servo Drive
Product Origin: USA
Payment:T/T, Western Union
Weight: 2100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Emerson Control Techniques FX-490 is a high-performance digital servo drive designed for precision motion control applications. Engineered for reliability and dynamic response, this drive is optimized for controlling brushless AC synchronous motors. It employs advanced sinusoidal PWM algorithms to deliver smooth torque and precise velocity control, making it a standard choice for demanding industrial automation tasks such as high-speed packaging, textile machinery, and multi-axis synchronization.

Features

High Dynamic Response: Advanced PWM control ensures rapid acceleration and precise positioning.
Integrated Feedback: Native support for resolver inputs for reliable closed-loop position and velocity feedback.
Energy Management: Built-in regeneration circuitry manages back-EMF during deceleration, protecting the DC bus and improving energy efficiency.
System Protection: Includes comprehensive thermal monitoring and internal fault diagnostics to prevent system damage and minimize downtime.
Flexible Integration: Designed for seamless connectivity within PLC-based control architectures via dedicated I/O and expansion options.

Applications

The FX-490 is widely utilized in industrial sectors requiring high-speed, high-precision motion, including:

Automated manufacturing and assembly lines.
Textile machinery requiring millisecond-level synchronization.
High-speed packaging and labeling equipment.
Material handling and robotic positioning systems.

Technical Specifications

Brand	Emerson / Control Techniques
Model	FX-490
Input Voltage	230 VAC (Single or Three Phase)
Continuous Output Current	9.0 A
Peak Output Current	18.0 A
Feedback Type	Resolver
Control Method	Sinusoidal PWM
Operating Temperature	0 to 50 deg C
Storage Temperature	-40 to 70 deg C
Relative Humidity	5 to 95 percent (non-condensing)

Installation Guidelines

Environment: Ensure the drive is installed in a clean, dry, and well-ventilated enclosure to maintain operating temperatures within the specified 0 to 50 deg C range.
Grounding: Proper grounding of the drive chassis and motor cable shielding is essential to minimize EMI and ensure signal integrity.
Wiring: Use shielded cables for resolver feedback and motor power connections. Keep power and signal cables separated to prevent crosstalk.
Safety: Always disconnect all power sources and wait for the DC bus capacitors to discharge before performing any maintenance, wiring, or module removal.
Handling: This unit contains sensitive electronic components. Use standard ESD precautions during installation and handling.

FAQ

What type of motor is the FX-490 designed to drive?

The FX-490 is specifically engineered for brushless AC synchronous motors, utilizing resolver feedback for closed-loop control.

Does the drive support regeneration?

Yes, the unit features built-in regeneration circuitry to manage back-EMF generated during motor deceleration, which helps protect internal DC bus components.

Can this drive be used in a 24/7 production environment?

Yes, the FX-490 is designed for continuous industrial operation, featuring integrated thermal protection and diagnostic routines to ensure maximum uptime.
