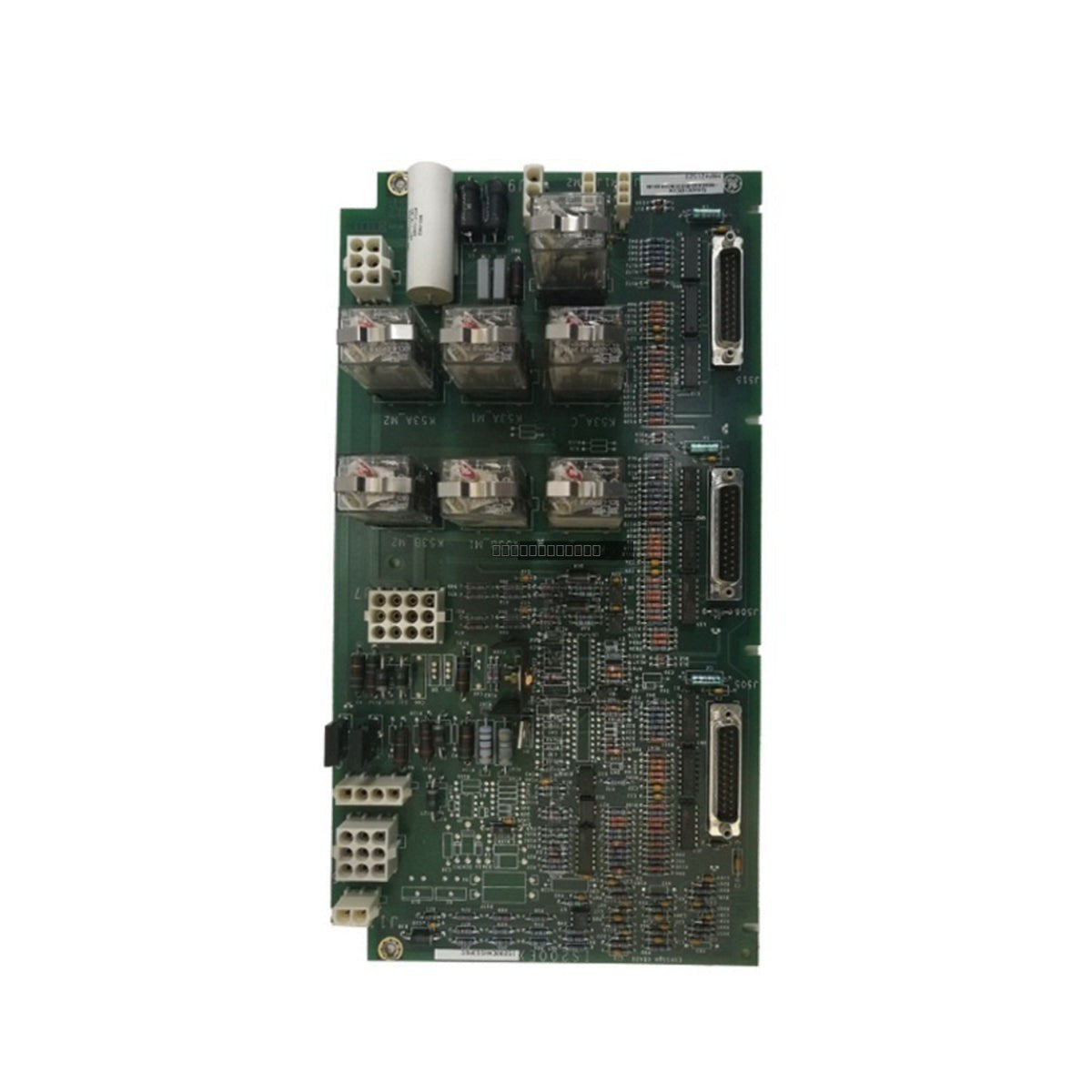

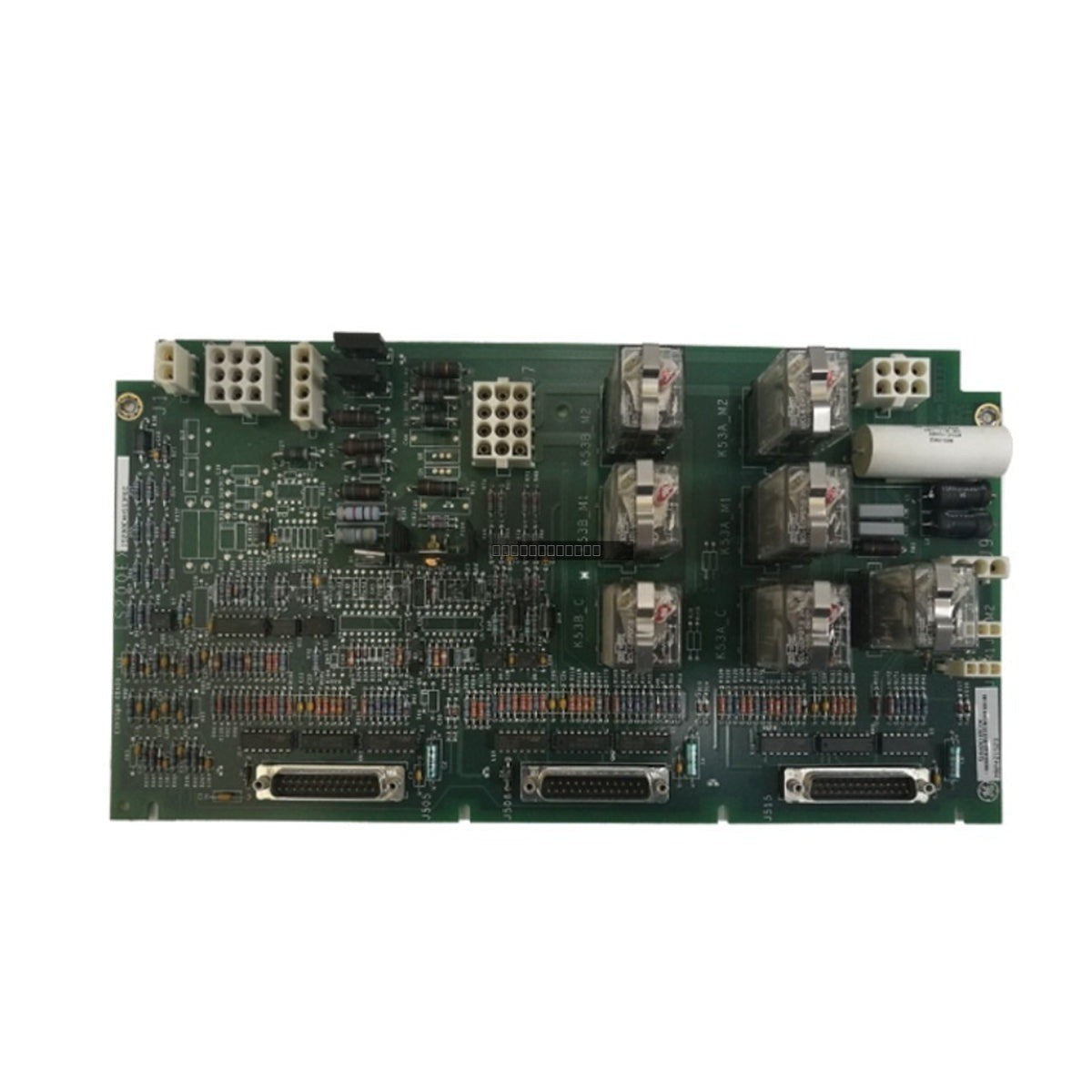

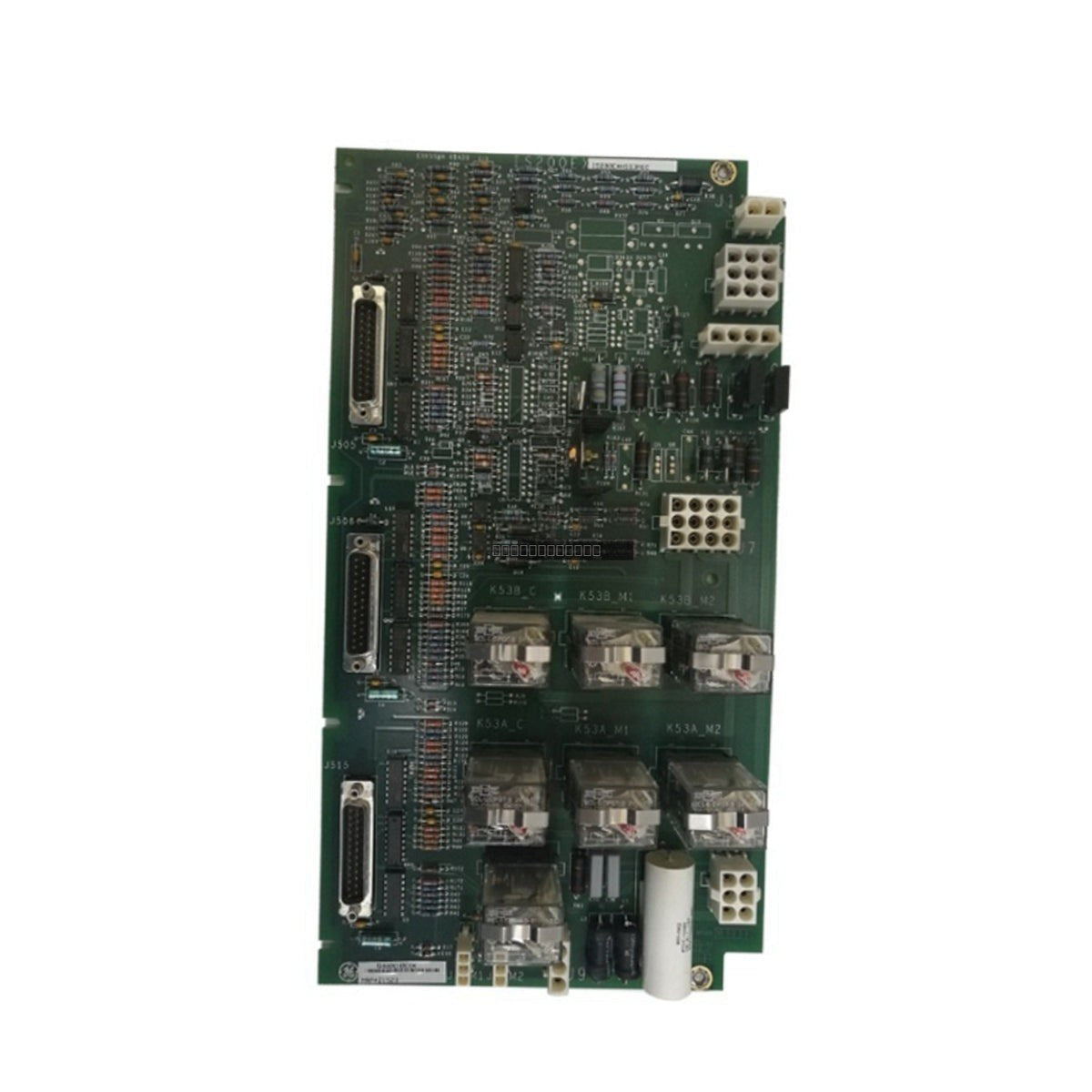

GE Fanuc IS200EXHSG3A Exciter High-Speed Relay Driver Board

Availability: 6 left in stock

DescriptionThe GE Fanuc IS200EXHSG3A is a dedicated High-Speed Relay Driver Board designed specifically for the EX2100 Excitation Control System. This...

SKU: IS200EXHSG3A

Manufacturer: GE FANUC
Product No.: IS200EXHSG3A
Product Type: Exciter High-Speed Relay Driver Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The GE Fanuc IS200EXHSG3A is a dedicated High-Speed Relay Driver Board designed specifically for the EX2100 Excitation Control System. This module serves as a critical component in power generation and large-scale industrial excitation applications, where it manages the operation of essential pilot relays. It is engineered to control field flashing relays 53A and 53B, as well as the KDEP de-excitation relay, ensuring rapid response times during protective sequences to safeguard plant machinery.

Features

Facilitates high-speed switching for critical excitation relays.
Supports both simplex and redundant system configurations via the Exciter Backplane (EBKP).
Processes safety feedback loops from EDEX and EXDE boards for system-wide protection.
Monitors three distinct contact inputs (41, 53A, 53B) at 70 VDC.
Optimized for integration within the EX2100 control architecture to prevent downtime.

Installation Guidelines

Ensure the control system is powered down before inserting or removing the IS200EXHSG3A module from the rack.
Handle the board using electrostatic discharge (ESD) protective measures to avoid component damage.
Verify that the backplane connections are secure to maintain proper communication with the EMIO assemblies.
Ensure the operating environment remains within the 0 to 60 deg C temperature range to maintain component longevity.
Check all wiring for the 70 VDC contact inputs to ensure proper polarity and signal integrity.

Technical Specifications

Brand	GE Fanuc
Model	IS200EXHSG3A
Series	EX2100
Input Channels	3 (41, 53A, 53B)
Contact Voltage	70 VDC
Power Consumption	15 W
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Relative Humidity	5 to 95% (non-condensing)

FAQ

Does the IS200EXHSG3A support redundant configurations?

Yes, this board is designed for both simplex and redundant setups. In a redundant configuration, it connects to three EMIO assemblies via the EBKP to provide fault-tolerant operation.

What is the primary function of this board?

The board acts as a high-speed relay driver for the EX2100 system, managing the KDEP de-excitation relay and field flashing relays 53A and 53B to provide rapid protective action during fault conditions.
