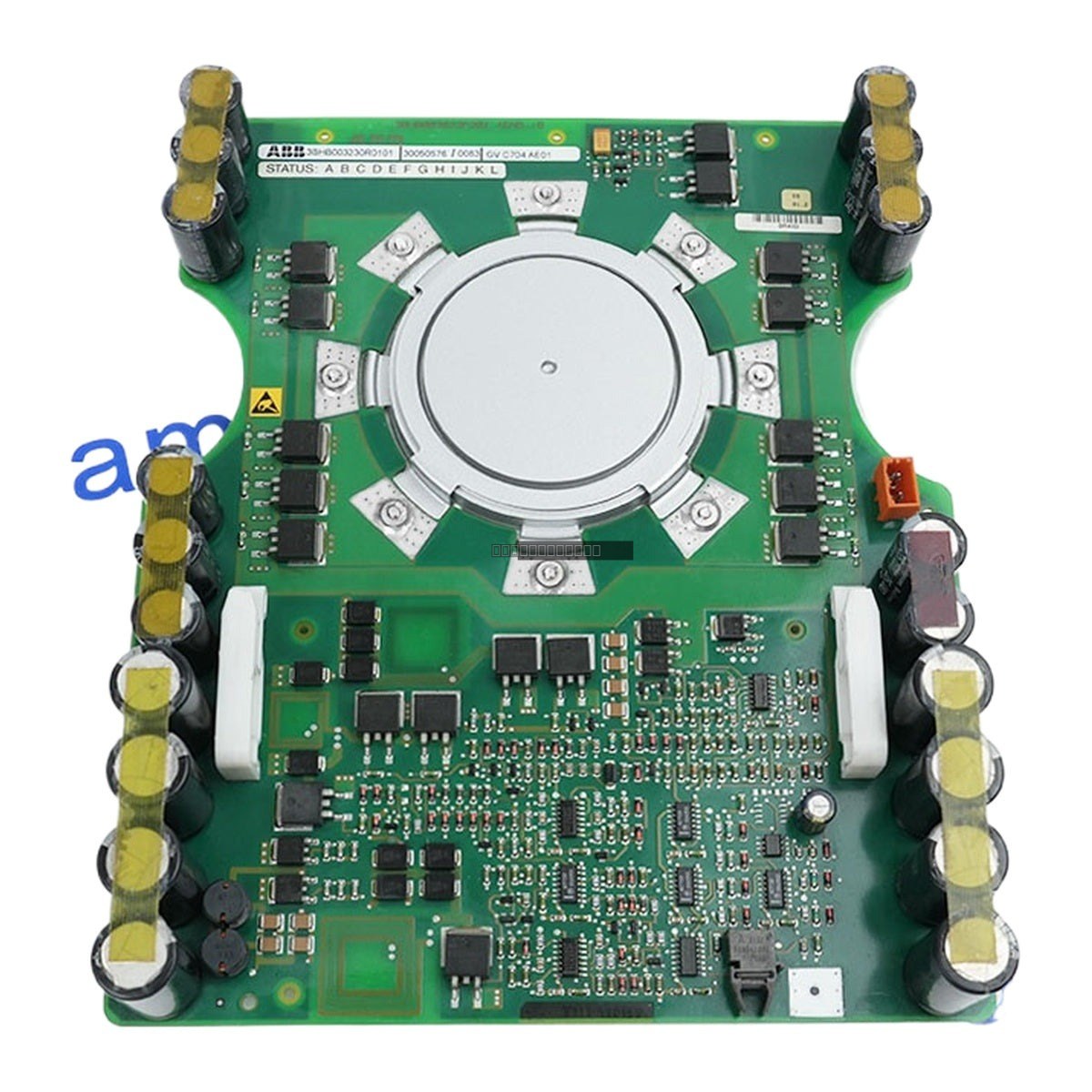

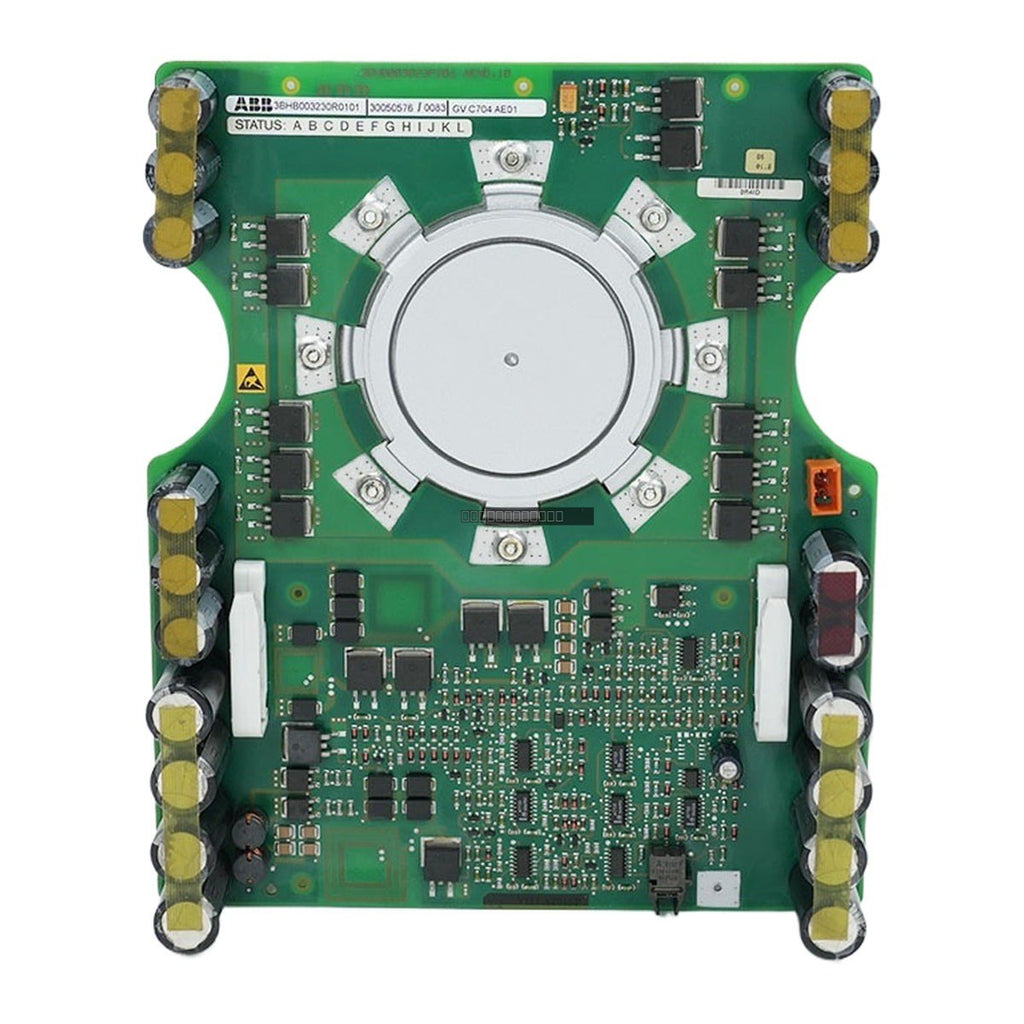

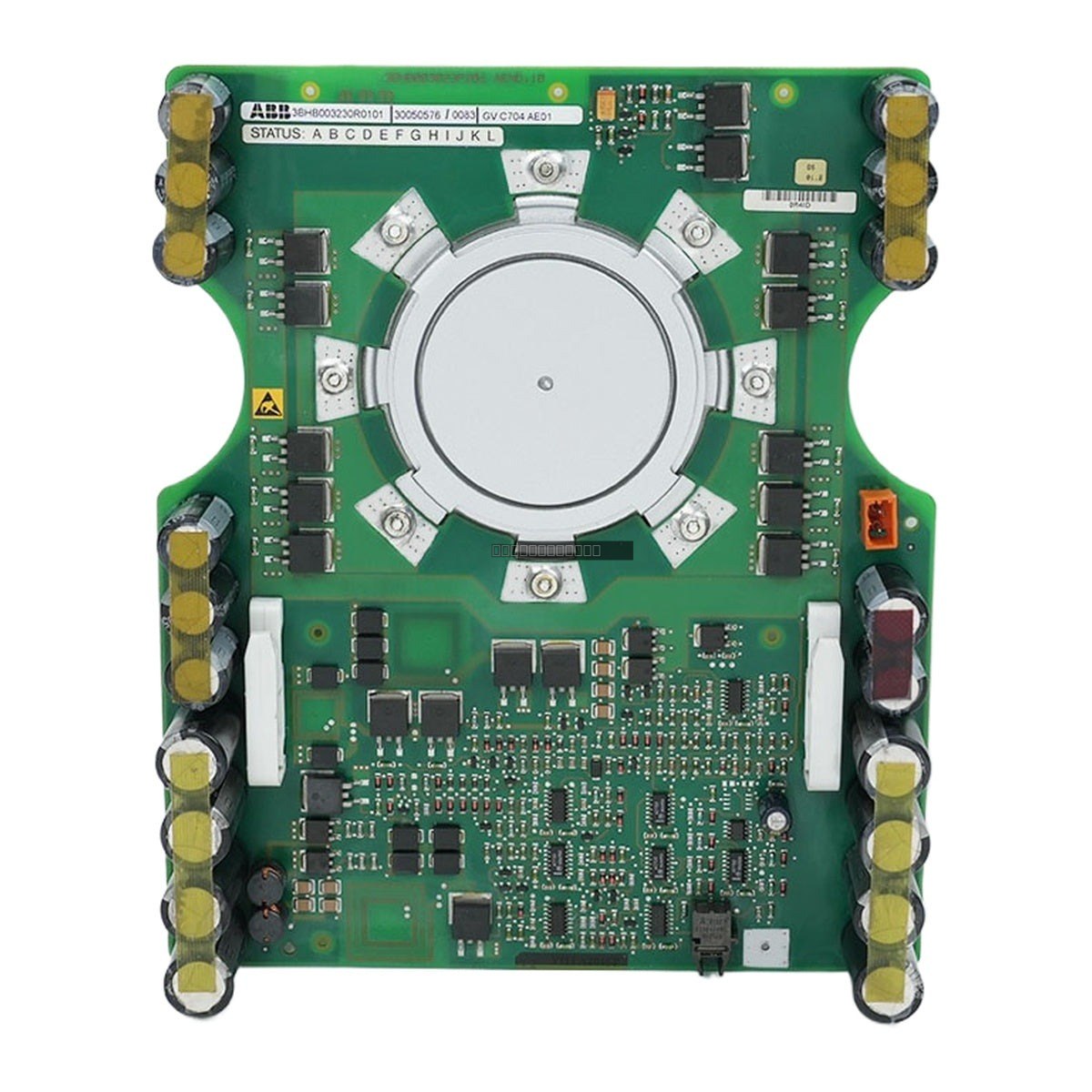

The ABB 3BHB003230R0101 (GVC704 AE01) is a specialized Gate Unit and Power Drive Board designed for the control of Integrated Gate-Commutated Thyristor (IGCT) modules. It serves as a critical interface within ABB's medium-voltage drive systems, such as the ACS1000 and ACS6000 series, by converting low-power control signals into the high-energy pulses required for reliable semiconductor switching.
Features
- Designed for high-performance IGCT control in medium-voltage applications.
- Functions as a power drive board to manage switching commands and power supply to IGCT modules.
- Compatible with 3BHL000392P0101 (5SHX 1060H0001) IGCT modules.
- Robust construction suitable for demanding industrial environments.
Applications
- Mining & Minerals: Used for large conveyors, crushers, grinding mills, and mine hoists.
- Oil & Gas: Controls compressors, pumps, and extruders.
- Marine: Supports propulsion systems, thrusters, and large onboard pumping equipment.
- Metals & Steel: Manages rolling mills, cooling fans, and high-torque water pumps.
- Water & Wastewater: Regulates flow in large-scale pumping stations.
- Power Generation: Operates auxiliary equipment including coal mills and conveyors.
Technical Specifications
| Model | 3BHB003230R0101 / GVC704 AE01 |
| Spare Model | 3BHL000391P0101 / 5SHX1445H0001 |
| Voltage Rating (VCES) | 4500 V |
| Current Rating (ITAVM) | 2100 A |
| Power Losses | 1.0 - 2.5 kW |
| Operating Temperature | -40 degC to +125 degC |
| Storage Temperature | -40 degC to +85 degC |
| Humidity | < 95% RH (non-condensing) |
Installation Guidelines
- High Voltage Safety: Always ensure the drive is fully disconnected from the power supply before handling. Verify that DC-link capacitors are completely discharged using a calibrated multimeter.
- ESD Protection: This module contains sensitive CMOS components. Utilize a grounded ESD wrist strap at all times when handling the board or its connectors.
- Fiber Optic Handling: If equipped with fiber optic interfaces, do not bend cables beyond a 30mm radius. Ensure connector ends remain clean; use lint-free cloth and isopropyl alcohol for maintenance if required.
- Potential Warning: This gate unit does not provide on-board potential separation. The supply cable and output must be rated to withstand the full high-voltage potential of the power semiconductor against ground.
FAQ
What is the primary function of the 3BHB003230R0101?
It acts as a gate unit and power drive board to convert control signals into high-energy pulses for switching IGCT semiconductors in ABB medium-voltage drives.
Is this module compatible with specific IGCT modules?
Yes, it is specifically designed to drive the 3BHL000392P0101 (5SHX 1060H0001) IGCT module.
