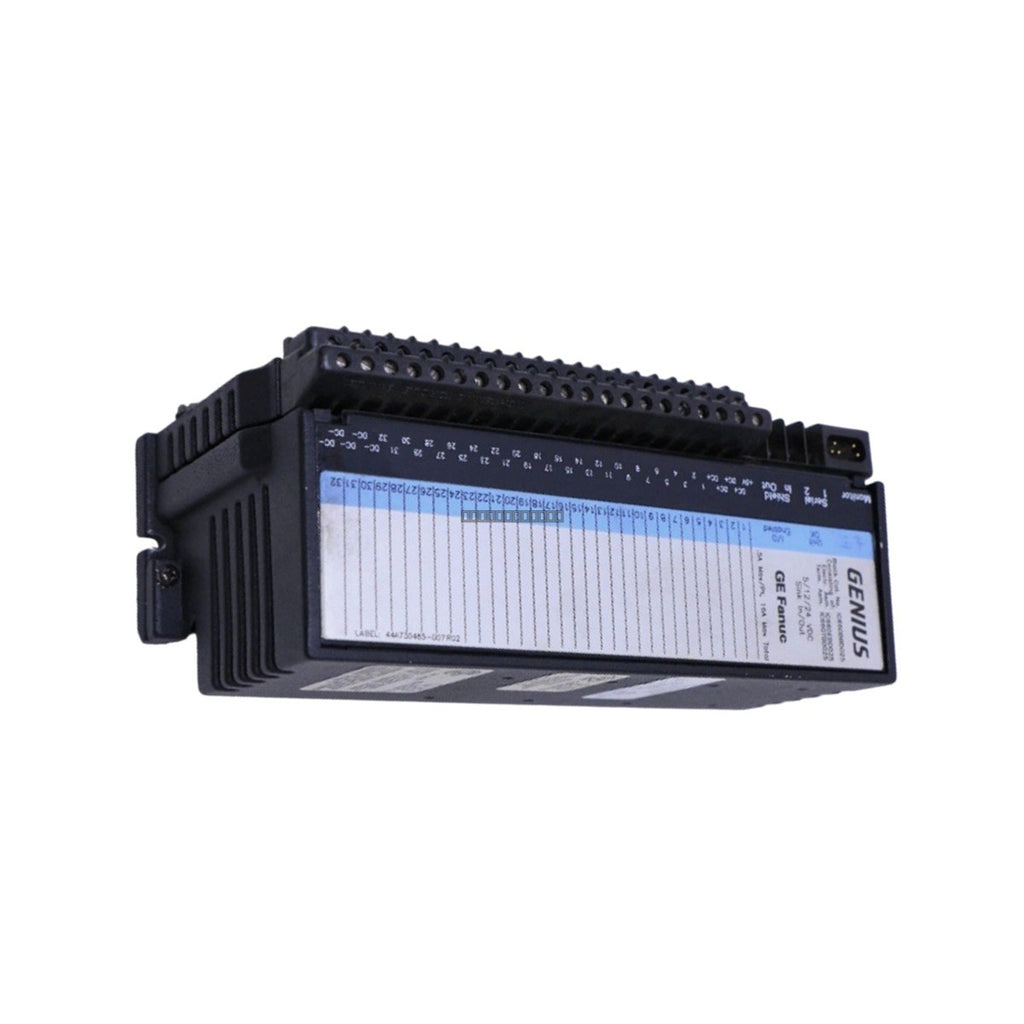

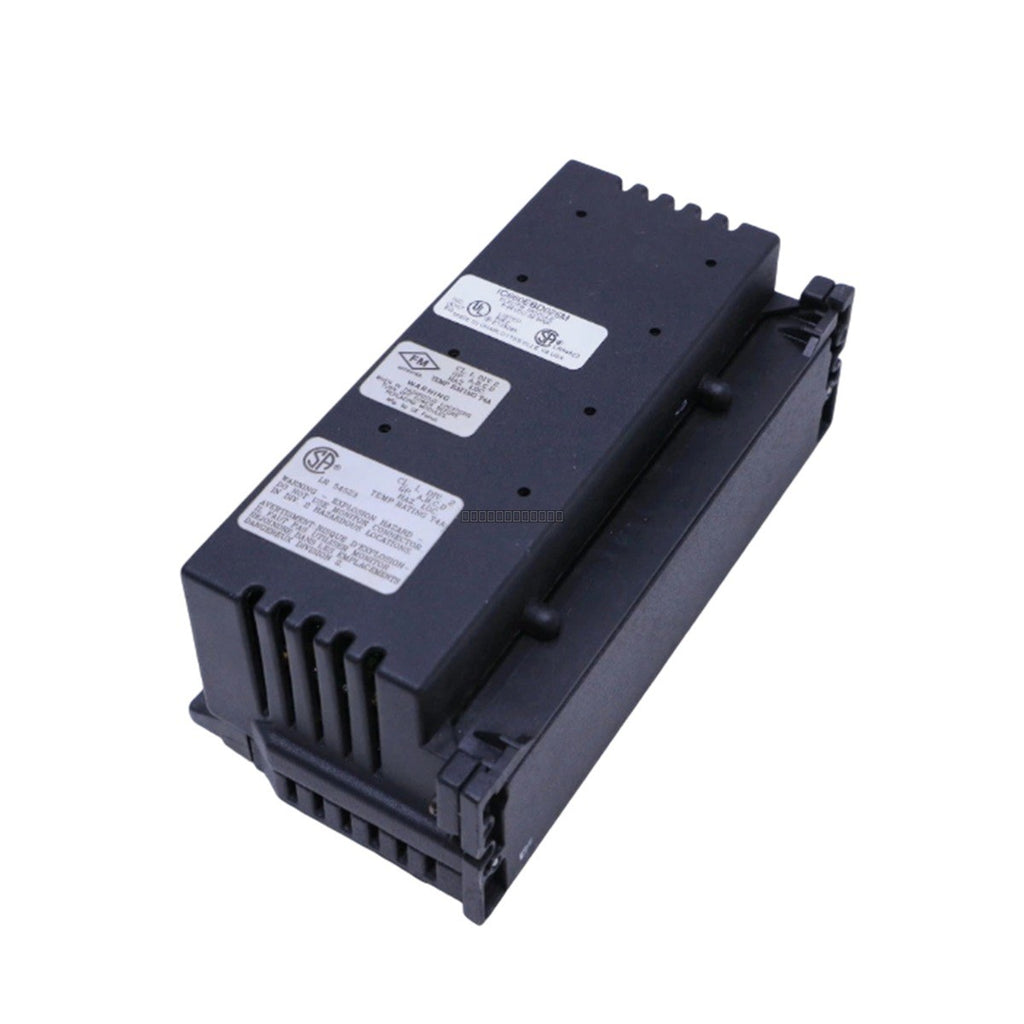

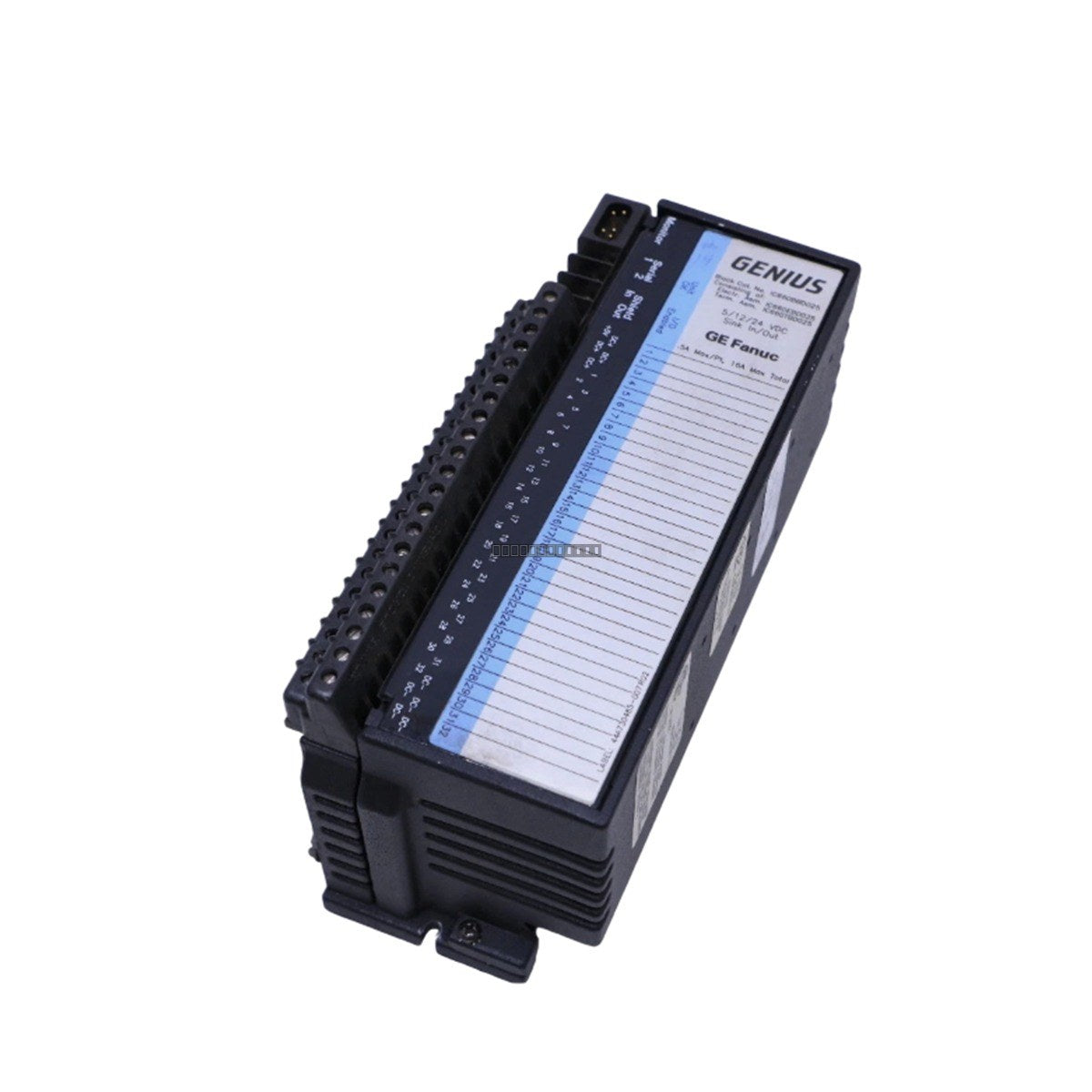

The General Electric IC660BBD025 is a 32-circuit Genius Block I/O module engineered for high-density, discrete signal processing. This sinking I/O block is designed to interface directly with field devices, supporting nominal signal voltages of 5 VDC, 12 VDC, and 24 VDC. With its highly configurable architecture, each of the 32 circuits can be independently set as an input, an output, or an output with feedback, providing significant versatility for complex automation control systems.
Features
- Thirty-two configurable discrete I/O circuits.
- Compatible with 5/12/24 VDC systems, including TTL compatibility at 5V.
- Sinking I/O configuration for field device integration.
- Integrated self-protecting circuits to guard against shorted loads and wiring errors.
- Advanced diagnostic capabilities with individual circuit status LEDs.
- Supports remote I/O communication via the Genius I/O bus.
- Built-in Hand-Held Monitor (HHM) port for configuration and troubleshooting.
Applications
- Remote I/O distribution in large-scale industrial plants to reduce field wiring complexity.
- Integration with turbine control systems for high-density discrete monitoring.
- Automation and robotics interface for CNC machinery and assembly lines.
- Hydrocarbon processing and power generation monitoring systems.
- Marine-based control and monitoring electronics.
Technical Specifications
| Model | IC660BBD025 |
| I/O Type | Sinking |
| Circuit Count | 32 |
| Operating Voltage | 5/12/24 VDC |
| Output Current (Steady State) | 0.5 A per circuit |
| Total Block Output Current | 16 A |
| Input Impedance | 3.3 kOhms (typical) |
| Operating Temperature | 0 degC to +60 degC |
| Isolation | 850 V (Block to Block) |
Installation Guidelines
- Environment: Install within a clean, protective NEMA-rated enclosure free of airborne contaminants. Ensure adequate ventilation and cooling airflow.
- Mounting: The module can be mounted in any orientation. Use 8-32 hardware and star washers to ensure proper chassis grounding. Maintain a minimum clearance of 2 inches between adjacent blocks.
- ESD Precautions: This module contains sensitive electronic components. Always use a grounded ESD wrist strap and handle the unit by its edges during installation.
- Wiring: Ensure all power is disconnected before installing or removing the module. Verify polarity of the DC supply before energizing.
FAQ
What is the primary function of the IC660BBD025?
The IC660BBD025 is an intelligent, configurable Genius I/O block that acts as a bridge between a controller and field devices, handling up to 32 discrete I/O points.
Can I mix inputs and outputs on the same block?
Yes, the module is highly flexible; each of the 32 circuits can be configured individually as an input, an output, or an output with feedback.
What is the maximum output current for this module?
Each circuit is rated for a steady-state current of 0.5 Amps, with a total block capacity of 16 Amps.
What is the communication distance for the Genius bus?
The Genius I/O protocol allows for robust communication distances up to 7,500 feet, depending on the cabling and network configuration.
