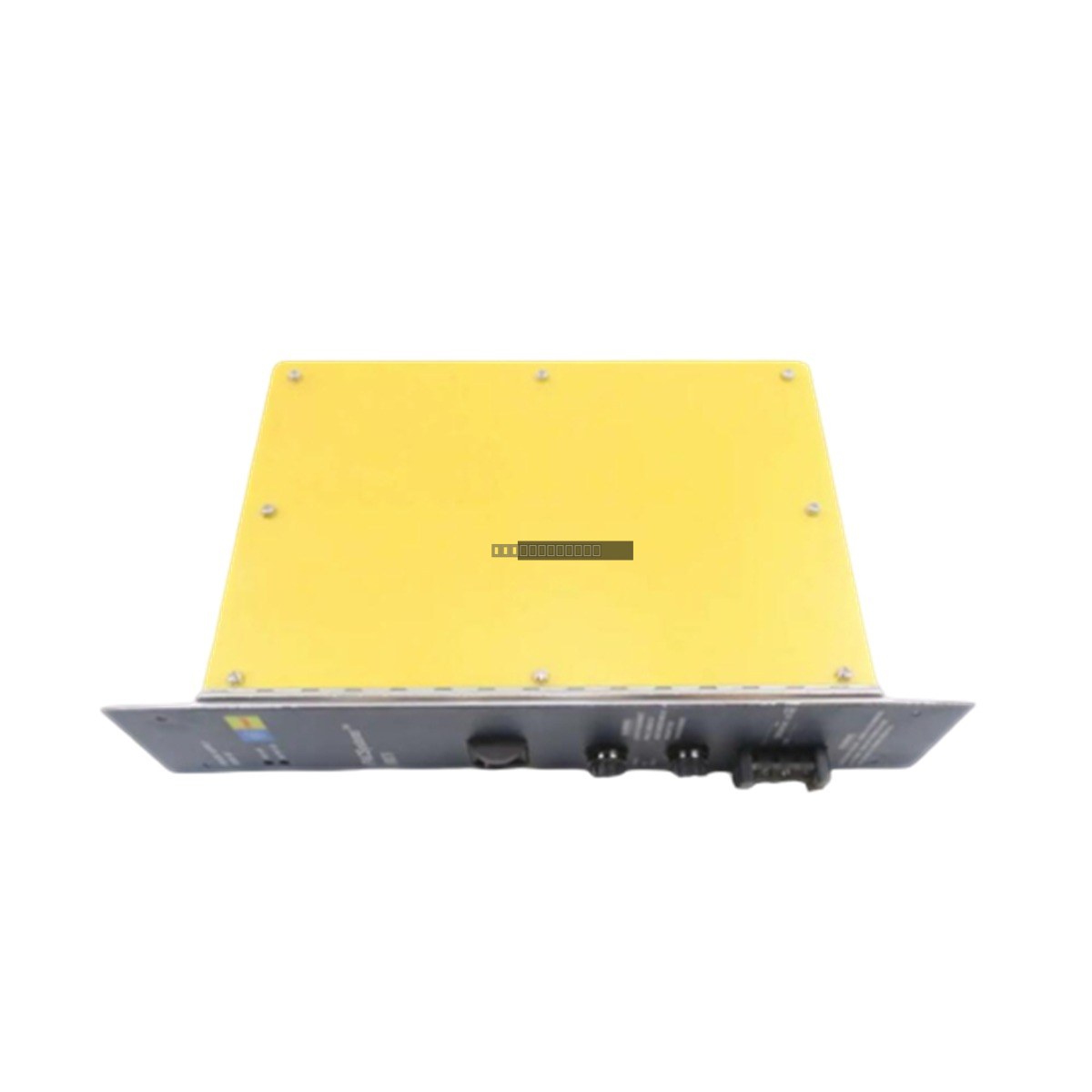

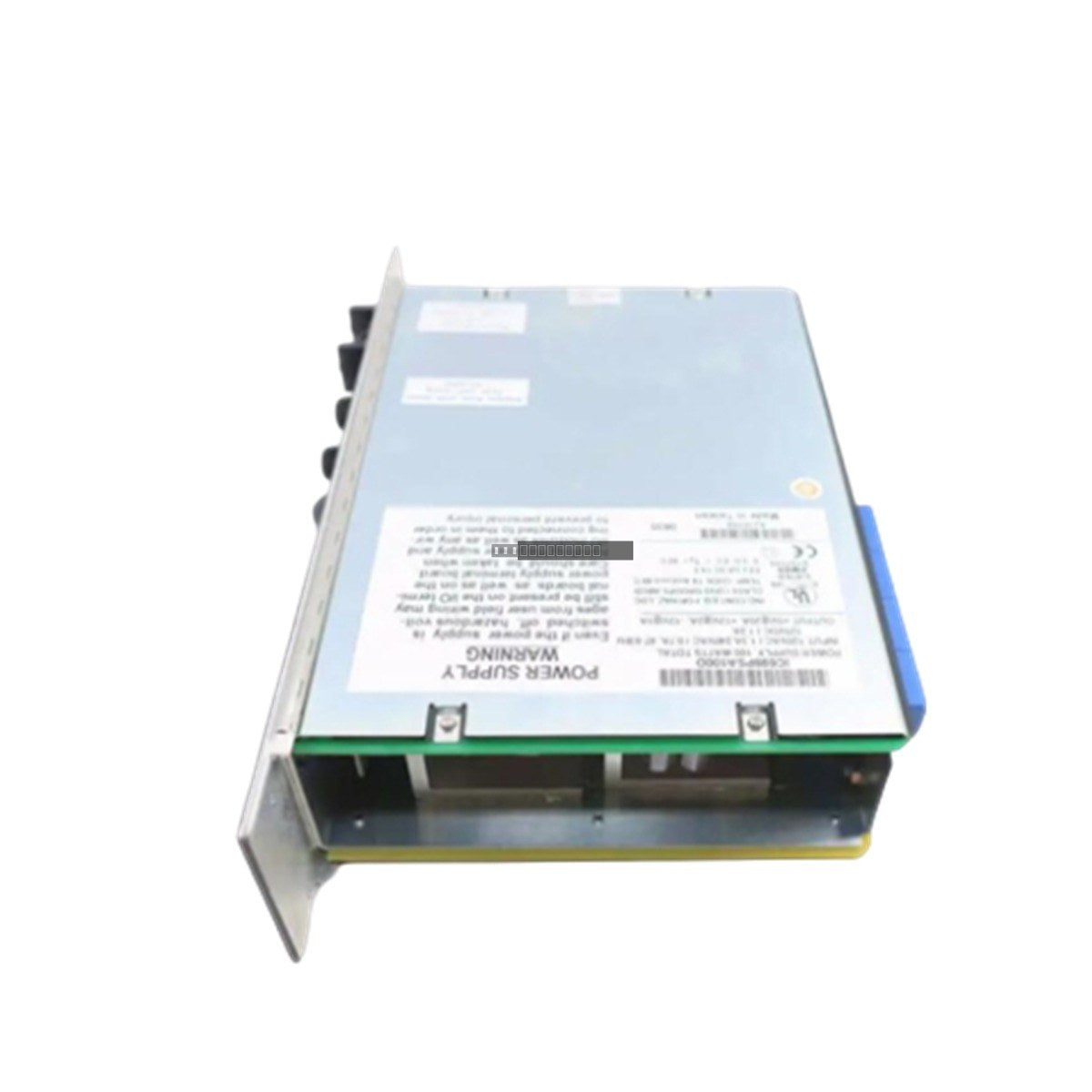

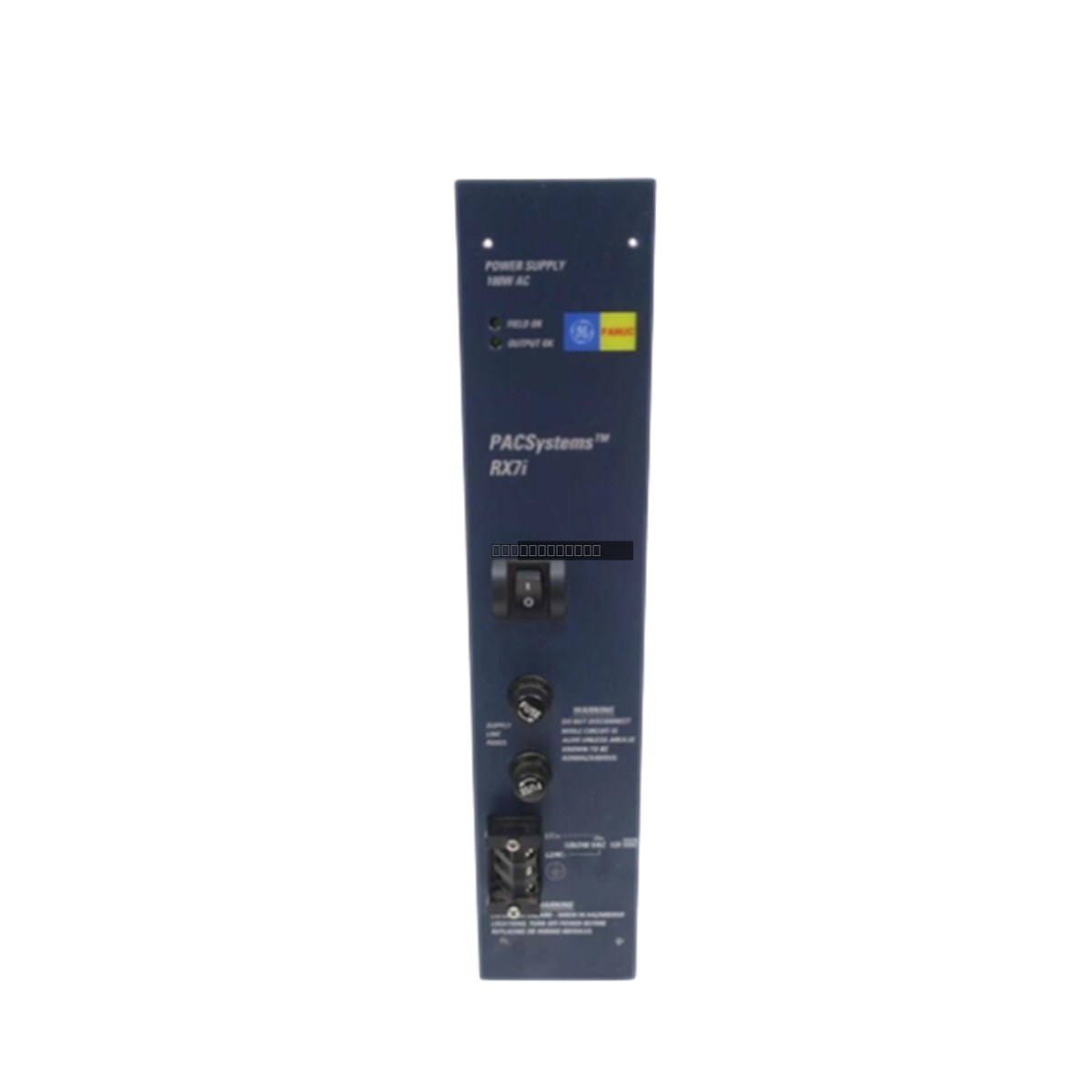

The General Electric IC698PSA100 is a high-performance power supply module engineered for the PACSystems RX7i control platform. This module is designed to provide stable, reliable power to the backplane, supporting a wide range of input voltages to accommodate diverse industrial environments.
Features
- Designed for dedicated use in Slot 0 of the RX7i rack system.
- Supports universal AC input (85 to 264 VAC) and DC input (100 to 150 VDC).
- Provides triple output voltages: 5.1 VDC, +12 VDC, and -12 VDC.
- Integrated protection mechanisms against overvoltage and overcurrent conditions.
- High power factor efficiency (0.99 minimum) to ensure stable power delivery.
- Includes a 15 ms ride-through time to maintain operations during brief power fluctuations.
Applications
This power supply is intended for use in GE PACSystems RX7i automation systems. It is commonly deployed in large-scale industrial control architectures, including power generation, water treatment, and manufacturing process control, where consistent power delivery is critical for system reliability.
Technical Specifications
| Model Number | IC698PSA100 |
| Input Voltage Range | 85-264 VAC / 100-150 VDC |
| Total Output Power | 100 Watts |
| Output Current (5.1 VDC) | 0-20 Amperes |
| Output Current (+12 VDC) | 0-2 Amperes |
| Output Current (-12 VDC) | 0-1 Ampere |
| Operating Temperature | 0 to 60 degC |
| Isolation | 1500 Volts |
| Input Power (Typical) | 125 Watts |
Installation Guidelines
- Slot Placement: The IC698PSA100 must be installed in the leftmost slot (Slot 0) of the RX7i backplane.
- Wiring: Use AWG #16 (1.3 mm2) for input power connections and AWG #12 (3.3 mm2) for the ground terminal to ensure safety and compliance.
- Safety: Always disconnect the main power source before installing or removing the module from the rack to prevent electrical shock or damage to the backplane pins.
- Environment: Ensure adequate clearance in the cabinet for ventilation to maintain the operating temperature between 0 and 60 degC.
FAQ
Q: What is the primary function of the IC698PSA100?
A: It is a dedicated power supply module that converts AC or DC line power into the regulated DC voltages required by the RX7i system components.
Q: Can this module be used in any slot of the RX7i rack?
A: No, this power supply is specifically designed to be mounted in the leftmost slot (Slot 0) of the RX7i chassis.
