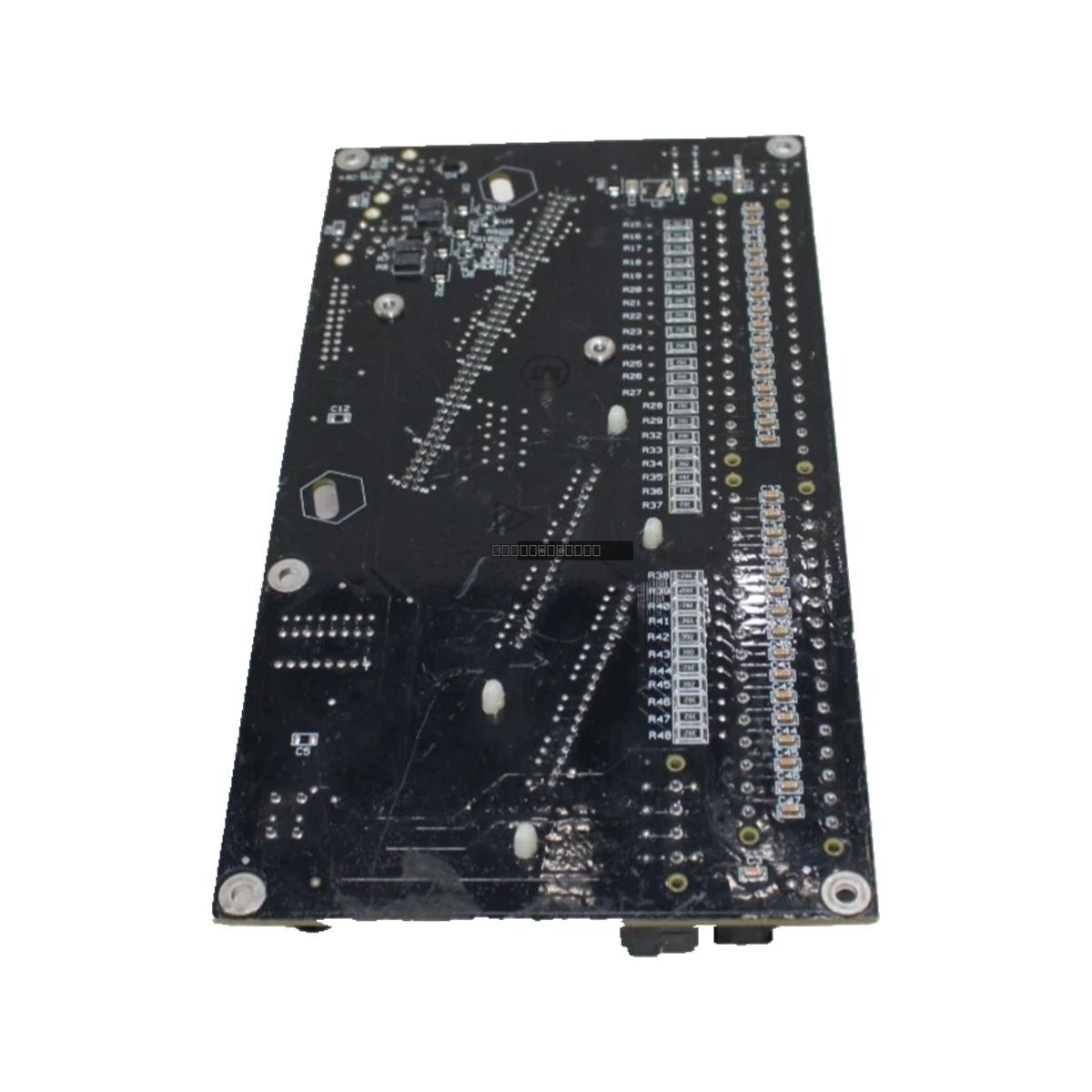

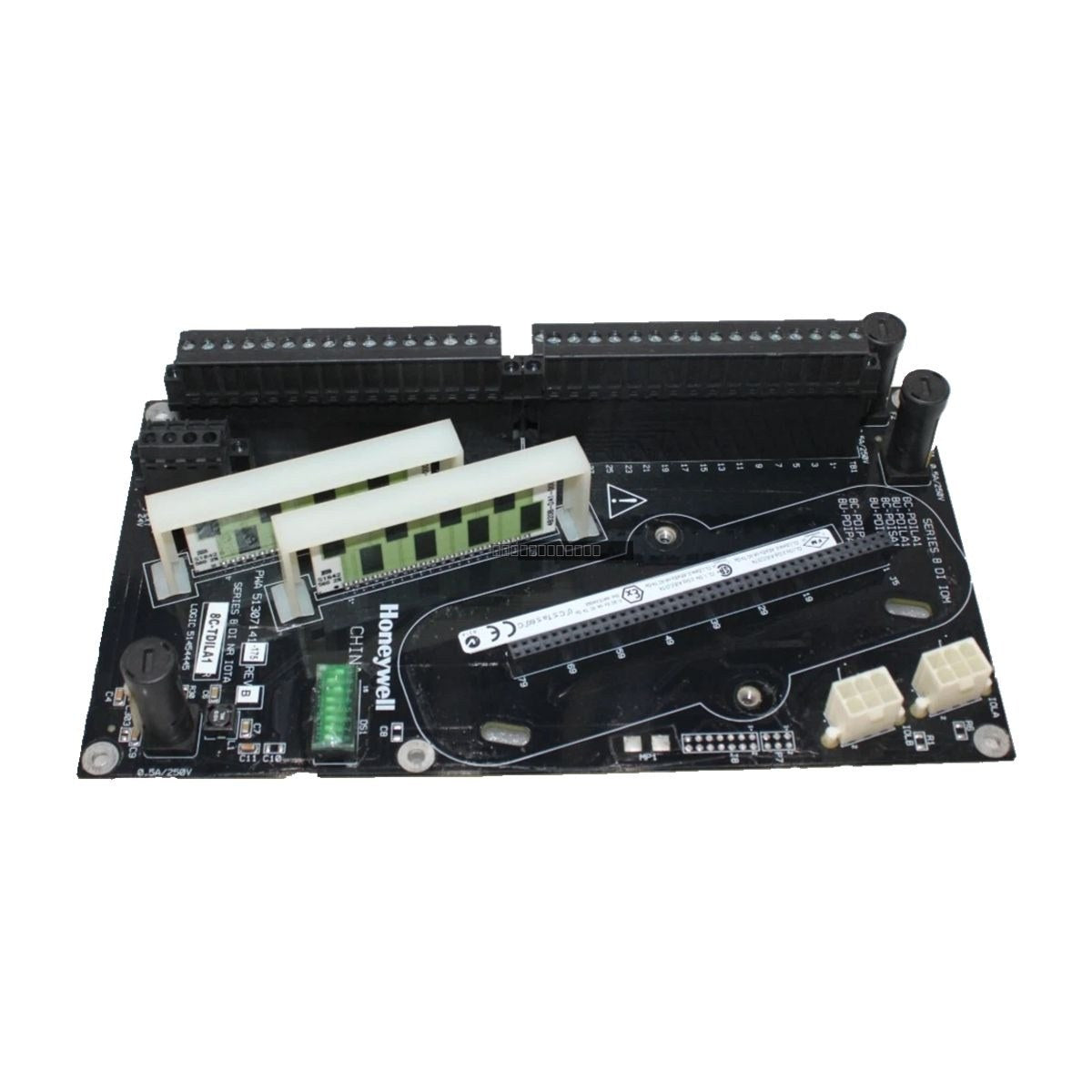

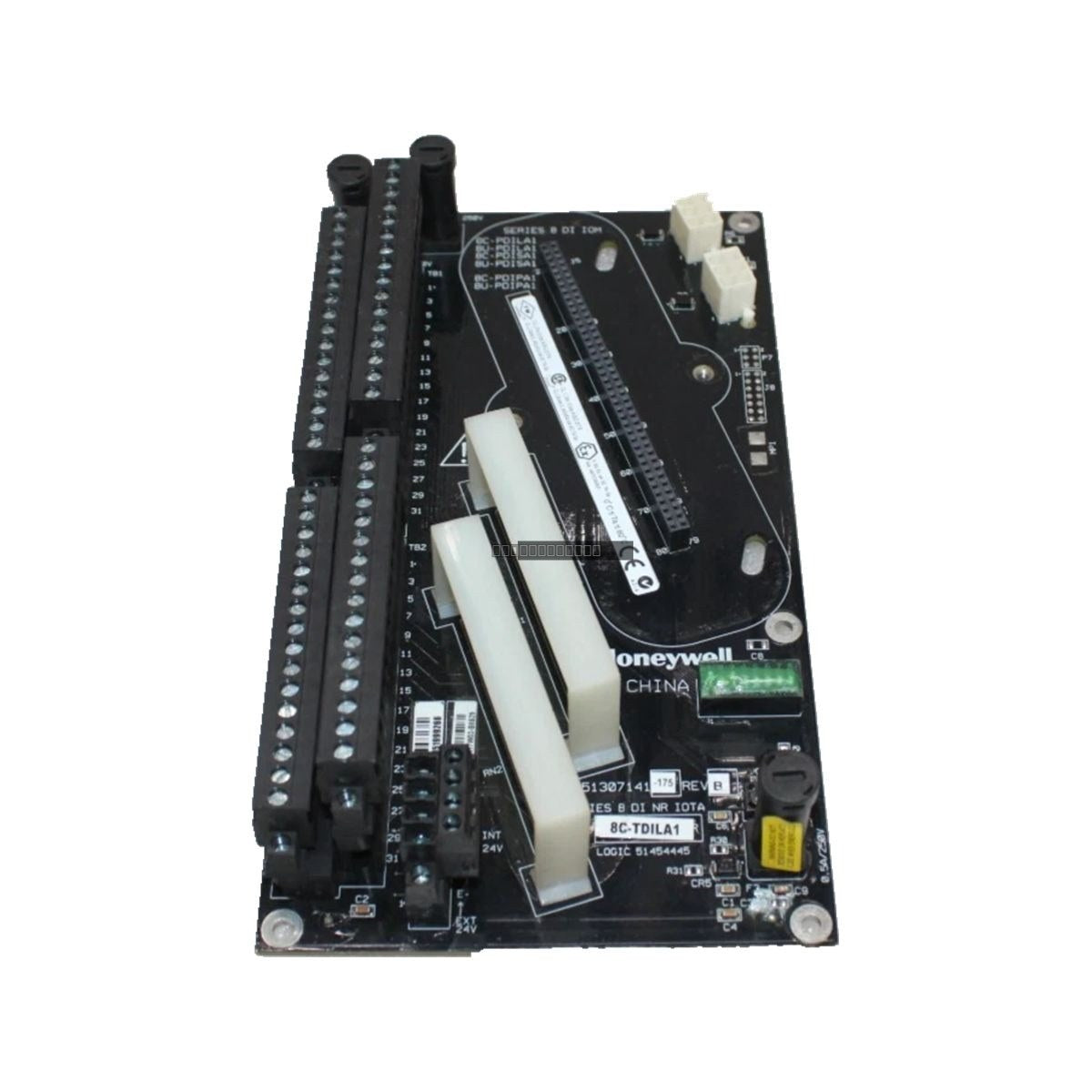

Honeywell 8C-TDILA1 51307141-175 Digital Input Module

Availability: 9 left in stock

DescriptionThe Honeywell 8C-TDILA1 (51307141-175) is a high-performance digital input module engineered for the Series C distributed control system platform. This...

SKU: 8C-TDILA1 51307141-175

Manufacturer: Honeywell
Product No.: 8C-TDILA1 51307141-175
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 560g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 8C-TDILA1 (51307141-175) is a high-performance digital input module engineered for the Series C distributed control system platform. This unit is designed to facilitate the reliable acquisition of discrete field signals, including dry contacts, switches, and 24 VDC logic inputs. By converting field-level status into high-fidelity system data, it serves as a critical component in process control environments such as chemical processing, power generation, and oil and gas facilities, where deterministic signal accuracy is essential for operational safety and efficiency.

Features

Optimized for Series C architecture, ensuring full compatibility and easy integration with existing IOTA termination assemblies.
Integrated signal filtering technology to mitigate contact bounce and transient electrical noise.
Supports redundant system configurations to enhance overall system availability and fault tolerance.
Robust galvanic isolation between field inputs and the internal control system bus.
Compact, modular design specifically built for high-density cabinet mounting and efficient thermal management.

Applications

This digital input module is primarily utilized for monitoring status feedback from field devices, such as limit switches, proximity sensors, and emergency stop circuits. Its reliable signal processing makes it suitable for both standard process control and safety-critical monitoring tasks within complex industrial automation loops.

Technical Specifications

Model	8C-TDILA1
Part Number	51307141-175
Series	Series C
Input Type	24 VDC, Dry Contacts, Logic Inputs
Operating Voltage	24 VDC
Power Consumption	4 W (approx.)
Operating Temperature	0 to 60 deg C
Mounting	Series C I/O Cabinet

Installation Guidelines

Ensure all power to the IOTA and the associated cabinet is disconnected prior to inserting or removing the module.
Verify that the module is correctly seated in the Series C I/O carrier to ensure proper electrical contact with the backplane.
Use shielded cabling for field inputs to maintain high noise immunity, especially in environments with high electromagnetic interference (EMI).
Maintain adequate clearance around the module to ensure proper airflow and cooling, adhering to the specified operating temperature range.
Follow standard ESD precautions when handling the module to prevent damage to internal sensitive electronic components.

FAQ

What is the primary function of the 8C-TDILA1?
The 8C-TDILA1 is a digital input module that captures discrete field signals (such as switch states or 24V logic) and transmits that data to the Honeywell Series C control system.

Is this module compatible with other Series C components?
Yes, it is designed specifically for the Honeywell Series C platform and integrates directly with standard Series C IOTA (Input/Output Termination Assembly) hardware.

Does this module provide isolation?
Yes, the module features galvanic isolation between the field signal side and the system bus to protect the control electronics from field-side electrical transients.
