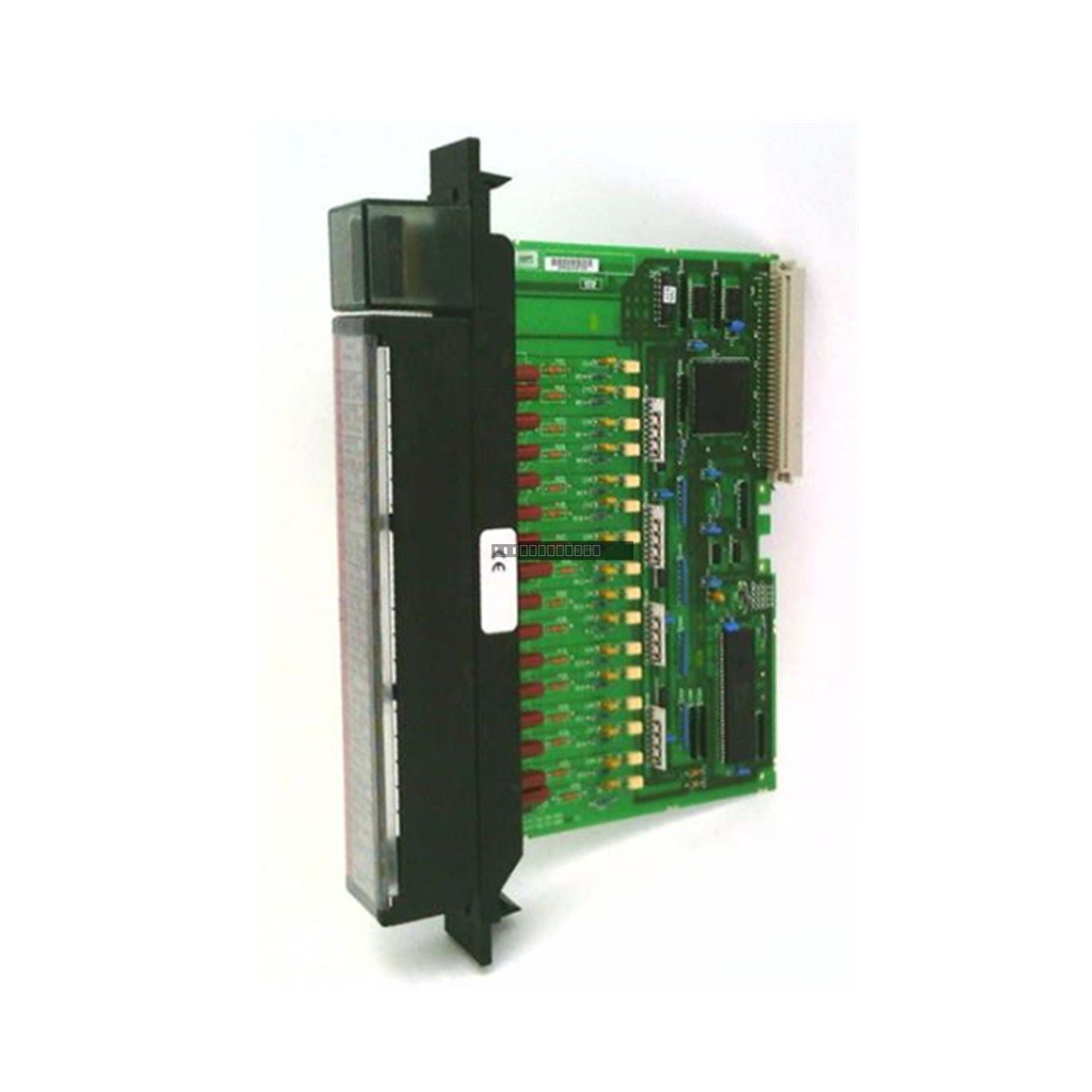

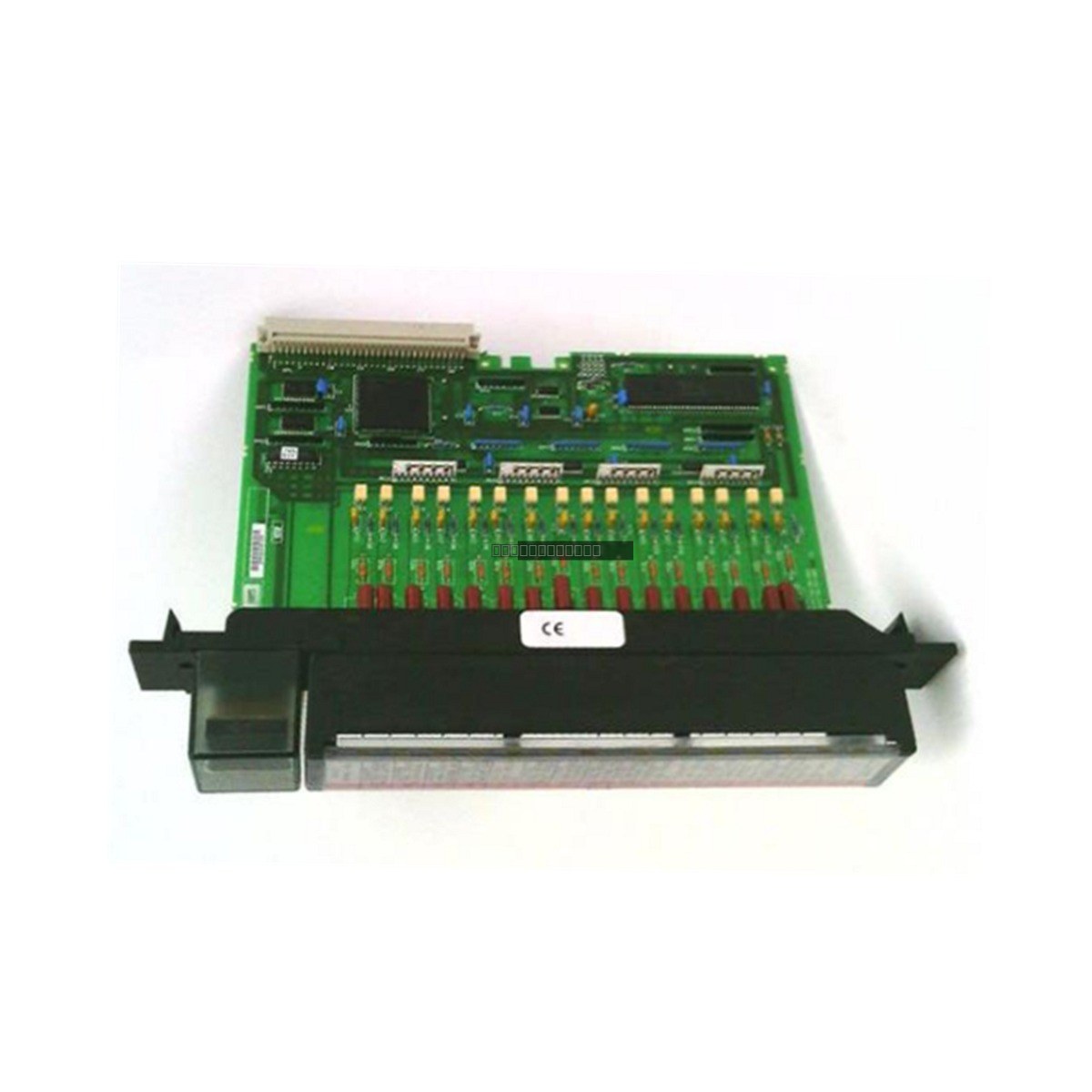

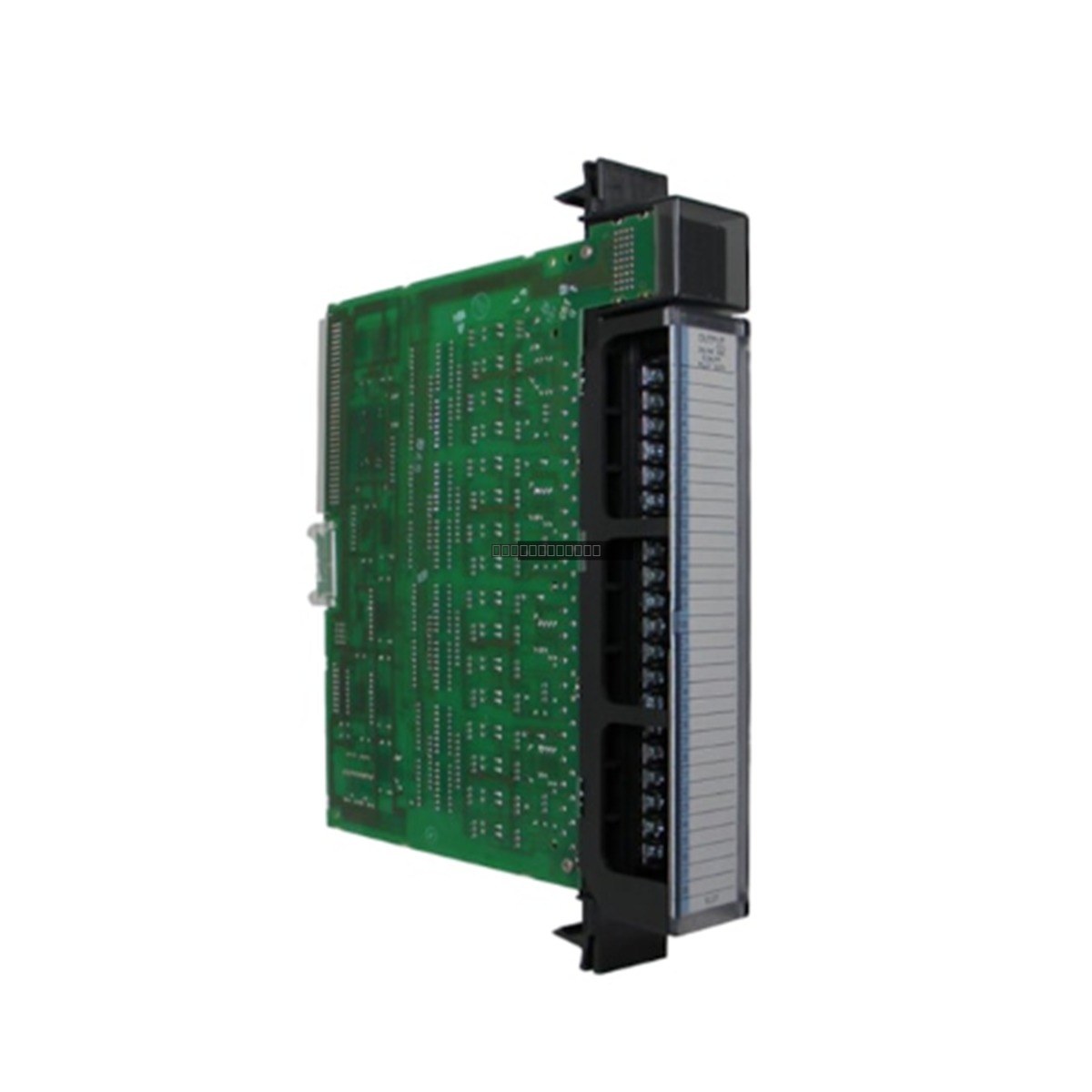

The General Electric IC697MDL240 is a high-performance discrete input module designed for the Series 90-70 Programmable Logic Controller (PLC) platform. This module is engineered to provide reliable signal sensing in industrial automation environments, facilitating the integration of field-level AC signals into the control system.
Features
- Provides 16 isolated input channels for robust signal processing.
- Operates at a rated voltage of 120V AC.
- Features an input filter delay time of 20 ms to effectively mitigate signal noise.
- Designed specifically for integration within the GE Series 90-70 rack architecture.
Technical Specifications
| Model Number | IC697MDL240 |
| Manufacturer | General Electric |
| Series | Series 90-70 |
| Input Type | 16 Isolated Discrete Inputs |
| Rated Voltage | 120V AC |
| Input Current | 10 mA |
| Current Consumption | 0.25 A |
| Input Filter Delay | 20 ms |
| Frequency | 60 Hz |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the IC697MDL240 module to prevent electrical damage.
- Verify that the module is properly seated in the backplane connector to ensure reliable communication with the CPU.
- Use appropriate shielded cabling for field inputs to minimize electromagnetic interference (EMI).
- Maintain adequate clearance around the module to allow for proper thermal dissipation during operation.
- Ensure all field wiring is terminated securely to the terminal block, adhering to local electrical safety standards.
FAQ
What is the primary function of the IC697MDL240?
This module acts as a discrete input interface, converting 16 individual 120V AC field signals into logic levels that the Series 90-70 PLC can process.
Is the input circuitry isolated?
Yes, the module features 16 isolated inputs, which helps protect the internal PLC circuitry from ground loops and voltage spikes originating from field devices.
