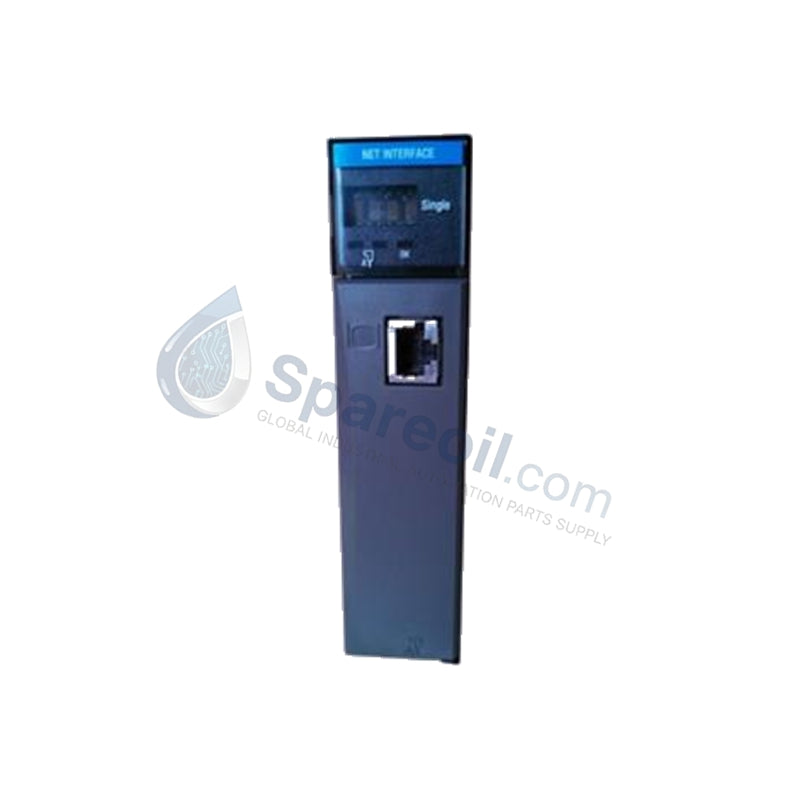

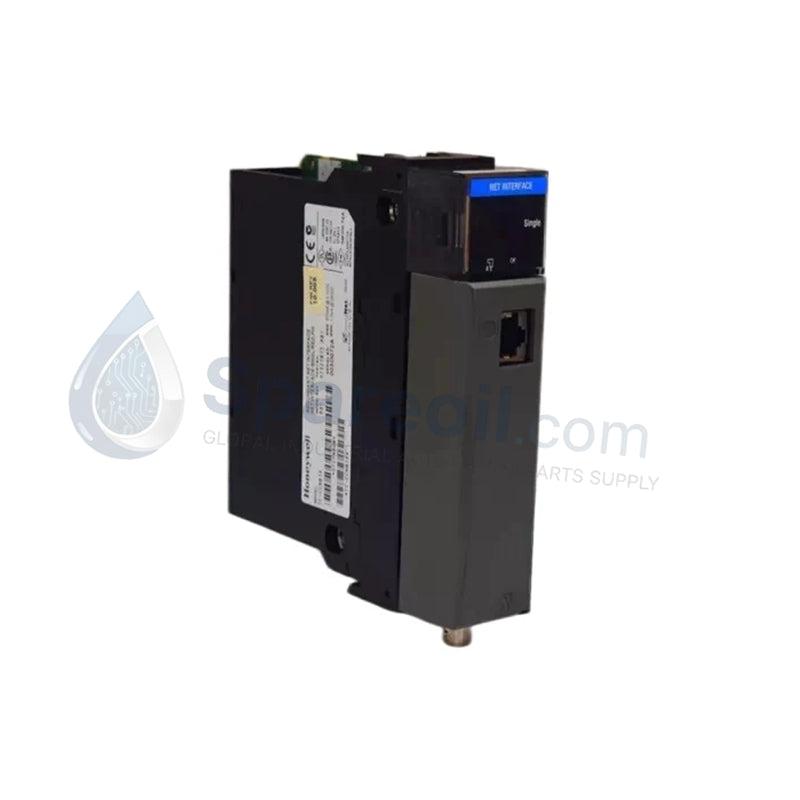

Honeywell TC-CCN012 5Mbps ControlNet Communication Card

Availability: 20 left in stock

Product Overview The TC-CCN012 is an authoritative ControlNet Communication Module designed for the Honeywell Experion PKS and legacy TDC 3000 Distributed Control...

SKU: TC-CCN012

Manufacturer: Honeywell
Product No.: TC-CCN012
Product Type: ControlNet Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The TC-CCN012 is an authoritative ControlNet Communication Module designed for the Honeywell Experion PKS and legacy TDC 3000 Distributed Control Systems (DCS). This module serves as a mechanical necessity for high-speed, deterministic data exchange between controllers, remote I/O modules, and operator stations. Featuring dual-channel redundancy, the TC-CCN012 provides a trustworthy 5 Mbps communication link that ensures real-time process synchronization. It is specifically engineered for mission-critical industrial environments—such as oil refining, chemical processing, and power generation—where network failure is not an option and deterministic performance is required for safety and control logic execution.

Detailed Technical Specifications

Attribute	Details
Manufacturer	Honeywell
Model Number	TC-CCN012
Product Type	ControlNet Redundant Network Interface Module
System Compatibility	Honeywell Experion PKS, TDC 3000
Protocol	ControlNet (Deterministic High-Speed Network)
Data Rate	5 Mbps
Redundancy	Dual-Channel (Media Redundancy Supported)
Input Voltage	24 VDC (Backplane Powered)
Network Topology	Supports Coaxial (RG-6) or Fiber Optic (via converters)
Connector Type	BNC Connectors for ControlNet Media
Operating Temperature	0 °C to +60 °C (32 °F to 140 °F)
Storage Temperature	-40 °C to +85 °C
Humidity	5% to 95% Non-condensing
Weight	0.25 kg (0.56 lbs)
Certifications	CE, UL, CSA Compliance

Installation Guide

Chassis Slot Selection: Identify the dedicated communication slot in the Honeywell chassis. Ensure the backplane is de-energized or follow hot-swap protocols if the specific chassis supports it.
Module Insertion: Align the TC-CCN012 with the guide rails. Slide the module firmly until the 24VDC backplane connectors are fully engaged.
Secure Fastening: Tighten the faceplate screws to the chassis frame to ensure a trustworthy mechanical ground and protection against vibration.
Network Cabling: Connect the ControlNet A and B cables to the respective BNC ports on the front of the TC-CCN012. For redundant operation, both channels must be connected to independent network taps.
Node Addressing: Set the unique ControlNet node address via the hardware switches or software configuration as defined in the Experion PKS system architecture.
Verification: Upon power-up, observe the status LEDs. A steady green indicator for both channels confirms the authoritative link is established and synchronized with the network master.

Technical FAQ

What does "deterministic" mean for the TC-CCN012?

Determinism ensures that critical control data is delivered within a predictable, fixed time frame. This is a mechanical necessity for Sequence of Events (SOE) and high-speed interlocking logic where timing jitter could compromise process safety.

How does the redundancy on the TC-CCN012 function?

The TC-CCN012 monitors both ControlNet media channels simultaneously. If a cable break or signal degradation occurs on Channel A, the module seamlessly maintains data flow through Channel B without interrupting the process controller or I/O scanning.

Can this module be used with fiber optic networks?

While the TC-CCN012 features standard BNC connectors for coaxial cable, it can be integrated into fiber optic backbones using authoritative ControlNet fiber media converters (repeaters).
