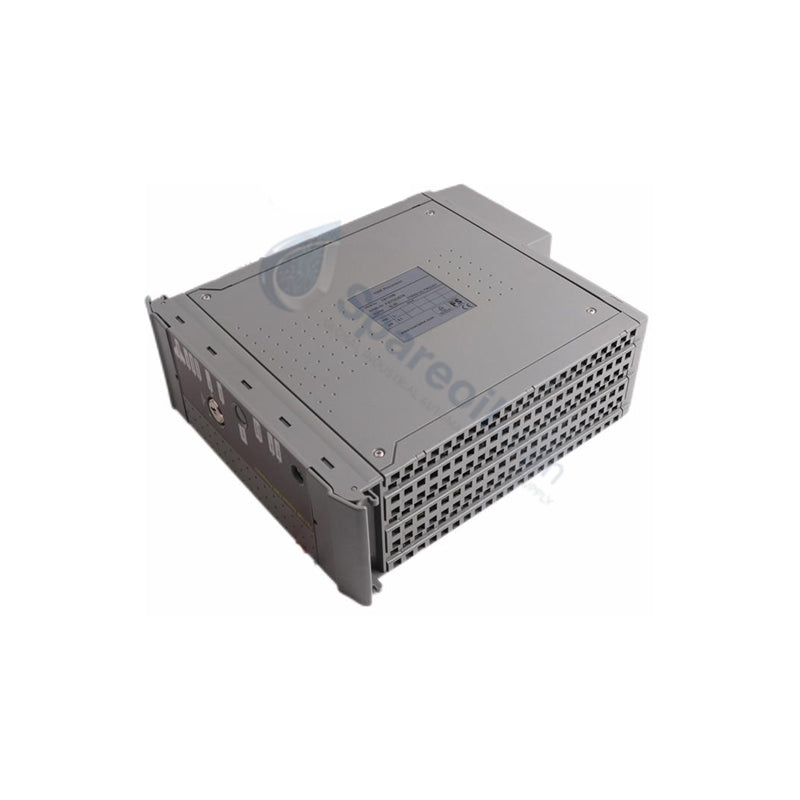

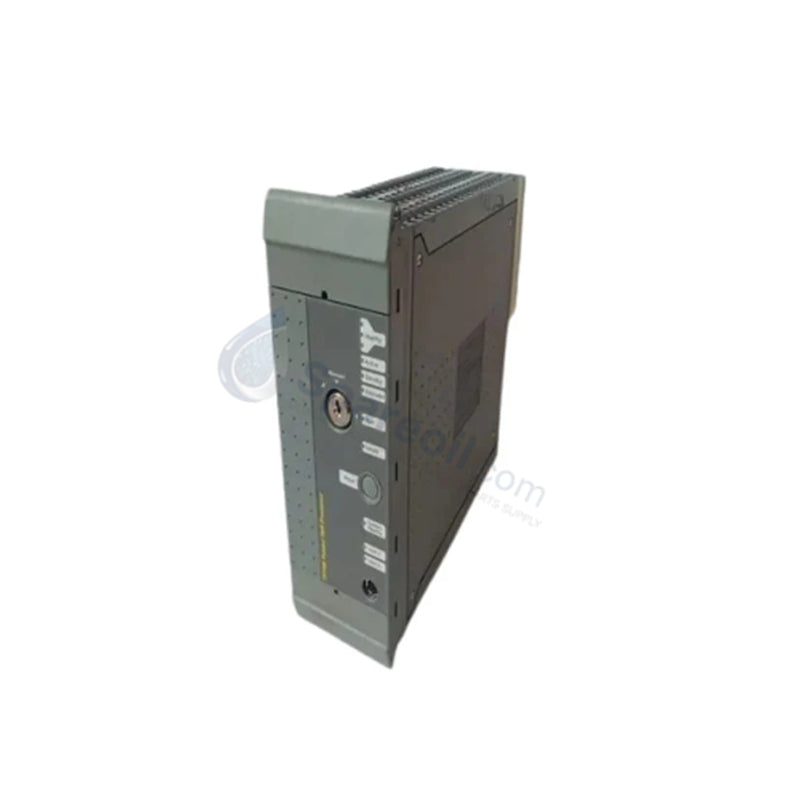

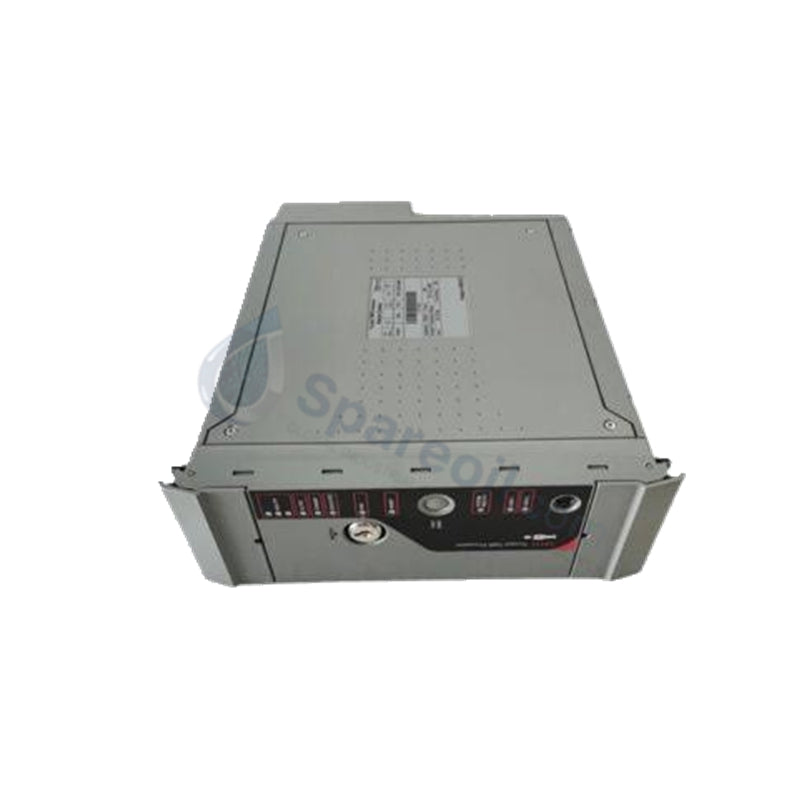

ICS TRIPLEX T3411F Monitored Digital Input Module

The ICS TRIPLEX T3411F, also cataloged as the T3411F Monitored Digital Input Module, operates as a dedicated hardware component for fault-tolerant input processing within Trusted safety systems. The module provides continuous line monitoring and processes electrical signals from field instrumentation transmitters, sensors, and safety switches directly into the redundant system backplane.

Hardware Specifications

Parameter Specification
Model T3411F
Brand ICS TRIPLEX (Rockwell Automation)
Origin United States
Weight 1.26 kg
Dimensions 6.1 cm x 30.2 cm x 26.5 cm
Operating Temp -20 deg C to +60 deg C
Power Consumption Not specified by manufacturer
Product Type Monitored Digital Input Modules
Signal Input Range 4-20 mA analogue configuration
Channel Count 40 isolated input channels
Analog Resolution 12-bit (typical)
Measurement Accuracy plus or minus 0.1% of full scale
Galvanic Isolation 2500 V between field wiring and logic circuits
Diagnostics Capability Open circuit, short circuit, and out-of-range detection
Redundancy Format Trusted TMR safety systems platform
Hot-Swappable Yes
Storage Temperature -40 deg C to +85 deg C
Relative Humidity 5% to 95% RH, non-condensing
System Certifications IEC 61508 SIL 3, CE, UL, ATEX, IECEx

Safety Instrumented System Execution

The ICS TRIPLEX T3411F coordinates input validation metrics under triple modular redundancy (TMR) 2oo3 architecture parameters to sustain formal SIL 3 certification benchmarks. Internal circuits execute continuous diagnostic routines across all 40 channels, isolating open-circuit anomalies, field short-circuits, and out-of-range signal fluctuations before the faults corrupt data processing integrity. The physical architecture deploys robust channel-to-channel galvanic isolation rated at 2500 V, eliminating cross-talk propagation and protecting the internal logic bus from severe outdoor transients. When an active field device validation failure occurs, the onboard processing layer records the fault register data and initiates a pre-programmed, predictable fail-safe state execution to shield the connected process loop.

Frequently Asked Questions

Q: Can the T3411F module undergo live replacement while the safety system is active?

A: Yes. The hardware layer fully supports hot-swappable module swaps, permitting technical personnel to pull and insert modules during active operation without provoking down-time or dropping active backplane communications.

Q: How does the module handle signal anomalies that drift outside the typical 4-20 mA window?

A: The internal diagnostic layer triggers an immediate out-of-range fault alarm whenever current levels swing beyond standard tolerances, alerting the host controller to clear the corrupted input loop from voting logic equations.

Q: What mechanisms protect the internal digital logic components from field-side voltage spikes?

A: The module utilizes dedicated 2500 V optocoupler and transformer isolation barriers between the field terminal assembly loops and the internal backplane logic structure, absorbing electrical spikes natively.

Field Installation Guidelines

  • Chassis Slot Rail Engagement: Align the card frame with the chassis channel tracks, push the module evenly until the backplane connectors seat completely, and secure the front panel locking screws.
  • Shield Grounding Paths: Connect all sensor cable shielding braids to the cabinet terminal block instrumentation earth rail to ensure electromagnetic interference shunts directly to ground.
  • Conduit Routing Isolation: Maintain a distinct separation distance between input signal wires and high-power AC power cables inside the panel ducting arrays to reduce potential cross-talk.
  • Thermal Vent Clearances: Verify the cabinet cooling configuration maintains ambient air temperatures below the +60 deg C operational maximum by keeping airflow passages unobstructed.
