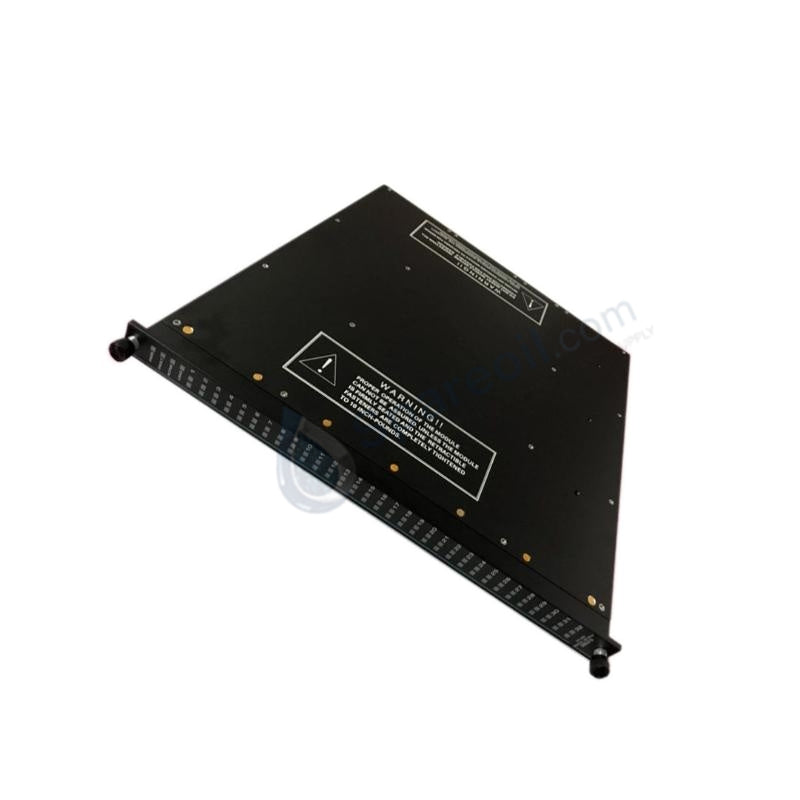

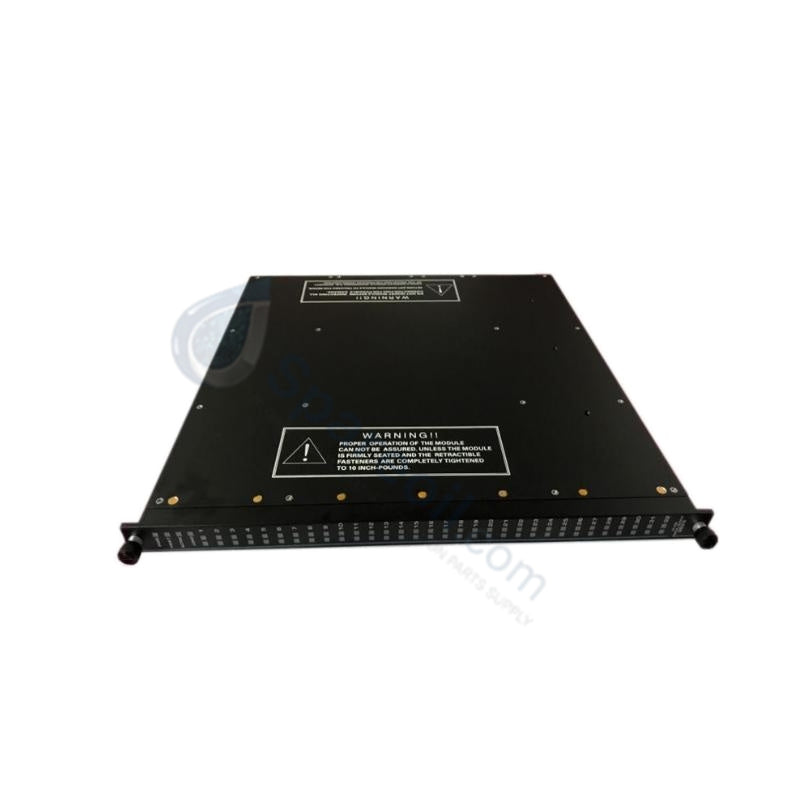

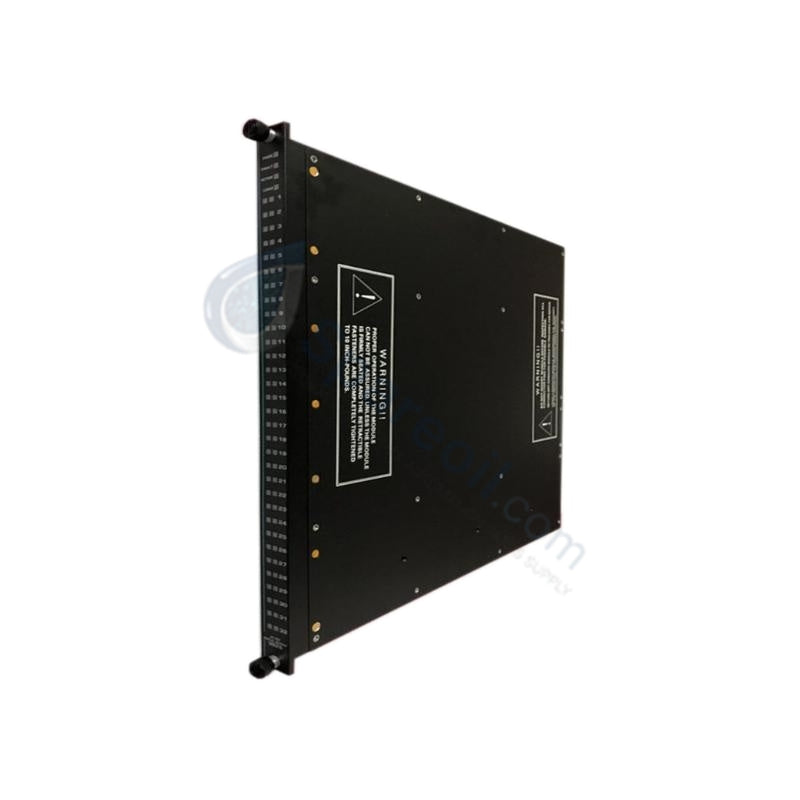

ICS Triplex T7310 Trusted Series Main Processor Module

The ICS Triplex T7310, also cataloged as the T7310 Main Processor Module, operates as a dedicated hardware component for safety logic execution and I/O module coordination within Triconex safety instrumented system networks. This central hardware processing unit executes application programs, manages systemic diagnostics, and routes inter-module parameters via dedicated internal communication buses to maintain localized loop containment.

Hardware Specifications

Parameter	Specification
Model	T7310
Brand	ICS Triplex / Triconex
Origin	USA
Weight	1.5 - 2.3 kg
Dimensions	228 mm x 160 mm x 75 mm
Operating Temp	0 to 60 deg C
Power Consumption	8 W maximum
Processor	32-bit RISC CPU (PowerPC family)
Clock Speed	50 MHz
Memory Architecture	6 MB Flash (program), 16 MB DRAM (data), 8 KB NVRAM (retentive)
Scan Time	Typical < 20 ms (10 ms minimum execution time)
I/O Capability	Up to 14 I/O modules per processor set
Communication Interfaces	TriBus (25 Mbps, CRC-protected), Ethernet 10BaseT (RJ45), RS-232, RS-485
Input Voltage Range	24 VDC nominal (18-32 VDC operational window)
Vibration Resistance	10-55 Hz, amplitude +/-0.15 mm
Shock Resistance	15g, half-sine wave, 11 ms duration
Storage Temperature	-40 to +85 deg C
Ambient Humidity	0% to 95% RH, non-condensing
Safety Certification	IEC 61508 SIL 3 compliant, TÜV certified

Triple Modular Redundancy and Fail-Safe State Execution

The hardware platform incorporates a strict triple modular redundancy (TMR) 2oo3 architecture consisting of three isolated primary CPUs operating in parallel synchronization. Continuous hardware diagnostics, physical channel comparison, and independent voting circuits execute structural fault isolation to mask internal single-point failures without system degradation. Complete galvanic isolation across communication ports prevents volatile field faults from propagating through the internal processor backplane. In the event of an unmaskable processing fault, the internal logic immediately initiates a deterministic fail-safe state execution, driving output channels into a predefined de-energized condition to protect mechanical process barriers.

Frequently Asked Questions

Q: Does the processor support physical online hot-swap operations under energized conditions?

A: Technicians can perform live hot-swap replacement of this processor module while the system is online, provided a redundant matching CPU is active and maintaining system logic execution within the same TMR rack slot.

Q: What are the primary communication interfaces used for localized controller interconnection?

A: The processor relies on the dedicated TriBus link operating at 25 Mbps with embedded CRC protection for high-speed inter-processor synchronization, alongside separate auxiliary Ethernet and RS-232/RS-485 serial ports for external DCS/HMI integration.

Field Installation Guidelines

Engineers must install the module exclusively within approved, grounded Triconex TMR system rack configurations. Ensure the mechanical chassis levers are fully engaged to lock the electrical pins into the backplane connectors and eliminate contact resistance. Technical personnel must route low-level communication cables separate from noisy high-voltage lines to maintain galvanic isolation integrity. All external communications wiring requires proper shield termination at the dedicated low-impedance copper master ground bar. Technicians should verify firmware compatibility and active configuration profiles before initializing the startup sequence.
