T7481 ICS Triplex Trusted Datasheet & Technical Manual

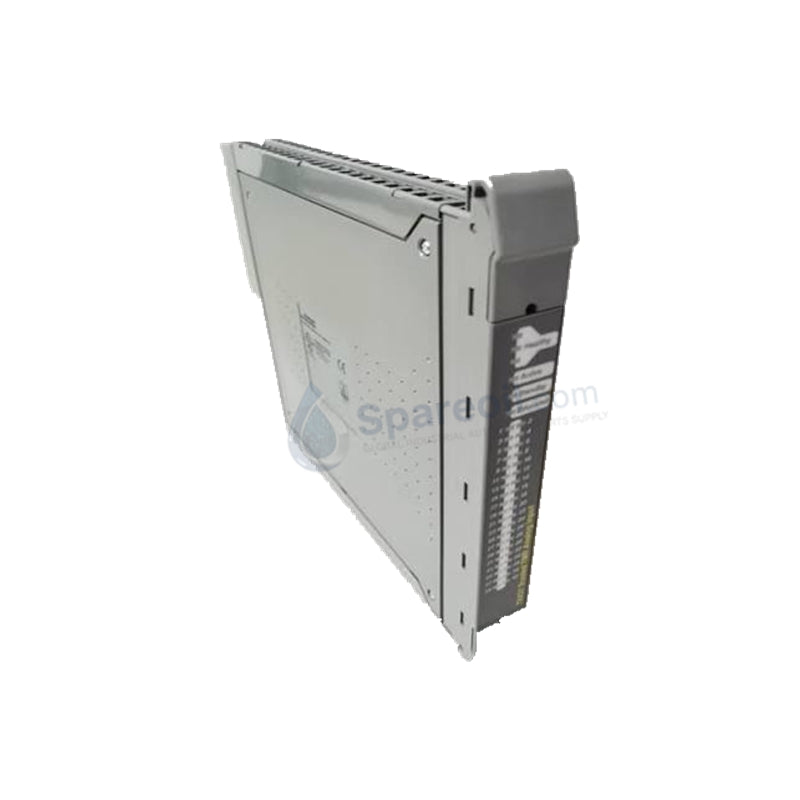

ICS Triplex T7481 Trusted Safety Instrumented System Module

ICS Triplex T7481 Trusted Safety Instrumented System Module

Availability: 20 left in stock

ICS Triplex T7481 Trusted Safety System Module Configured for fault-tolerant I/O processing and diagnostic signal monitoring in Trusted safety systems,...

SKU: T7481

Manufacturer: ICS Triplex
Product No.: T7481
Product Type: Digital I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ICS Triplex T7481 Trusted Safety System Module

Configured for fault-tolerant I/O processing and diagnostic signal monitoring in Trusted safety systems, the ICS Triplex T7481 (T7481 Safety Module) provides direct physical/electrical execution. Control data routes via a triplicated Safetybus interface where independent data streams feed hardware voter circuits. This discrete logic execution manages field device states without relying on centralized single-channel processing architectures.

Hardware Specifications

Parameter	Specification
Model	T7481
Brand	ICS Triplex (Rockwell Automation)
Origin	USA
Weight	1.6 kg
Dimensions	32.0 x 264.0 x 326.0 mm
Operating Temp	-20 deg C to +60 deg C
Storage Temp	-40 deg C to +85 deg C
Humidity	5% to 95% RH, non-condensing
Power Consumption	24 VDC nominal (18-30 VDC input range)
Channel Count	16 monitored guarded outputs / 40 digital inputs
Input Current	~7 mA per channel
Output Voltage	24 VDC nominal
Isolation Voltage	Minimum 2500 V between field wiring and logic circuits
Diagnostics	Open circuit, short circuit, stuck-on, and stuck-off conditions
Certifications	IEC 61508 SIL 3, CE, UL, ATEX, IECEx, DIN 19250 / AK5

Triple Modular Redundancy and Safety Integrity

The module operates within a triple modular redundancy (TMR) 2oo3 architecture to maintain strict safety loop integrity. It achieves SIL3 certification by executing continuous internal diagnostics, tracking open circuit, short circuit, and stuck-on/stuck-off fault modes. Galvanic isolation rated at 2500 V between the field wiring and internal logic circuits prevents transient electrical interference from disrupting the backplane interface. In the event of an unrecoverable internal hardware fault, the module transitions automatically to a defined fail-safe state execution to isolate the critical loop.

Frequently Asked Questions

Q: Does the module support online module replacement during active system operation?

A: Yes. The hardware design accommodates hot-swappable replacement, allowing an identical module to be inserted into the system slot without interrupting system processing operations or dropping the active safety loop.

Q: What diagnostics are executed to detect field line faults?

A: The module performs continuous electronic line monitoring to identify open circuit conditions, short circuits, and stuck-on or stuck-off switch states on the connected field wiring.

Field Installation Guidelines

Ensure the chassis frame is bonded to the local industrial earth ground network using a low-impedance copper conductor before inserting the module.
Route all 24 VDC field wiring through dedicated cable trays separated from high-voltage AC power lines to prevent electromagnetic cross-talk.
Maintain proper clearance around the chassis assembly to allow natural convective airflow and prevent the ambient temperature from exceeding 60 deg C.
Verify that all field signal shields are terminated at a single grounding point on the enclosure entry panel to eliminate ground loop currents.
