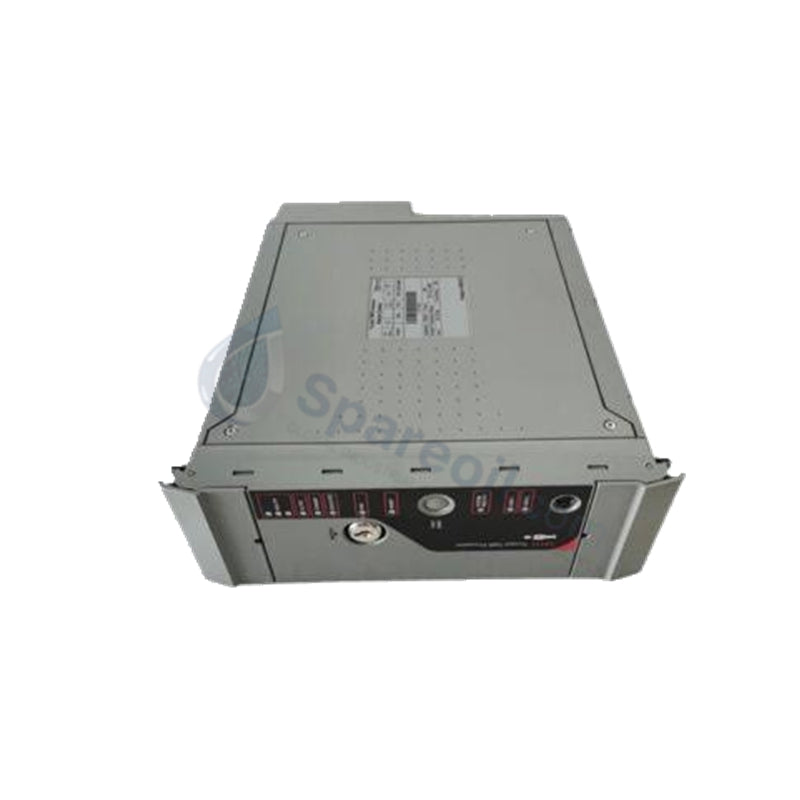

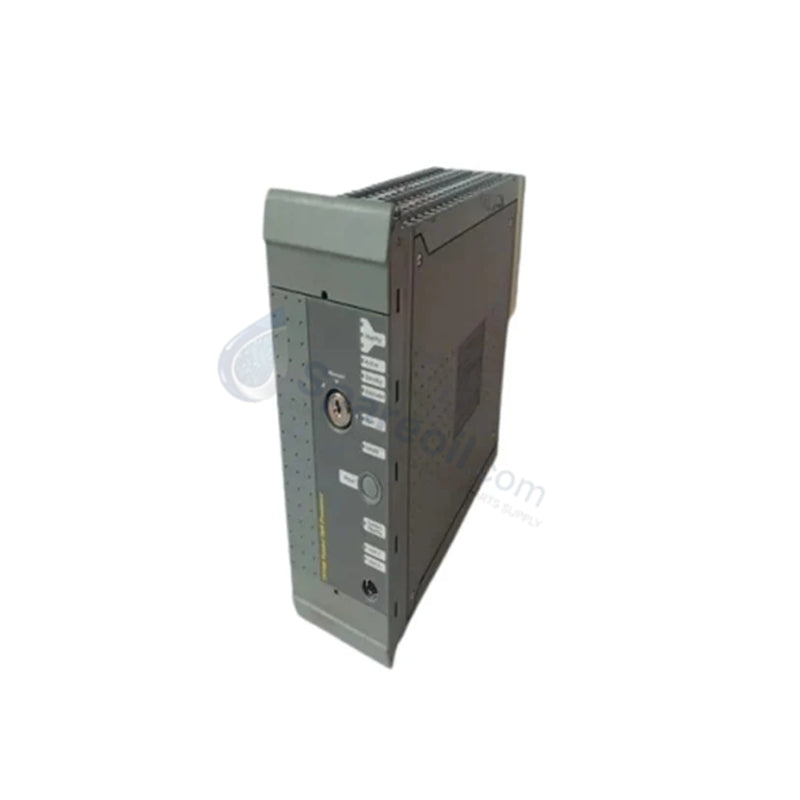

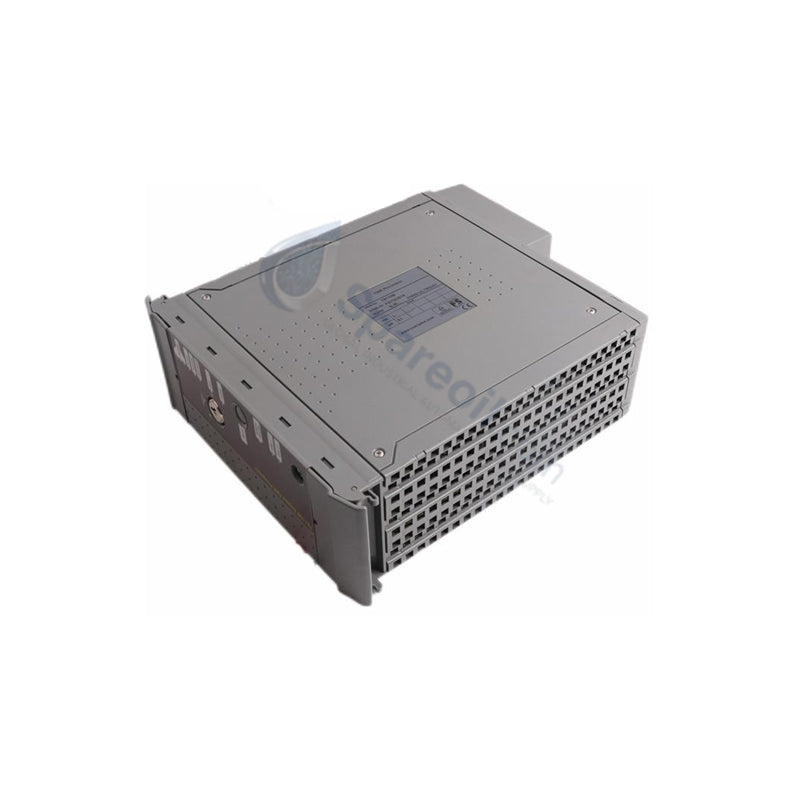

ICS Triplex T8110 Trusted Processor Module
The ICS Triplex T8110, also cataloged as the T8110 PLC Processor Module, operates as a dedicated hardware component for executing safety-critical logic within Trusted TMR safety systems. The module runs dual Motorola PowerPC processors clocked at 166 MHz to process input variables and drive deterministic logic routines over a high-speed redundant backplane interface bus. Equipped with 64 MB SDRAM featuring Error-Correcting Code (ECC) protection and 16 MB onboard Flash memory, the hardware monitors system state data through built-in self-tests and watchdog timers while supporting hot-swapping procedures under live chassis conditions.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T8110 |
| Brand | ICS Triplex (Rockwell Automation) |
| Origin | China |
| Weight | 1.0 kg |
| Dimensions | 241 mm x 30 mm x 300 mm |
| Operating Temp | -20 to +60 deg C |
| Power Consumption | Not specified (backplane draw dependent) |
| Module Type | Trusted Processor Module |
| Processor Type | Dual Motorola PowerPC CPUs |
| Clock Speed | 166 MHz per CPU |
| Memory Capacity | 64 MB SDRAM with ECC, 16 MB Flash Memory |
| Backplane Interface | High-speed redundant communication bus |
| Diagnostics | Built-in self-test, watchdog timers, error logging |
| System Compatibility | Trusted TMR safety systems |
| Hot-swappable | Yes |
| Storage Temp | -40 to +85 deg C |
| Relative Humidity | 5 percent to 95 percent, non-condensing |
| Certifications | IEC 61508 SIL 3, CE, UL, ATEX, IECEx |
Triple Modular Redundancy & Safety Execution
The T8110 processor module integrates directly into structural safety instrumented systems that mandate strict SIL3 certification via a triple modular redundancy (TMR) 2oo3 architecture. The internal computational pathways deploy extensive galvanic isolation to isolate processing channels from transient electrical anomalies across the backplane. When an internal clock deviation or hardware memory fault registers via the integrated watchdog monitors, the system commands an automated fail-safe state execution, allowing the surviving redundant processing paths to sustain the active safety loops without interrupting the underlying industrial control logic.
Frequently Asked Questions
Q: How does the ECC memory architecture impact the execution of safety logic on the T8110?
A: The 64 MB SDRAM utilizes internal Error-Correcting Code logic to detect and correct single-bit memory corruptions in real time, preventing soft memory errors from triggering unpredictable fail-safe shutdowns or logic halts.
Q: What happens to the process control loop during a hot-swap replacement of the main processor?
A: Because the module architecture functions inside a triple modular redundant environment, an operator can extract and replace a faulted T8110 module while parallel processors maintain continuous logic voting and active backplane communication without process interruption.
Q: What diagnostic metrics trigger the onboard hardware watchdog timers?
A: The watchdog timers track CPU execution cycles, power rail voltage tolerances, and background self-test responses; any failure to complete these subroutines within designated instruction windows forces the module to yield control to redundant paths.
Field Installation Guidelines
- Align the card edges with the physical guides of the main chassis enclosure, ensuring the module locks firmly into the redundant backplane connectors.
- Ground the overall system enclosure using a low-impedance copper bus bar to guarantee proper noise immunity for the high-speed data bus.
- Maintain adequate external cabinet ventilation to keep the internal operating temperature within the documented limit of -20 to +60 deg C.
- Verify that adjacent slot positions possess proper blanking plates to optimize air cooling paths across the processor heat-generating components.
- Avoid hot-swapping the hardware while external programming modifications or firmware flash routines are actively transmitting data to the flash sector.
